Summary of Contents for Entel HX2.0
-

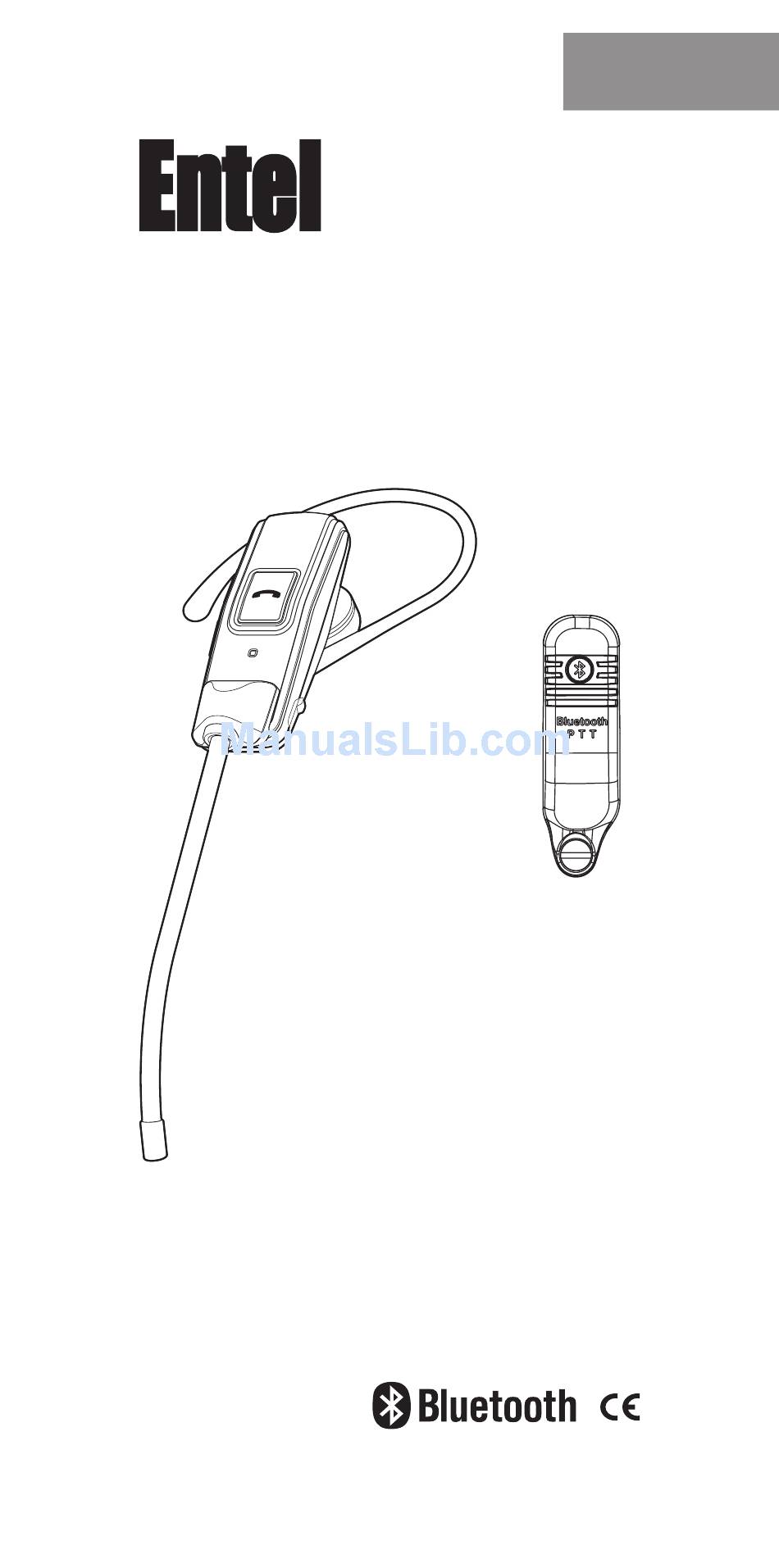

Page 1: User Guide
ENGLISH HX2.0 Bluetooth Earpiece Kit User Guide... -
Page 2: Table Of Contents
HX2.0 Bluetooth Earpiece Kit User Guide Table of Contents PRECAUTIONS ........3 End of Life Disposal ....... 3 Quick Start Guide ........4 Charging ..............4 Attaching the Bluetooth Dongle ........4 Pairing...............5 Turning On (Once Paired) ........7 How to Use Earpiece and Remote PTT ....8 Product Overview ........ -
Page 3: Precautions
HX2.0 Bluetooth Earpiece Kit User Guide PRECAUTIONS • Do not use accessories not specified by Entel • Ensure that the product is used within the parameters specified within this document • Switch the radio off before connecting or removing the Bluetooth Dongle • Keep away from humidity and dust • Do not handle the Mains Adaptor with a wet hands • Do not disassemble or modify... -
Page 4: Quick Start Guide
HX2.0 Bluetooth Earpiece Kit User Guide Quick Start Guide This is a “Quick Start Guide” only. For full product information usage and care please read all detailed instructions in this User Guide carefully and completely. Charging Fully charge before first use Use the supplied USB Multi Charging Cable connected to a PC/Laptop. The LED’s turn off when charging is completed. -
Page 5: Pairing
HX2.0 Bluetooth Earpiece Kit User Guide Pairing The following procedure must be followed in strict order Pairing Button Action LED State Ensure that the Bluetooth Dongle is attached None to the radio and that the Radio is turned off Turn On Blue LED turns Bluetooth... - Page 6 HX2.0 Bluetooth Earpiece Kit User Guide Pairing Button Action LED State Turn On Blue LED flashes Bluetooth Radio continuously Dongle (optional item) Bluetooth Dongle turns on automatically Pairing when the Button radio is turned on. Set the radio volume to maximum (this defaults...
-
Page 7: Turning On (Once Paired)
HX2.0 Bluetooth Earpiece Kit User Guide Turning On (Once Paired) Turning On Button Action LED State Bluetooth Turns on Blue LED flashes Dongle automatically 5 times when the radio is Then flashes once turned on every 5 seconds until connected Set the radio to earpiece volume to... -
Page 8: How To Use Earpiece And Remote Ptt
HX2.0 Bluetooth Earpiece Kit User Guide How to Use Earpiece and Remote PTT • Press to Talk • Release to Receive Volume Control: Use the Volume Up and Down buttons to adjust the volume with short repeated button presses in order to avoid turning the Earpiece off or putting into pairing mode. Volume Up Volume Down... -
Page 9: Product Overview
HX2.0 Bluetooth Earpiece Kit User Guide Product Overview Thank you for purchasing the Entel Bluetooth Earpiece Kit. This user guide will explain the features, to provide trouble free use. Should you notice any defects or experience any problems with this product, please contact the Entel dealer from whom you purchased it immediately. You can place your radio on a belt or other convenient position using the Bluetooth Dongle with the Bluetooth Earpiece to communicate wirelessly. Please read all instructions carefully and completely before use to ensure safe and satisfactory operation of this product. -
Page 10: Packing List
HX2.0 Bluetooth Earpiece Kit User Guide Packing List Bluetooth Dongle Bluetooth Earpiece USB Multi Charging Cable Manual Packing List HXBT HX2.0 Bluetooth Earpiece Kit BT-EA Bluetooth Earpiece BT-D Bluetooth Dongle BT-USB USB Multi Charging Cable... -
Page 11: Optional Accessories
HX2.0 Bluetooth Earpiece Kit User Guide Optional Accessories Remote PTT PTT Neck Strap PTT Belt Clip Remote PTT Remote PTT Main Adaptor with socket Optional Accessories BT-PTT Remote PTT Used to remotely initiate transmission BT-NS Neck Strap for Remote PTT Used in combination with Remote PTT to allow the Remote PTT to be worn around your neck CBHBT Belt Clip for Remote PTT... -
Page 12: Features
HX2.0 Bluetooth Earpiece Kit User Guide Features Bluetooth Earpiece The Earpiece allows you to talk to and listen to a contact wirelessly. It can be used in your left or right ear by rotating the ear clip. Speaker Multi Button (Volume up) PTT Button LED Indicator Pairing Button Changing Inlet (Volume down) -
Page 13: Bluetooth Dongle
HX2.0 Bluetooth Earpiece Kit User Guide Bluetooth Dongle The Bluetooth Dongle attaches to your radio and allows you connect with the Bluetooth Earpiece and optional Remote PTT. Pairing Button Off Button (Red/Blue) Locking Screw... -
Page 14: Remote Ptt (Optional Item)
HX2.0 Bluetooth Earpiece Kit User Guide Remote PTT (optional item) The Remote PTT allows you to remotely initiate transmission. A Neck Strap or Belt Clip are supplied separately to allow the Remote PTT to be worn around your neck or clipped to your belt or pocket. Necklace Strap Socket LED Indicator PTT Button Multi Button On/Off or Pairing Charging Socket Note The Remote PTT is an optional item and not supplied... -
Page 15: Prepare For Use
HX2.0 Bluetooth Earpiece Kit User Guide Prepare for Use Charging Both the Bluetooth Earpiece and optional Remote PTT have a built-in re-chargeable battery and must be: Fully charged before first use Use the supplied USB Multi Charging Cable connected to a PC/Laptop or with the optional Mains Adaptor. You can charge Bluetooth Earpiece and Remote PTT (optional item) at the same time. -
Page 16: Low Battery Warnings
HX2.0 Bluetooth Earpiece Kit User Guide Note The Mains Adaptor is an optional item and not supplied as standard. Low Battery Warnings Bluetooth Earpiece: The blue LED flashes twice every 1 minute and the earpiece will beep. Remote PTT: The red LED flashes once every 10 seconds. Warning Only charge with Entel supplied and supported devices and accessories. The use of unsupported devices and accessories is not... -
Page 17: Attaching The Bluetooth Dongle To The Radio
HX2.0 Bluetooth Earpiece Kit User Guide Attaching the Bluetooth Dongle to the Radio Ensure the radio is turned off Insert projecting part of the Bluetooth Dongle into the groove of the radio. Carefully without the use of tools, tighten the locking screw clockwise until the Bluetooth Dongle is secured to the radio. -
Page 18: Pairing
HX2.0 Bluetooth Earpiece Kit User Guide Pairing The following procedure must be followed in strict order Pairing Button Action LED State Ensure that the Bluetooth Dongle is attached None to the radio and that the Radio is turned off Turn On Blue LED turns Bluetooth... - Page 19 HX2.0 Bluetooth Earpiece Kit User Guide Pairing Button Action LED State Turn On Blue LED flashes Bluetooth Radio continuously Dongle (optional item) Bluetooth Dongle turns on automatically Pairing when the Button radio is turned on. Set the radio volume to maximum (this defaults...
- Page 20 HX2.0 Bluetooth Earpiece Kit User Guide In order to maximise your security and minimise inter- ference please note that only one Bluetooth Earpiece can be paired to a Bluetooth Dongle. Pairing Disconnection 1 – When the operating range is exceeded (up to 10m) pairing is disconnected and the LED on the Bluetooth Dongle will flash Blue & Red. When you come back in range within 20 minutes, your devices will be automatically reconnected. Should the devices not automatically reconnect; press the Multi Button once on the Bluetooth Earpiece and Remote PTT (optional item).
-
Page 21: Turning On (Once Paired)
HX2.0 Bluetooth Earpiece Kit User Guide Turning On (Once Paired) Turning On Button Action LED State Bluetooth Turns on Blue LED flashes Dongle automatically 5 times when the radio is Then flashes once turned on every 5 seconds until connected Set the radio to earpiece volume to... -
Page 22: Turning Off
HX2.0 Bluetooth Earpiece Kit User Guide Turning Off Turning Off Button Action LED State Bluetooth Turns on Blue LED turns off Dongle automatically when the radio is turned off. Bluetooth Press the Blue LED turns Earpiece On/Off on for 1 second... -
Page 23: How To Use Earpiece And Remote Ptt
HX2.0 Bluetooth Earpiece Kit User Guide How to Use Earpiece and Remote PTT The PTT on the Bluetooth Earpiece or Remote PTT (optional item) has been designed to work just like a conventional PTT: • Press to Talk • Release to Receive Volume Control: The volume of the Earpiece can be adjusted for your comfort using either the: • Radio volume control or... -
Page 24: Normal Radio Usage
HX2.0 Bluetooth Earpiece Kit User Guide Normal Radio Usage Whilst the Bluetooth Earpiece is paired to the Bluetooth Dongle and being used in normal Bluetooth mode, the speaker and microphone in the Bluetooth Earpiece is used. The radio’s speaker and microphone are muted and not used. You can use the radio’s PTT, this will unmute the radio microphone allowing its use, whilst all received audio will still be heard via the Bluetooth Earpiece. -
Page 25: Spare Parts
HX2.0 Bluetooth Earpiece Kit User Guide Spare Parts Bluetooth Earpiece USB Multi Charging Cable Spare Parts BT-EA Bluetooth Earpiece BT-USB USB Multi Charging Cable Specifications Bluetooth Bluetooth Dongle Earpiece Remote PTT Bluetooth® Bluetooth® Ver Bluetooth® Ver Bluetooth® Ver Version 2.0 Compatible 2.0 Compatible 2.0 Compatible Supported Headset / Headset / Bluetooth®... - Page 26 HX2.0 Bluetooth Earpiece Kit User Guide Declaration of Conformity - Bluetooth Dongle We Entel UK Limited of: 320 Centennial Avenue Centennial Park Elstree Borehamwood Hertfordshire WD6 3TJ United Kingdom Declares under our sole responsibility that the product: BT-D - Bluetooth Dongle Conforms to the following standards or other nominative documents: •...
-
Page 27: Warranty
HX2.0 Bluetooth Earpiece Kit User Guide Warranty The Entel HX2.0 Bluetooth Earpiece Kit, Bluetooth Dongle, Bluetooth Earpiece, Remote PTT and optional accessories come with a 12 month manufacturing defects warranty, for details please contact your Entel dealer. Trouble Shooting Guide Problem Probable Cause Solution Bluetooth Earpiece or Batteries need... -
Page 28: Battery Life
HX2.0 Bluetooth Earpiece Kit User Guide Problem Probable Cause Solution Bluetooth Dongle Check connection not seating correctly to accessory socket Bluetooth Dongle does not work with Remove Bluetooth the radio Dongle from radio and clean the connectors Dirty connections on the Dongle and radio and refit the Bluetooth Dongle... - Page 29 HX2.0 Bluetooth Earpiece Kit User Guide Notes ......................................................................................................................................
- Page 30 HX2.0 Bluetooth Earpiece Kit User Guide Notes ......................................................................................................................................
- Page 31 HX2.0 Bluetooth Earpiece Kit User Guide Notes ......................................................................................................................................
- Page 32 Other language versions of this User Manual can be downloaded from http://entel.co.uk/downloads/user_manuals/ © Copyright and Unregistered Design Right Entel UK 2011 All rights reserved Headquarters: United Kingdom www.entel.co.uk...
