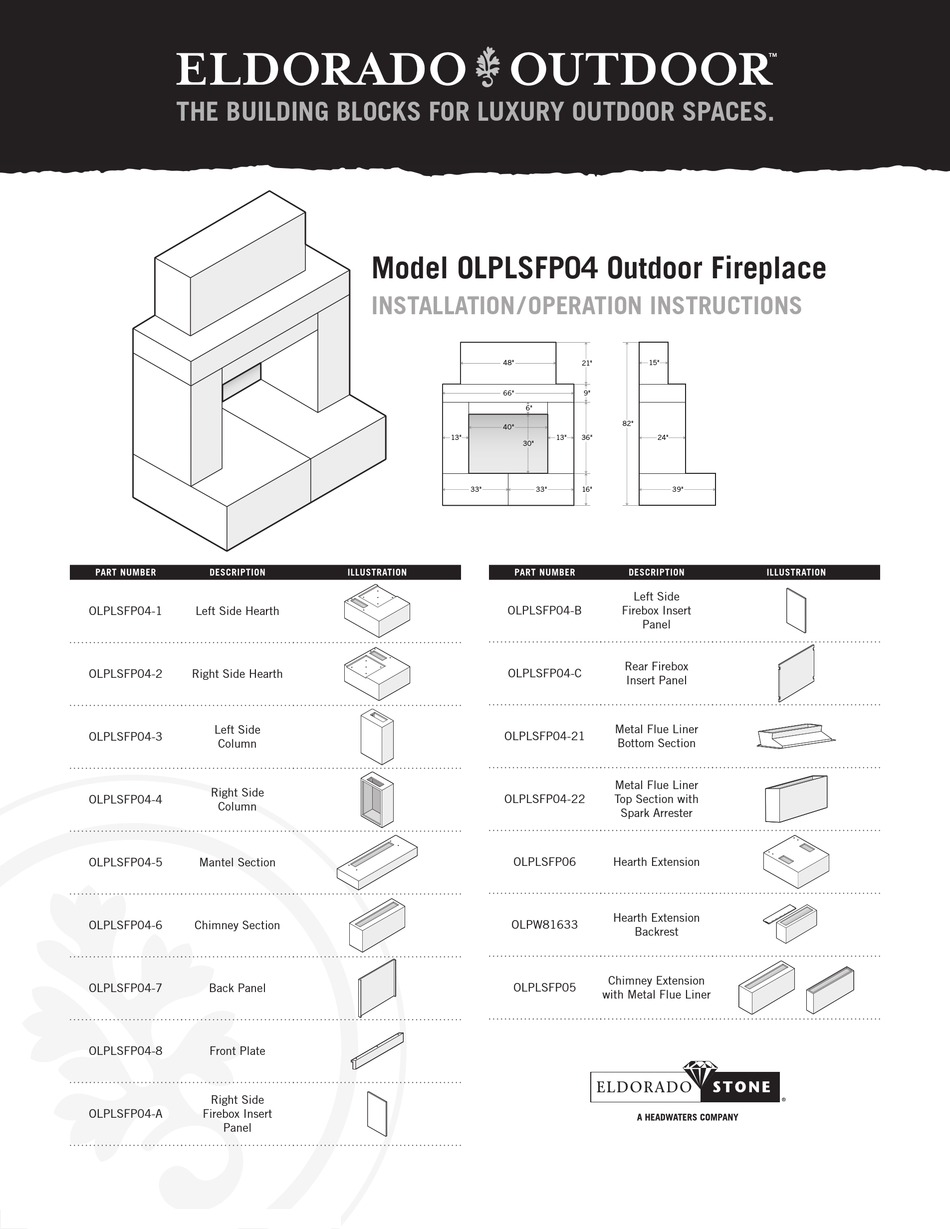

THE BUILDING BLOCKS FOR LUXURY OUTDOOR SPACES.
PART NUMBER
DESCRIPTION
OLPLSFP04-1
Left Side Hearth
OLPLSFP04-2
Right Side Hearth
Left Side
OLPLSFP04-3
Column
Right Side
OLPLSFP04-4
Column
OLPLSFP04-5
Mantel Section
OLPLSFP04-6
Chimney Section
OLPLSFP04-7
Back Panel
OLPLSFP04-8
Front Plate
Right Side
OLPLSFP04-A
Firebox Insert
Panel
Model OLPLSFP04 Outdoor Fireplace
INSTALLATION / OPERATION INSTRUCTIONS
13"
48"
66"
6"
40"
33"
13"
30"
33"
ILLUSTRATION
PART NUMBER
OLPLSFP04-B
OLPLSFP04-C
OLPLSFP04-21
OLPLSFP04-22
OLPLSFP06
OLPW81633
OLPLSFP05
48"
21"
66"
9"
6"
40"
13"
36"
21"
15"
30"
9"
82"
33"
16"
13"
36"
24"
33"
16"
39"
DESCRIPTION
Left Side
Firebox Insert
Panel
Rear Firebox
Insert Panel
Metal Flue Liner
Bottom Section
Metal Flue Liner
Top Section with
Spark Arrester
Hearth Extension
Hearth Extension
Backrest
Chimney Extension
with Metal Flue Liner
15"
82"
24"
39"
ILLUSTRATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OLPLSFP04 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldorado Stone OLPLSFP04

Summary of Contents for Eldorado Stone OLPLSFP04

  • Page 1 THE BUILDING BLOCKS FOR LUXURY OUTDOOR SPACES. 48" 21" 15" Model OLPLSFP04 Outdoor Fireplace 66" 9" INSTALLATION / OPERATION INSTRUCTIONS 6" 82" 40" 13" 13" 36" 24" 48" 21" 15" 30" 66" 9" 6" 82" 40" 33" 33" 16" 39"...
  • Page 2 Model OLPLSFP04 Outdoor Fireplace INSTALLATION / OPERATION INSTRUCTIONS WARNINGS Obtain necessary permits from authorities in local jurisdiction and comply with all local building codes. To avoid the risk of damaging fireplace materials & increasing risk of spreading fire, do not use the fireplace to cook or warm foods.

  • Page 3: Product Usage

    INSTALLATION / OPERATION INSTRUCTIONS PRODUCT USAGE The OLPLSFP04 is designed to burn solid woods or gas outdoors. This unit is not designed to sit directly against combustible materials. This unit is not designed to be built into a wood structure. The Eldorado Outdoor model number OLPLSFP04 is designed as an outdoor unit only.

  • Page 4: Maintenance

    Model OLPLSFP04 Outdoor Fireplace INSTALLATION / OPERATION INSTRUCTIONS PRODUCT USAGE VENTILATION The OLPLSFP04 is designed as an outdoor unit only. No additional ventilation or circulation is required. 10" MANTEL CLEARANCES Mantel A decorative mantel may be installed above the opening of a...
  • Page 5 Model OLPLSFP04 Outdoor Fireplace INSTALLATION / OPERATION INSTRUCTIONS INSTALLATION GUIDELINES First make sure your installation surface is clean and stable. If needed, use shims to level the fireplace during installation. The unit can be placed on a 4 in. concrete slab or a paver patio that has been installed following ICPI (Interlocking Concrete Paver Institute) guidelines.
  • Page 6 Model OLPLSFP04 Outdoor Fireplace INSTALLATION / OPERATION INSTRUCTIONS INSTALLATION GUIDELINES STEP 3: COLUMNS / LEGS ( L/R ) Apply construction adhesive around the access hole on top of the Hearth section where the column will sit. Place the column over the access hole with the open side facing inward, being sure to line up the bolt holes.

  • Page 7: Front Plate

    Model OLPLSFP04 Outdoor Fireplace INSTALLATION / OPERATION INSTRUCTIONS INSTALLATION GUIDELINES STEP 6: REAR REFRACTORY PANEL Tack the panel in place by applying construction adhesive to the backside (corners only) of the Rear Refractory Panel. Insert panel through fireplace opening with scratch coat facing out.
  • Page 8 Model OLPLSFP04 Outdoor Fireplace INSTALLATION / OPERATION INSTRUCTIONS INSTALLATION GUIDELINES STEP 9: METAL FLUE LINER – BOTTOM SECTION Make sure the Rear Refractory Panel is adhered, or supported. This flue section will rest on top of the Rear Refractory Panel and the Side Firebox inserts.
  • Page 9 Model OLPLSFP04 Outdoor Fireplace INSTALLATION / OPERATION INSTRUCTIONS INSTALLATION GUIDELINES STEP 12: CHIMNEY EXTENSION (IF APPLICABLE) Chimney Extension Add adhesive to the top of the Chimney Section where the Chimney Extension will be placed. Lift the Chimney Extension into place and line up bolt holes.

  • Page 10: Exterior Finish

    Back and Side Walls = 20 SF (depending on height of your Hearth base material) STEP 15: EXTERIOR FINISH (NOT PROVIDED) Finish exterior of the Eldorado Outdoor Wood Burning Fireplace with Eldorado Stone, Eldorado Brick, natural veneer or stucco. www.eldoradostone.com/outdoor 1.800.925.1491 Page 10 of 12...

  • Page 11: Building A Fire

    Model OLPLSFP04 Outdoor Fireplace INSTALLATION / OPERATION INSTRUCTIONS OPERATING INSTRUCTIONS This part of the manual covers methods to maximize the performance of your Eldorado Outdoor fireplace. If you are having trouble with your Eldorado Outdoor unit, please contact your installer or call 1-800-925-1491 for assistance.

  • Page 12: Disposal Of Ashes

    Model OLPLSFP04 Outdoor Fireplace INSTALLATION / OPERATION INSTRUCTIONS OPERATING INSTRUCTIONS DISPOSAL OF ASHES • Keep the base of the fireplace clean of excess ash accumulation. This will prevent grate “burn-out. ” • Keep the area directly underneath the burning logs free of ash. Make sure ash does not build up to a point where it hinders the air flow.
