Summary of Contents for LENCO BTS-5

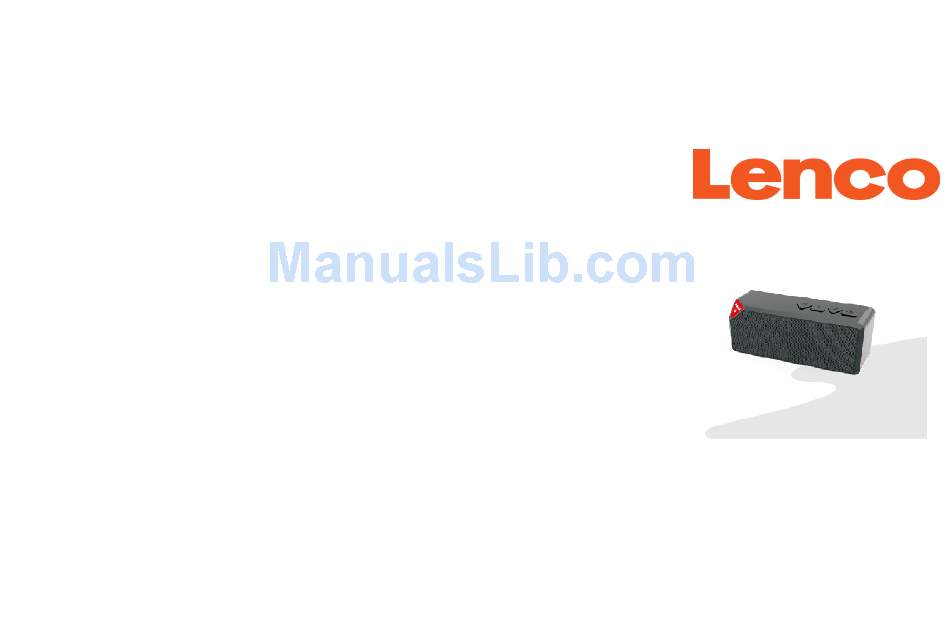

- Page 1 Operation Manual BTS-5 Please read the operation manual carefully www.lenco.com...
- Page 2 Manual for portable Bluetooth Speaker Thank you for choosing BTS-5, please read the manual carefully before using the device, it will help you to use the device correctly and enjoy it. Feature Portable and compact design, delicate appearance Easy operation with four keys...
- Page 3 Operation diagram 1.Mode change 2.Pre/volume down 3.Next/Volume up 4.Play/Pause/ phone 5.LED indicator 6.Lanyard 7.Battery cover 8.TF card port 9.LINE IN(AUX) 10.SWIFT 11.Charging port (5V/Micro USB) Instruction 1.Power swift and key function Move button to “ON” or “off” to power on or power off device : press shortly to change the mode among Bluetooth/TF read/FM Radio/AUX line in...
- Page 4 2.Bluetooth Function Pairing: open the Bluetooth in you phone or MID and keep searching, pairing code is XP831, password:0000. 3.Hands free and redial function: When your phone rings, speaker will ring, press shortly to pick up the phone Press and hold the key for 3 seconds to reject the call;...
- Page 5 Technical parameter Impedance:4 Transmission distance:10m Rated output:3W Speaker size:40mm Input Voltage:5V,500mA Audio line:3.5mm S/N:>80dB Frequency:180Hz~20kHz Sensitivity:800mV Battery: Built-in 600mAh Li-poly Attentions You can use the hands free function only in Bluetooth mode. Avoid magnetic objects while using the device Bluetooth has two signal transmission namely, headphone and headset(mono plus microphone).
- Page 6 The helpdesk is accessible from Monday till Friday from 9 AM till 6 PM. When contacting Lenco, you will always be asked for the model and serial number of your product. The serial number can be found on the back of the device. Please write down the serial...
- Page 7 Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires. This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided. This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe.
- Page 8 Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.lenco.eu/supportfiles/CE/ljuhgsiouhgoirht9oue.pdf This product operates at 2400 - 2483.5 MHz and is designated only to be used inside a normal household environment. This product is suited for this purpose within all EU counties.
