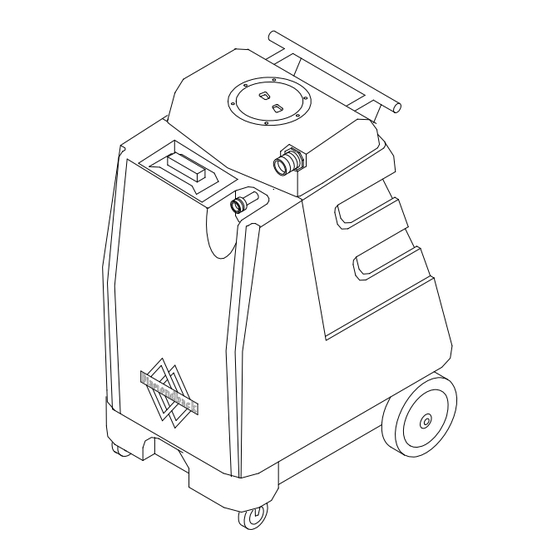

PORTABLE EXTRACTOR
MODELS:
900-01
10070480
900-04
10070500
V
86038660 05/16/11
PRV NO. 98844
Read these instructions before using the machine
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 900-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Stormchaser 900-01

Summary of Contents for Stormchaser 900-01

  • Page 1 PORTABLE EXTRACTOR Operating Instructions MODELS: 900-01 10070480 900-04 10070500 Read these instructions before using the machine 86038660 05/16/11 PRV NO. 98844...

  • Page 2: Warranty Registration

    Address: Phone Number OVERVIEW The Stormchaser is an electric powered carpet extractor intended for commercial use. This appliance applies a cleaning solution to the carpet and then vacuums the soiled water back into the recovery tank. Warranty Registration Thank you for purchasing a C400 product. Warranty registration is quick and easy.

  • Page 3: Table Of Contents

    Emptying & Cleaning Tanks.......3-4 Shut Down and Storage......3-4 MAINTENANCE Daily Maintenance ........4-1 Periodic Maintenance ........4-1 Monthly Maintenance........4-1 Semi-annually ..........4-1 Lubrication ............4-1 Storage ............4-1 Solution Pump Replacement ......4-2 Vacuum Motor Replacement ......4-2 Pump Replacement Kits .......4-3 Pressure Regulator ........4-4 Machine Troubleshooting......4-5 STORMCHASER 86038660 03/29/07...

  • Page 4: How To Use This Manual

    NOTE: If a service or option kit is installed on your machine, be sure to keep the KIT INSTRUCTIONS which came with the kit. It contains replacement parts numbers needed for ordering future parts. STORMCHASER 86038660 05/16/11...

  • Page 5: Important Safety Instructions

    This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices for more than normal housekeeping purposes. Maintenance and repairs must be done by qualified personnel. If foam or liquid comes out of machine, switch off immediately. SAVE THESE INSTRUCTIONS STORMCHASER 86038660 03/29/07...

  • Page 6: Hazard Intensity Level

    Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. STORMCHASER 86038660 03/29/07...

  • Page 7: Safety Label Location

    NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible, promptly replace them. LABEL WARNING 86242230 PRV NO. 500009 WARNING! FOR YOUR PROTECTION USE A GROUND FAULT CIRCUIT INTERRUPTER LABEL CIRCUIT INTERRUPTER 86200570 PRV NO. 170-41 STORMCHASER 86038660 03/29/07...

  • Page 8: Grounding Instructions

    The green colored rigid ear, lug, or wire extending from the adaptor must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be held in place by a metal screw. STORMCHASER 86038660 03/29/07...
  • Page 9 THIS PAGE LEFT BLANK INTENTIONALLY STORMCHASER 86038660 03/29/07...

  • Page 10: Technical Specifications

    14 gal (53 L) Weight- Empty 95 lbs (43.1 kg) Weight-Full Solution 230 lbs (104.3 kg) Height 37 inches (93.98 cm) Length 27 inches (68.58 cm) Width 20 inches (50.80 cm) Power cord 22 feet (6.71 m) LENGTH WIDTH HEIGHT STORMCHASER 86038660 10/15/07...

  • Page 11: Controls

    CONTROLS Pump Switch Vacuum #1 Switch Vacuum #2 Switch STORMCHASER 86038660 03/29/07...

  • Page 12: Machine Operation

    CHEMICALS Alkalis Aldehydes Clorox II Bleach* Aromatic Hydrocarbons Defoaming Agents Butyls Detergents Carbon Tetrachloride Hydroxides Clorox* Oxygen Bleaches Chlorinated Bleaches Soaps Chlorinated Hydrocarbons Sta-Puf Fabric D-Limonene Softener* Lysol* Vinegar Methyls (MEK) Perchlorethylene (perc) Phenols Trichlorethylene *Registered Trademark STORMCHASER 86038660 03/29/07...

  • Page 13: Shut Down And Storage

    This will cause damage to the motor, therefore voiding your warranty. CAUTION LWAYS TEST CARPET FOR COLOR FASTNESS IN AN . Also, to avoid prolonged INCONSPICUOUS PLACE drying times, do not spray too much solution in any one area. STORMCHASER 86038660 03/29/07...

  • Page 14: Maintenance

    If the cable insulation on the power cord is broken or frayed, repair or replace immediately. Don’t take chances with electrical fire or shock. 5. Clean outside of all tanks and check for damage. STORMCHASER 86038660 03/29/07...

  • Page 15: Solution Pump Replacement

    Spring inside brush housing will damage long. motor if brushes are allowed to wear away completely. 8 [9.5mm] Periodically check the length of the carbon brushes. Replace both carbon brushes when either is less than 3/8" (9.5mm) long. STORMCHASER 86038660 03/29/07...
  • Page 16 PRV NO. 84166 PRV NO. 53245 Valve Asm 86251090 Motor PRV NO. 65204 PUMP HEAD CAM & BEARING KIT 86201170 PRV NO. 250-79G VALVE & O-RINGS KIT 86201160 PRV NO. 250-79F PLUNGER & SEALS KIT 86201150 PRV NO. 250-79E STORMCHASER 86038660 03/29/07...

  • Page 17: Pressure Regulator

    4. Wipe piston and u-cup clean of any film or scale. 5. Lubricate the piston and u-cup with Superlube. 6. Reassemble regulator. 7. With pump ON, re-adjust pressure regulator for normal operation. LUBRICATE U-CUP WITH SUPERLUBE MONTHLY. U-CUP SPRING RETAINER PLATE PISTON SPRING (BLUE- 200 PSI) STORMCHASER 86038660 03/29/07...

  • Page 18: Troubleshooting

    Light carpet with no brown Go over carpet with browning prevent only prevention Solution hose connection Check for positive connection Solution not flowing Faulty pump Repair or replace properly Faulty floor tool valve Repair or replace Faulty pump switch Repair STORMCHASER 86038860 03/29/07...
  • Page 19 THIS PAGE LEFT BLANK INTENTIONALLY STORMCHASER 86038660 03/29/07...

  • Page 20: Control Panel Group

    CONTROL PANEL GROUP STORMCHASER 86038660 03/29/07...
  • Page 21 VELCRO STRAP 86256180 73195 STRAIN RELIEF, 1/2 NPT (.48ID) 86199310 110-14 CAP PLUG 7/8” 86005670 57040 NUT, 1/2 NPT CONDUIT 86200610 500346 LABEL D/B 3 SWITCH W/HEAT 86200500 140-11 KNOB RT/TANK 86005710 57105 NUT, 1/4-20 HEX W/STAR WASHER STORMCHASER 86038660 03/29/07...

  • Page 22: Frame Group (100 Psi)

    FRAME GROUP (100 PSI) STORMCHASER 86038660 03/16/09...
  • Page 23 AXLE ASM, LEFT 86199430 040-03 CASTER SWIVEL 4” 86033430 75335 TANK, SOLUTION DB BLK 100 PSI 86200630 500350 LABEL, STORMCHASER MAIN 86202240 390-24 WASHER, 1/4 X 5/8 BONDED NEOPRN 86276270 70619 SCR, 1/4-20 X 2.0 HHMS SS F/T 86232790 27912...

  • Page 24: Frame Group (200 Psi)

    FRAME GROUP (200 PSI) STORMCHASER 86038660 03/29/07...
  • Page 25 DIAMONDBACK 200 PUMP SUPPORT 86199430 040-03 CASTER SWIVEL 4” SWIVEL 86033440 75336 TANK, SOLUTION DB BLK 200 PSI 86200630 500350 LABEL, STORMCHASER MAIN 86202240 390-24 WASHER 1/4 X 5/8 BONDED NEOPRN 86276270 70619 SCR, 1/4-20 X 2.0 HHMS SS F/T 86232790 27912...

  • Page 26: Pump Group (100 Psi)

    PUMP GROUP (100 PSI) STORMCHASER 86038660 03/29/07...
  • Page 27 WASHER, 1/4 ID X 5/8 OD SS 86233150 20042 CLAMP, 3/8 HOSE (D-SLOT) 86200230 151-48B HOSE, 52.5 GRY 3/8 1/4MPTXCUT 86280830 39036 HOSE, 3/8 NYLOBRAID X 12” 86201430 250-64A SHURFLO 100 PSI PUMP DEMAND 86251110 65219 PUMP, 115V 100 PSI BYPASS W/SW (FLOJET) STORMCHASER 86038660 03/29/07...

  • Page 28: Pump Group (200 Psi)

    PUMP GROUP (200 PSI) STORMCHASER 86038660 03/29/07...
  • Page 29 70393 SET SCR, 1/4-20 X 1.25L 86005710 57105 NUT, 1/4-20 HEX W/ STAR WASHER 86222770 20042 CLAMP, 3/8 HOSE (D-SLOT) 86197940 40027 HOSEBARB, 3/8 MPT X 1/2 90º DL 86201210 65209 PUMP ASM, 200PSI N/H D.B. 5-10 STORMCHASER 86038660 03/29/07...

  • Page 30: Recovery Tank Group

    RECOVERY TANK GROUP 5-11 STORMCHASER 86038660 03/29/07...
  • Page 31 SCR, 1/4-20 X 3/4 HHCS SS 86091150 065-25 TANK BRACE ASM, D/B 86273830 70020 SCR, 1/4-20 X 1/2 HHCS SS 86200290 260-33 HOSEBARB, 1.5MPT X 1.5 86237770 35256 GASKET, DUMP VALVE 86004000 35255 GASKET, TANK LID 86090320 87257 WASHER, HOSEBARB 5-12 STORMCHASER 86038660 03/29/07...
  • Page 32 VACUMM GROUP (UPPER) 5-13 STORMCHASER 86038660 03/29/07...

  • Page 33: Vacuum Motor Group (Upper)

    CLAMP, 1.75” WORM GEAR X .312 86004190 39337 HOSE, 1.5 BLK VAC, 24” 86234900 27508 CUFF, VAC HOSE BLU 86002380 20046 CLAMP, 2.25” WORM GEAR 86267480 880292 WIRE, 4” GRN/14 76010 X 76014 86005710 57105 NUT, 1/4-20 HEX W/ STAR WASHER 5-14 STORMCHASER 86038660 03/29/07...
  • Page 34 VACUMM GROUP (LOWER) 5-15 STORMCHASER 86038660 03/29/07...

  • Page 35: Vacuum Motor Group (Lower)

    86282120 39582 HOSE, VAC EXHAUST X 9” 86002380 20046 CLAMP, 2.25” WORM GEAR 86268220 88208 WIRE, 21” GRN/14 76001 X 76010 86010640 87016 WASHER, #10 LOCK EXT STAR 86005710 57105 NUT, 1/420 HEX W/ STAR WASHER 5-16 STORMCHASER 86038660 03/29/07...

  • Page 36: Wiring Diagram (100 Psi)

    WIRING DIAGRAM (100 PSI) 5-17 STORMCHASER 86038660 03/29/07...

  • Page 37: Wiring Diagram (200 Psi)

    WIRING DIAGRAM (200 PSI) 5-18 STORMCHASER 86038660 11/05/09...

  • Page 38: Suggested Spare Parts

    86031620 85047 VAC MTR ASM, D/B RCVRY 115V ST 200 PSI ONLY 86202070 360-04B BRUSHES, VAC FOR 116392-00 86135320 140687 BRUSH SET, 120V VAC WINDSOR 1000121568 86201430 250-64A SHURFLO 100 PSI PUMP DEMAND 100 PSI ONLY 5-19 STORMCHASER 86038660 03/29/07...
