AIMS LF Series User Manual

AIMS LF Series User Manual

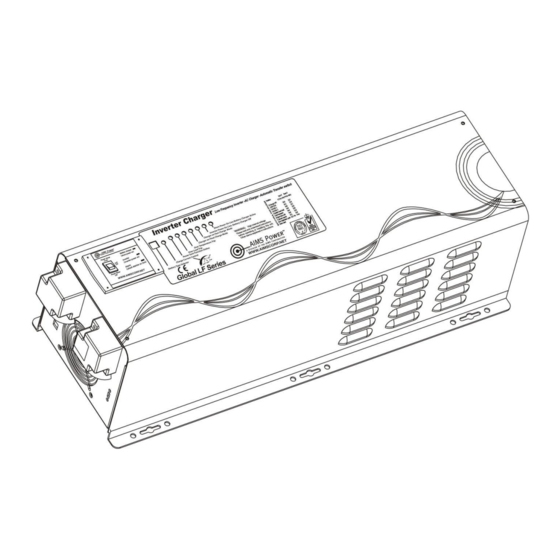

Global lf series pure sine wave inverter/ac charger

Advertisement

AIMS Power
www.aimscorp.net

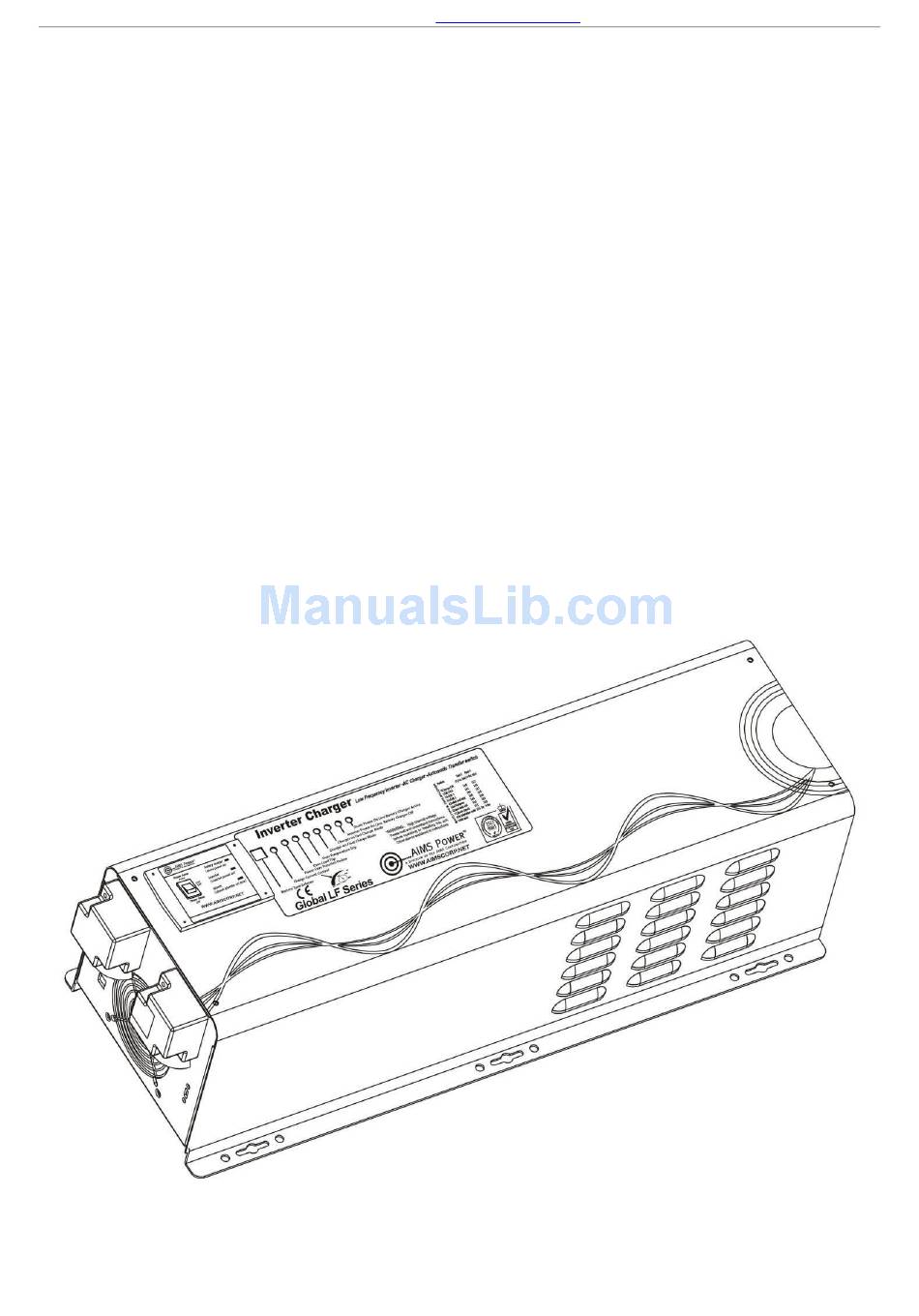

Global LF Series
Pure Sine Wave Inverter/AC
Charger
User's Manual
Version 2.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LF Series and is the answer not in the manual?

Questions and answers

Crystal
March 18, 2025

How to master reset aims LF series inverter what needs to be shutoff in order for it work

1 comments:
Mr. Anderson
May 14, 2025

To master reset the AIMS LF Series inverter, you need to shut off the inverter using either the built-in switch panel or a connected remote control panel. After a fault (such as over-temperature or output short circuit), the inverter will not restart automatically. You must manually reset it by turning it off and then back on after the fault is cleared. Ensure the inverter is completely off before resetting.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for AIMS LF Series

  • Page 1 AIMS Power www.aimscorp.net Global LF Series Pure Sine Wave Inverter/AC Charger User’s Manual Version 2.0...
  • Page 2: Table Of Contents

    AIMS Power www.aimscorp.net Table of Contents 1. Important Safety Information..............................3 1-1. General Safety Precautions..............................3 1-2. Precautions When Working with Batteries...........................3 2. Introduction....................................4 2-1. General Information ................................4 2-2. Application .................................... 4 2-4. Features ....................................7 2.5.1 Invert....................................7 2.5.3 Transfer..................................10 2.5.4 Auto Frequency Adjust..............................11 2.5.5 Power Saver................................11...
  • Page 3: Important Safety Information

    AIMS Power www.aimscorp.net 1. Important Safety Information WARNING! Before using the Inverter, you need to read and save the safety instructions. 1-1. General Safety Precautions 1-1-1.Do not expose the Inverter to rain, snow, spray, bilge or dust. To reduce risk of hazard, do not cover or obstruct the ventilation openings.
  • Page 4: Introduction

    2. Introduction 2-1. General Information Global LF Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto- transfer switch into one complete system with a peak conversion efficiency of 88%. It is packed with unique features and it is one of the most advanced inverter/chargers in the market today.
  • Page 5 AIMS Power www.aimscorp.net 2.3 Mechanical Drawing PICOGLF 1-3KW Models...
  • Page 6 AIMS Power www.aimscorp.net PICOGLF 4-6KW Models...
  • Page 7: Features

    The peak efficiency of the Global LF series is 88%. Overload Capacity The Global LF series inverters have high overload capacities, making it ideal to handle demanding loads. 1 For 110%<Load<125%(±10%), no audible alarm for 14 minutes, beeps 0.5s every 1s in the 15th minute, and Fault(Turn off) after the 15th minute.
  • Page 8 243VAC(95-127VAC for 120V model), and AC freq is in the range of 48-54Hz(58-64Hz for 60Hz model). The Global LF series inverter has a very rapid charge current available, and the max charge current can be adjusted from 0%-100% via a liner switch to the right of the battery type selector. This will be helpful if you are using our powerful charger on a small capacity battery bank.
  • Page 9 Charging depleted batteries The Global LF series inverter allows start up and through power with depleted batteries. For 12VDC models: after the battery voltage goes below 10V and the power switch is kept in the "ON"...
  • Page 10: Transfer

    AIMS Power www.aimscorp.net position and the inverter stays connected to the battery and the battery voltage doesn’t drop below 2V, the inverter will be able to charge the battery once qualified AC inputs are present. Before the battery voltage goes below 9VDC, the charging can be activated when the switch is turned to “Off”, then to “ON”.
  • Page 11: Auto Frequency Adjust

    AIMS Power www.aimscorp.net input terminals to when the transfer is made. This delay is built in to provide time for a generator to spin-up to a stable voltage and avoid relay chattering. The inverter will not transfer to generator until it has locked onto the generator’s output.
  • Page 12 AIMS Power www.aimscorp.net The Global LF Series is designed with extraordinarily low idle power consumption which is only a mere 0.8-1.8% of its rated power. Global LF Series Idle Power Consumption (in Watts) Model NO Power Saver Off Power Saver On (3Secs)
  • Page 13: Protections

    The inverter will go to Over temp protection when the heat sink temp. ≥105ºC(221 ), and go to Fault (shutdown Output) after 30 seconds. The switch has to be reset to activate the inverter. The Global LF series Inverter has back feeding protection which avoids presenting an AC voltage on the AC input terminal in Invert mode.
  • Page 14: Led Indicator

    AIMS Power www.aimscorp.net 2.5.8 LED Indicator SHORE POWER ON GREEN LED lit in AC Mode INVERTER ON GREEN LED lit in Inverter Mode FAST CHARGE Yellow LED lit in Fast Charging Mode FLOAT CHARGE GREEN LED lit in Float Charging Mode...
  • Page 15: Dip Switches

    AIMS Power www.aimscorp.net Condition Enter Condition Leave condition Speed HEAT SINK T ≤ 60℃(140℉) T > 65℃(149℉) 65℃(149℉)≤ T < 85 ℃(185 ) ℉ ℉ TEMPERATURE T ≤ 60℃(140℉) or T ≥ 85℃(185 ) ℉ ℉ T > 85℃(185 ) T ≤...
  • Page 16: Other Features

    AIMS Power www.aimscorp.net This will avoid frequent switches between battery and generator. But some sensitive loads will suffer from the low quality power. The pros and cons should be clearly realized. Load Sensing Cycle: The inverter is factory defaulted to detect load for 250ms every 30 seconds. This cycle can be customized to 3 seconds through SW3 on the DIP switch.
  • Page 17: Installation

    AIMS Power www.aimscorp.net AIMS Power entire line of Global LF inverters have been processed with a conformal coating on the PCB, making it water, rust, and dust resistant as well as corrosion resistant. While these units are designed to withstand corrosion from the salty air, they are not splash proof.
  • Page 18: Ac Wiring

    AIMS Power www.aimscorp.net WARNING In the event of reverse polarity the unit could be totally destroyed and warranty voided! 3.3 AC Wiring We recommend using 10 to 5Awg wire to connect to the ac terminal block. When in AC mode the AC input power will supply both the loads and AC charger, a thicker wire gauge for AC Input is required.
  • Page 19: Grounding

    AIMS Power www.aimscorp.net Wiring Option 3 230V split phase Input: Hot line+ Hot line +Ground Output: Hot line +Neutral Remark: In such case, each output hotline can only carry a max of half the rated capacity. Caution: Wiring Option 2 and Wiring Option 3 are only allowed for the following models: PICOGLF50W24V230VS, PICOGLF50W48V230VS, PICOGLF60W24V230VS, PICOGLF60W48V230VS.
  • Page 20: Install Flange

    AIMS Power www.aimscorp.net 3.5 Install Flange 1000W 1500W Models 2000W 3000W Models 4000W 6000W Models...
  • Page 21 AIMS Power www.aimscorp.net Side View...
  • Page 22: Troubleshooting Guide

    AIMS Power www.aimscorp.net 4 Troubleshooting Guide Troubleshooting contains information about how to troubleshoot possible error conditions while using the Global LF Inverter & Charger. The following chart is designed to help you quickly pinpoint the most common inverter failures. Indicator and Buzzer...
  • Page 23: Warranty

    AIMS Power www.aimscorp.net time. Charger is inoperative and unit AC voltage has dropped Check the AC voltage for proper will not accept AC. voltage and frequency. out-of-tolerance Charger is supplying a lower Charger controls are improperly Refer to the section on adjusting charge rate.
  • Page 24 We will do our best to resolve your concerns. If the product needs repair or replacement, make sure to keep your receipt/invoice, as that will need to be sent back along with the package and RA# prepaid to AIMS. You have a full 1 year from date of purchase warranty.
  • Page 25: Appendix 1

    AIMS Power www.aimscorp.net Appendix 1 Global Low Freq Series Inverter & AC Charger Electrical Specifications   Model 1.5KW Inverter Continuous Output 1000W 1500W 2000W 3000W 4000W 5000W 6000W Output Power Surge Rating(20s) 3000W 4500W 6000W 9000W 12000W 15000W 18000W Capable of Starting 1.5HP...
  • Page 26 AIMS Power www.aimscorp.net Gel Euro 14.4 13.8 Open Lead Acid 14.8 13.3 Calcium 15.1 13.6 De-sulphation 15.5 for 4hrs Remote Control Yes. Optional Bypass & Input Voltage Waveform Sine wave (Grid or Generator) Protection Nominal Voltage 120Vac 230Vac Low Voltage Trip 80V/90V±4%...
