Wireless Alarm Model MO15
Please read instruction booklet
The alarm can be used for several applications
l
Wander alarm
l
Sit up alarm
l
Sleepwalking alarm
Up to seven clients can be monitored with one receiver
Ideal for nursing/care homes, special schools, hospitals,
Helps to prevent bed sores and broken bones in
Dementia, Alzheimer's, Memory Loss, the Elderly,
Universal
©
IMPORTANT
before use
Instructions for use
or combinations:
institutions and individuals
People with Special Needs
l
Continence alarm
l
Enuresis alarm
l
Dialysis leakage alarm
©

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Universal MO15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Malem Universal MO15

Summary of Contents for Malem Universal MO15

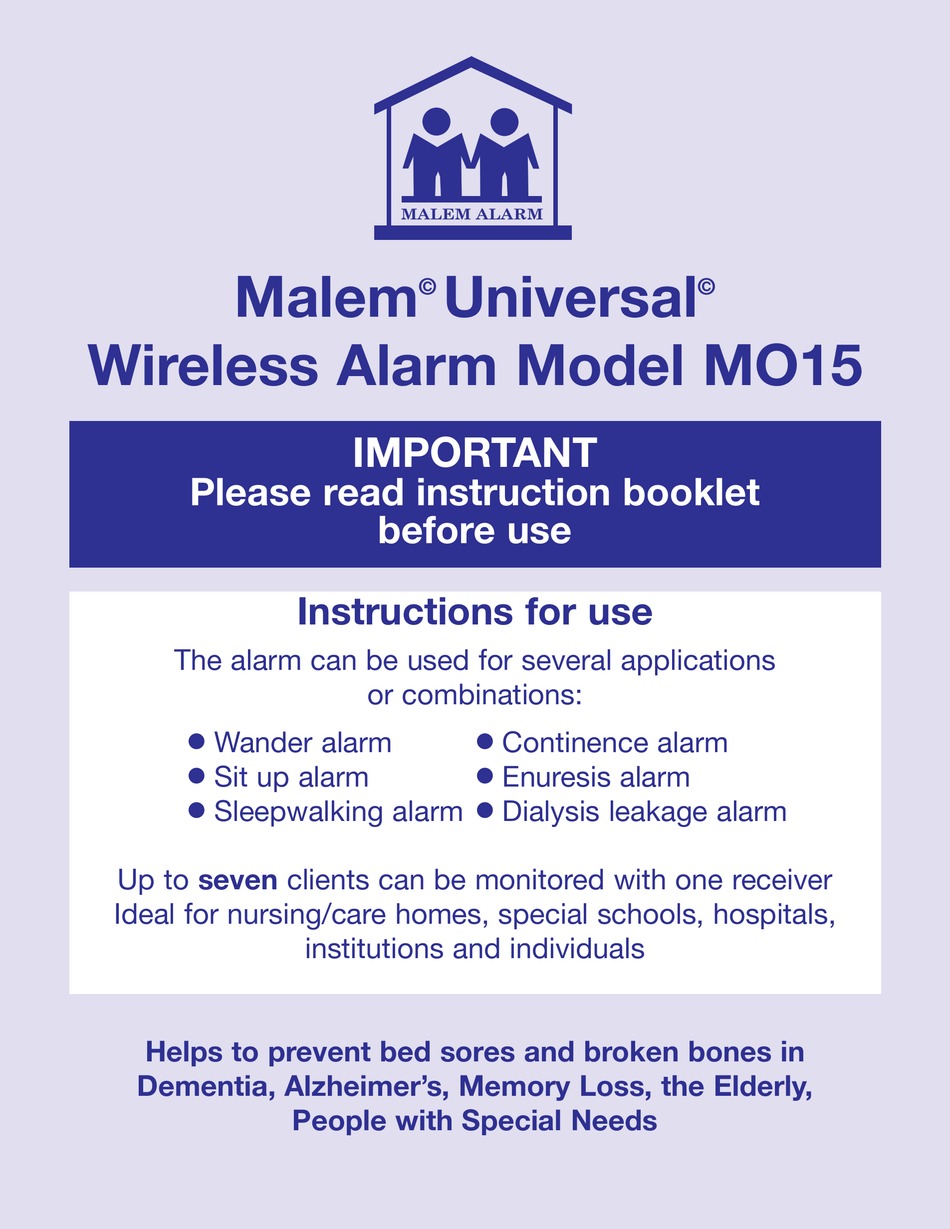

  • Page 1 Malem Universal © © Wireless Alarm Model MO15 IMPORTANT Please read instruction booklet before use Instructions for use The alarm can be used for several applications or combinations: Wander alarm Continence alarm Sit up alarm Enuresis alarm Sleepwalking alarm Dialysis leakage alarm...
  • Page 2 Wireless Alarm is designed © © as a helpful and versatile aid. It is not intended to replace human care or supervision and the manufacturer, Malem Medical, is not responsible for any consequences resulting from the use, misuse or failure of this device.

  • Page 3: Table Of Contents

    Contents Instructions for Use Easy-Clip © Sensor................2 Standard Sensor ................3 Bed-Mat ..................4 Wander-Mat ..................6 Dialysis-Mat ................7 Resetting Receiver (Rx) Sound ............7 Channel Selection ................8 Receiver LED Number Selection..........8 Re-tuning (Pairing)................8 Sound Selection Switch ..............8 Batteries ..................9 Guarantee ..................9 Repairs ..................9 Cleaning..................10 Disposal..................10 Fault Finding ................10...

  • Page 4: Easy-Clip © Sensor

    © UNIVERSAL Remove insulator from battery compartment WIRELESS ALARM TRANSMITTER MO15(Tx) (if present) of the transmitter (Tx) unit. See page 14. Plug the sensor of choice into the transmitter (Tx) unit. See pages 17 & 18. © If used with Easy-Clip Sensor (EC): ©...

  • Page 5: Standard Sensor

    If used with Standard Sensor (BT): Absorbent pad: Cut off one end of an absorbent pad such as sanitary or incontinence pad and insert the sensor in between the layers. Anchor with crocodile clip to prevent sensor from being pulled out. Uncover the backing strip and stick Please note that sensor and clip the pad inside a pair of close fitting...
  • Page 6 If used with Bed-Mat Sensor (BM): Under no circumstances should the transmitter (Tx) be attached to the users’ clothing when using a Bed-Mat. Place a clean and dry Bed-Mat correct side up over the mattress in the area which is normally wetted and gently tie down. See page 5. Cover the Bed-Mat with a Clean Dry Cotton sheet and/or Bath Towel and make the bed up as usual.

  • Page 7: Bed-Mat

    Under NO circumstances should MALEM © UNIVERSAL WIRELESS ALARM TRANSMITTER MO15(Tx) the transmitter (Tx) be attached to the users’ clothing when using a Bed-Mat. Holes for tying Bed-Mat to the mattress. If using a plastic protective mattress sheet place adhesive tape over the Bed-Mat lower contacts.

  • Page 8: Wander-Mat

    Hints regarding the use of Bed-Mat: Press the reset button once, receiver alarm sound will stop. LED will continue to flash. If the Bed-Mat is not dried or disconnected, the alarm sound will start again within two minutes. Press and hold the reset button for two seconds to stop the alarm and turn off the LED.

  • Page 9: Dialysis-Mat

    If used with Dialysis-Mat Sensor (DM): a) Select the correct side of the Mat with shiny tracks up. b) Place the Mat over the chair arm. c) Plug the Mat wire into the Transmitter, tuck the wire and place Tx out of the way in a safe place.

  • Page 10: Channel Selection

    Channel Selection see diagram on page 14 © The Malem Universal Wireless Alarm consists of a receiver which can be paired with up to seven transmitters. To avoid interference from the 7 transmitters or other wireless equipment, you need to select different channel settings for each of the transmitters.

  • Page 11: Batteries

    See page 14. Guarantee © Under normal usage, the Malem Universal Wireless Alarm is guaranteed for a period of three months from purchase. This excludes batteries, sensors, Bed-Mat, Wander-Mat, Dialysis-Mat, safety pin, flooding, misuse or accidental damage. If the alarm should malfunction during this period, please contact us before sending.

  • Page 12: Cleaning

    Cleaning Alarm units (Tx and Rx): Wipe clean alarm and safety pin using a damp cloth and mild detergent or skin disinfectant. NEVER IMMERSE IN WATER Sensors (wash regularly): © Easy-Clip - lift lever, wash in warm soapy water, rinse under the tap and shake dry.

  • Page 13: Specification Tx & Rx

    Adjust sound level with volume control. See diagram on page 15. LED flashing rapidly: Replace battery. Specifications MO15 Transmitter (Tx) Colour: red Weight: 33g including battery, 25g without battery Dimensions: length: 50mm width: 45mm depth: 21mm Range: approximately 25m depending on nature of the structure and the state of the battery.
  • Page 14 Wander-Mat: 75 x 40 cm. Wire 150 cm. Use pressure on or pressure off (for pressure off use with ‘inverter’). Dialysis-Mat: 22 x 17 cm. Wire 100 cm. Keep clean and wipe dry. Malem Medical reserves the right to change specifications without prior notice. ©2011 Malem Medical...

  • Page 15: Diagrams Tx & Rx

    © Malem Universal Wireless Alarm Transmitter MODEL MO15 (Tx) Red LED flashes when Tx is active. Please do not leave on as this will drain © the battery. If using the Easy-Clip sensor, please make sure the lever is up when not in use or unplug the sensor from the socket.
  • Page 16 © © Malem Universal Wireless Alarm Transmitter MODEL MO15 (Tx) Safety pin slide cover sideways lock unlock Receiver LED to lock or unlock Channel selection selection switch switch Battery Safety pin compartment replacement To open place slotted OPEN screwdriver in...
  • Page 17 © © Malem Universal Wireless Alarm Receiver MODEL MO15 (Rx) Mute/reset Buzzer Red LEDs 1-7 Press and MUTE / RESET BUZZER Each light hold for 3 corresponds to the sec to reset PRESS & HOLD FOR 3 SEC TO RESET transmitter it is paired with.
  • Page 18 © © Malem Universal Wireless Alarm Receiver MODEL MO15 (Rx) To reset and erase all pairing memory use Tx Rx Pairing paper clip. Insert the end of a paper clip into the hole. Only use default to erase all pairing memory.

  • Page 19: How To Connect Tx With Different Sensors

    Activation of the Tx using different sensors 1. Activation by Easy-Clip Sensor © or Standard Sensor Malem Transmitter (Tx) Standard Sensor (BT) MALEM © © UNIVERSAL Easy-Clip Sensor (EC) WIRELESS ALARM TRANSMITTER MO15 (Tx) Lever - Keep up when not in use. Clean clip Plug sensor into Tx socket regulary.
  • Page 20 3. Activation using a Dialysis-Mat Malem Transmitter (Tx) 22 cm RJ10 plug MALEM © UNIVERSAL WIRELESS ALARM TRANSMITTER MO15 (Tx) Plug Dialysis Mat RJ10 DM connection wire plug into the Malem Dialysis-Mat (DM) 100 cm transmitter socket...
  • Page 21 Wander-Mat with inverter 4. Activation by applying pressure 75 cm Malem Transmitter (Tx) RJ10 MALEM © WANDER MAT UNIVERSAL plug WIRELESS ALARM TRANSMITTER MO15 (Tx) Plug WM plug into Tx Wander-Mat (WM) WM connection wire socket 150 cm 5. Activation by removing pressure:...

  • Page 22: The Inverter

    Malem Wander-Mat Inverter front: © MALEM LED light WANDER The RJ10 plugs into the transmitter (Tx) INVERTOR Battery test button The RJ10 Wander-Mat (WM) plug, plugs into the inverter socket Please plug in the inverter wire between the Wander-Mat and the transmitter.
  • Page 23 Malem Wander-Mat Invertor back: Use slotted screwdriver to open. Place tip in slot and twist. RJ10 plug Battery test button RJ10 socket Please observe correct polarity. Contacts clean and battery not loose inside compartment. Pull metal contact to make good connection. Use only 23A 12V Alkaline battery.
  • Page 24 -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Malem Medical, 10 Willow Holt, Lowdham Nottingham NG14 7EJ, England, UK Tel: + 44 (0)115 966 4440 Fax: + 44 (0)115 966 4672 E-mail: malem@malem.co.uk...
