WDV See-thru
Wideview
Direct Vent
Gas Fireplace
WarnInGS
IF The InFOrMaTIOn In TheSe InSTrucTIOnS
are nOT FOllOWeD exacTly, a FIre
Or explOSIOn May reSulT cauSInG
prOperTy DaMaGe, perSOnal Injury Or
lOSS OF lIFe.
–
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
–
WhaT TO DO IF yOu SMell GaS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
–
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
WarnInG: Improper installation, adjustment,
alteration, services or maintenance can cause
injury or property damage. refer to this manual.
For assistance or additional information
consult a qualified installer, service agency or
the gas supplier.
This appliance may be installed in an aftermarket*,
permanently located, manufactured home (uSa
only) or mobile home, where not prohibited by local
codes.
This appliance is only for use with the type(s) of
gas indicated on the rating plate unless a certified
kit is used.
*aftermarket: completion of sale, not for purpose of resale, form
the manufacturer.
Model:
WDVST500
Installation &
Operating Instructions
782082

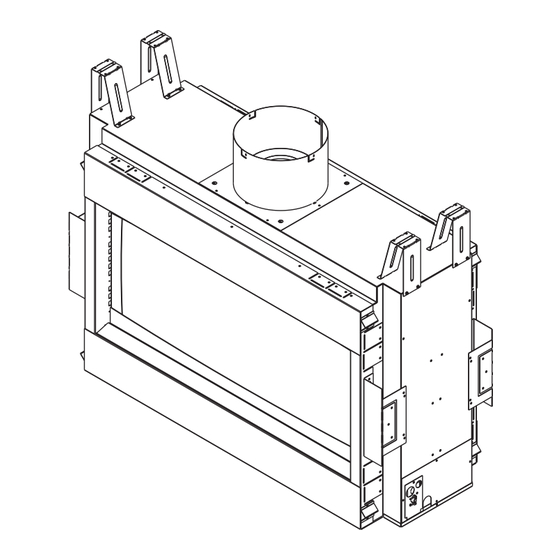

WDVST cover
WarnInG
Due TO hIGh TeMperaTureS, The applIance
ShOulD Be lOcaTeD OuT OF TraFFIc anD
aWay FrOM FurnITure anD DraperIeS.
chIlDren anD aDulTS ShOulD Be alerTeD
TO The haZarDS OF hIGh SurFace
TeMperaTure anD ShOulD STay aWay TO
aVOID BurnS Or clOThInG IGnITIOn.
yOunG chIlDren ShOulD Be SuperVISeD
When They are In The SaMe rOOM aS The
applIance.
clOThInG Or OTher FlaMMaBle MaTerIal
ShOulD nOT Be placeD On Or near The
applIance.
Keep The rOOM area clear anD Free
FrOM cOMBuSTIBle MaTerIalS, GaSOlIne,
anD OTher FlaMMaBle VapOrS anD
lIquIDS.
InSTaller: leave this manual with the appliance.
cOnSuMer: retain this manual for future refer-
ence.
78D2082 3/13 Rev. 6
Advertisement
Table of Contents
Related Manuals for Vermont Castings WDVST500
Summary of Contents for Vermont Castings WDVST500
-
Page 1: Operating Instructions
WDV See-thru Wideview Direct Vent Gas Fireplace Model: WDVST500 WarnInGS Installation & IF The InFOrMaTIOn In TheSe InSTrucTIOnS Operating Instructions are nOT FOllOWeD exacTly, a FIre 782082 Or explOSIOn May reSulT cauSInG WDVST cover prOperTy DaMaGe, perSOnal Injury Or lOSS OF lIFe. -
Page 2: Table Of Contents
WDV See-thru Gas Fireplace Thank you and congratulations on your purchase of a Vermont castings Group Fireplace. pleaSe reaD The InSTallaTIOn anD OperaTIOn InSTrucTIOnS BeFOre uSInG The applIance! IMpOrTanT: read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty. -
Page 3: Important Safety Information
IMpOrTanT SaFeTy InFOrMaTIOn WDV See-thru Gas Fireplace OWner InSTaller Please retain these instructions for future reference. Please leave these instructions with the appliance. • read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. •... -
Page 4: Code Approval
VENTED GAS FIREPLACES in the USA and Canada as follows: lISTeD VenTeD GaS FIreplaceS WDVST500 TESTED TO: ANSI Z21.50b-2009 / CSA 2.22b-2009 STANDARDS A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home... -
Page 5: Product Features
prODucT FeaTureS and cODe apprOVal WDV See-thru Gas Fireplace GaS SpecIFIcaTIOnS & OrIFIce SIZe prODucT SpecIFIcaTIOnS Orifice • This appliance has been certified for use with either Max.Input Min. Input Size natural or propane gas. See appropriate data plates. Model Fuel BTu/h BTu/h... -
Page 6: Fireplace & Framing Dimensions
FIreplace & FraMInG DIMenSIOnS WDV See-thru Gas Fireplace ” 25 ” (654 mm) (221 mm) 17 ” (441 mm) Min. Rough Opening Width 1/2” or (51 ” (1314 mm) 5/8” Required Noncombustible Min. Rough Material Area Opening Height 6” 38 ” (152 mm) 37 ” 38 ” (978 mm) (956 mm) (975 mm) 17 ” 36 ” (454 mm) (918 mm) ”... -
Page 7: Fireplace Location
pre-InSTallaTIOn InFOrMaTIOn WDV See-thru Gas Fireplace FIreplace lOcaTIOn Plan for the installation of your appliance. This includes determining where the unit is to be installed, the vent con- figuration to be used, framing and finishing details, and whether any optional accessories (i.e. blower, wall switch, or remote control) are desired. -
Page 8: Clearances
clearanceS WDV See-thru Gas Fireplace clearanceS TO cOMBuSTIBleS Follow these instructions carefully to Wall Stud ensure safe installation. Failure to follow instructions exactly can create a fire Insulation 12" (305 mm) Board hazard. Standoff The appliance cannot be installed on a 6"... -
Page 9: Secure Fireplace To Floor Or Framing
Secure FIreplace to FlOOr or FraMInG WDV See-thru Gas Fireplace The fireplace must be secured to the floor and/or to framing studs as shown in Figure 6. Use two (2) wood screws or never install combustible materials over masonry/ concrete screws to secure fireplace to the floor. front face of fireplace. -
Page 10: Venting Installation
Installation of any damaged venting component. • Unauthorized modification of the venting system. • Installation of any component part not manufactured or approved by Vermont Castings Group. • Installation other than permitted by these instruc- tions. Figure 7 - Combustible Clearances for Vent Pipe... -
Page 11: Installation Planning
VenT InSTallaTIOn WDV See-thru Gas Fireplace InSTallaTIOn plannInG never run the vent pipe level down. This There are two basic types of direct-vent installation: may cause excessive temperatures which • Horizontal Termination could cause a fire. • Vertical Termination It is important to select the proper length of vent pipe for the type of termination you choose. - Page 12 3. Vermont Castings Group assumes no responsibility for only permitted if veranda, porch, deck or balcony is fully open on a the improper performance of the appliance when the venting minimum 2 sides beneath the floor: system does not meet these requirements.
-
Page 13: Vent Graph
VenTInG InSTallaTIOn WDV See-thru Gas Fireplace Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Alcove Applications* Outside Corner Combustible 6" (152 mm) Combustible 6" (152 mm) Noncombustible 2" (51 mm) Noncombustible 2" (51 mm) Balcony - Balcony - with no side wall with perpendicular side wall... -
Page 14: Vertical Sidewall Installation
VenTInG InSTallaTIOn WDV See-thru Gas Fireplace VerTIcal SIDeWall InSTallaTIOn nOTe: Sealant is not required to assemble fireplace venting. Do not use silicone sealant at the inner flue exhaust connections. Step 1 Locate vent opening on the wall. It may be necessary to first position the fireplace and measure to obtain hole lo- cation. -
Page 15: Vertical/Horizontal Termination Configurations
VenTInG InSTallaTIOn WDV See-thru Gas Fireplace VerTIcal/hOrIZOnTal TerMInaTIOn Max. 36" cOnFIGuraTIOnS (914mm) Max. 20" Since it is very important that the venting system main- (508mm) tain its balance between the combustion air intake and 12" Min. the flue gas exhaust, certain limitations as to vent con- figurations apply and must be strictly adhered to. -
Page 16: Below Grade Installation
VenTInG InSTallaTIOn WDV See-thru Gas Fireplace If installing a snorkel, a minimum 12" vertical rise is neces- Example: Elbow 1 = 90° sary. The maximum horizontal run with the 12” vertical pipe Elbow 2 = 45° is 36". This measurement is taken from the collar of the Elbow 3 = 45°... -
Page 17: Vertical Through-The-Roof
VenTInG InSTallaTIOn WDV See-thru Gas Fireplace • Up to two 45° elbows may be used within the horizontal run. For each 45° elbow used on the horizontal plane, the maximum horizontal length must be reduced by 18" Snorkel (450 mm). Foundation Example: Maximum horizontal length Recess... -
Page 18: Installation For Vertical Termination
VenTInG InSTallaTIOn WDV See-thru Gas Fireplace installation for vertical termination 1. Determine the route your vertical venting will take. If Roof Flashing ceiling joist, roof rafters or other framing will obstruct the venting system, consider an offset. Refer to Figure 22 to avoid cutting load bearing members. - Page 19 VenTInG InSTallaTIOn WDV See-thru Gas Fireplace 3. Cut a hole in the roof using the locating hole as a center TerMInaTIOn heIGhTS FOr VenTS aBOVe FlaT Or point. (Cover any exposed open vent pipes before SlOpeD rOOFS cutting hole in roof). The 10Z\x"x10Z\x" (241 x 241 mm) Horizontal Overhang hole must be measured on the horizontal.
-
Page 20: Flex Vent Installation
Flex VenT InSTallaTIOn WDV See-thru Gas Fireplace 1. Flexible UL1777 listed venting may be used in any UL1777 Flex Vent venting application where rigid direct vent components can be used. all restrictions, clearances and allow- ances that pertain to the rigid piping apply to the flexible venting. - Page 21 D. Attaching flexible venting to vertical termination 2. Connect the 8" flexible vent to the termination assemblies. ring as in Figure 30. 1. When using Simpson pipe, a Vermont Castings 3. Review Figure 30 for proper overlap and clamp Group flex-to-pipe adapter (FPA) and/or rigid placement.
-
Page 22: Fireplace Installation
FIreplace InSTallaTIOn WDV See-thru Gas Fireplace checK GaS Type Use proper gas type for the fireplace you are installing. If you have conflicting gas type, do not install fireplace. See dealer where you purchased the fireplace for proper 100 gallon (min) Propane/LP Supply fireplace for your gas type or conversion kit. - Page 23 FIreplace InSTallaTIOn WDV See-thru Gas Fireplace a manual shutoff valve must be installed Only persons licensed to work with gas upstream of the appliance. union tee piping may make the necessary gas and plugged 1/8" npT pressure tapping connections to this appliance. point should be installed upstream of the appliance.
-
Page 24: Check Gas Pressure
SIGnaTure cOMManD - checK GaS preSSure WDV See-thru Gas Fireplace 1. Check gas type. The gas supply must be the same as Pressure Inlet stated on the appliance’s rating decal. If the gas supply is different from the fireplace, STOp! Do not install the appliance. -
Page 25: Electrical Installation
elecTrIcal InSTallaTIOn WDV See-thru Gas Fireplace juncTIOn BOx WIrInG 1. This should be done before framing the fireplace. Wire the receptacle into an electrical circuit. Wire with mini- mum 60° C wire in accordance with prevailing codes. 2. Remove the external junction box cover by removing the screw from the side of the outside firebox wall. -
Page 26: Scs Wiring Diagram
elecTrIcal InSTallaTIOn WDV See-thru Gas Fireplace Light Pilot 300 Watt Max. A/C MODULE TO JUNCTION BOX IN FIREPLACE WHITE BLACK WHITE Opt. Blower BLACK BLACK Opt. Aux. WHITE GREEN 300 Watt RF Receiver Max. ON/OFF Button Control Board Black / Thermopile Red / Thermopile Sensor Conversion NG/LP Ignitor / Sparker Plug-in Connector Control Board to Command Center nOTe: Wall switch wires must OFF/LO ON/HI be connected together if a wall... -
Page 27: Optional Fan/Blower Systems
OpTIOnal Fan BlOWer SySTeMS WDV See-thru Gas Fireplace electrical Grounding Instructions: This electrical connections should only be appliance is equipped with a three-prong performed by a qualified licensed electrician. (grounding) plug for your protection against Main power supply must be turned off before shock hazard and should be plugged directly connecting the fan to the main electrical into a properly grounded three-prong... -
Page 28: Glass Frame Removal
GlaSS reMOVal & lIGhT placeMenT WDV See-thru Gas Fireplace GlaSS FraMe reMOVal 1. Remove the front access door by lifting up and sliding the two (2) spring hinge pins inward and lifting off. 2. Rotate the three (3) cam levers in the lower access area 90°... -
Page 29: Stone & Glass Placement
STOne & GlaSS placeMenT WDV See-thru Gas Fireplace GlaSS Only placeMenT STOne & GlaSS placeMenT nOTe: Two (2) bags of glass are supplied with the 500 1. For best results, spread glass evenly over the entire floor Series fireplaces. Both bags should be used to cover the and burner making sure the glass is not too heavy over entire floor and burner. -
Page 30: Operating Instructions
SIGnaTure cOMManD - OperaTInG InSTrucTIOnS WDV See-thru Gas Fireplace FOr yOur SaFeTy reaD BeFOre lIGhTInG If you do not follow these instruction exactly, a fire or explosion may result causing property damage, personal injury or loss of life. a. This appliance is equipped with an ignition device which automatically lights the pilot. Refer to the instructions. -
Page 31: Operating Instructions
SIGnaTure cOMManD - OperaTInG InSTrucTIOnS WDV See-thru Gas Fireplace OperaTInG InSTrucTIOnS 1. STOp! Read the safety information above. 2. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to light the burner by hand. 3. -
Page 32: Signature Command System Operation
SIGnaTure cOMManD SySTeM OperaTIOn InSTrucTIOnS WDV See-thru Gas Fireplace FeaTureS To Thermopile RF Receiver command center ON/OFF To Sensor • Easy Access Function Operation and System Configura- To Sparker tion • Operation Confirmation/Fault Diagnostic Indications (LED/ NG/LP Buzzer) Conversion • ON/OFF/HI/Med/Low Operation •... -
Page 33: System Configuration/Setup
SIGnaTure cOMManD SySTeM OperaTIOn InSTrucTIOnS WDV See-thru Gas Fireplace SySTeM cOnFIGuraTIOn/SeTup All System configuration/setup is done on the Command nOTe: By disabling this feature, your fireplace may con- Center. tinue to operate unattended. 2. When the master switch is in the ON position (“-”), press- nOTe: When using On/Off wall switch, the switch must be ing the ON button and the OFF button on the Command in the ON position to perform all configuration set ups at... - Page 34 SIGnaTure cOMManD SySTeM OperaTIOn InSTrucTIOnS WDV See-thru Gas Fireplace FuncTIOnS/OperaTIOn 2. Press the OFF button to decrease flame height. The first two presses will decrease the flame height to medium Turning on the fireplace and low. 1. Turn on the master switch and wait for a beep. 3.
-
Page 35: Touch Screen Remote Control Operation
TOuch Screen reMOTe cOnTrOl OperaTIOn WDV See-thru Gas Fireplace Due to the sensitive temperature monitoring components in the transmitter, it is necessary to allow the transmitter to stabilize to room tem- perature before accurate room temperatures are displayed. If the transmitter is activated from a severe cold condition, allow 15 minutes for accurate temperature readings to appear on the lcD display. - Page 36 TOuch Screen reMOTe cOnTrOl OperaTIOn WDV See-thru Gas Fireplace Setting privacy code on Transmitter: Master Switch Figure 43 The remote transmitter privacy code is preset in factory. In the event of activation or interference from other nearby transmissions, change the code using the following pro- cedures (learn function must be performed after changing the code): 1.
- Page 37 TOuch Screen reMOTe cOnTrOl OperaTIOn WDV See-thru Gas Fireplace c. Slide down on the arrow buttons to exit TIMER 1. Press the ON/up button to turn on the fireplace. The mode and shut off the fireplace. flame icon on the LCD displays High.
- Page 38 TOuch Screen reMOTe cOnTrOl OperaTIOn WDV See-thru Gas Fireplace ing to the difference between the Set temperature and tons become flame height controller again. the Room temperature. There is no manual flame height 5. When the fan button is flashing, slide up and down on adjustment.
-
Page 39: Safety Features
TOuch Screen reMOTe cOnTrOl OperaTIOn WDV See-thru Gas Fireplace tons become flame height controller again. n Safety Features 5. When the light button is flashing, slide up and down on 1. Low Battery Detection the arrow buttons will turn the light brightness to HIGH When low battery condition occurs, the transmitter will or Off directly without pressing the light button again to turn off the fireplace. - Page 40 TOuch Screen reMOTe cOnTrOl OperaTIOn WDV See-thru Gas Fireplace n using the Mounting Base The transmitter comes with a mounting base which allows you to hang the transmitter on the wall. 1. Secure the mounting base on the wall with supplied screws.
-
Page 41: Cleaning And Maintenance
cleanInG anD MaInTenance WDV See-thru Gas Fireplace Turn off gas before servicing fireplace. It is recommended that a qualified service technician perform these check-ups at the beginning of each heating season Sensor Burner, pIlOT anD cOnTrOl cOMparT- Thermopile MenT Keep the control compartment, stones and burner areas surrounding the stones clean by vacuuming or brushing at least twice a year. -
Page 42: Vent System
cleanInG anD MaInTenance WDV See-thru Gas Fireplace STOneS VenT SySTeM Vacuum surface of the stones with a brush attachment. If The fireplace and venting system should be inspected stones must be removed for cleaning, handle carefully by before initial use and at least annually by a qualified field holding gently at each end. -
Page 43: Troubleshooting
TrOuBleShOOTInG WDV See-thru Gas Fireplace SIGnaTure cOMManD SySTeM OPERATION FAULT ACTION DIAGNOSIS Using Battery polarity wrong? Re-install batteries battery? Make sure Command Install batteries and/or Battery voltage low? Change batteries Center and plug in the AC board No beep in about the control 8 seconds board are... -
Page 44: Replacement Parts
WDV See-thru Gas Fireplace FIreBOx cOMpOnenTS anD acceSSOrIeS ref. Description qty. WDVST500 Bulb (20 Watt) 20301100 Bulb Socket 73D4521K Glass Frame Assembly 78D0027K 780012 Junction Box Assembly (not shown) 26D2128 DVW firebox parts Panel, Access, Door 78D0040K accessories / Field Installed Options... -
Page 45: Signature Command System
replaceMenT parTS WDV See-thru Gas Fireplace SIGnaTure cOMManD SySTeM 780012 DVW SG parts 6/09 78D2082... - Page 46 80D0009 Wire Command Ctr. (not shown) 80D0008 80D0008 Remote Transmitter (full function) TSFSC TSFSC AC Module SCSACM SCSACM Fuel conversion Kits - Signature command System natural Gas to lp WDVST500 Kit #WST500CKPS lp to natural Gas WDVST500 Kit #WST500CKNS 78D2082...
-
Page 47: Stones
replaceMenT parTS WDV See-thru Gas Fireplace STOneS Item Description 500 qty. 600 qty. part no. White Stone #1 78D0122 Light Gray Stone #2 78D0123 Dark Gray Stone #3 78D0124 Brown Stone #4 78D0125 Sand Stone #5 78D0126 Tan Stone #6 78D0127 78D2082... -
Page 48: Venting Components
replaceMenT parTS WDV See-thru Gas Fireplace VenT cOMpOnenTS 730024 KHLDV vent parts 78D2082... - Page 49 replaceMenT parTS WDV See-thru Gas Fireplace VenT cOMpOnenTS FOr 5" x 8" current Simpson Simpson Duravent Duravent or Vermont or Vermont castings castings qty./ Group Group Selkirk Metal-Fab Item Box Description part no. part no. part no. part no. Horizontal Termination Cap w/Built-In Vinyl Siding BHR58TK9 Standoff Heat Deflector, Firestop and Adjustable Pipe 11"...
-
Page 50: Mass Residents Only
requirements for the commonwealth of Signage WDV See-thru Gas Fireplace Massachusetts A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height This product must be installed by a licensed plumber or of eight (8) feet above grade directly in line with the exhaust gas fitter when installed within the Commonwealth of vent terminal for the horizontally vented gas fueled heating... -
Page 51: Warranty
Vermont Castings Group in the appliance are found to be defective in materials or workmanship, the Vermont Castings Group will, at its option, replace or repair the defective components at no charge to the original owner. The Vermont Castings Group will also pay for reasonable labor costs incurred in replacing or repairing such components for a period of two years from date of installation. -
Page 52: Efficiencies
Based on CSA P.4.1-09 efficiency ratings Model enerGuide ratings Fireplace efficiency (%) WDVST500NTSC 61.0 WDVST500PTSC 59.7 Vermont castings Group 149 Cleveland Drive • Paris, Kentucky 40361 www.vermontcastingsgroup.com...
