Summary of Contents for HI-VAL 1.44MB Floppy

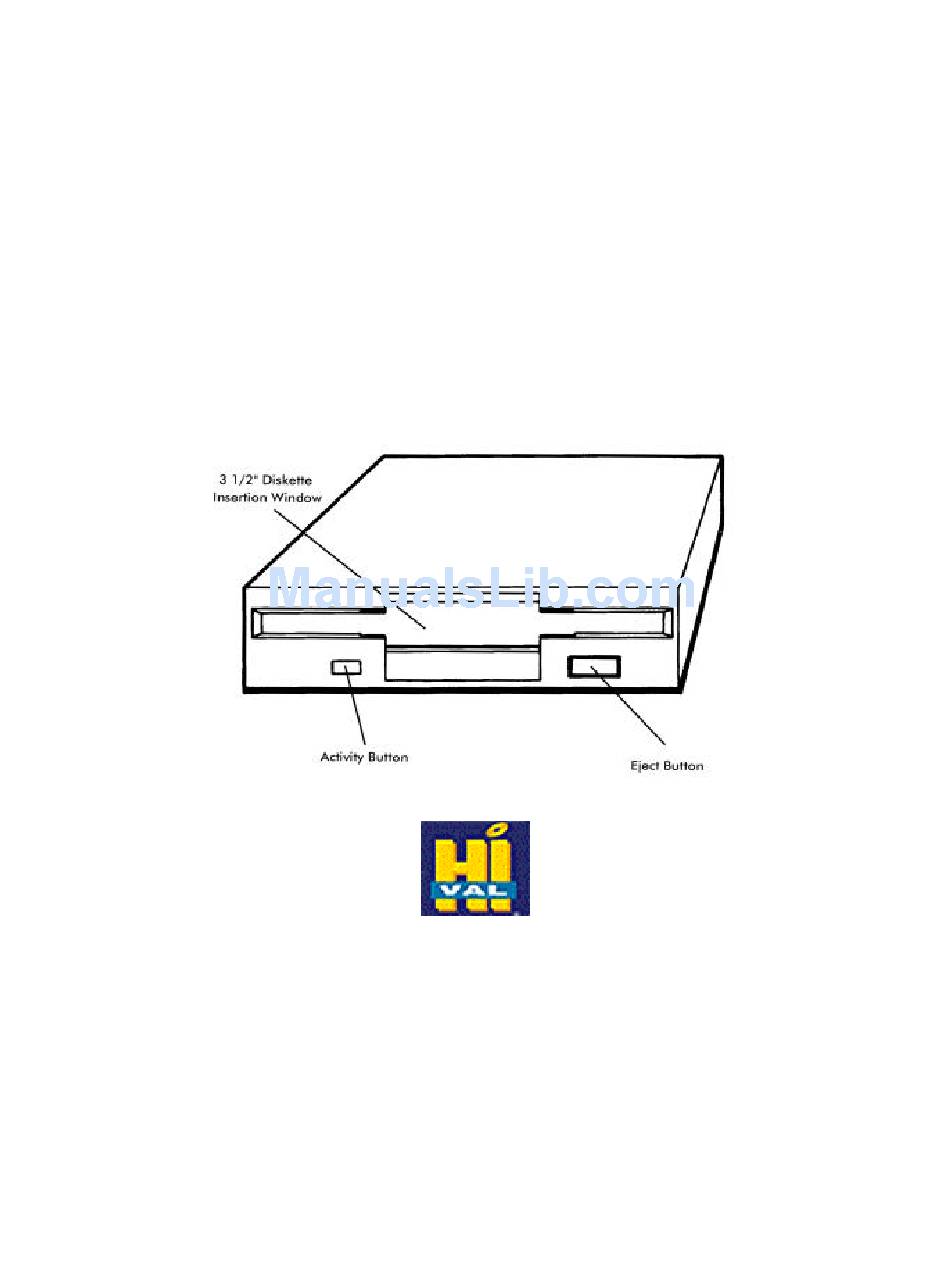

- Page 1 3 ½ ” 1.44MB Floppy Disk Drive USER’S GUIDE...
-
Page 2: Tools You May Need
Introduction Thank you for purchasing the HI-VAL 1.44MB floppy disk drive. This product is intended for use in IBM® PC/XT/AT® compatible computers. This drive allows you to expand the usefulness of your present computer by providing a 3 ½” diskette compatibility. - Page 3 1.44 Floppy Drive User’s Guide Configuring for Drive A: or Drive B: Use a standard IBM PC compatible floppy ribbon cable with a twist at the end connector (Figure C). . Connector A: To configure your drive as the A: drive, connect the Floppy Drive to Connector A: on the flat “ribbon” cable is the end connector of the cable as shown in Figure C.
-
Page 4: Troubleshooting
1.44 Floppy Drive User’s Guide TroubleShooting Symptom Solution Indicator light never turns on when executing READ or Make sure that the interface cable and power cable is properly WRITE to floppy connected. Indicator light comes on as soon as power is applied and The ribbon cable may be reversed. - Page 5 1.44 Floppy Drive User’s Guide Contacting IOM Holdings If you experience problems with this HI-VAL product and you cannot find an answer in the previous troubleshooting sections, you can contact IOM Holdings Technical Support Staff. Please have the following information ready when you call: •...
- Page 6 1.44 Floppy Drive User’s Guide H055-R ver 1.0...
