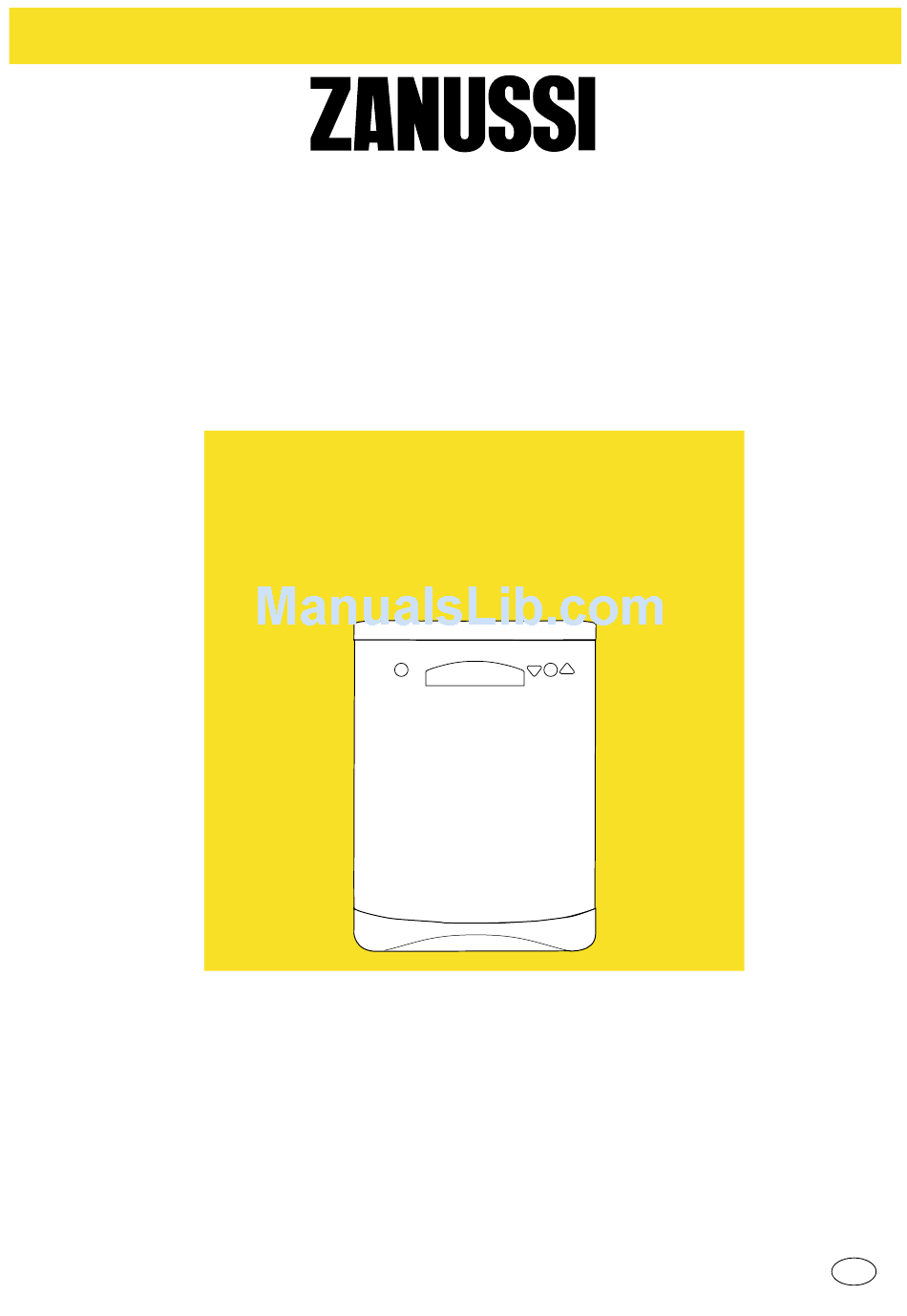

- Page 1 DISHWASHER IZZI INSTRUCTION BOOK 152975 75/0...
-
Page 2: Table Of Contents
Contents Important safety information Description of the appliance The control panel Before use Setting the water softener Rinse aid Use of detergent Using your appliance Loading your appliance The lower basket The cutlery basket The upper basket Adjusting the height of the upper basket Hints and tips Washing programmes Operating sequence... -
Page 3: Important Safety Information
Important safety information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information. -
Page 4: The Control Panel
The control panel 1. On/Off push button (with integrated indicator light) 2. Door handle 3. Programme selection push buttons (with integrated indicator light) “DAILY 30 “ programmme push button “65° NORMAL” and “50° ECO” programme push button This push button allows the selection of 2 programmes and has 2 integrated indicator lights. -
Page 5: Before Use
Before use Before using your dishwasher for the The current level is indicated by the number of flashes made by the push button 1 indicator light, that alternates 5 first time: seconds off with a number of flashes, this for about 60 seconds. -
Page 6: Rinse Aid
Rinse aid Use of detergent Rinse aid is automatically added during the last rinse, Only use detergents specifically designed for use in ensuring thorough rinsing, and spot and streak free drying. dishwashers. The dispenser, which is positioned inside the door, holds We recommend the use of Finish detergents which are about 110 ml of rinse aid, which is sufficient for 16 - 40 available in the following options:... -
Page 7: Using Your Appliance
Using your appliance Loading your appliance The cutlery basket Before placing dishes in the machine, remove any scraps of Long bladed knives stored in an upright position are a food, to avoid clogging the filters and consequently reducing potential hazard. the performance. -
Page 8: The Upper Basket
The upper basket Adjusting the height of the upper basket If washing very large plates (over 27 cm and up to 32 cm in The upper basket is designed for plates (dessert plates, diameter) you can load them in the lower basket after moving saucers, dinner plates of up to 25 cm in diameter), salad the upper basket to the higher position. -
Page 9: Washing Programmes
Washing programmes Type of load Degree of soil Required Recommended Cycle quantity of detergent push buttons description wash prewash On/Off Fresh soil. Main wash up to 60°C DAILY 30 20 g Crockery and cutlery 1 hot rinse Cold prewash Main wash up to 65°C Normal soil. -
Page 10: Operating Sequence
Operating sequence 1. Check the filters 10. At the end of the washing programme Ensure they are clean and properly positioned (see The dishwasher will automatically stop and the indicator "Maintenance and cleaning"). light of the programme turns off. Press the On/Off push button and open the door. Wait a few minutes before removing the dishes;... -
Page 11: Maintenance And Cleaning
Maintenance and cleaning Internal cleaning Check that the SID is not clogged with detergent residue. If necessary rinse it under running water after having removed it Ensure that the seals around the door, the detergent and rinse from the basket by twisting it anticlockwise and pulling it aid dispensers are cleaned regularly with a damp cloth. -
Page 12: Something Not Working
Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. The dishwasher is fitted with an alarm system which can help you to quickly determine the cause of any problems. The dishwasher will not start or stops during operation, all push buttons are inoperative except for the On/Off push button and the indicator light of the running programme is flashing. -
Page 13: Service And Spare Parts
+44 (0) 1753 219897 Standard guarantee conditions Italy Pordenone +39 (0) 0434 39 4700 We, Zanussi, undertake that if within 12 months of the date of Ireland Dublin +353 (0) 14090753 purchase this Zanussi appliance or any part thereof is proved to... -
Page 14: Installation Instructions
Installation instructions Any electrical work required to install this appliance If you use a drain hose extension it must be no longer than 2 should be carried out by a qualified electrician or metres and its internal diameter must be no smaller than the competent person. -
Page 15: Fitting Under A Counter
Fitting under a counter Levelling (kitchen worktop or sink) Good levelling is essential for correct closure and sealing of the door. By removing the machine’s worktop, you can install it under a close fitting sink unit or a pre-existing top, providing the When the appliance is correctly levelled, the door will not dimensions of the recess correspond to those shown in the catch on the levelling spacers on either side of the cabinet. - Page 16 From the Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
