Summary of Contents for Exagerate ZELIG PAD 700R
-

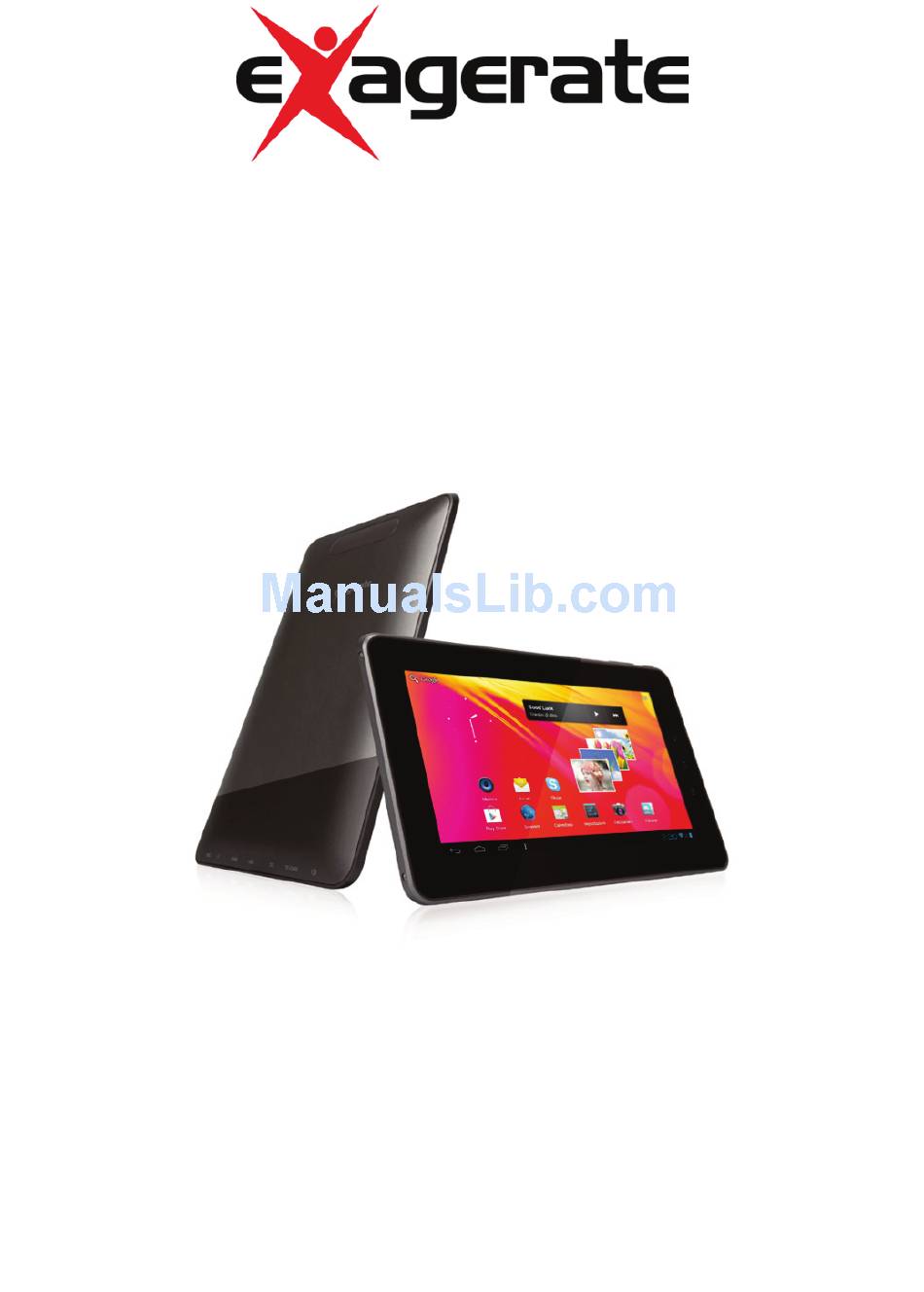

Page 1: User Manual
ZELIG PAD 700R 7” TOUCH SCREEN INTERNET TABLET PC USER MANUAL XZPAD700R www.hamletcom.com... - Page 2 Dear Customer, thanks for choosing an Hamlet product. Please carefully follow the instructions for its use and maintenance and, once this item has run its life span, we kindly ask You to dispose of it in an environmentally friendly way, by putting it in the separate bins for electrical/electronic waste, or to bring it back to your retailer who will collect it for free.
- Page 3 Specifications and appearance are subject to change without prior notice. Support The support service for the Exagerate by Hamlet tablets is provided by: SC GROUP – Assistenza Tecnica Salvadori Claudio Via del Bosco 44 – 21052 Busto Arsizio (VA) – Italy You can contact technical support phone number: 0331-674306 or e-mail at assistenza.tablet hamletcom.com.
-
Page 4: Product Introductions
1. Product Introductions 1. Camera 6. Mini USB socket 2 2. Back to MENU 7. Micro SD card slot 3. Headphone Socket 8. Power switch/MENU 4. DC Socket 9. Volume adjustment 5. Mini USB socket 1 10. HOME/Menu... -
Page 5: What's Included
2. What’s Included The following components are included with your purchased product: • Zelig Pad 700R • Power Adapter • USB Cable • Touch Stylus • Instruction Manual 3. Getting Started Before operating your Tablet PC for the first time, please read this manual carefully and follow the instructions below. - Page 6 showed after starting up. Slide unlock icon upward to unlock and go to desktop; slide the mute icon downward to turn off sound and slide it downward again to turn on sound. Turn Off: When the tablet is ON, press & hold the power switch for around 4 seconds and the system will popup out power off option, tap on it to turn the tablet off.
- Page 7 3.4 Screen calibration In order to ensure accurate touch operations, we suggest to calibrate the screen before any touch operations. To calibrate the touch screen, tap the “Settings” icon “Touch screen calibrate”. Then follow the prompts to do the touch screen calibration. 3.5 Date &...
- Page 8 3.7 Use of Micro SD card and U-Disk Installing Micro SD card Insert the Micro SD card into the card slot and gently press it in until you hear the sound of "Click". A prompt notice will appear on the top left corner of the screen: “Preparing Memory device”.
- Page 9 Please remove the Micro SD card or U-Disk according to standard procedures mentioned above, do not forcibly pull out them, otherwise, they are easy to be damaged and data may be lost. Please do not carry out hot swapping when using or browsing the files in Micro SD card or U-Disk.
- Page 10 3.9 Wi-Fi Connection 1. Tap on "Settings" icon. 2. Then select "Wireless & networks". 3. Tick the check box behind Wi-Fi to turn it on. 4. Select "Wi-Fi setting" option to setup Wi-Fi network. 5. All available Wi-Fi networks will be listed, tap on your Wi-Fi network and start to connect.
-
Page 11: Input Operations
4. Input Operations 4.1 Touch Keyboard Whenever an application needs text or numbers input, the touch keyboard will automatically popup on screen. 4.2 Touch Screen The touch-screen allows for quick, easy and convenient navigation for all applications. The smaller the point that comes in contact with the screen, the more precise object selection can be. - Page 12 5. Desktop 5.1 Status bar The status bar is on the top of the screen. The following table shows the function and meaning of different buttons and icons of the status bar. Home Back to desktop Wi-Fi Display Wi-Fi signal status Battery Display battery status Clock...
- Page 13 5.2 Main interface The tablet includes two main interfaces: desktop interface and application icons interface. When at desktop interface, tap icon to go to application icons interface, when at application icons interface, tap Home icon to go to desktop interface.
- Page 14 5.3 Desktop Icons Users can move the application icons from application icons interface to desktop, go to application icon interface, tap on the application icon and hold it for around 4 seconds to drag it from application icons interface to desktop. The application icons on desktop can also be moved or deleted, just tap on the application icon and hold it for around 4 seconds, then you can move the icon to different position or move it to trash can to delete it.
- Page 15 6. Introductions of Typical Applications 6.1 APK Manager With the “APK Manager”, users can install the applications from your Micro SD card. Tap on the APK Manager icon, it will automatically scan and list all the APK files in your Micro SD card, select any of the APK files to install the applications onto your tablet.
- Page 16 Refresh: to refresh the page More: more options of “Add bookmark”, “Find on page”, “Select text”, “Page info”, “Share page”, “Downloads”, “Settings”. 6.3 Calculator The tablet is with built-in calculator, tap on the Calculator icon to carry out your calculations: 6.4 Calendar Users can use the Calendar to check date, time and memorandum or add memorandum etc.
- Page 17 Input Gmail address and password, then tap “Next” to go forward. After you finish the setup, the interface will automatically exit and return to the main interface. Tap on the Calendar icon again to check date, time and add memorandum etc. Tap on the menu button to popup more setting options of 1 Day, 7 Weeks, Agenda, Today, More, see the screen interface as below:...
- Page 18 6.5 Gmail After you signed in the Google Account (mentioned above), tap on the Gmail icon, then all of your Gmail accounts will be listed, tap on the menu icon to see below options: 1. Refresh: to refresh the inbox 2.
- Page 19 Accounts: general sync settings and manage accounts(add or remove account). Import/Export: import/Export contacts. 3. In the Contacts screen, tap on the desired contact, then tap the “star” icon in the upper right corner of screen to add the Contact to Favorites. 4.
- Page 20 6.10 MyPad Tap on MyPad icon to browse the files saved in your memory devices (LOCAL, SD1 or UDisk2). Tap on corresponding memory devices (LOCAL, SD1 or UDisk2) to see the files inside. You can also Copy, Cut or Paste files between each memory device, tap on the icon for multiple selection.
- Page 21 6.11 Music Player To play the music, tap on the Music Player icon to run the application. All songs will be listed and tap on your desired song to play it. Tap the icon to run shuffle playback mode Tap the icon to run loop playback mode.
- Page 22 6.12 Video Player To play the videos, tap on the Video Player icon to run the application. All videos will be listed and tap on your desired video to play it. 6.13 Sound Recorder To start the sound recorder, tap on the Sound Recorder icon.
- Page 23 Tap on the icon to start recording. Tap on the icon to stop recording. System will prompt: Use this recording Discard Tap on “Use this recording” to save it; tap “Discard” to discard this recording. Tap on the icon to listen to the recording recorded just now. 6.14 Clock Tap on the Clock icon to run the application.
- Page 24 6.15 Camera Tap on the Camera icon to run the application. The camera is located at the middle of tablet top, aim at it when you take photo or video. Tap to start to take photo or video. If you want to take photo, tap on the icon to take photo;...
-
Page 25: Personalized Settings
7. Personalized settings Tap on the Settings icon to carry out personalized settings. 7.1 Wireless & networks To setup the Wireless networks for your tablet. 7.2 Sound Silent mode Tick it to make all sounds mute except the media and alarm clock. Volume To setup the sound volume for Media, Alarm and Notification. - Page 26 7.4 Location & security Use wireless network Tick it to determine your location by Wi-Fi and/or mobile networks. Setup screen lock To setup locking screen with a pattern, PIN or password. Visible passwords Tick it to show password as you type. 7.5 Applications Unknown sources Tick it to allow installation of non-Market applications.
- Page 27 7.7 Privacy Factory data reset Select it to erase all data on device. Format Local Select it to format the internal memory. 7.8 Storage To check the storage information (total space, available space) of your SD card, U-Disk and Internal storage. You can also select to unmount SD card/U-Disk or erase all data on the storage devices.
- Page 28 Battery use To check what has been using the battery. Legal information To check related legal information. Model number Tablet model number. Android version Tablet OS version. Kernel version Tablet Kernel version. Build number Tablet Build number.
-
Page 29: Forced Shutdown
8. Forced shutdown In case of your tablet was down and you are unable to turn it off according to standard procedures, press the power switch and hold it for 7 seconds, the tablet will be turned off. 9. Factory Reset To restore the tablet to original factory settings and erase all personal informations, tap on “Settings”... -
Page 30: Important Safety Precautions
A fully discharged battery will take you approximately 5 hours, but you can use the device while it is being charged. Do not use other adapters than the one provided in your packaging, it may cause damage to the Lithium battery inside. Do not attempt to open the tablet to replace the battery inside, this will damage the tablet and void the warranty. -
Page 31: Frequently Asked Questions
Frequently Asked Questions Android Q: What Android OS version is on my Device? A: Android 2.3. Basic Functionality Q: Do I have to charge the battery before use? A: You should charge the battery for at least 5 hours, but you can use the device while it’s being charged. - Page 32 directly to your device. Photos Q: What type of photo files can I view on my device? A: JPEG, BMP and PNG. Q: How do I add photo files to my device? A: Copy the photos from your PC, Micro SD card or USB storage device directly to your device.
