Behringer Vintager AC112 User Manual

Behringer Vintager AC112 User Manual

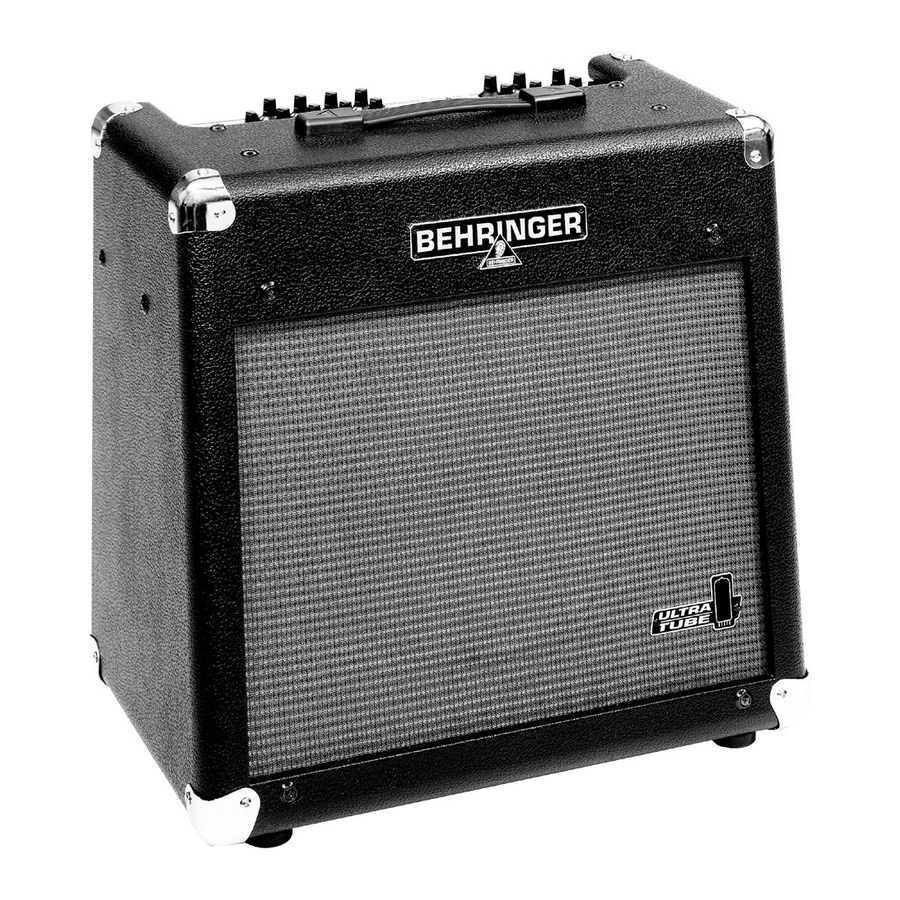

Ultra-flexxible 60 watt guitar workstation with digital multi-effects processor
Hide thumbs Also See for Vintager AC112:
Table of Contents

Advertisement

Quick Links

Download this manual
User´s Manual
Version 1.0
May 2001

Advertisement

Table of Contents
loading

Related Manuals for Behringer Vintager AC112

Summary of Contents for Behringer Vintager AC112

  • Page 1 User´s Manual Version 1.0 May 2001...

  • Page 2: Safety Instructions

    VINTAGER AC112 SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover (or back). No user serviceable parts inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electrical shock, do not expose this appliance to rain or moisture.
  • Page 3 It is our philosophy to share our joy with you, because you are the most important member of the BEHRINGER family. With your highly competent suggestions for new products you’ve greatly contributed to shaping our company and making it successful.
  • Page 4 VINTAGER AC112 VINTAGER ® Ultra-flexible 60 Watt Guitar Workstation with Digital Multi-Effects Processor s Powerful 60 Watt RMS Guitar Workstation with a hand-selected 12AX7 vacuum tube s Authentic vintage design with ULTRATUBE circuitry for classic tube sound s Original 70 Watt heavy duty 12" JENSEN guitar speaker model JCH12/70...

  • Page 5: Table Of Contents

    VINTAGER AC112 TABLE OF CONTENTS 1. INTRODUCTION........................6 1.1 Design concept ..........................7 1.1.1 ULTRATUBE technology ....................... 7 1.1.2 JENSEN loudspeaker ......................7 1.2 Before you begin ..........................7 1.3 Control elements ..........................8 1.3.1 Front panel ........................... 8 1.3.2 Rear panel .......................... 10 2.

  • Page 6: Introduction

    VINTAGER AC112 1. INTRODUCTION Thank you very much for expressing your confidence in BEHRINGER products by purchasing the VINTAGER AC112. With the VINTAGER, you have acquired a modern guitar workstation that sets new standards in guitar amp engineering. When developing the AC112, our top objective was to reproduce the authentic sound of classical guitar amps as perfectly as we could and combine it with latest DSP technology –...

  • Page 7: Design Concept

    If the unit is damaged, please do not return it to BEHRINGER, but notify your dealer and the shipping company immediately, otherwise claims for damage or replacement may not be granted.

  • Page 8: Control Elements

    1.3 Control elements Fig. 1.1: The front panel of the VINTAGER The BEHRINGER VINTAGER AC112 features 15 controls, five push-buttons and one 2-digit, 7-segment LED display on its front panel. Additionally, there are two 1/4" jacks for input and headphones.
  • Page 9 VINTAGER AC112 Use both VOLUME controls to optimize the volume ratio of the two channels, so that no volume differences can be heard when switching from one channel to the other. This setting is also effective on the level-dependent digital effects! The BASS control in the EQ section allows you to boost/cut the bass frequencies in the OVERDRIVE channel.

  • Page 10: Rear Panel

    FUSE HOLDER/VOLTAGE SELECTOR. Please make sure that the voltage indicated on the unit matches your local voltage, before you attempt to connect and operate the VINTAGER AC112. Blown fuses may only be replaced by fuses of the same type and rating. Some models allow for inserting the fuse holder in two different positions, in order to switch over from 230 V to 115 V operation, and vice versa.

  • Page 11: Wiring Examples

    VINTAGER AC112 MIDI IN. This connector gives you MIDI remote control over your VINTAGER. You can change parameters using controller information, switch over effect programs, change channels and bypass the effects module by means of program change instructions. The LINE OUT provides the VINTAGER’s audio signal in stereo, for example, to send it to a recording machine.

  • Page 12: Expanded Setup With Midi Foot Controller, Playback Source And Mixing Console

    VINTAGER AC112 Fig. 2.1: Standard setup 2.2 Expanded setup with MIDI foot controller, playback source and mixing console To use your VINTAGER for advanced applications, please consider the following suggestions. Of course, the expanded configuration suggested in fig. 2.2. builds on the standard setup described in chapter 2.1.

  • Page 13: Effects Processor

    VINTAGER AC112 3. EFFECTS PROCESSOR A very special feature of your VINTAGER is its built-in effects processor, which offers the same audio quality and algorithms as our popular 19" effects devices VIRTUALIZER PRO and MODULIZER PRO. This effects module provides 31 different groups of first-class effects such as reverb, chorus, flanger, delay, pitch shifter, compressor, expander, wah-wah variations, various combination effects and even tube and speaker emulation.
  • Page 14 VINTAGER AC112 Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B SPRING short Pre-Delay Reverb Time Mix L Mix R REVERB long Pre-Delay Reverb Time Mix L Mix R short Pre-Delay Reverb Time Mix L Mix R STUDIO long Pre-Delay Reverb Time...
  • Page 15 VINTAGER AC112 17-19 Wah/Delay/Distortion: In general, filters are used to provide some static equalization of a signal’s frequency response. The wah effect – combined with delay and distortion in this preset – allows the mid- range frequencies to pass, while it more or less suppresses the remaining frequency ranges. Guitarists such as Jimi Hendrix and Eric Clapton made this effect popular, and it still hasn’t gone out of fashion.
  • Page 16 VINTAGER AC112 The LFO speed of all modulation effects is controlled by the PARAMETER control. EFFECT A controls the effect intensity or depth. High values produce a very intensive effect. In the case of the tremolo algorithm, EFFECT A adjusts the panning between left and right, and vice versa.
  • Page 17 VINTAGER AC112 Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B ultra Reverb Time Chorus Mix Reverb Mix slow Reverb Time Chorus Mix Reverb Mix CHORUS / medium I Reverb Time Chorus Mix Reverb Mix REVERB medium II Reverb Time Chorus Mix Reverb Mix...
  • Page 18 VINTAGER AC112 57-61 Flanger/Delay: The first element is a flanger with various intensity levels, then comes a delay effect with adjustable delay time. Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B ultra Delay Time Flanger Mix Delay Mix slow Delay Time Flanger Mix Delay Mix...
  • Page 19 VINTAGER AC112 69-70 Magic Drive: This is an absolutely up-to-date effect combined with a delay. EFFECT A governs the basic character of the effect in 32 steps, PARAMETER adjusts the delay time, and EFFECT B controls the delay mix. As a little extra, this effect includes an LFO-controlled notch filter, which is added as of Variation #24.
  • Page 20 VINTAGER AC112 75-81 Pitch Shifter: This effect shifts the pitch of the input signal and can be used to produce musical intervals and harmonies or simply to widen a single voice. Heavy detuning by several semi-tones up creates a Mickey-Mouse-type effect. The preset variations include various fixed intervals for the right channel, while the left channel can be shifted with the PARAMETER control.
  • Page 21 VINTAGER AC112 90-91 Compressor: Often, the signal level exceeds the headroom of signal-processing devices and therefore needs to be limited in its dynamic range, so as to avoid distortion. This job is done by compressors and/ or limiters. Limiters abruptly limit the signal above a specific threshold, while compressors provide for a “soft”...

  • Page 22: Controlling The Vintager Via Midi

    MIDI controller information. So, you can change programs via MIDI using a MIDI foot controller or a computer-based sequencer software. Our MIDI foot controller FCB1010 gives you precisely these and more options, and is a perfect match for all BEHRINGER guitar amps. For example, you could wire the VINTAGER as follows: Connect the MIDI IN jack of your VINTAGER to the MIDI OUT jack of a MIDI foot controller (see fig.

  • Page 23: Store Enable Mode

    Fender, Ampeg, Gibson, Vox, Marshall, Mesa Boogie and the names of musical artists and groups are all registered trademarks of their respective owners, which are in no way associated or affiliated with BEHRINGER. 4. HISTORICAL BACKGROUND...

  • Page 24: Installation

    If the unit is damaged, please do not return it to BEHRINGER, but notify your dealer and the shipping company immediately, otherwise claims for damage or replacement may not be granted.

  • Page 25: Midi Connection

    VINTAGER AC112 Fig. 5.2: Wiring of a stereo headphones 1/4" plug 5.3 MIDI connection The MIDI standard (Musical Instruments Digital Interface) was developed in the early 80’s to enable electronic musical instruments of different makes to communicate with each other. Over the years the range of MIDI applications has constantly expanded, and today it is completely normal to network entire recording studios using the MIDI standard.
  • Page 26 VINTAGER AC112 Effect Variation short Pre-Delay Reverb Time 1..32 Mix L 0..50 10 Mix R 0..50 10 SPRING REVERB long Pre-Delay Reverb Time 1..32 Mix L 0..50 10 Mix R 0..50 10 short Pre-Delay Reverb Time 1..32 Mix L 0..50 10 Mix R 0..50 10...
  • Page 27 VINTAGER AC112 Effect Variation ultra Reverb Time 0..63 20 Flanger Mix 0..99 50 Reverb Mix 0..50 10 slow Reverb Time 0..63 20 Flanger Mix 0..99 40 Reverb Mix 0..50 10 FLANGER / medium I Reverb Time 0..63 50 Flanger Mix 0..99 50 Reverb Mix 0..50 10...

  • Page 28: Midi Implementation

    VINTAGER AC112 6.2 MIDI implementation MIDI Implementation Chart Function Transmitted Recognized Remarks Default OFF, 1 - 16 Basic memorized Changed OFF, 1 - 16 Channel Default Messages Mode Altered Note Number True Voice Note ON Velocity Note OFF Keys After Touch...

  • Page 29: Specifications

    18.5 kg BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.

  • Page 30: Warranty

    (user included) will void the warranty. shall, at its sole discretion, either repair or replace the product. 6. If an inspection of the product by BEHRINGER shows that the 2. If the warranty claim proves to be justified, the product will be defect in question is not covered by the warranty, the inspection returned to the user freight prepaid.
