Precision Power PVI-134 Owner's Manual

Flip-down/detachable 3.4” monitor dvd/cd/mp3/mp4 player am/fm radio built-in tv tuner(only for pvi-134t model)
Hide thumbs
Table of Contents

Advertisement

Quick Links

PVI-134/PVI-134T
Flip-down/Detachable 3.4" Monitor
DVD/CD/MP3/MP4 Player
AM/FM Radio
Built-in TV tuner(only for PVI-134T model)
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVI-134 and is the answer not in the manual?

Questions and answers

Summary of Contents for Precision Power PVI-134

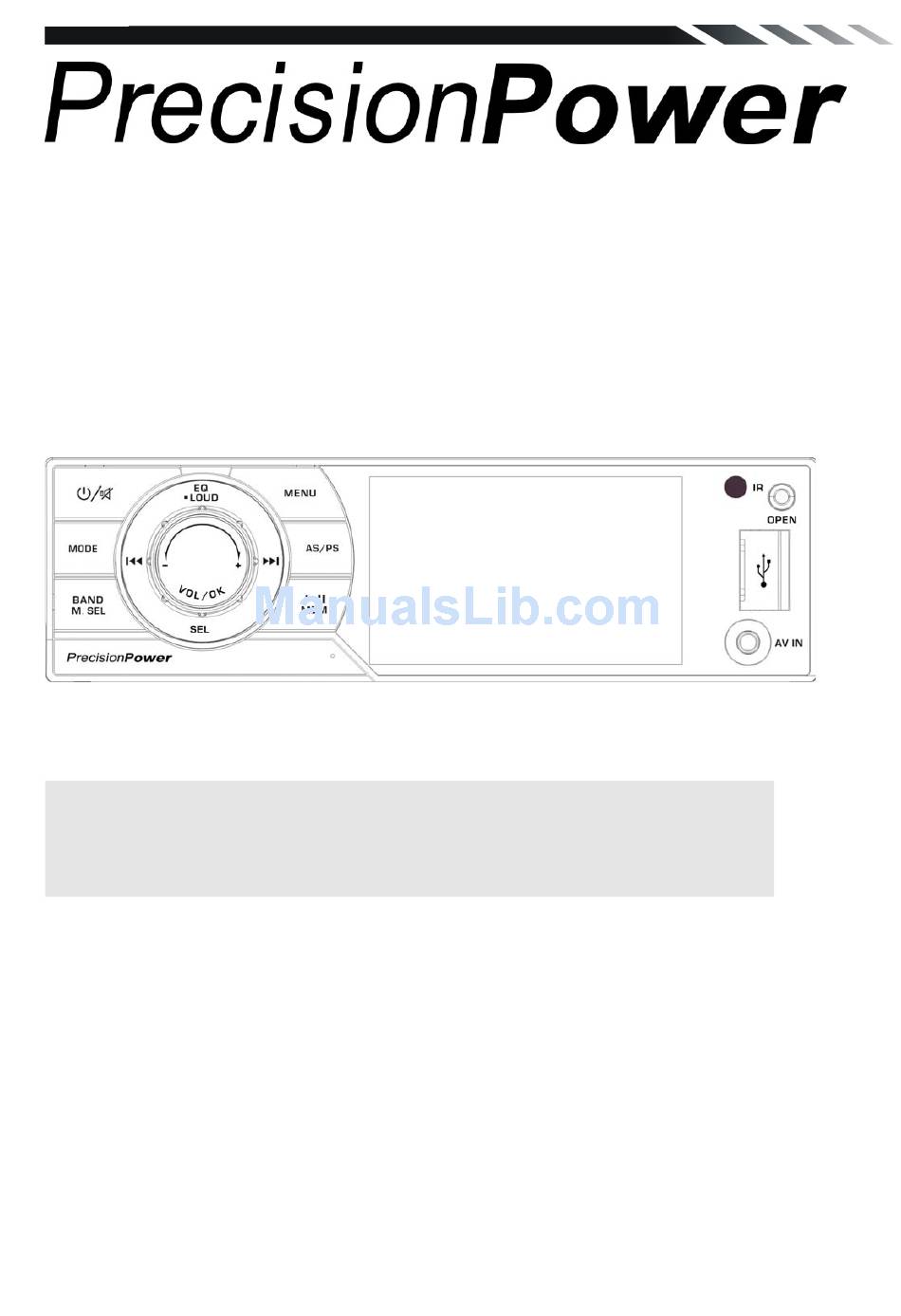

  • Page 1 PVI-134/PVI-134T Flip-down/Detachable 3.4” Monitor DVD/CD/MP3/MP4 Player AM/FM Radio Built-in TV tuner(only for PVI-134T model) Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Important Safeguards

    Important Safeguards Using the device at temperature below -10 may cause the breakage of the device. ℃ BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize you with this high-quality sound system.

  • Page 3: Table Of Contents

    Contenents Important Safeguards.......................2 Contenents ..........................3 Accessories ..........................4 Installation/Un-Installation ......................5 Wiring Connections ........................6 Front panel ..........................7 Inner panel ..........................7 Remote control .........................8 Remove battery ........................8 Main Menu ..........................9 General Operation ........................9 Radio operation ........................13 DVD/USB/SD/MMC Operation ....................14 TV Operations(Only for PVI-134T model) ................17 Anti-theft system ........................

  • Page 4: Accessories

    Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt 5*20 (4) Screw 5*6 (5) Mounting Collar (6) Release Key (7) Screw 5*20 (8) Rubber Cushion ISO cable Remote Control Warranty card...

  • Page 5: Installation/Un-Installation

    Installation/Un-Installation First complete the electrical connections, and then check them for correctness. Installation This unit can be installed in any dashboard having an opening as （※） Lock lever shown on the picture. The dashboard should be 4.75 – 5.56 mm thick in order to be able to support the unit.

  • Page 6: Wiring Connections

    Wiring Connections Make sure you have good chassis ground. A good ground connection will eliminate most electrical noise problems. A good chassis ground requires a tight connection to the vehicle’s metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection.

  • Page 7: Front Panel

    Front panel 1） Power /Mute button 9） MENU button 2） Mode button 10） AS/PS button 3） Volume/OK button 11） Play/Pause, Memory button 4） BAND / Media select button 12） LCD Screen 5） SEL button 13） IR sensor 6） Previous / Reverse button 14）...

  • Page 8: Remote Control

    Remote control 1: MODE 2: POWER 3: BAND/RANDOM 4: ENTER 5: UP/DOWN/LEFT/RIGHT 6: EJECT(Option without function) 7: STEREO/MONO 8: P.SCN/RPT) 9: BACKWARD/SEEK- FAST BACKWARD 10:LOUD 11: OSD 12: PBC/STOP 13: Digit numbers 14: Play/Pause 15: Mute) 16: MENU 17: SUBTITLE 18: SETUP 19: ANGLE 20: INT...

  • Page 9: Main Menu

    Main Menu The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, you can simply take knowledge of the features.
  • Page 10 EQ: Select the digital sound effect FLAT→CLASSIC→POP→ROCK→USER. BASS: Bass up/down. TREBLE: Treble up/down. BALANCE: Left/right Balance control. FADER: Front/rear Fader control. BEEP: Keypad sound setting. LOUDNESS: Set the loudness on or off. Rotate Volume knob on the front panel or press up/down arrow on the RC to select any items and then press OK button on the panel or Enter button on the RC to confirm the item.
  • Page 11 FADER: Front/rear Fader control. BEEP: Select keypad sound on or off. LONDNESS: Selecting loudness ON will emphasize the low frequency output. Display Screen：screen ratio control Backlight: set the LCD screen backlight. General Clock display: Select ON (clock is displayed) OFF (clock is not displayed). Clock hour: select 12-hour or 24-hour clock display mode.
  • Page 12 [1].Subtitle Lang setting: With this option you can select the preferred language for the subtitles. When the selected language is recorded on the disc then this language will automatically be shown. If not, the first language recorded on the disc is displayed. [2].Audio Lang setting: With this option you can select the preferred language for the audio output.

  • Page 13: Radio Operation

    Noted: RD8292-046_DUST is only for PVI-134T, RD8292-046_DUSA only for PVI-134. AV IN Connect an optional AV cable to your external AV device (such as a video camera), then press the MODE button to switch to the AV mode. Note: If there is no external video input, the TFT displays “NO SIGNAL”.

  • Page 14: Dvd/Usb/Sd/Mmc Operation

    Auto store In tuner mode, Press the AS/PS on the panel or or RPT/P.SCN button on the RC and hold for 2 seconds to store radio stations with the best reception to the preset number automatically. Manual store In tuner mode, long press the number 1-6 buttons on the RC after you find the station you desired.
  • Page 15 playback. Press ENTER button on the front panel or RC to enter the next menu, press the MENU button on the front panel to turn to previous menu. Press the MENU button on the RC to back to main menu. During playback press SEEK- or SEEK+ on the RC or front panel to play the previous...
  • Page 16 OSD function During playback, press repeatedly to show display information. Such as: Number of title, number of chapter, TITLE elapsed => TITLE remain => CHAPTER elapsed => CHAPTER remain =>Display off. Zoom in/out Press it and hold for two seconds in Movie mode to zoom the image in or out in the sequence of 2×->...

  • Page 17: Tv Operations(Only For Pvi-134T Model)

    TV Operations(Only for PVI-134T model) 1. Connect TV antenna, and then press MODE button to select TV mode. 2. In TV mode, press the Play/pause button once to enter TV menu setting. 3. Press the / buttons on the remote control or turning the knob clockwise or counterclockwise on front panel to select one of the setup pages: Auto program =>...

  • Page 18: Anti-Theft System

    Anti-theft system Remove the panel 1. Press the PWR button to turn the power off. 2. Press OPEN button to detach the panel. 3. Pull the panel out. 4. Place the panel into the case and take it with you when you leave the car. Remove the unit 1.

  • Page 19: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution If the power supply is properly connected General The car ignition is not on. to the car accessory switch the ignition No power The fuse is blown. key to “ACC”. Replace the fuse. Inserting the disc in upside Insert the compact disc with the label down.

  • Page 20: Specification

    Specification General Power supply: 12 V DC Current consumption: Max. 10 A Maximum power output: 52W x 4 channels (Max.) DVD/SVCD/VCD/HDCD/MP3/MP4/WMA/CDDA/Picture-C Compatible formats: D/JPEG/CD-R/ -RW/DVD±R/±RW playback Dimensions (W x D x H) / 178 x 175 x 50 mm / 1.8 kg weight: ESP function: 40 sec.
