Summary of Contents for Samsung CE2774

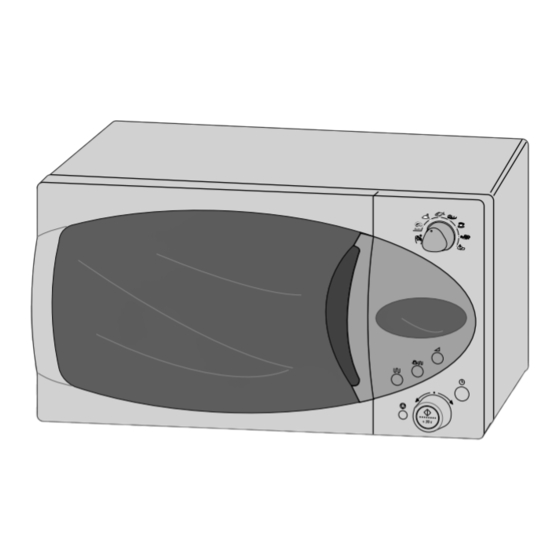

- Page 1 MICROWAVE OVEN CE2774 / CE2774T CE2714 / CE2714T Owner’s Instructions & Cooking Guide...
-
Page 2: Quick Look-Up Guide
Quick Look-up Guide (CE2774/2774T) If you want to cook some food 1 Place the food in the oven. Turn the Cooking Control knob to Manual Cook( ) symbol. Select the power level by pressing the button one or more times. - Page 3 Quick Look-up Guide (CE2714/2714T) If you want to cook some food 1 Place the food in the oven. Select the power level by rotating the COOKING POWER CONTROL knob. 2 Select the cooking time by rotating the TIMER knob. If you want to defrost some food 1 Turn the COOKING POWER CONTROL knob to defrost( symbol.
-
Page 4: Table Of Contents
Cooking/Reheating..................16 Power Levels ....................17 Stopping the Cooking................18 Adjusting the Cooking Time ..............18 Using the Auto Reheat/Cook Feature (CE2774/2774T) ......19 Auto Reheat/Cook Settings (CE2774/2774T) ..........20 Using the Instant Reheat Feature (CE2714/2714T) ........21 Instant Reheat Settings (CE2714/2714T) ..........21 Using the Auto Defrost Feature (CE2774/2774T) ........22 Auto Defrost Settings (CE2774/2774T) ............23... -
Page 5: Oven
Oven Model : CE2774/2774T LIGHT CONTROL PANEL VENTILATION HOLES DISPLAY HANDLE GRILL ROLLER RING DOOR COUPLER SAFETY DOOR LATCHES INTERLOCK HOLES TURNTABLE Model : CE2714/2714T TIMER KNOB LIGHT VENTILATION HOLES VARIABLE COOKING HANDLE POWER CONTROL KNOB GRILL ROLLER RING DOOR... -
Page 6: Control Panel
Control Panel (CE2774/2774T) 1. AUTO DEFROST SELECTION 8. COMBI MODE SELECTION 2. MANUAL COOK SELECTION 9. GRILL MODE SELECTION 3. AUTO REHEAT SELECTION 10. CLOCK SETTING 4. AUTO COOK SELECTION 11. STOP/CANCEL BUTTON 5. COOKING CONTROL KNOB 12. START BUTTON/DIAL KNOB 6. - Page 7 Control Panel (CE2714/2714T) 1. DEFROSTING 2. INSTANT REHEAT AMSUNG LECTRONICS...
-
Page 8: Accessories
Accessories Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways. Coupler, already placed over the motor shaft in the base of the oven. Purpose: The coupler rotates the turntable. Roller ring, to be placed in the centre of the oven. -
Page 9: Using This Instruction Booklet
Using this Instruction Booklet You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain much valuable information on cooking with your microwave oven: Safety precautions Suitable accessories and cookware Useful cooking tips Inside the cover you will find a quick look-up guide explaining four basic... -
Page 10: Safety Precautions
Safety Precautions Before cooking food or liquids in your microwave oven, please check that the following safety precautions are taken. DO NOT use any metallic cookware in the microwave oven: Metallic containers Dinnerware with gold or silver trimmings Skewers, forks, etc. Reason: Electric arcing or sparking may occur and may damage the oven. - Page 11 Safety Precautions (continued) Take particular care when heating liquids and baby foods. ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating. Take care when handling the container after heating.
-
Page 12: Installing Your Microwave Oven
Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time. Setting the Time (CE2774/2774T) Your microwave oven has an inbuilt clock. The time can be displayed in either the 24-hour or 12-hour notation. You must set the clock:... -
Page 13: How A Microwave Oven Works
Setting the Time (CE2774/2774T)- continued Turn the dial knob to set minute. Press the button How a Microwave Oven Works Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour. -
Page 14: Checking That Your Oven Is Operating Correctly
Open the oven door by pulling the handle on the right side of the door. Place a glass of water on the turntable. Close the door. Model : CE2774/2774T Turn the cooking control knob to Manual Cook( ) symbol. -
Page 15: What To Do If You Are In Doubt Or Have A Problem
If interference is detected by the oven’s microprocessor, the display may be reset.To solve this problem, disconnect the power plug and reconnect it. Reset the time.(CE2774/2774T) If the above guidelines do not enable you to solve the problem, contact your local dealer or SAMSUNG after-sales service. AMSUNG LECTRONICS... -
Page 16: Cooking/Reheating
The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended. First, place the food in the centre of the turntable. Close the door Model : CE2774/2774T Turn the Cooking Control Knob to Manual Cook( ) Symbol. -
Page 17: Power Levels
If you select higher power level, the cooking time must be decreased. If you select lower power level, the cooking time must be increased. If you want to add the cooking time more or less by turning dial knob. (CE2774/2774T) Time Increasing Time... -
Page 18: Stopping The Cooking
Stopping the Cooking You can stop cooking at any time to check the food. Model : CE2774/2774T To stop temporarily; Open the door. Result: Cooking stops. To resume cooking, close the door and press again. To stop completely; Press the... -
Page 19: Using The Auto Reheat/Cook Feature(Ce2774/2774T)
Model : CE2714/2714T Adjust the remaining cooking time by rotating the TIMER knob Using the Auto Reheat/Cook Feature(CE2774/2774T) The Auto Reheat/Cook feature has four pre-programmed cooking time. You do not need to set either the cooking times or the power level. -
Page 20: Auto Reheat/Cook Settings (Ce2774/2774T)
Auto Reheat / Cook Settings(CE2774/2774T) The following table presents the various Instant Reheat & Cook Programmes, quantities, standing times and appropriate recommendations. Symbol Button Serving Portion Standing Recommendations Type Time H - 1 Ready Meal 300-350 g 3 mins Put the meal on a ceramic plate and cover it... -
Page 21: Using The Instant Reheat Feature (Ce2714/2714T)
Using the Instant Reheat Feature (CE2714/2714T) First, place the food in the centre of the turntable and close the door. Turn the COOKING POWER CONTROL knob to Max Power. Turn the TIMER knob to select Instant Reheat. (drinks, soup/sauce or fresh vegetables). Use only recipients that are microwave-safe. -
Page 22: Using The Auto Defrost Feature (Ce2774/2774T)
Using the Auto Defrost Feature (CE2774/2774T) The Auto Defrost feature enables you to defrost meat, poultry, fish. The defrost time and power level are set automatically. You simply select the programme and the weight. Use only dishes that are microwave-safe. -
Page 23: Auto Defrost Settings (Ce2774/2774T)
Auto Defrost Settings (CE2774/2774T) The following table presents the various Auto Defrost programmes, quantities, standing times and appropriate recommendations. Remove all kinds of package material before defrosting. Place meat, poultry and fish on a turntable. Food Portion Standing Recommendation Time... -
Page 24: Using The Crusty Plate (Ce2774T/2714T)
Using the Crusty Plate (CE2774T/2714T) Your Samsung microwave oven has a crusty plate as an additional accessory. This crusty plate allows you to brown food not only on the top with the grill, but also the bottom of the food turns crispy and brown due to the high tempera- ture of the crusty plate. -
Page 25: Crusty Plate Settings (Ce2774T/2714T)
Crusty Plate Setting (CE2774T/2714T) We recommend to preheat the crusty plate directly on the turn-table. Preheat the crusty plate with the 600W+Grill( ) function and follow the times and instructions in the table. Food Portion Power Preheating Cooking Recommendations Time Time Bacon 4 slices (80g) -
Page 26: Choosing The Heating Element Position
Choosing the Heating Element Position The heating element is used when grilling. It can be placed in one of two positions: Horizontal position for grilling or combined microwave + grill cooking Only change the position of the heating element when it is cold and do not apply excessive force when placing it in the vertical position. -
Page 27: Grilling
Grilling The grill enables you to heat and brown food quickly, without using microwaves. To this aim, a grill rack is supplied with your microwave oven. Model : CE2774/2774T Turn the Cooking Control knob to Manual Cook( ) symbol. Preheat the grill to the required temperature, by the pressing the button and set the preheat time by turning the dial knob. -
Page 28: Combining Microwaves And The Grill
ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot. Model : CE2774/2774T Make sure that the heating element is in the horizontal position; refer to page 26 for further details. - Page 29 Combining Microwaves and the Grill (continued) Model : CE2714/2714T Make sure that the heating element is in the horizontal position; refer to page 26 for further details. Open the oven door. Place the food on the rack and the rack on the turntable.
-
Page 30: Switching The Beeper Off (Ce2774/2774T)
Switching the Beeper Off (CE2774/2774T) Press the buttons at the same time. Result: The following indication is displayed. The oven does not beep each time you press a button. To switch the beeper back on, press the buttons again at the same time. -
Page 31: Remembering Function (Ce2774/2774T)
Remembering Function (CE2774/2774T) This oven remembers the last cooking mode for your convenience. Set the add some cooking time by turning the dial knob. Press the button. 1) When cooking is over, the end reminder signal will beep 3 times. -
Page 32: Cookware Guide
Cookware Guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. -
Page 33: Cooking Guide
Cooking Guide MICROWAVES Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid move- ment of these molecules creates friction and the resulting heat cooks the food. COOKING Cookware for microwave cooking: Cookware must allow microwave energy to pass through it for maximum efficiency. - Page 34 Cooking Guide Cooking Guide for fresh vegetables Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking.
- Page 35 Cooking Guide Cooking Guide for rice and pasta Rice : Use a large glass pyrex bowl with lid - rice doubles in volume during cook ing. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter.
- Page 36 Cooking Guide REHEATING Your microwave oven will reheat food in a fraction of the time that conventional ovens and hobs normally take. Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20°C or a chilled food with a temperature of about +5 to +7°C.
- Page 37 Cooking Guide Reheating Liquids and Food Use the power levels and times in this table as a guide lines for reheating. Food Portion Power Time Standing Instructions (min.) Time (min.) Drinks 150 ml (1 cup) 850 W 1 - 2 Pour into cups and reheat uncovered: (coffee, tea 300 ml (2 cups) 1 cup in the centre, 2 cups opposite...
- Page 38 Cooking Guide DEFROSTING Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up. Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away.
- Page 39 Cooking Guide GRILL The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable’s rotation makes the food brown more evenly. Preheating the grill for 4 minutes will make the food brown more quickly.
- Page 40 Cooking Guide Grill Guide for fresh food Preheat the grill with the grill-function for 4 minutes. Use the power levels and times in this table as guide lines for grilling. Fresh Portion Power 1. Side 2. Side Instructions Food Time Time (min) (min.)
- Page 41 Cooking Guide Grill Guide for frozen food Use the power levels and times in this table as guide lines for grilling. Fresh Portion Power 1. Side 2. Side Instructions Food Time Time (min) (min.) Bread Rolls MW+Grill 300W+Grill Grill only Arrange rolls in a circle on rack. Grill (each ca.
- Page 42 Cooking Guide SPECIAL HINTS MELTING BUTTER Put 50 g butter into a small deep glass dish. Cover with plastic lid. Heat for 30-40 seconds using 850 W, until butter is melted. MELTING CHOCOLATE Put 100 g chocolate into a small deep glass dish. Heat for 3-5 minutes, using 450W until chocolate is melted.
-
Page 43: Cleaning Your Microwave Oven
Cleaning Your Microwave Oven The following parts of your microwave oven should be cleaned regularly to pre- vent grease and food particles from building up: Inside and outside surfaces Door and door seals Turntable and Roller rings ALWAYS ensure that the door seals are clean and the door closes properly. Clean the outside surfaces with a soft cloth and warm, soapy water.Rinse and dry. -
Page 44: Storing And Repairing Your Microwave Oven
Storing and Repairing Your Microwave Oven A few simple precautions should be taken when storing or having your microwave oven serviced. The oven must not be used if the door or door seals are damaged: Broken hinge Deteriorated seals Distorted or bent oven casing Only a qualified microwave service technician should perform repair NEVER remove the outer casing from the oven. -
Page 45: Technical Specifications
Technical Specification SAMSUNG strives to improve its products at all times. Both the design specifi- cations and these user instructions are thus subject to change without notice. Model CE2774/CE2774T/CE2714/CE2714T Power source 230V ~ 50 Hz Power consumption Microwave 1400 W... - Page 46 ELECTRONICS Printed in Korea...
- Page 47 Supplement to the instruction manual for model CE2713T Using the Crusty Plate (CE2713T) Normally, when cooking food such as pizzas or pies with the grill or with microwaves, the dough or pastry becomes soggy at the bottom. Use the crusty plate for better results.
- Page 48 Supplement to the instruction manual for model CE2713T Crusty Plate Settings (CE2713T) We recommend to preheat the crusty plate directly on the turntable. Preheat the crusty plate with the 600W+Grill ( ) function and follow the times and instructions in the table. Food Serving Size Power Preheating Cooking Instructions Level...
