Audio / Video Input

(US & Japan)
TV
AV CABLE

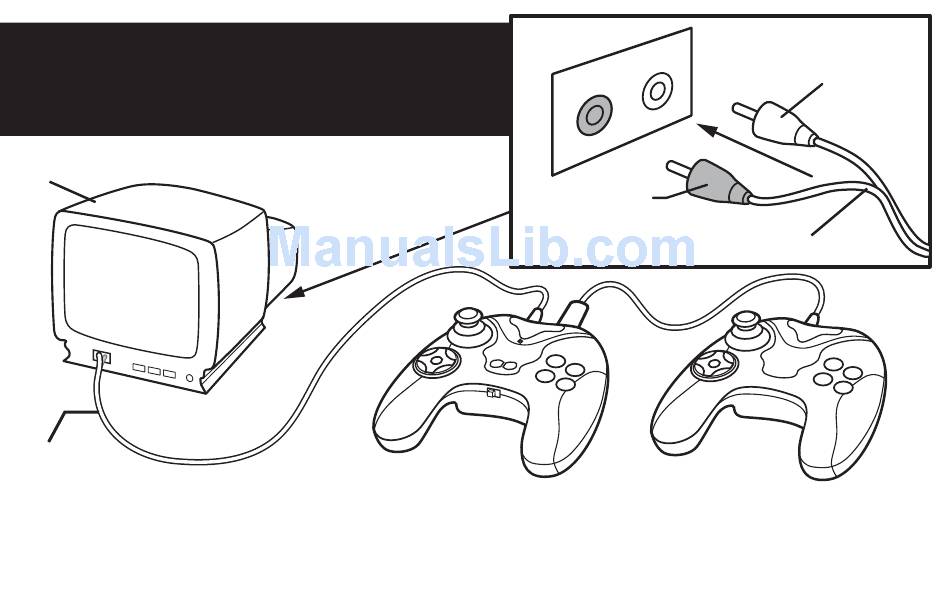

1. Plug the TV Play System into the TV or VCR.
The Audio video cable that is attached to the TV Games Unit has a yellow input
and a white input. This cable needs to be plugged into either your TV or VCR.
The Yellow plug should be inserted into the "Video In", which is a yellow
outlined hole on your TV or VCR. The White plug should be inserted into the
"Audio In" which is a white outlined hole on your TV or VCR.
The A/V jacks can be found in the front,
back, or both of the TV set, depending
on the TV set.
PLAYER 1 PLAYER 1
TV
i o
A u d
e o
V i d
Video
(Yellow)
2. Find the correct source/channel on your TV or VCR
to see the game on your screen
You may need to select the appropriate "Line-in source". To do
this, you will need to first turn on the TV Play System. You can
be sure that it is on if the red LED lights up on the unit.
Audio
(White)
IN
AV CABLE
PLAYER 2
3
