Summary of Contents for Arise 32"

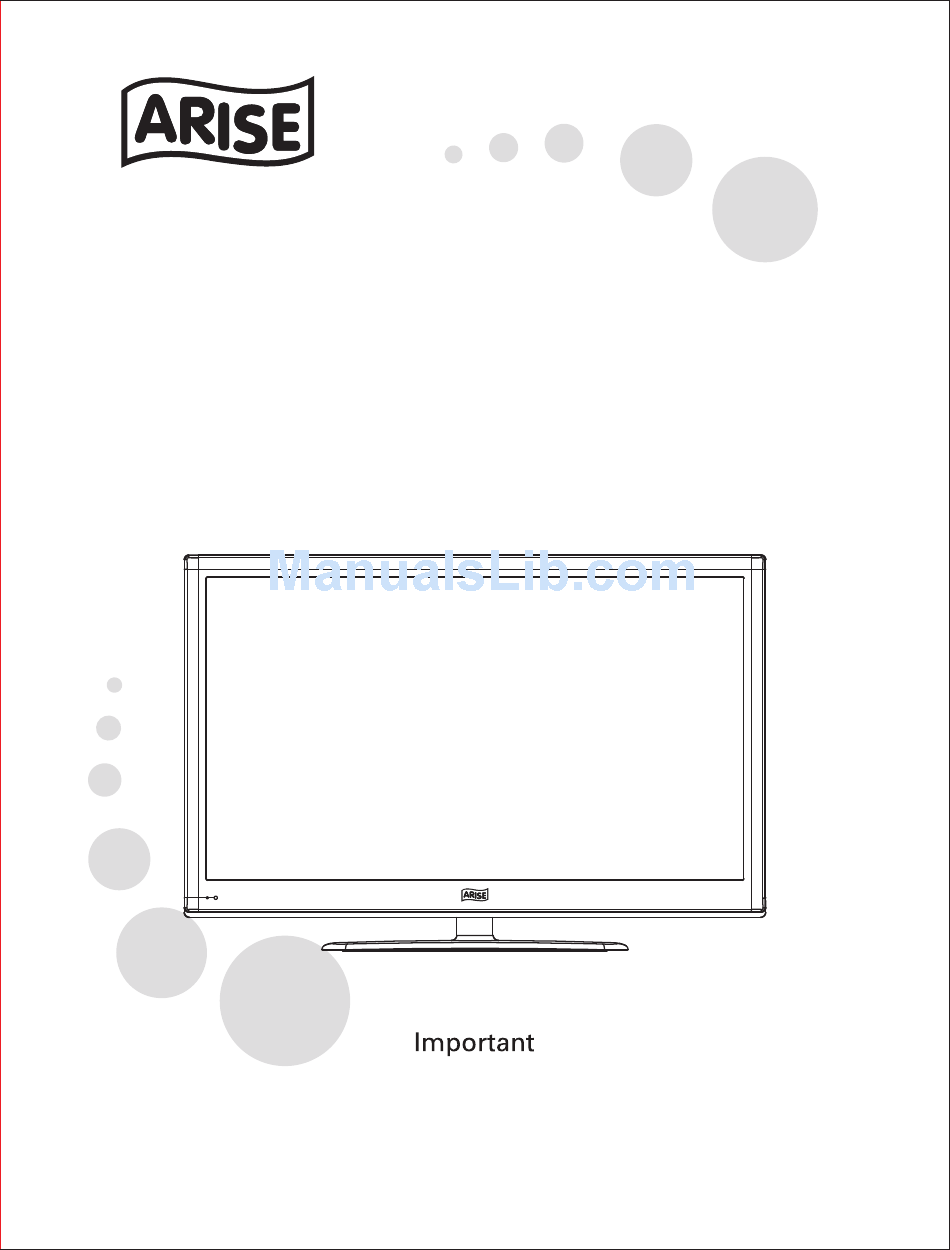

- Page 1 User's Manual SIZE:32"-47" Please read this manual carefully for proper usage before installation and use.It is recommended to keep this manual properly for future check.
-
Page 2: Table Of Contents
Table of Contents Characteristic Functions ………………………………………………………………1 Important Safety Instructions ………………………………………………………2 Technical Specifications ………………………………………………………………5 The Technical Specifications for Final Product…………………………………………5 Technical Specifications for TV……………………………………………………………7 VGA Display Mode…………………………………………………………………………7 Power Management…………………………………………………………………………8 Packing Listing………………………………………………………………………………8 Installation & Connection ………………………………………………………………9 Antenna Connection………………………………………………………………………9 Power Connection…………………………………………………………………………10 Computer Connection……………………………………………………………………10 ……………………………………………………………... -
Page 3: Characteristic Functions
Characteristic Functions 1. It can support 3D video player function, bringing you with true-to-life 3D scene and vivid experience. 2. Compatibility with 2D/3D display allows you to freely switch from 2D to 3D, and vice versa. 3. High quality 3D LCD screen is free from flashing and has little radiation, thus greatly reducing fatigue of your eyes for care. -
Page 4: Important Safety Instructions
Important Safety Instructions Thank you to choose the ARISE LCD TV , a valuable product withexcellent quality and multiple functions. This machine will bring you more audiovisual enjoyment. Its design can insure user's safety. All machine are strictly tested before leaving factory. - Page 5 Important Safety Instructions cellar and similar environment. ● During a thunder rain weather, do not touch the power cord and antenna cable. Please pull out the power line and aerial plugs for preventing thunder and lightning damage to this machine. ●...
- Page 6 Important Safety Instructions ● When the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. ● The machine should not suffer from waterdrop or watersplash, do not place the vessel with water (or other liquids) on it, otherwise it is possible to catch fire or electric shock.
-
Page 7: Technical Specifications
Technical Specifications The Technical Specifications for Final Product Panel size 32" Max. Resolution 1366×768 Best Resolution 1360×768@60Hz Pixel Pitch 0.51075mm×0.51075mm Active Area 697.6845mm×392.256mm Color 16.7M Power Supply 100V-240VAC 60/50Hz Power Consumption of Speaker 8W+8W Unpacking: 787×494×101mm or 787×494×93mm Excluding base Packing: 900×610×205mm or 900×610×195mm Dimension (L×H×W) - Page 8 Technical Specifications Panel size 42" (HD) 42" (FHD) Max. Resolution 1366×768 1920×1080 Best Resolution 1360×768@60Hz 1920×1080@60Hz Pixel Pitch 0.681mm×0.681mm 0.4845mm×0.4845mm Active Area 930.25mm×523.01mm 930.24mm×523.26mm Color 16.7M Power Supply 100V-240VAC 60/50Hz Power Consumption of Speaker 8W+8W Unpacking: 1014×625×115 mm Excluding base Packing: 1135×730×225 mm Dimension (L×H×W) Unpacking: 1014×691×115 mm...
-
Page 9: Technical Specifications For Tv
Technical Specifications Technical Specifications for TV 1.Supported Systems：PAL+SECAM or PAL+NTSC 2.Storage channels: 199 3.TV(RF): 75Ω Imbalance 4.AV Video-Input: 75Ω,1VP-P, RCA 5.AV Audio-Input: 20KΩ, 500mV RMS 6.YPbPr/HDMI Video Input: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p VGA Display Mode 32" Mode Resolution Refresh 720×400... -
Page 10: Power Management
Technical Specifications 47" Mode Resolution Refresh 720×400 70Hz 640×480 60Hz SVGA 800×600 60Hz 1024×768 60Hz 1280×720 60Hz 1280×960 60Hz SXGA 1280×1024 60Hz 1360×768 60Hz WXGA 1600×900 60Hz WUXGA 1920×1080 60Hz Recommended mode: 1920X1080@60Hz Power Management This product is complied with EPA Energy Star Standard and compatible with VESA DPMS Standard. -
Page 11: Installation & Connection
Installation & Connection Antenna Connection It is better to use outdoor antenna or CATV cable if you want to watch the colorful and hi-definition pictures. Attention: Please turn off TV power before the outdoor antenna is connected to the TV signal input port. -
Page 12: Power Connection
Installation & Connection Power Connection Notes: 1.This machine uses AC 100-240V, 60/50Hz. 2.If a long time at leisure, please disconnect it from power supply. 3.This TV must be connected to a three pin socket outlet for safety. Computer Connection Please connect one end of VGA cord with the output port of the computer (available for both desktop or laptop computer), and another end of VGA cord with the input port of the VGA on its rear cover. -
Page 13: Av1 Video Signal Connection
Installation & Connection AV1 Video Signal Connection Through composite cable, connect AV equipment VIDEO output termination to this machine VIDEO input, and AV equipment AUDIO output termination to this machine AUDIO input, respectively. Yellow (VIDEO) W White (AUDIO-L) Red (AUDIO-R) CVBS, DVD Player or other machine with CVBS/S-Video. -
Page 14: Av2 Video Signal Connection
Installation & Connection AV2 Video Signal Connection For easy connection to AV Video Signal, there are a group of AV Video Signal input ports on the left side of the machine. The connection method is the same as AV1. Y Yellow (VIDEO) W White (AUDIO-L) R Red (AUDIO-R) Earphone Socket... -
Page 15: Ypbpr/Ycbcr Input Connection
Installation & Connection YPbPr/YCbCr Input Connection If the signal source is DVD, Digital wired receiver or equipments with the YPbPr/YCbCr output, recommends you to connect YPbPr or YCbCr output with the TV YPbPr/YCbCr input. In order to obtain the better picture quality, at the same time, please connect its audio output with TV audio input as shown in the following chart. -
Page 16: Position Of Control Keys
Position of Control Keys Front Panel Control Keys 1) Power Indicator. 2) Remote Receiving Sensor. 3) SOURCE: Press this key to enter the menu of signal source and choose signal source. 4) CH+/CH-: Press these two keys to select the channel, and adjust the options you need under OSD operation. -
Page 17: Remote Control
Remote Control Power Mute Numerical key Program list Smart sound Smart image Cursor Key Menu Channel Volume Source INFO 16:9 Info Zoom Return Time COLOR AUDIO NICAM(optional) Color system Color PLAY PAUSE STOP ROTATE PREV. NEXT REV. F WD. Telecontrol battery installation method Take off the cover of battery box, fix two AAA batteries with 1.5 volt, and confirm with the polarity of remote control battery box. - Page 18 Remote Control Function Cursor key Up or Down cursor button: function select; Left or right cursor button: analog add or reduce VOL+/VOL- Sound volume add or reduce button MENU Press this button to display menu SOURCE Press this button to display signal source selection menu CH+/CH- Select channel Number INFO...
-
Page 19: Basic Operation Instruction
Basic Operation Instruction Power On Plug power cord into the electrical socket and press '' '' key on the control panel, then press '' '' key on the remote control to turn on the TV. Standby Press ''Power''key on the remote control. TV will be in standby. ★Special Attention: 1.TV will automatically turn to standby if there is no signal input for 5 minutes... -
Page 20: Picture
Basic Operation Instruction Press ''Source''key to display the signal source menu or exit signal source menu. 6. During the operation, the selections which can not be adjusted at current mode will be hidden automatically and the color of the selections will be changed into gray. 7. -
Page 21: Osd
Basic Operation Instruction or the key "CH+/CH-" on the control panel to choose what you need. Press the "Left/ Right" key on the remote control or the "VOL+/VOL-" key on the control panel to adjust analog value or state (see below table). ★Special Attention 1. - Page 22 Basic Operation Instruction 3D Setup Select to enter OSD submenu. Press "Up/Down" key on the remote control or "CH+/CH-" key on the panel to choose "3D Setup". Press "Right" key on the remote control or "VOL+" key on the panel and the submenu for 3D Type 3D Setup will be displayed on the screen.
- Page 23 Basic Operation Instruction or stroke might suffer from elicited "photosensitive epilepsy attack" that has not diagnosed before. Once you have the following symptoms, please stop watching 3D video and consult physician: faintness, dizziness; involuntary movement (like eyes and muscle twitches), confusion; nausea, unconsciousness, twitches, spasm and disorientation, etc..
- Page 24 Basic Operation Instruction Select to enter the submenu. Press "Up/Down" key on the remote control or Color System "CH+/CH-" key on the control panel to choose Sound System Skip what you need. Press the "Left/Right"key on Auto Search the remote control or the "VOL+/VOL-" key on Manual Search Fine Tune 45.30 MHz...
- Page 25 Basic Operation Instruction Fine Tune Select to enter the submenu of TV. Then press ''Up/Down'' key on the remote control or ''CH+/CH-'' on the control panel to select ''Fine Tune''. Press ''Left/Right'' key on the remote control to adjust from low frequency or high frequency. Channel Edit Channel Edit Select...
-
Page 26: Usb Signal Source Operation
Basic Operation Instruction Note With the mode of AV1, AV2, S-VIDEO1,S-VIDEO2, YPbPr, PC, HDMI1, HDMI2, all functions and adjustments are similar with TV. User can check it at convenience. HDMI connector can realize DVI connector function with external HDMI/DVI commutator. USB signal source operation P lease insert USB memory card into USB interface of TV, p ress "source"... - Page 27 Basic Operation Instruction was selected, the file lower right corner shows a red hook. you can choose photos to join playlist.). Press "PLAY" key on the remote control to play. when you choose nothing, t he machine will join all the photos in the file in playlist automatically. Basic Function When photos are playing, press "INFO"...
- Page 28 Basic Operation Instruction Basic Function Press "Left/Right" key on the remote control to select this function, press "OK"key to fast back. Press "PLAY"key to play normally. Press "Left/Right" key on the remote control to select this function, press "OK" key to fast forward. Press "PLAY"key to play normally. Select time: Press "Left/Right"...
-
Page 29: Simple Troubleshooting
Simple Troubleshooting Symptom Factor Solution 1.Antenna cable connector is loose, 1.Check the antenna cable connector plug whether or cable is damaged. not loose, cable whether or not perfect. 2.Channel setting is incorrect. 2.Refer to channel setting method, resetting again. Snowflake speckle and 3.Antenna cable type is not matching.
