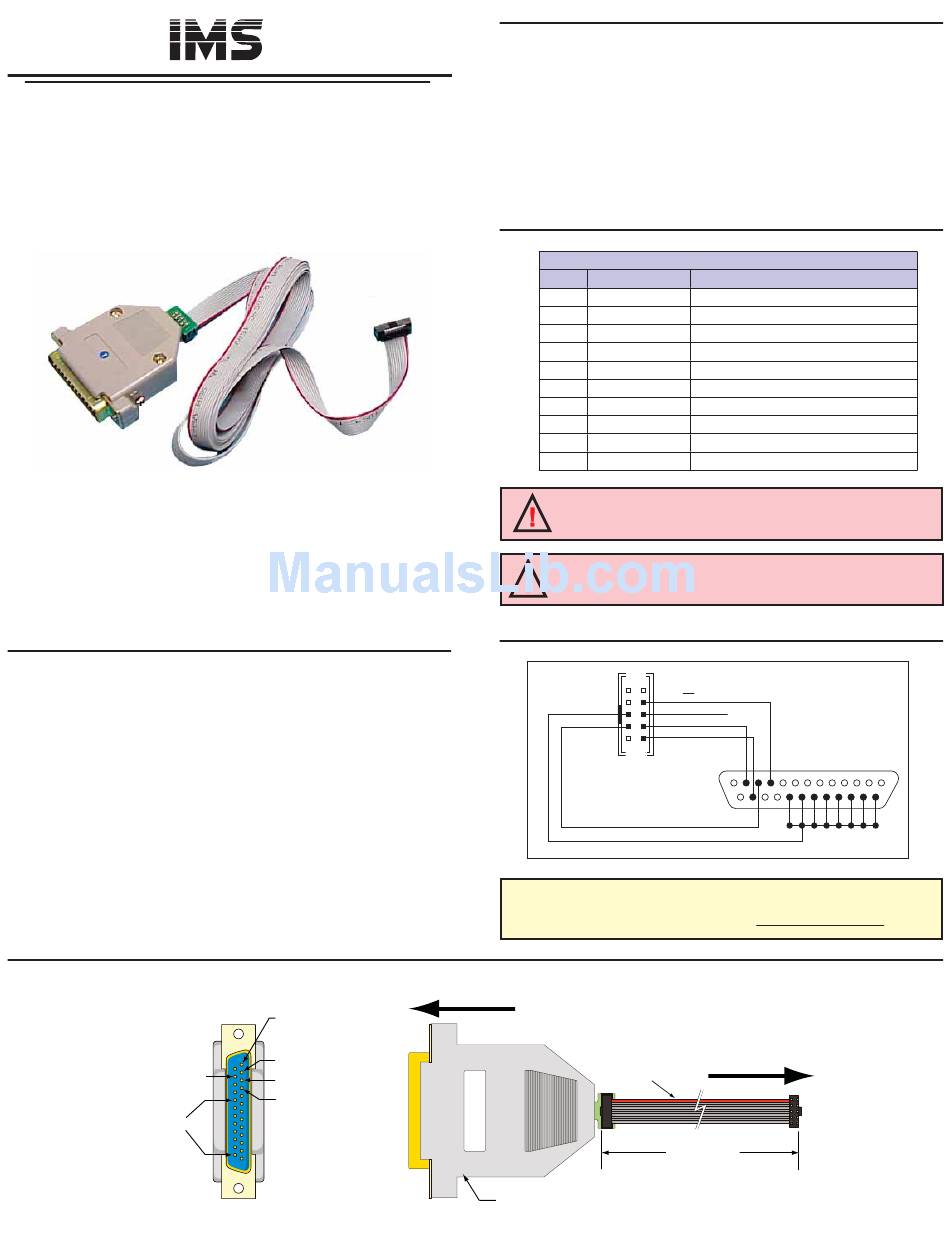

IMS MD-CC100-000 Specification Sheet

intelligent motion systems, inc.
Excellence in Motion
MD-CC100-000
Parameter Setup Cable
370 N. MAIN ST., PO BOX 457, MARLBOROUGH, CT 06447
PH: (860) 295-6102, FAX: (860) 295-6107
Internet: www.imshome.com, E-Mail: info@imshome.com
P a r a m e t e r S e t u p C a b l e U s a g e
The MD-CC100-000 Parameter Setup Cable is de signed to be
used with the following IMS products:
MDrive14*
MDrive17 Microstepping* and Speed Control Versions
MDrive23 Microstepping* and Speed Control Versions
MDrive34 Microstepping and Speed Control Versions
USC-48-2 Universal Speed Control
* The MDrive14, MDrive17C and MDrive23C are equipped with C Connector and
require an Adapter Cable to interface with the MD-CC100-000. The optional
Prototype Development Cable is also recommended for these products.
D e t a i l s
Pin 15 - MISO
Pins 18-25
Ground
Revision 102104
TM
TM
To Customer PC
Parallel/SPI Port
Pin 1
Pin 2 - SPI Clock
Pin 3 - MOSI
Pin 4 - SPI Chip Select
D e s c r i p t i o n
The MD-CC100-000 Parameter Setup Cable eliminates
the need for the user to wire communications to the IMS
product. In clud ed in this cable is built-in logic level shifting
cir cuit ry to ac com mo date the 3.3v ports on some PCs.
This cable plugs in easily to con nect a stan dard DB-25
PC Parallel/SPI port to the 10 pin header.
S P I P i n A s s i g n m e n t s
Pin # Pin Name
1 N/C
2 N/C
3 N/C
4 CS
5 GND
6 +5VDC
7 MOSI
8 CLK
9 N/C
10 MISO
WARNING! The +5VDC output is used for the setup cable
ONLY! This output is not designed to power external devices!
WARNING! DO NOT connect or disconnect the MD-CC100-000
Parameter Setup Cable while power is applied!
S P I I n t e r f a c e
PIN 4 - CS
GND - PIN 5
PIN 6 - +5VDC OUT
PIN 8 - CLOCK
MOSI - PIN 7
PIN 10 - MISO
10 Pin Header
P2
For More Information:
See each product's complete manual
on the IMS Product CD or at www.imshome.com
Red Wire
# 1 Pin
Standard DB-25
Parallel/SPI Connector
Copyright © 2003–2004 Intelligent Motion Systems, Inc.
10 Pin Header
Description
No Connect
No Connect
No Connect
Chip Select
Communications Ground
+5VDC Output (See Warning Below)
Master Out – Slave In
Clock
No Connect
Master In – Slave Out
DB-25 Standard
PC Parallel/SPI Port
2 3
4
19
15
Ground
To 10 Pin Header
Cable Length
6 Feet (1.8 M)
