Summary of Contents for Omcan/FMA BFH-A

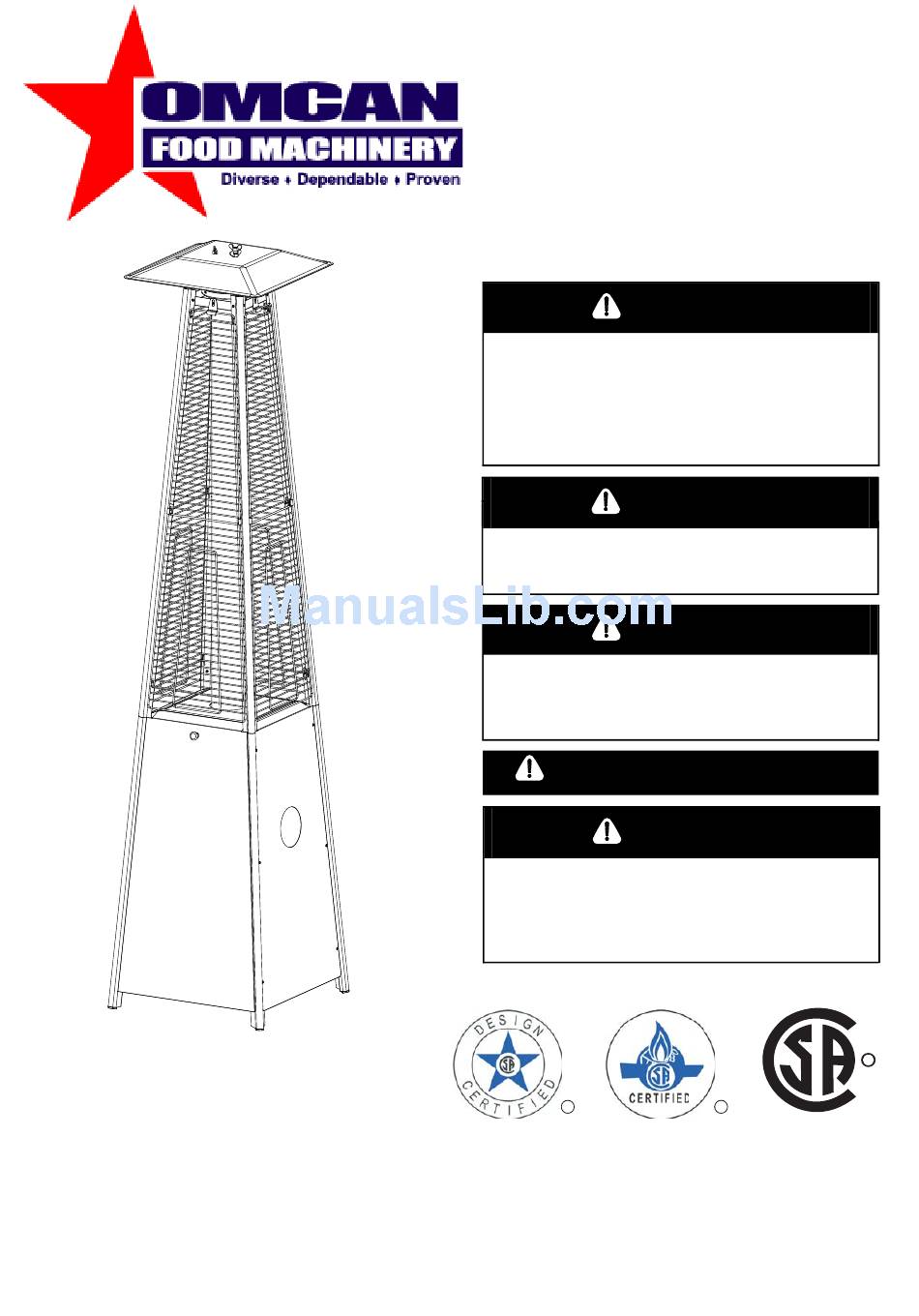

Page 1
Owner’s Manual OUTDOOR PATIO HEATER MODEL # BFH-A DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call you gas supplier or fire department.
PACKAGE CONTENTS Reflector Flame Screen Glass Tube Upper Support Upper Protective Guard Lower Protective Guard Black Silicone Ring Control Box Assy Side Panel Lower Support Front Panel Block Belt Wheel Assembly Gas Hose & Regulator Bottom Plate QUANTITY QUANTITY Reflector Block Belt Flame Screen Wheel Assembly...
Page 4
SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This heater is a combustion appliance. All paper or cardboard, a safe distance away from the combustion appliances produce carbon monoxide heater as recommended by the instructions.
SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”...
Page 6
ASSEMBLY INSTRUCTIONS 1. Assemble the wheel assembly to the bottom plate. Fix the wheel assembly to the bottom plate using 4pcs bolt M6X10 and 4pcs flange nut Hardware Used Bolt M6 X 10 M6 Flange nut Wrench 2. Insert the pins of the base to the holes of lower support, press to secure the pins.
Page 7
ASSEMBLY INSTRUCTIONS 3.Assemble block belt. Fix the block belt to the 2pcs of lower support behind the front door,using 2pcs screw M5X10. Hardware Used Screw M5 X 10 Philips screwdriver 4. Assemble the middle support. Insert the 4pcs upper support to the lower support.
Page 8
ASSEMBLY INSTRUCTIONS 5. Assebmle the flame screen to the upper support. Secure the flame screen to the upper support using 8pcs screw 3/16”. Hardware Used 3/16” Screw Philips screwdriver 6. Assemble the reflector onto the flame screen. Screw the 3pcs stud on the flame screen, then put the reflector onto the stud, secure nut.
Page 9
ASSEMBLY INSTRUCTIONS 7. Carefully install the glass tube by lifting up and inserting through the center hole in the upper plate. Ensure the black silicone ring is attached to the lower edge of the glass tube as illustrated. Slide the glass tube through the hole of the lower plate cover and onto the To aid in installation middle plate.
Page 10
ASSEMBLY INSTRUCTIONS 9. Attach the three side panels to the heater using 18pcs screw 3/16”. Note : Do not cover the front side where the control knob is. Hardware Used 3/16” Screw x 18 Philips screwdriver 10. Install the knob to M4x10 screw. Hang the chain to the hole on the control box assy and put the pothook of front panel to the holes of bottom plate.
Page 11
ASSEMBLY INSTRUCTIONS 11. Propane Only-Proper Hose Connection. WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire. After the cylinder is placed inside the heater, secure the cylinder with block melt tightly. 12.
Page 12
ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
Page 13
OPERATION INSTRUCTIONS Leak Check WARNING • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the heater until all connections have been leak tested and do not leak. Hose / Regulator connection Regulator / Cylinder connection...
OPERATION INSTRUCTIONS DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed.
Page 15
OPERATION INSTRUCTIONS 4. Push and release the igniter button until pilot flame is visible through the glass tube. 5. Once the pilot is lit, continue to depress the control knob for 30 seconds. 6. If the pilot does not stay lit, repeat steps 4 to 6. 7.
OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control know for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When heater is ON: The flame should be blue with straight yellow tops.
OPERATION INSTRUCTIONS 9. Heater is away from gasoline or other flammable liquids or vapors. 10. Heater is away from windows, air intake openings, sprinklers and other water sources. 11. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials. 12.
Page 18
CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Heater does NOT reach the desired temperature. Heater glow is excessively uneven. Heater makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use.
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Cylinder valve is closed Open valve Clean or replace orifice or Blockage in orifice or pilot tube pilot tube Open gas line and bleed it Pilot won’t light Air in gas line (pressing control knob in) for not more than 1 - 2 minutes or until you smell gas Low gas pressure with cylinder valve...
ONE-YEAR LIMITED WARRANTY This product is inspected, tested and carefully packaged to minimize the chance of damage during shipment. If a part within one year from the date of purchase proves to be defective in material or fabrication under normal use, the part will be repaired or replaced. The Company's obligation under the warranty is to replace or repair defective parts at our discretion.
REPLACEMENT PARTS LIST Reflector Flame Screen Glass Tube Upper Support Upper Protective Guard Lower Protective Guard Black Silicone Ring Control Box Assy Side Panel Lower Support Front Panel Block Belt Wheel Assembly Gas Hose & Regulator Bottom Plate QUANTITY QUANTITY Reflector Block Belt Flame Screen...
