NVSBL Smartq T10 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

T10
SmartQ
COMPATIBLE
MID USER MANUAL
Designed in Mars. Made in Pluto.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smartq T10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NVSBL Smartq T10

Summary of Contents for NVSBL Smartq T10

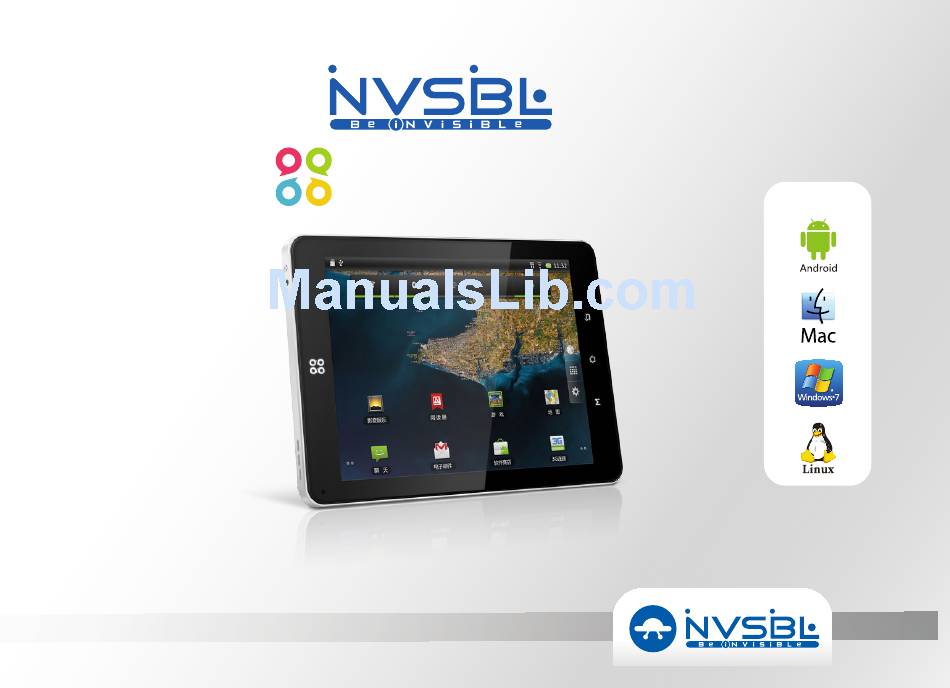

  • Page 1 SmartQ COMPATIBLE MID USER MANUAL Designed in Mars. Made in Pluto.

  • Page 2: Table Of Contents

    INDEX NVSBL SmartQ T10 Quick Start Guide - Outline 1 - Basic Uses 2 - Basic Operations 3 - Main Interface 4 - Input Method Switch 5 - Wi-Fi Network Connection 6 - Bluetooth 7 - Browser 8 - Memory and External Storage...

  • Page 3: Quick Start Guide

    NVSBL SmartQ T10 Understanding NVSBL SmartQ T10 Quick Start Guide Please open the package, and make sure it contains the following items. DC 5V 2A Charger Quick Start Guide (with warranty certificate) USB Cable NVSBL SmartQ T10 SmartQ...

  • Page 4: Basic Uses

    T10 to its original state so as to solve the usage problem caused by the system. The Quick Start Guide gives general introduction of the use of NVSBL SmartQ T10 in the following 15 categories:...

  • Page 5: Basic Uses

    1 - Basic Uses Charge Please connect the charger to the 220V mains power outlet, the other end into the T10 charging port. The logo backlight will blink, indicating it is being charged. When the battery is fully charged, the logo backlight will remain on but no longer blinking.

  • Page 6: Basic Operations

    1. Touch: in which very little power will be consumed. When you need to continue to use T10, just press the power but- Use finger to lightly touch the icon, option or menu on ton again to wake up T10 to resume your operations the screen to start or execute the appropriate proce- suspended by the sleep state.
  • Page 7 (Settings menu) According to the system prompt, orderly and accurately Tap “Yes” to complete the calibration, and the accu- tap the center of the five cross icons, until the system dis- rate response of the touch screen will be restored. plays the following window: SmartQ...

  • Page 8: Main Interface

    Volume up key: Increase the volume Volume down key: Decrease the volume Screen rotation switch: Move up the switch to turn on the automatic screen rotation, move down to turn off feature. 3 - Main Interface Menu key: Bring up the menu function Main interface key: Tap to return to the main screen.
  • Page 9 The main interface contains three items: the status bar, fast power switch and the tab bar, in which the tab bar from left to right has the Settings tab, Intellectual Reading tab, All Programs tab, Media Player tab and Browser tab. The main interface consists of three screens.
  • Page 10 Multi-tasking switch: Long press the main interface key to display the most recent program. Tap the window application icon to return to the application of last exit. Status Bar: The status bar can prompt various local conditions of current executions, of which the commonly used icons and their meanings are as follows: SmartQ...
  • Page 11 Power switch shortcut: Power switch shortcut has the four switches – Wi- Fi, Bluetooth, account synchronization, screen-off, placed together in the main interface, so that you can adjust the switches for quick settings. For example, when you want to disconnect the Wi-Fi Internet con- nection, just tap the shortcut Wi-Fi icon in the main interface to turn off the Wi-Fi module, so as to save Drag down the status bar to expand it.
  • Page 12 Deleting a shortcut icon from the main interface is demon- Add shortcuts and widgets. strated as follows. Take the browser icon as an example. Replace the wallpaper of the main interface. Press the icon, the tab bar becomes icon. Use keywords entered for Google search. Drag the icon to the recycle bin location, and when the shortcut icon color turns red, release the icon to delete it.

  • Page 13: Input Method Switch

    4 - Input Method Switch To switch between input methods, press any text edit- ing area and hold for two seconds, the menu will pop Tablet PC uses soft keyboard for text input. Tap any text up. Tap “input method”, and in the Input menu, select input box, and the system will automatically pop up the soft the desired input method.

  • Page 14: Wi-Fi Network Connection

    5 - Wi-Fi Network Connection Tap one of the searched wireless hotspots, the system will pop up the connection setup window. Follow the Please use a wireless router to connect the machine to prompts to enter the password, and then wait for ten Wi-Fi network.

  • Page 15: Bluetooth

    Tap the Bluetooth device to be paired, the NVSBL Bluetooth to turn it on, and then tap the "Bluetooth Set- SmartQ T10 and the device to be paired will simulta- tings" option. neously display pairing request along with their ran- dom keys for the pairing.

  • Page 16: Browser

    3 - Not to pair paired device. To pair with “Nvsbl SmartQ T10”. Check whether the pair- ing key is:126469 Receiving Files: For T10 to receive files transferred from other devices,...
  • Page 17 2. Files of some other formats may not be sent using “ES File The "Bookmarks" tab is to open the historical list of Browser”. It is advised to use Android Market to download and saved bookmarks for quick access to the targeted install programs related to these formats for the Bluetooth trans- mission.

  • Page 18: Memory And External Storage

    8 - Memory and External Storage Add Bookmarks: After getting into the browser and opening a web page. View files stored in TF card: Short press the T10 Menu key, and then tap “More” -> Insert the TF card into the machine, and wait until this “Add Bookmark”...
  • Page 19 View files in built-in flash memory:Tap "ES File Browser" -> "Flash" to view the files in the built-in flash memory. to return to the parent folder. To remove the TF card from the machine, tap the “Set- tings” tab -> “SD Card and Internal Storage Settings” ->...
  • Page 20 Press and hold the file to be copied, and the following View files in U-disk: window will pop up. Use OTG cable to connect the U-disk with T10. After the U-disk is identified by the system, orderly tap the "All Programs"...

  • Page 21: Manage Applications

    9 - Manage Applications Application program installation: Uninstall applications: Under the Android system, all software applications and games are APK file format. To install the application soft- Tap “Settings” -> “Applications” -> “Manage Ap- ware to T10 Tablet PC, you can copy the APK files of the plications”, and drag the page up and down to select the application to be deleted, and then tap to start the applications to the TF card for local installation or you can...

  • Page 22: Settings

    10 - Settings For manual adjustment, cancel the automatic bright- ness adjustment option, and then drag the brightness bar to adjust brightness to the desired level and then Set time and date: tap “OK” to save the setting. Tap the "Settings" tab, and then drag the window to se- lect "Date and Time", and in the "Date and Time Settings"...
  • Page 23 Calibrate the touch screen: Tap “Settings” -> “Screen Calibration”, and do calibra- tion according to the system prompts. For detailed infor- mation, please see the basic instructions of the touch screen operations. Gravity sensing: The T10 built-in accelerometer supports gravity sensing game.

  • Page 24: Audio And Video Playback

    Select from the language options displayed by the Tap the “All Programs” icon to expand all programs, and then tap the “Music” icon, the system will display system. the playback interface. The music is classified into the following five catego- ries: Artist, Album, Song, Playlist and Now Playing.

  • Page 25: Intelligent Reader

    12 - Intelligent Reader Tap one of the three icons on the right of the "Now Playing" tab to set the music playback mode. The Nvsbl SmartQ T10 intelligent reading software for reading the PDF e-book, which supports online Play Video: purchase and download of e-magazines.

  • Page 26: Firmware Upgrade

    to do the share, annotation and setup func- Or you can directly tap the white triangle on the left to flip forward, and tap the white triangle on the right to flip tions; tap to switch on-and-off the screen rotation; backward.
  • Page 27 4. Insert the TF card when the machine is in off state, and then connect the power adapter, hold down the “volume down” key, then long press the power button until the upgrade icon appears on the screen, to enter the firm- ware upgrade interface.

  • Page 28: Frequently Asked Questions

    14 - Frequently Asked Questions - When the Tablet PC is running slow, how to improve its speed? When the Tablet PC is running slow, you can terminate some programs to free up memory so as to improve its speed. For program termination, please see the section of "Manage Applications"...
  • Page 29 - How to copy the files in the U-disk to the Flash memory? Please see the section of “Memory and External Storage” for instructions. - How to uninstall U-disk? In the Android 2.2 kernel, there is no uninstall option for the U-disk device. However, it supports hot swap. Before pull- ing out the U-disk, make sure there is no U disk read and write.
  • Page 30 - When an unfamiliar language is accidentally selected and the screen messages become not understandable, how to get back to the original language? Please see the language setup in the section of “Settings” for instructions. To do this, tap the main menu key to return to the main interface.
  • Page 31 - Can I use ADSL modem to connect T10 to Internet? T10 system has no dial-up software. But if the ADSL modem is capable of wireless routing to connect to other device, you can directly access the Internet without the need of dial-up. Otherwise, there will be no way of using ADSL modem to connect T10 to Internet.
  • Page 32 If T10 uses a static IP address (shown above), please check whether the IP addresses in domain name 1 and domain name 2 are local DNS server addresses. If not, please change the domain name 1 using a local DNS server address, and then turn off Wi-Fi, and then re-open it, the new DNS domain name will take effect.
  • Page 33 Then tap “More” -> “Settings” -> “User-Agent String”, the system will pop up the following window: The browser identification is changed to Android for the conversion. - How to determine whether T10 is charging? When T10 is up and running, Smatdevices logo on the front of the machine cabin will blink and on the upper right corner of the system main interface there will appear an battery capacity indicator, showing T10 is in normal charging.
  • Page 34 *This guide is only for daily reference, and there will be no further notice for any changes. *This guide is based on NVSBL SmartQ T10 Android2.2 V1.0 firmware, for subsequent update features please refer to the NVSBL official website about the firmware upgrade instructions.
  • Page 35 Product comercialized by: Nvsbl Unusual Technology SL CIF B85751790 Email: comercial@nvsbl.es Web: http://www.nvsbl.es Made in China.
