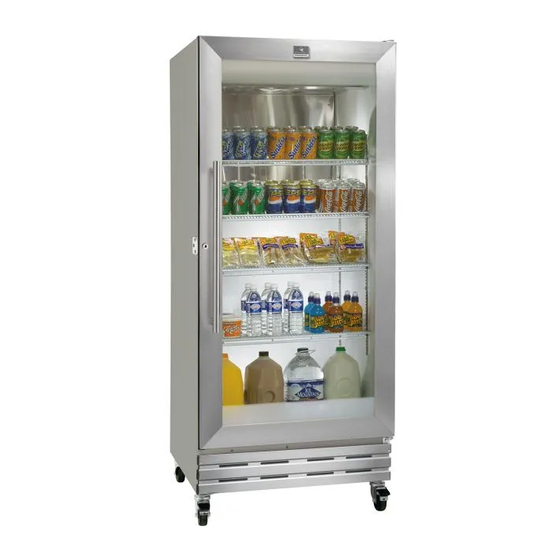

Summary of Contents for Kelvinator KGM220RHY
Page 1
Product No. KGM220RHY3 Series Commercial Color gray Volts 115V Owner's Guide 297279901 Market North America REFRIGERATOR P08F0143.eps P08D0595.eps P08C1177.eps R08S0481.eps Model No. KGM220RHY Publication No. 5995583902 11/01/13 (EN/SERVICE/BVB)
Page 2
Publication No: 5995583902 KGM220RHY3 DOOR P08D0595 01/11...
Page 3
KGM220RHY3 Publication No: 5995583902 DOOR POS. NO PART NO. DESCRIPTION 216657201 Gasket-door, black 297071600 Door-assy, glass 297146600 Nameplate, Commercial 297314000 Handle 297168700 Instructions, handle 218755401 Screw-set, 10-32 x 0.375 218755504 Screw-shoulder, #10 AB, handle mounting 01/11 # Functional Parts * Non-Illustrated Parts...
Page 4
Publication No: 5995583902 KGM220RHY3 CABINET 01/11...
Page 5
KGM220RHY3 Publication No: 5995583902 CABINET POS. NO PART NO. DESCRIPTION 216325600 Fan Blade 297200900 Breaker Kit w/corners 297200100 Breaker Kit w/corners, 32", top and bottom 13 # 297250000 Motor, fan, 115 V 216660000 Switch, rocker 216659500 Bulb-light, 40W, 130V 216659900 Socket-light/lamp 297173500 Ballast, Fl Lamp...
Page 6
Publication No: 5995583902 KGM220RHY3 CABINET -1 0 -1 0 -2 0 -2 0 -3 0 -3 0 -4 0 -4 0 NS F A IR P08C1177 01/11...
Page 7
KGM220RHY3 Publication No: 5995583902 CABINET POS. NO PART NO. DESCRIPTION 297122000 Shelf-standard 216658401 Bolt, caster, 5/16 sq. neck, front 297236250 Screw, hex head, 1/4-20x5/8, hinge, (4) 297070201 Dial, thermometer 297096100 Screw, #6-20X.375 AB, stainless, thermo dial 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2) 216504500 Screw, AB, 8-18x.500 297001708...
Page 8
Publication No: 5995583902 KGM220RHY3 SYSTEM 01/11...
Page 9
KGM220RHY3 Publication No: 5995583902 SYSTEM POS. NO PART NO. DESCRIPTION 297152201 Condenser 5308000110 Strap-evap/heater, aluminum, (2) 216938601 Drier-filter 297170700 Harness-electrical 216730700 Heater-defrost 15 # 297311300 Evaporator 297219300 Heat Exchanger 297078701 Insulator-evap, styrofoam, RH 297078801 Insulator-evap, styrofoam, LH 216731001 Thermostat, defrost 23 # 216744500 Timer-defrost...
