Summary of Contents for Igel Igel TC 32 LX CF
-

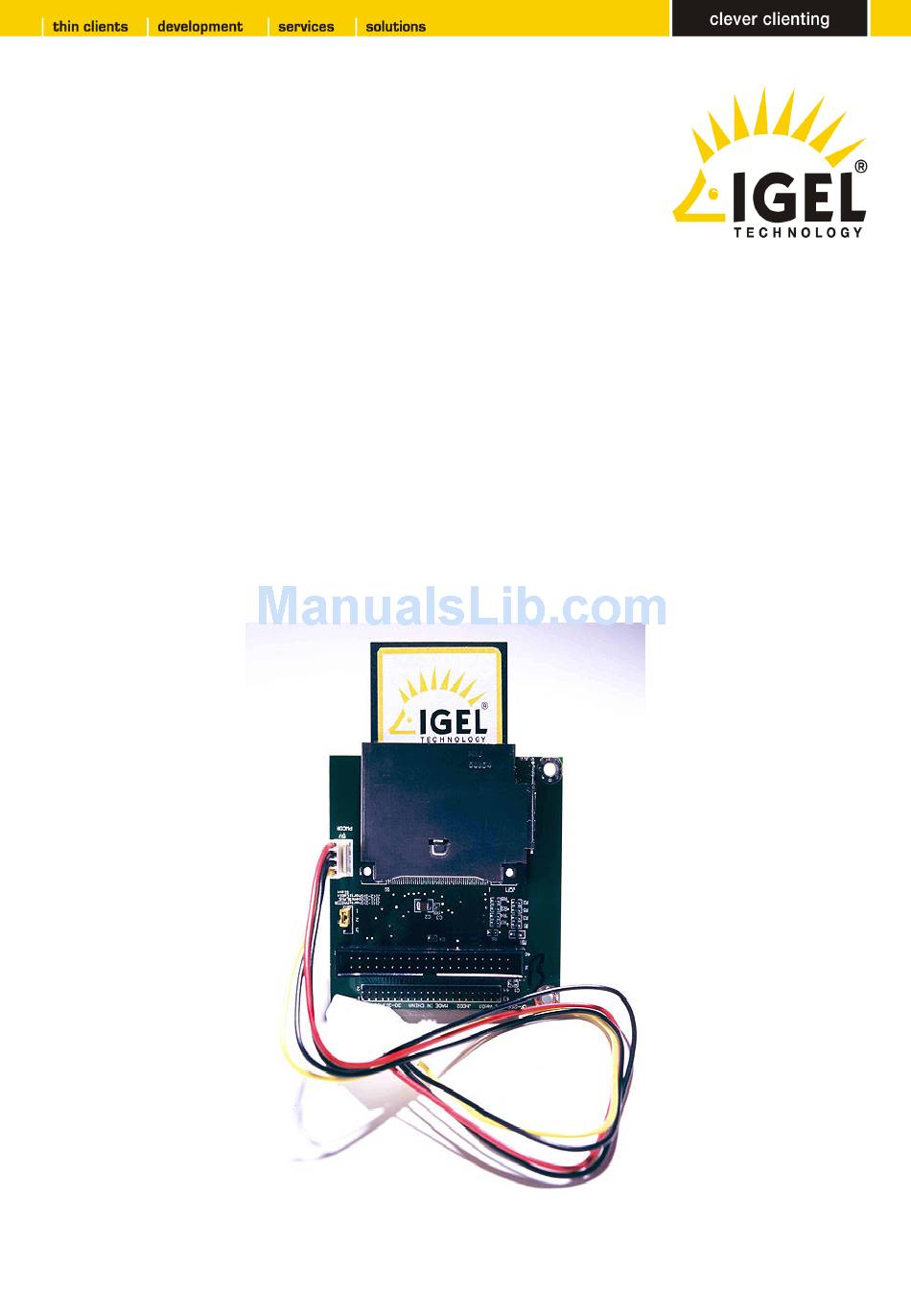

Page 1: Installation Guide
The IGEL TC-Card Installation Guide TC 32 LX CF and TC 64 LX CF Revision 1.3 11/2004... -
Page 2: Table Of Contents
Contents Introduction PC Requirements Installation Mounting the TC-Card Connecting the Hard Drive Cable The Power Connector Supported Video Cards Supported Network Interface Cards (NIC) Page... -
Page 3: Introduction
Introduction The TC-card from IGEL Technology offers a cost-effective entry into the world of server-based computing. Within a few minutes your old PC workstation turns into an efficient and cost-saving IGEL Clever Client. The Clever Client can then be fully managed using IGEL’s Remote Management software in the same manner as IGEL’s Clever Thin-Client terminals. -
Page 4: Installation
Installation 1. Disconnect the power from the PC and open the PC case 2. Install the TC-card in any spare expansion card mounting slot. 3. Locate the hard-drive and disconnect the IDE hard drive ribbon cable from the hard drive and connect it to the IDE hard drive connector on the TC-card. -
Page 5: Mounting The Tc-Card
Mounting the TC-Card Figure 2 The TC-Card can usually be mounted in any spare card slot as shown in figure 2. Ensure the TC-card is not touching any other components or the chassis. Ensure the screw attaching the mounting bracket is tightened correctly. -
Page 6: Connecting The Hard Drive Cable
Connecting the Hard Drive Cable The TC-card must be set to be master (figure 3) and be connected to the primary IDE channel. The 40 pin hard drive cable connector usually has a “key” on one side (figure 4). Ensure this mates with the notch in the 40 pin socket on the TC-Card. -
Page 7: The Power Connector
The Power Connector The IGEL TC-Card requires power from the small (3.5" floppy style) power connector found in most PCs as shown in figure 6 below. Most hard drives use the larger peripheral power connector as shown in figure 7 below. If the PC being upgraded has no spare small power connector, use the included adapter (Figure 8) to convert from the large power connector to the small connector. -
Page 8: Supported Video Cards
ATI: Mach32, Mach64, 3DRage, 3DRagePro, 3DRage LT, 3DRage LT Pro, Rage XL, Rage XC, Rage IIC, Rage128, Radeon Cirrus Logic: Alpine, Laguna Intel: Intel i740 Matrox: MGA1064SG (Mystique), MGA2164W (Millennium II), G100, G200, G400, G450, and G550 NVIDIA: 128ZX, TNT, TNT2 (Ultra, Vanta, M64), GeForce (DDR,... -
Page 9: Supported Network Interface Cards (Nic)
AMD: PCnet32 PCI DEC: DECchip Tulip (dc21x4x=21040/21041/21140) PCI, Generic DECchip & DIGITAL EtherWORKS PCI/EISA (DE425,434,435,450,500) Intel: EtherExpress 16, EtherExpressPro / EtherExpress 10 (i82595 fx/tx), EtherExpressPro/100 (INTEL PRO/100 family = 82558 chipset) National Semiconductor: DP8381x series PCI Ethernet (PureData,NetGear, Linksys and others... - Page 10 IGEL Technology GmbH Schlachte 39/40 28195 Bremen Germany Tel: +49 421 1769 - 370 Fax: +49 421 1769 - 302 info@igel.com http://www.igel.com IGEL Technology 5450 NW Ave 33rd. Suite 100 Fort Lauderdale, FL 33309 Tel: +01 954 739 - 9990 Fax:+01 954 793 - 9991 info@igel.com http://www.igel.com...
