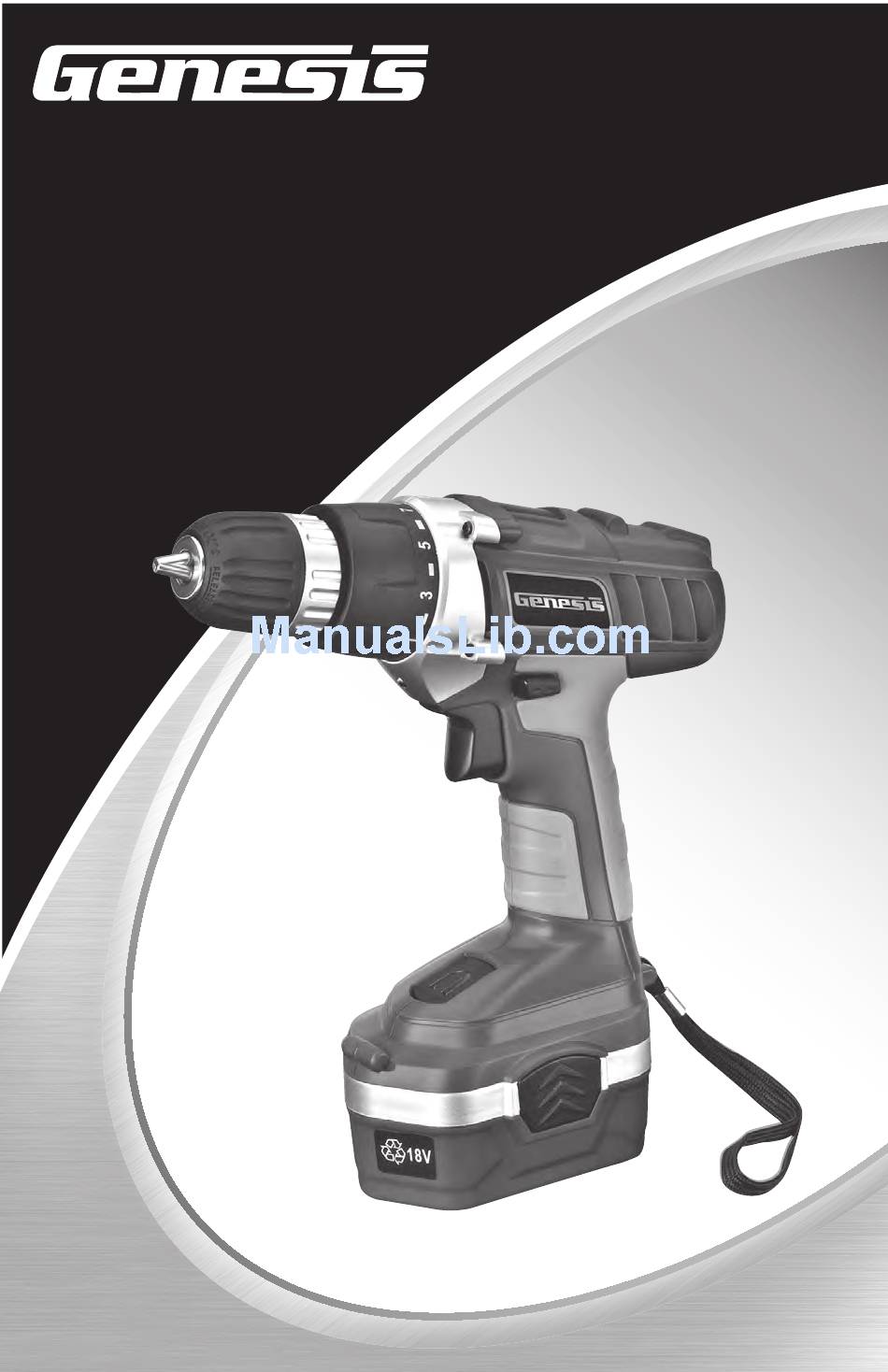

- Page 1 Cordless Drill/Driver Perceuse / Tournevis sans fil de 18v Taladro / Tornillador inalámbrico de 18v Operator’s Manual Manuel d’utilisation Manual del Operario GCD18BK...
-
Page 2: Specifications
18V Cordless Drill/Driver Operator’s Manual Specifications: • Model: GCD18BK • Charger Input: 120 V~ 60 Hz • Motor: 18 V DC • No-Load Speed: 0-550 RPM • Chuck Size: 3/8” (10mm) • Torque Settings: Includes: 1 -Battery, Charger, 13-Piece Drill/Driver Bit Set, and Storage Case WARNING: To reduce the risk of injury, user must read and understand this operator’s manual before operating this tool. Save this Manual for future reference. -
Page 3: Electrical Safety
WARNING: READ AND UNDERSTAND ALL WARNINGS, CAUTIONS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA SAFETY: Keep your work area clean and well lit •... - Page 4 • Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired or replaced by an authorized service center • Turn power tool off, and disconnect the plug from the power source and/or battery pack from the power tool before making any adjustments, changing the accessories, or storing the tools Such preventive safety measures reduce the risk of an accidental start up which may cause personal injury • Store idle tool out of reach of children and other inex erienced persons. It is dangerous in the hand of untrained users. • Maintain power tools with care. Check for proper alignment and binding of moving parts, component breaks, and any other conditions that may affect the tool’s operation. A guard or any other part that is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal injury. • Use recommended accessories. Using accessories and attachments not recommended by the manufacturer or intended for use on this type tool may cause damage to the tool or result in personal injury to the user. Consult the operator’s manual for recommended accessories. • Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control 18V Cordless Drill/Driver Operator’s Manual GCD18BK...
- Page 5 • Feed the work piece in the correct direction and speed. Feed the work piece into a blade, cutter, or abrasive surface against the direction of the cutting tool’s direction of rotation only. Incorrectly feeding the work piece in the same direction may cause the work piece to be thrown out at high speed. • Never leave the tool running unattended, turn the power off. Do not leave the tool until it comes to a complete stop. • Never start the power tool when any rotating component is in contact with the work piece. BATTERY TOOL USE AND CARE Ensure the switch trigger is in the off position before inserting • battery pack. Inserting the battery pack into power tools that have the switch on invites accidents. Recharge only with the charger specified by the manufacturer •...
-
Page 6: Extension Cords
• Hold the tool by insulated gripping surfaces when performing an operation where the tool may contact hidden wiring. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator. • Do not leave the tool running. Operate the tool only when hand-held. • Be Aware that this tool is always in an operating condition, because it does not have to be plugged into an electric outlet. 18V Cordless Drill/Driver Operator’s Manual GCD18BK... -
Page 7: Important Safety Instructions For Charger
• Never use a battery which has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately. • Use designated battery pack (Genesis™ -Model GAB18B) and charger (Genesis™- Model GAC240400-SH) for this tool. Use of any other batteries may result in a risk of fire. WARNING: Read and understand safety and operating instructions of designated battery and charger before using this tool. - Page 8 This product comes with the battery installed internally. You are not allowed to install or remove the battery from the product. IMPORTANT BATTERY INFORMATION: DISPOSING THE BATTERY PACK • Your batteries are Nickel-Cadmium rechargeable batteries. Certain Local, State and Federal laws prohibit disposal of these batteries in ordinary trash. • Consult your local waste authorities for your disposal/recycling options. • More information regarding battery disposal in U.S. and Canada is available at; http://www.rbrc.org/index.html, or by calling 1-800-822-8837 (1-800-8BATTERY). 18V Cordless Drill/Driver Operator’s Manual GCD18BK...
- Page 9 YOUR CORDLESS DRILL/DRIVER FIG 1 1. Keyless Chuck 2. Torque Ring 3. Bubble Level 4. LED Work Light 5. Trigger Switch 6. Reversing Switch 7. Magnetic Tray 8. Battery Pack UNPACKING AND CONTENT IMPORTANT: Due to modern mass production techniques, it is unlikely the tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified.
-
Page 10: Operation
Installing or Removing the Battery Pack (FIG 3) FIG 3 • To install the battery pack, insert the battery pack into drill housing as shown in FIG 3. Always insert it all the way until it locks in place with a little click. Lightly pull on the battery to ensure it is locked into place and will not accidentally fall out of the drill, causing an injury. • Do not use force when inserting the battery pack. If the battery does not slide in easily, it is not being inserted correctly. • To remove the battery pack, withdraw it from the tool while depressing the tabs (1) on both sides of the battery pack. 18V Cordless Drill/Driver Operator’s Manual GCD18BK... - Page 11 Trigger Switch Action • Turn the drill on by depressing the trigger switch. • Depressing the switch further will produce more speed and torque. • Use the reversing switch (6-FIG 1) to change the direction of rotation of the drill. • The Reversing Switch has three positions: Forward, Reverse, and Off (middle). • Always check the rotation before beginning your work. LED Work Light Your tool has a built-in LED work light to illuminate the work area. When you turn on the tool, the work light will automatically turn on. Electric Brake This drill is equipped with an electric brake. Like the torque settings, an electric brake provides you with another element of control during various operations. If the tool consistently fails to quickly stop after trigger switch release, have a qualified serviceman examine the tool. Level This drill is equipped with a bubble level located on the top of motor housing. It helps you to keep the drill bit level during the use. Chuck • Your drill is equipped with a keyless chuck, so you can quickly change bits with no extra tools required. • To insert or change bits, put the reversing switch in the off position. Hold the collar of the chuck with one hand and rotate the body of the chuck to tighten or loosen. • Always make sure that bits are seated firmly between the chuck jaws. Never attempt to operate a bit that is wobbly, unstable, or broken. WARNING: Make sure the drill bit is inserted straight into chuck jaws. Do not insert the drill bit into the chuck jaws at an angle and tighten.
-
Page 12: Maintenance
THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. ACCESSORIES INCLUDED IN THIS KIT ARE NOT COVERED BY THE 2 YEAR WARRANTY. TOLL-FREE HELP LINE 888-552-8665 For questions about this or any other GENESIS Product, please call Toll-Free: www.richpowerinc.com Or visit our web site: ©Richpower Industries, Inc. All Rights reserved Richpower Industries, Inc. 736 Hampton Road Williamston, SC 29697 Printed in China, on recycled paper 18V Cordless Drill/Driver Operator’s Manual GCD18BK... - Page 13 Richpower Industries, Inc. 736 Hampton Road Williamston, SC USA www.richpowerinc.com...
