VP150m
ViewPanel
®
User Guide
Guide de l'utilisateur
Bedienungsanleitung
(Intl Spanish)
(Italian)
(Brazilian Portuguese)
(Swedish)
(Russian)
(Polish)
(Japanese)
(Traditional Chinese -Taiwan)
(Simplified Chinese - China)
With Landscape & Portrait Display Modes
Full 15.0" Diagonal Viewable Screen
(Korean)
(Arabic)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ViewSonic ViewPanel VP150m
Summary of Contents for ViewSonic ViewPanel VP150m

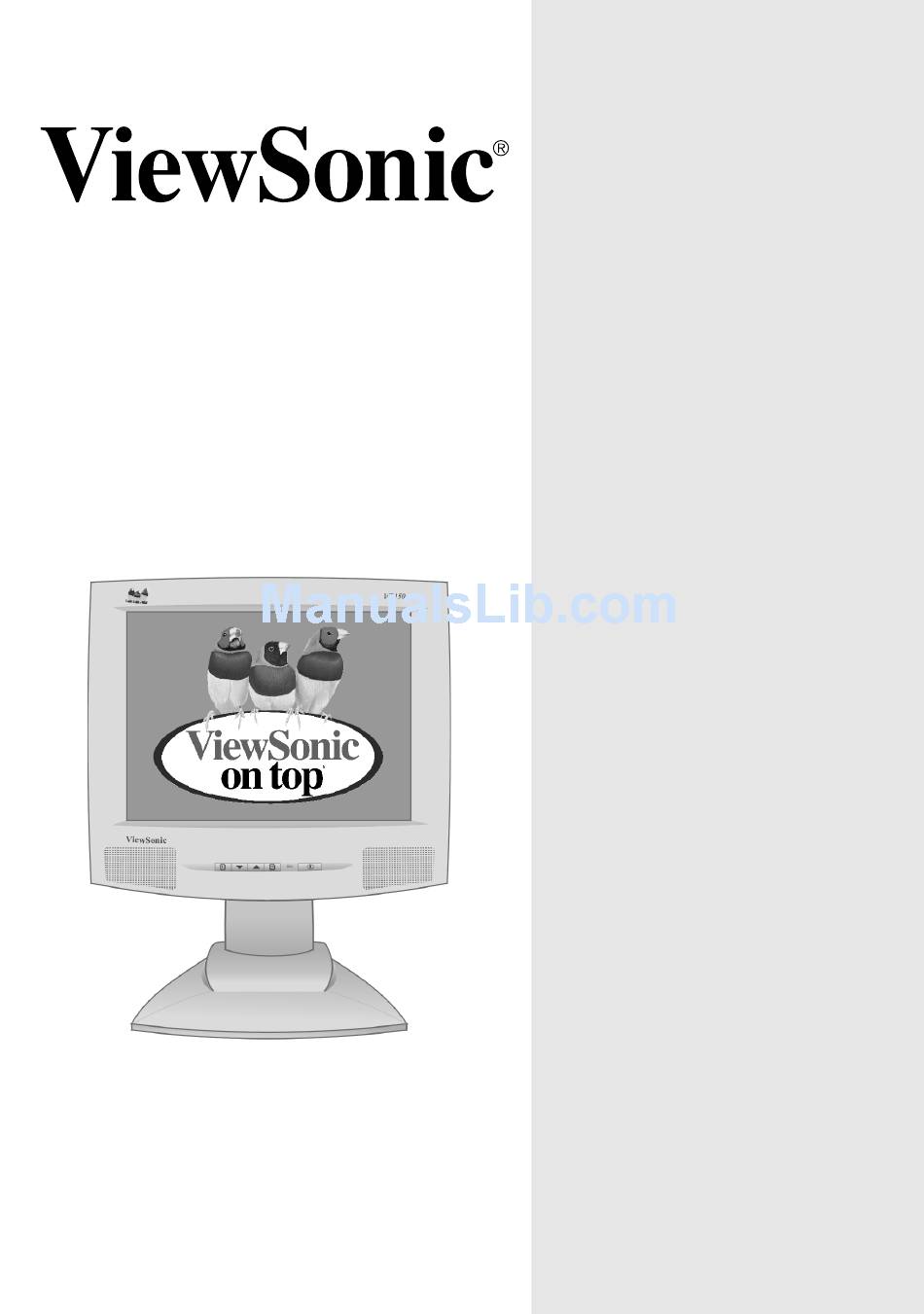

- Page 1 VP150m ViewPanel ® User Guide Guide de l’utilisateur Bedienungsanleitung (Intl Spanish) (Italian) (Brazilian Portuguese) (Swedish) (Russian) (Polish) (Japanese) (Traditional Chinese -Taiwan) (Simplified Chinese - China) With Landscape & Portrait Display Modes Full 15.0" Diagonal Viewable Screen (Korean) (Arabic)
-
Page 2: Table Of Contents
Adjusting the Screen Image ..........8 LCD Adjust Sub-menu ............11 Miscellaneous Sub-menu ..........12 Other Information Specifications ..............14 Troubleshooting..............15 Customer Support ...............16 Cleaning the ViewPanel ............17 Limited Warranty ..............18 Appendix Power Cord Safety Guidelines ..........19 FCC Information ..............20 CE Conformity ..............20 ViewSonic VP150m... -
Page 3: For Your Records
NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this mate- rial, or the performance or use this product. -
Page 4: Getting Started
Getting Started Congratulations on your purchase of a VP150m color ViewPanel ® . Important! Save the original box and all packing material for future shipping needs. The word "Windows" in this user guide refers to the following Microsoft NOTE: operating systems: Windows '95, Windows '98, Windows 2000, Windows NT. -
Page 5: Quick Installation
® Installation is complete. To order a ViewSonic Macintosh adapter, contact ViewSonic Customer Support. Enjoy your new VP150m ViewPanel. 2 Connect power cord and AC/DC To be best prepared for any future customer adapter service needs: • Write the serial number (see back of the... -
Page 6: Installation Of Wall Mount (Optional)
Installation of Wall Mount (Optional) To obtain a wall-mounting kit, contact ViewSonic or your local dealer. To convert your ViewPanel from a desk-mounted to a wall-mounted display, do the following: Disconnect Power. -
Page 7: Lcd Screen Protector (Optional)
Contact ViewSonic Customer Support for more information. Landscape/Portrait Modes The VP150m ViewPanel can operate in either Landscape or Portrait mode. Follow the instructions that accompany the Perfect Portrait software. Note: Before using the portrait display mode, first install the Perfect Portrait software included with your VP150m ViewPanel. -
Page 8: Using The Viewpanel
Set the refresh rate: See your graphic card's user guide for instructions. Do not set the graphics card in your computer to exceed the WARNING: maximum refresh rate of 75Hz; doing so may result in permanent damage to your ViewPanel. ViewSonic VP150m... -
Page 9: Adjusting The Screen Image
Power Light Power ON/OFF and exits the Main Menu. Front Control Panel Button [2] displays the Scroll Up/Down control screen for a menu options. selected control. Also used to toggle between a pair of controls on some screens. ViewSonic VP150m... - Page 10 The following tips may help you optimize your display: • Adjust your computer's graphic card so that it outputs a video signal 1024 x 768 @ 60Hz to the VP150m. (Look for instructions on "changing the refresh rate" in your graphic card's user guide.) •...
- Page 11 To adjust the colors, do the following: To select color (R, G, or B) press button [ ]. Adjust by using the up and down buttons. When you are finished making all color adjustments, press button [ ] twice. ViewSonic VP150m...
-
Page 12: Lcd Adjust Sub-Menu
(Horizontal Position) moves the screen image H Position left or right. (Vertical Position) moves the screen image up V Position or down. sharpens focus by aligning the illuminated text Fine Tune and/or graphic characters. automatically centers and sizes the screen Auto Sync image. ViewSonic VP150m... -
Page 13: Miscellaneous Sub-Menu
Volume adjustment sub-menu. positions the menu and control screens H OSD Position horizontally (right or left). positions the menu and control screens V OSD Position vertically (up or down). eliminates jagged edges around text characters Smoothing for easier reading. ViewSonic VP150m... - Page 14 Recall settings (if the display is operating in a factory preset timing mode). If your previous adjustments haven’t yielded the desired results, this is one way to reset and/or start over. ViewSonic VP150m...
-
Page 15: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the ViewPanel. ® Macintosh computers older than G3 require a ViewSonic , Macintosh adapter. To order an adapter, contact ViewSonic. -
Page 16: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the ViewPanel to another computer. • If you have an older graphics card, contact ViewSonic ® for a non-DDC adapter. -
Page 17: Customer Support
North Africa Australia (contact reseller) ----------------------------- New Zealand T: 64-3-366-1135 mbarlass@vistech.co.nz F: 64-3-366-7006 Singapore/Southeast T: 65-273-4018 viewsonicspore@pacific.net.sg Asia F: 65-273-1566 Other Asia/Pacific T: 886-2-2248-4072 vsi@viewsonic.com.tw countries and Indian F: 886-2-2240-8238 Peninsula South Africa T: 27-11-314-0002 atscom@mweb.co.za F: 27-11-314-0002 ViewSonic VP150m... -
Page 18: Cleaning The Viewpanel
ViewPanel screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the ViewPanel. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 19: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 20: Appendix
HAR-Certified, and a special mark that will appear on the outer sheath, or on the insulation of one of the inner conductors. If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. ViewSonic VP150m... -
Page 21: Fcc Information
Install and use the equipment according to the instruction manual. CE Conformity The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility," and 73/ 23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety." ViewSonic VP150m... - Page 22 ViewSonic Corporation 381 Brea Canyon Road Walnut, CA 91789 Tel (909) 869-7976 Tel (800) 688-6688 7/2000 Fax (909) 468-1202...
