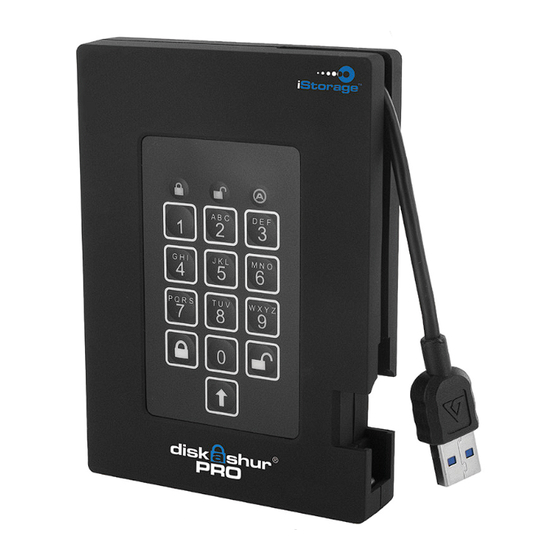

Diskashur iStorage User Manual
  1. Manuals
  2. Brands
  3. Diskashur Manuals
  4. Storage
  5. iStorage
  6. User manual

Diskashur iStorage User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

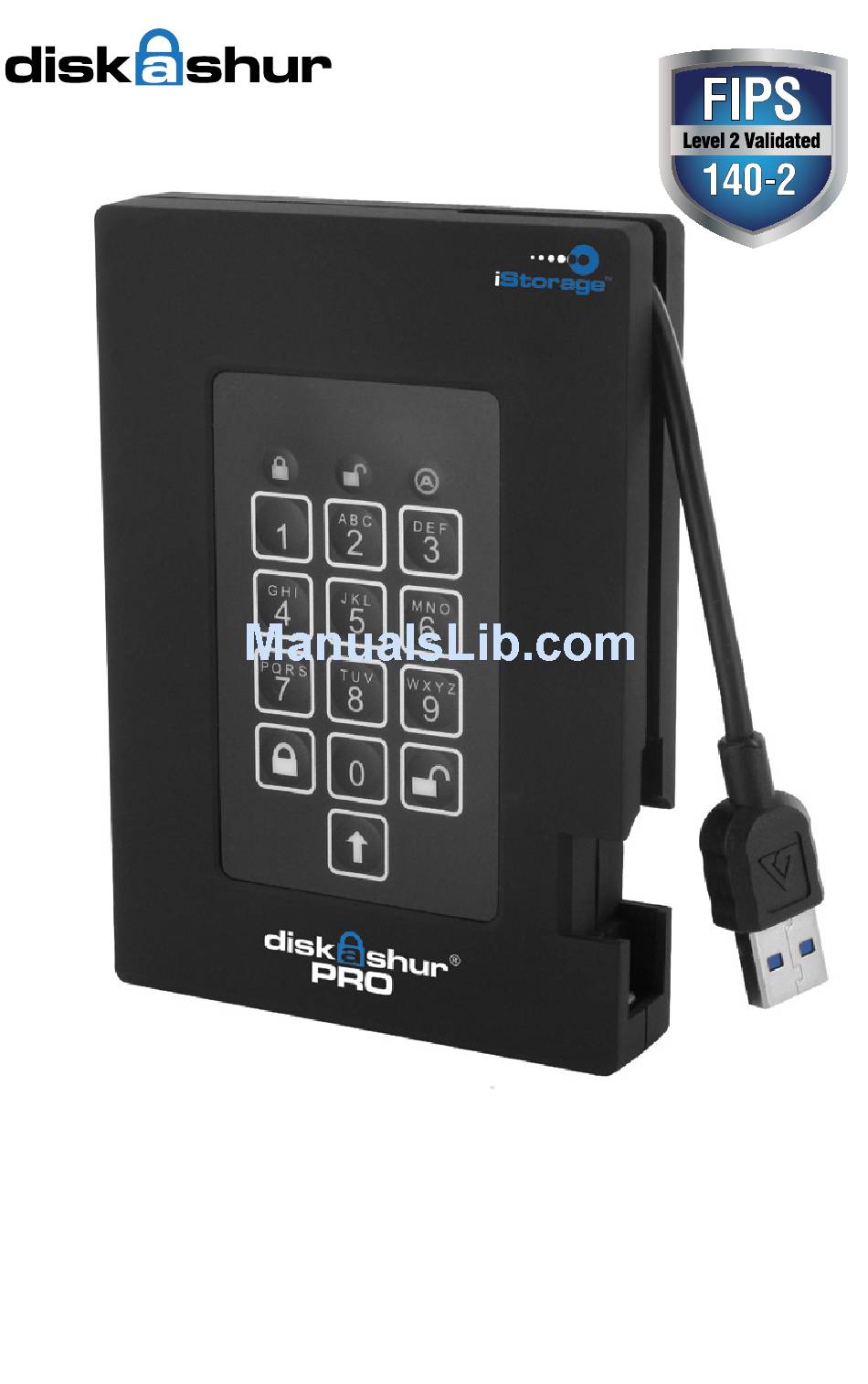

PRO
User
Guide
®
Remember to save your PIN in a safe
place. If lost or forgotten, there is no way
to access the drive.
If you are having difficulty please refer
to the complete user's manual which is
loaded on your diskAshur PRO drive and
is also available at iStorage's website:
www.istorage-uk.com/support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iStorage and is the answer not in the manual?

Questions and answers

Summary of Contents for Diskashur iStorage

  • Page 1 If lost or forgotten, there is no way to access the drive. If you are having difficulty please refer Guide to the complete user’s manual which is loaded on your diskAshur PRO drive and is also available at iStorage’s website: www.istorage-uk.com/support...

  • Page 2: Table Of Contents

    Setting the Unattended Auto Lock Feature diskAshur PRO Brute Force Protection Setting a Self-Destruct PIN Performing a Complete Re-Set Initializing and formatting the diskAshur PRO after a reset Hibernating or Logging off from the OS diskAshur PRO Setup for Mac OS Troubleshooting...
  • Page 3 Copyright © iStorage Limited, Inc 2013. All rights reserved. Windows is a registered trademark of Microsoft Corporation. All other trademarks and copyrights referred to are the property of their respective owners. Distribution of modified versions of this document is prohibited without the explicit permission of the copyright holder.

  • Page 4: About The Diskashur Pro

    Before the drive can be used, the Admin PIN MUST be set. The LED will display Solid BLUE and Solid GREEN to indicate the diskAshur PRO is waiting for a PIN to be set. To Set-up the Admin PIN: Press UNLOCK + 9. The LED will change to Solid BLUE and Blinking GREEN.

  • Page 5: Diskashur Pro - Connections

    USB port. In the event that diskAshur PRO is unable to power on a single USB connection, use the included USB Y-cable. The diskAshur PRO is not self-powered and requires connection to a USB port to perform all operations.

  • Page 6: Connecting With The Usb Y-Cable

    Connecting with the USB Y-Cable If none of the diskAshur PRO LEDs power on a single USB connection, use the included USB Y-cable. Attach diskAshur PRO’s integrated USB cable to the female connector of the USB Y-cable. Connect the two male USB connectors to two available USB ports on your computer.

  • Page 7: Diskashur Pro Keypad Panel

    Any test failure will leave the ® unit in an interoperable state with LED flashing. First Time Use Before diskAshur PRO can be used, the Admin PIN MUST be set. The LED will display Solid BLUE and Solid GREEN to indicate diskAshur PRO is waiting for a PIN to be set.

  • Page 8: Locking The Drive

    Locking the Drive To lock the drive, press the LOCK button. If data is still being written to the drive, diskAshur PRO will wait until all data has been written to the drive and then it will lock automatically. Note: The diskAshur PRO will not be recognized by the operating system in the standby state.

  • Page 9: Adding A New User Pin

    Adding a new User PIN Enter the Admin Mode (UNLOCK + 0 for five seconds. Enter Admin PIN and press UNLOCK). Press and hold UNLOCK + 1 until the LED turns to Solid BLUE and Blinking GREEN. Enter a User PIN and press UNLOCK (a minimum of 7 digits and a maximum of 16 digits). The LED flashes GREEN three times, then returns to Solid...

  • Page 10: Setting The Unattended Auto Lock Feature

    To protect against unauthorized access if the drive is unlocked and unattended, diskAshur PRO can be set to automatically lock after a pre-set amount of time. In its default state, the diskAshur PROUnattended Auto Lock feature is turned off. The Unattended Auto Lock can be set to activate after 5, 10 or 20 minutes.

  • Page 11: Diskashur Pro Brute Force Protection

    PRO Brute Force Protection What is Brute Force Attack? A brute force attack is a method of defeating a cryptographic scheme by systematically trying a large number of possibilities; for example, a large number of the possible keys in a key space in order to decrypt a message.

  • Page 12: Setting A Self-Destruct Pin

    Admin/User PINs and then unlock the drive. Activating this feature will cause the Self-Destruct PIN to become the new Admin PIN and the diskAshur PRO will need to be partitioned and formatted before any new data can be added to the drive.

  • Page 13: Initializing And Formatting The Diskashur Pro After A Reset

    Initializing and formatting the diskAshur PRO after a complete reset A complete reset of the diskAshur PRO will erase all information and partition settings. You will need to initialize and format the diskAshur PRO. To initialize your diskAshur PRO, do the following: After a complete reset, attach the diskAshur PRO to the computer.

  • Page 14: Hibernating Or Logging Off From The Os

    Hibernating, Suspending, or Logging off from the Operating System Be sure to save and close all the files on your diskAshur PRO before hibernating, suspending, or logging off from the Windows operating system. It is recommended that you lock the diskAshur PRO manually before hibernating, suspending, or logging off from your system.

  • Page 15: Diskashur Pro Setup For Mac Os

    Once the drive is unlocked, open Disk Utility from Applications/Utilities/ Disk Utilities. To format the diskAshur PRO: 1. Select diskAshur PRO from the list of drives and volumes. Each drive in the list will display its capacity, manufacturer, and product name, such as 232.9 diskAshur PRO.

  • Page 16: Troubleshooting

    Q: What can I do if I forget the Admin PIN? A: There is no other way to retrieve the Admin PIN except a complete reset of diskAshur PRO. After a complete reset, all data will be lost and you will need to initialize, allocate and format the diskAshur PRO manually.
  • Page 17 Q: Why do the LEDs blink Blue, Red and Green after I plug the drive in? A: When you first plug the drive in, it does a self-test on the encryption components of the drive. If any component fails the test, the LED will stop on RED and the drive will not function.

  • Page 18: Technical Support

    NO OTHER WARRANTY, EITHER EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, HAS BEEN OR WILL BE MADE BY OR ON BEHALF OF ISTORAGE OR BY OPERATION OF LAW WITH RESPECT TO THE PRODUCT OR ITS INSTALLATION, USE, OPERATION, REPLACEMENT OR REPAIR.
  • Page 19 © iStorage Limited, Inc. 2013. All rights reserved. iStorage Limited, iStorage House, 13 Alperton Lane, Perivale, Middlesex, UB6 8DH +44 (0)20 8991 6260 www.istorage-uk.com...

This manual is also suitable for:

Pro 140-2
