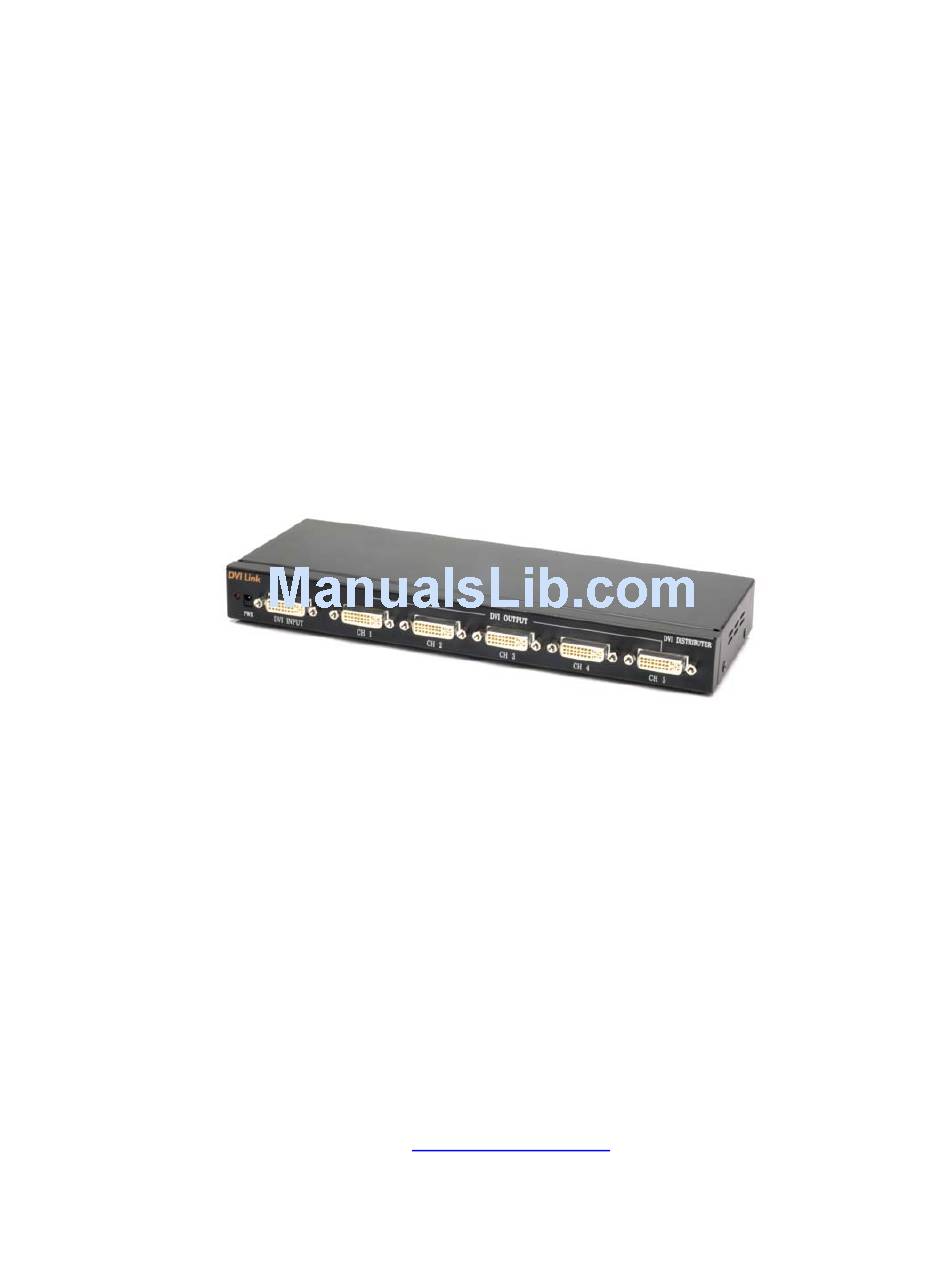

USER MANUAL 1X2 DVI Distribution Amplifier (DD-D12(P)) 1X5 DVI Distribution Amplifier (DD-D15(P)) DTronics Inc. 40 State Highway 94, Suite L2A McAfee, NJ 07428 U.S.A. Tel:201-362-1606 Fax: 781-207-0351 Email: mpark@dtronicsinc.com... - Page 2 • User manual x 1 PRODUCT OVERVIEW DVI Link DD-D12 and DD-D15, DVI Distribution Amplifiers, allow one digital video sources to be spilt into multiple digital displays. The built-in amplification function enables DVI signal distribution without signal loss. MAIN FEATURES 1.
- Page 3 DVI cables(not included). Make sure all your DVI source and the displays are turned off before connecting the cables. 2. Connect your DVI display’s DVI input port to DD-D12/D15’s DVI output port. Make sure your DVI display is turned off before connecting the cables.
- Page 4 Supporting Graphic Resolution: UXGA (1600 X 1200 at up to 75Hz) (1920 X 1080 at up to 60Hz) Inputs: DVI-D Female ports Output: DVI-D Female port( DD-D12/ 2 port, DD-D15/ 5 port). Power supply: DC 5V, 2A Adapter included. DVI Pin Assignments...
- Page 5 In no event shall DTronics Inc be liable for any consequential or collateral damages.
- Page 6 To extend beyond 20ft, please use fiber optical DVI extension cables such as DTronics Inc.’s Model OC cables. 3. Use high quality DVI cables. 4. If you are using computers, try other refresh rate settings.
