Owner's Manual
Performance Specifications ........................................ 2
Notes ......................................................................... 3
Safety Information ..................................................... 4
Rear Panel .................................................................. 5
Section Location ........................................................ 5
Block Diagram ........................................................... 6
Interconnection Diagram ...................................... 7 - 8
DVD AUDIO/VIDEO
CONTENTS
SERVICE MANUAL
PLAYER
A/V/Power Supply Schematic and PCB ............... 9 - 14
Mechanism ....................................................... 15 - 16
Module ............................................................. 15 - 16
Display Schematic and PCB .............................. 17 - 20
Parts List ............................................................ 19 - 22
Exploded View and Parts List ............................. 23 - 24
Repacking Instructions ............................................. 25
Advertisement
Table of Contents
Related Manuals for McIntosh MVP851
Summary of Contents for McIntosh MVP851
-

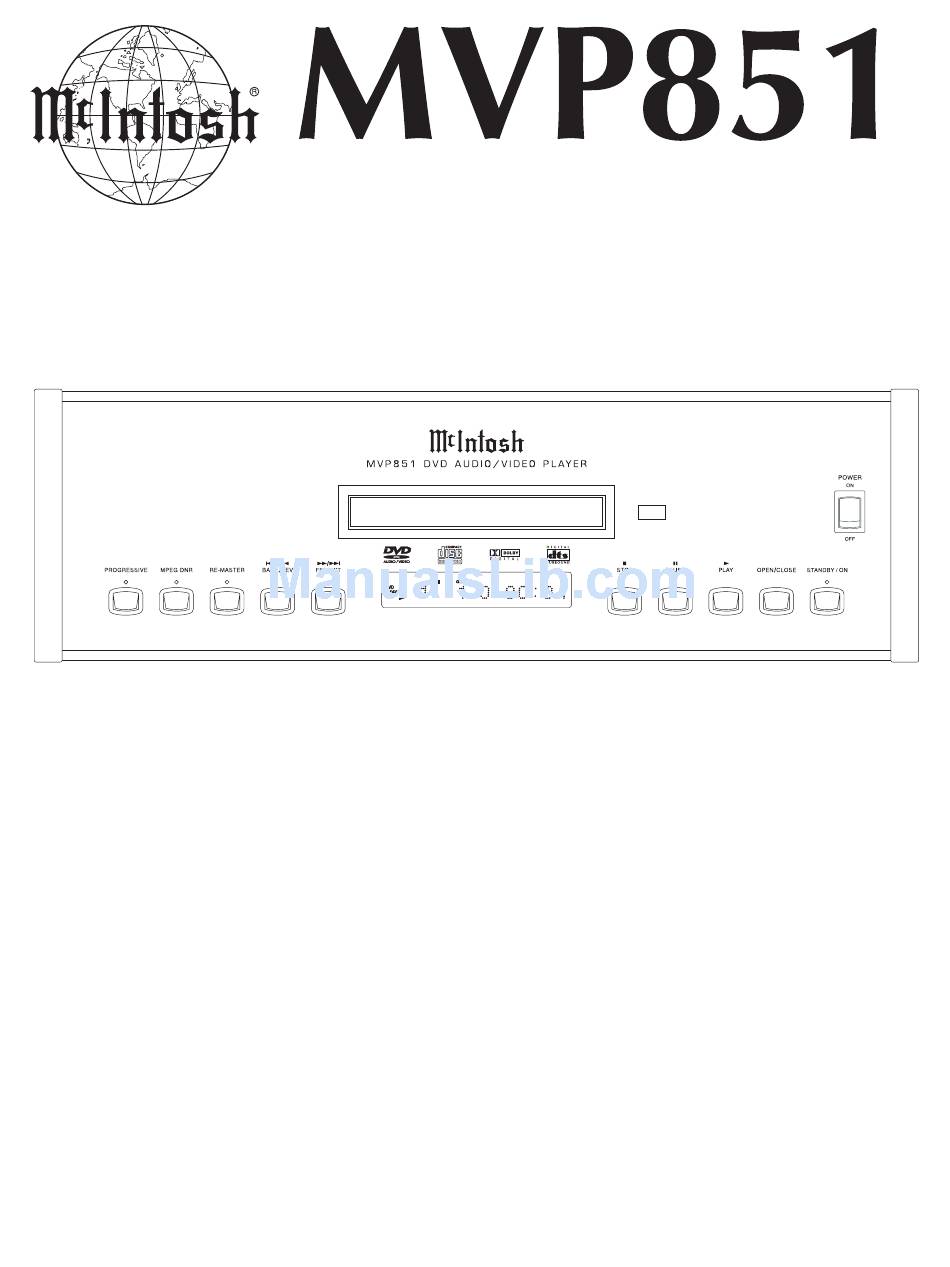

Page 1: Table Of Contents
DVD AUDIO/VIDEO PLAYER CONTENTS Performance Specifications ........2 A/V/Power Supply Schematic and PCB ....9 - 14 Notes ................. 3 Mechanism ............15 - 16 Safety Information ............. 4 Module ............. 15 - 16 Rear Panel ..............5 Display Schematic and PCB ......17 - 20 Section Location ............ -
Page 2: Performance Specifications
230 Volts, 50/60Hz at 30 watts 240 Volts, 50/60Hz at 30 watts CD Frequency Response 4Hz to 20,000Hz Note: Refer to the rear panel of the MVP851 for the correct voltage. CD Signal to Noise Ratio Overall Dimensions Better than 100dB (A-weighted) Front Panel: 17-1/2 inches (44.5cm) wide, 5-3/8 inches (13.7cm) -
Page 3: Notes
Use only replacement parts recom- mended by the manufacturer. 3. Unless otherwise specified: a. Resistor values are in ohms. 6. Use McIntosh Remote Control Model HR040 with the b. Capacitor values are microfarads (uF). MVP851. c. Inductor values are in microhenries (uH). - Page 4 NOTES...
-
Page 5: Rear Panel
MVP851 REAR PANEL SECTION LOCATIONS TOP VIEW WITH COVER REMOVED... -
Page 6: Block Diagram
BLOCK DIAGRAM... - Page 7 MVP851 INTERCONNECT...
- Page 8 AUDIO/VIDEO/POWER SUPPLY 049773...
- Page 9 MVP851 AUDIO/VIDEO POWER SUPPLY 049773...
- Page 10 AUDIO/VIDEO POWER SUPPLY 049773...
-
Page 11: Mechanism
MVP851 MECHANISM AND MODULE 320119 320118... - Page 12 DISPLAY 049774...
-
Page 13: Parts List
MVP851 DISPLAY 049774 PARTS LIST Ref No. Description Part No. AUDIO/VIDEO/POWER SUPPLY 049773 C87 C88 C89 C91 C92 C93 C94 C97 C98 CAP ELECT 47UF 35V 06644600 C1 C5 C7 C9 C13 CAP ELECT 220UF 25V 06650700 C2 C30 C51 C57 C76 C77 C84 C85 C86... - Page 14 PARTS LIST con’t R131 R134 R135 R136 R137 R164 R165 RES MF 47.5K 1% 1/4W 14410800 R141 R160 R161 R162 R163 RES MF 499 OHM 1% 1/4W 14408700 R145 R146 R147 R156 R157 R158 R150 RES MF 100 OHM 1% 1/4W 14419600 R148 R149 R150 R151 R152 R153 R154 RES MF 1K 1% 1/4W...
-
Page 15: Exploded View And Parts List
005260 BRACKET LEFT ZEE 102003 NUT MACH 6-32 W/LOCK 320119 DVD MECHANISM 017900 DOOR MOLDING MVP851 100271 SCREW MACH 6-32 X 1/4 PH PN 100300 SCREW MACH SEMS 6-32 X 1 PH PN 104005 WASHER FLAT STEEL 6 X 3/8 X .032... -
Page 16: Repacking Instructions
SERVICE MANUAL The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated, who reserve the right to improve design without notice. Because of the constant upgrading of McIntosh products’ circuitry and components, the Company cannot insure, and does not warrant, the accuracy of the within schematic material, which is intended for information only.
