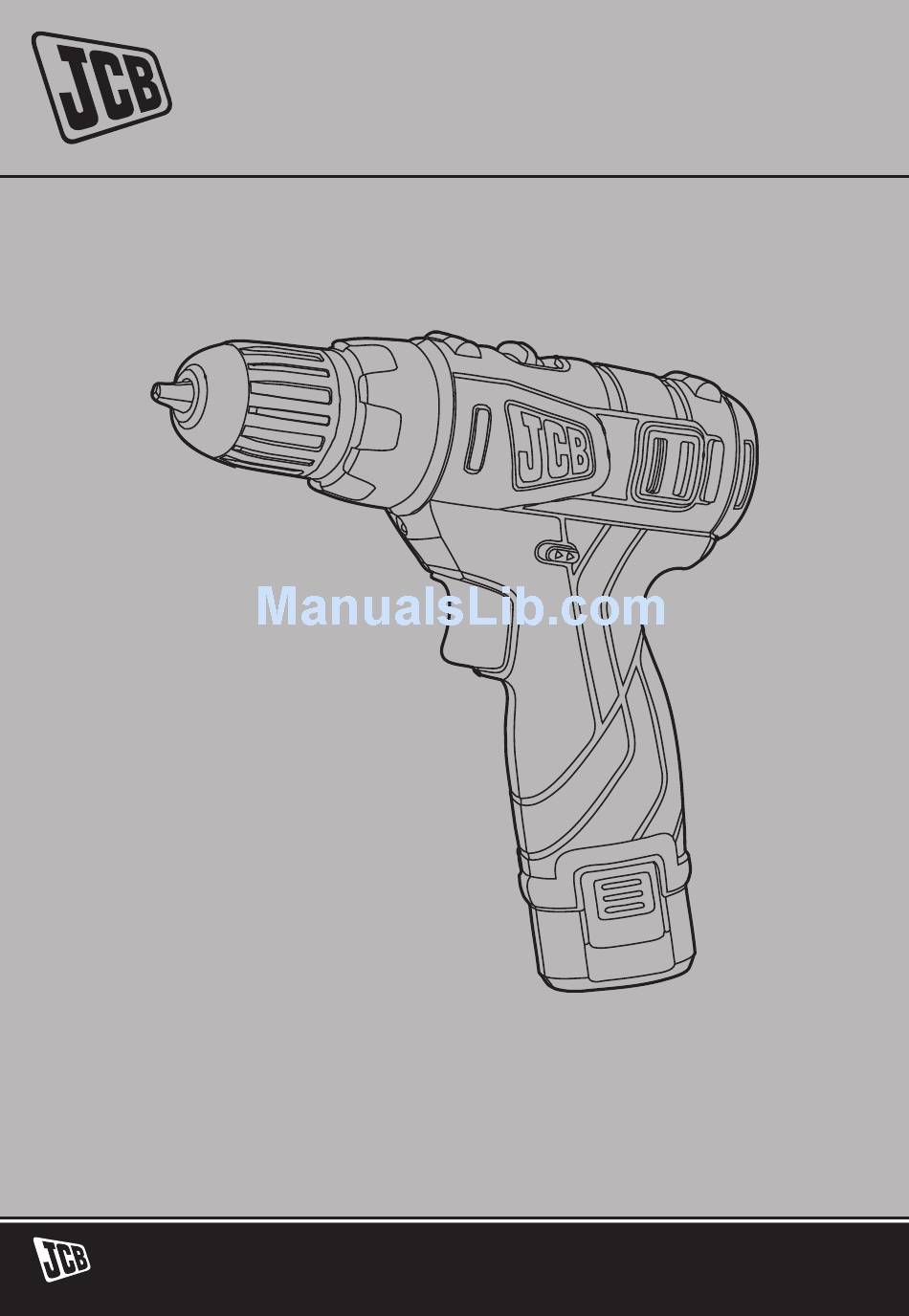

- Page 1 SAFETY AND OPERATING MANUAL CORDLESS DRiLL DRivER JCB-DD12Li ORiginaL inStRuCtiOnS SO53 3LE Customer Helpline 0845 600 5526...
-
Page 3: General Power Tool Safety Warnings
gEnERaL POwER tOOL SafEty waRningS waRning! Read all earthed or grounded surfaces, safety warnings and all such as pipes, radiators, ranges instructions. Failure to follow the and refrigerators. There is an warnings and instructions may increased risk of electric shock if result in electric shock, fire and/or your body is earthed or grounded. -
Page 4: Power Tool Use And Care
4. Power tool use and care protection. Protective equipment such as dust mask, non-skid a) Do not force the power tool. safety shoes, hard hat, or hearing use the correct power tool for protection used for appropriate your application. The correct conditions will reduce personal power tool will do the job better injuries. - Page 5 tools with sharp cutting edges are additionally seek medical help. less likely to bind and are easier Liquid ejected from the battery to control. may cause irritation or burns. g) use the power tool, accessories and tool bits etc. in accordance 6.
- Page 6 aDDitiOnaL SafEty RuLES fOR yOuR CORDLESS DRiLL DRivER 1. Remove the battery pack normal. from the drill before carrying out 15. Do not dispose of batteries adjustments. in fire, or with household waste. 2. Do not expose to rain or water. Return exhausted batteries to 3.
- Page 7 SyMBOLS To reduce the risk of injury, user must read instruction manual Warning Indoor use only Wear ear protection Wear eye protection Wear dust mask Do not expose to rain or water Do not burn Always charge the battery pack between temperatures 0 C to 30 Do not dispose of batteries.
-
Page 8: Component List
COMPOnEnt LiSt 1. KEyLESS CHuCK 2. tORquE aDJuStMEnt Ring 3. twO-SPEED gEaR COntROL 4. fORwaRD/REvERSE ROtatiOn COntROL 5. SOft gRiP HanDLE 6. BattERy PaCK RELEaSE ButtOn 7. BattERy PaCK 8. On/Off SwitCH 9. LED LigHt SO53 3LE Customer Helpline 0845 600 5526... -
Page 9: Technical Data
tECHniCaL Data Voltage No load speed 0-350/ 0-1300/min Number of clutch positions 15+1 Max torque 14/24 N.m(soft/hard) Chuck capacity 10mm Steel 10mm Max. drilling capacity Wood 20mm Machine weight 1.0Kg nOiSE infORMatiOn A weighted sound pressure L : 73dB (A) A weighted sound power L : 84dB (A) &... - Page 10 Double end bit 3 - 5 h charger (JCB-SCH12Li)---Fit for single drill driver 1 h charger (JCB-FCH12Li)---Fit for twinpack (impact driver and drill driver) We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name.
-
Page 11: Intended Use
OPERating inStRuCtiOnS nOtE: Before using the tool, read the safety and operating manual carefully. intEnDED uSE The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic. 1. On / Off SwitCH (See Depress the On/Off switch to start and release it to stop your drill. - Page 12 (lever is moved to the left). Only use reverse rotation marked “ ” (lever is moved to the right) to remove screws or release a jammed drill bit. warning: never change the direction of rotation when the chuck is rotating, wait until it has stopped! 4.
- Page 13 5. CHuCK aDJuStMEnt (See To open the chuck jaws rotate the front section of the chuck. Insert the drill bit between the chuck jaws and rotate the front section in the opposite direction. Ensure the drill bit is in the centre of the chuck jaws. Finally, firmly rotate the front chuck section in the opposite directions.
-
Page 14: Using The Led Light
liquid soap or similar to the screw loosen a very tight screw or continue working when the battery threads to ease insertion. energy has expired. For manual screwdriver purposes, the chuck is 10. DiSPOSaL Of an automatically locked when the tool is off. - Page 15 allowable battery temperature of 75°C is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again. 13. PROtECtiOn againSt DEEP DiSCHaRging The Li-ion battery is protected against deep discharging by the “Discharging Protection System”.
-
Page 16: Problem Solving
PROBLEM SOLving 1. wHy DOES tHE DRiLL nOt tuRn On wHEn yOu PRESS tHE SwitCH? The forward/reverse rotation control, which is on top of the trigger, is positioned in the lock function. Unlock the forward/reverse rotation control by putting it into the required rotation position. -
Page 17: Warranty Statement
In 1945 JCB began producing construction equipment. Today, we build the world’s number one diggers, each one the product of our unswerving focus on innovation, quality and engineering. JCB power tools are built to give you the same world beating standards of performance. The same innovation, to always get the job done better, the same quality, to never let you down, the same engineering heritage and expertise that you can trust 100%. -
Page 18: Ec Declaration Of Conformity
EC DECLaRatiOn Of COnfORMity Positec Power tools Rg24 8aL, uK Declare that the product Description JCB Cordless Drill Driver Type (JCB-DD12Li) Function Drilling;tightening and loosening screws,nuts Complies with the following Directives, EC Machinery Directive 2006/42/EC EC Low Voltage Directive 2006/95/EC...
