Wireless Keyboard
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XWS-CKPXXW and is the answer not in the manual?

Questions and answers

Summary of Contents for Cleankeys XWS-CKPXXW

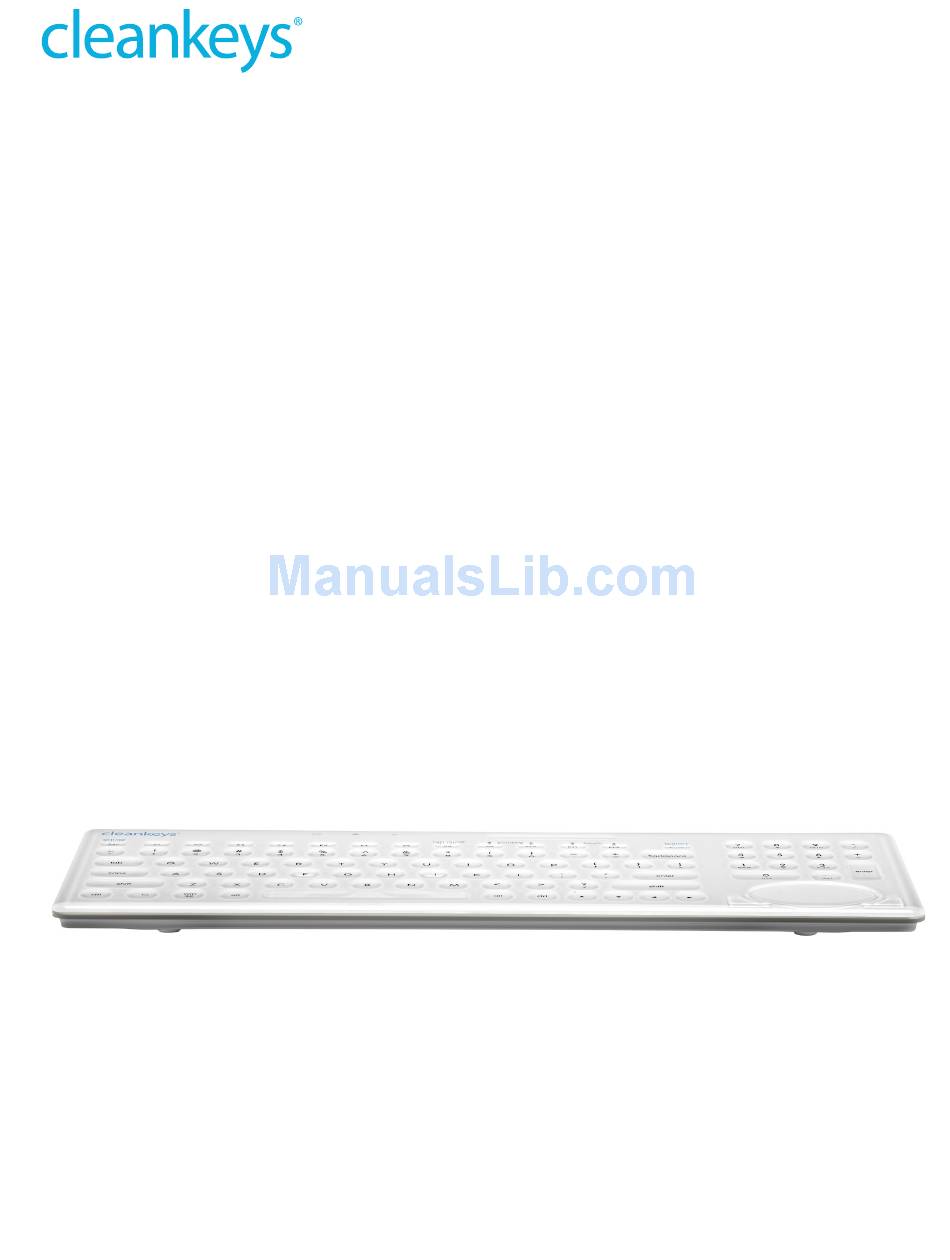

  • Page 1 Wireless Keyboard User Guide...
  • Page 2 Cleankeys Keyboard User Guide...
  • Page 3: Table Of Contents

    12. Changing the sensitivity of the keys 13. Updating the Cleankeys keyboard firmware 13.1. Installing the Cleankeys Update Utility 13.2. Using the Cleankeys Update Utility 13.3. Using the Cleankeys Update Utility to manually select the firmware version 14. Troubleshooting 15. Tap Beta Test Program 15.1.
  • Page 4: Regulatory Information

    Wireless Receiver Certification Number IC: 8721A-CKD WARNING Changes or modifications to this equipment not approved by Cleankeys Inc can cause this equipment to not comply with Part 15 of the FCC rules and void the user’s authority to operate this equipment.
  • Page 5: About The Cleankeys Keyboard

    The Cleankeys keyboard has a smooth top surface made from glass or acrylic. The base is made of ABS plastic. This makes it one of the world’s easiest keyboards to clean.
  • Page 6 Cleankeys keyboard Back of the Cleankeys keyboard Power Pairing button button port Wireless receiver Pairing Pairing button Cleankeys Keyboard User Guide...
  • Page 7: Connecting The Cleankeys Keyboard To A Computer

    2. Plug the wireless receiver into a USB port on the computer. 3. Wait for the computer to recognize the wireless receiver. 3.1.2. Linking the wireless receiver to the Cleankeys keyboard Note: The keyboard and wireless receiver have been linked at the factory, so there is no need to link them when you first install the keyboard.
  • Page 8: Mounting

    4.1. Typing on the Cleankeys keyboard Although the keys on the Cleankeys keyboard do not move, the same typing technique is used on the Cleankeys keyboard that is used on a standard keyboard. The Cleankeys keyboard accomplishes this by using touch sensing technology.
  • Page 9: Pausing The Cleankeys Keyboard

    The pause LED turns off. 7. Disinfecting Refer to the Cleankeys Inc. web site for a list of recommended disinfectant solutions. Be sure to hold and touch to pause the keyboard operation before disinfecting the keyboard.
  • Page 10: Checking The Battery Level

    When the battery is charging, the red battery LED is lit. When the battery is fully charged, the green battery LED is lit. 11. Changing the Cleankeys keyboard volume The keyboard uses sound to indicate various actions, such as key presses. The volume of these sounds can be adjusted to match personal preference or working environment.
  • Page 11: Changing The Sensitivity Of The Keys

    Cleankeys keyboard with gloves. The sensitivity can be set to a value from 1 to 5. When the sensitivity is 5, the Cleankeys keyboard can sense a very light touch. When the sensitivity is 1, more contact with the key is needed.
  • Page 12: Updating The Cleankeys Keyboard Firmware

    13.1. Installing the Cleankeys Update Utility The Cleankeys Update Utility is available from the Cleankeys web site. Before installing the Cleankeys Update Utility, make sure that the computer is using the Windows XP, Windows Vista or Windows 7 and has the .Net Framework 2.0 or later installed.
  • Page 13: Using The Cleankeys Update Utility To Manually Select The Firmware Version

    13.3. Using the Cleankeys Update Utility to manually select the firmware version A specific version of the Cleankeys firmware can be installed. The desired version of firmware must reside on the computer. These files have cup as a file extension.
  • Page 14: Troubleshooting

    6. Windows, and some other operating systems, may cache the USB Descriptor tables and it is possible for these tables to get corrupted. If this happens, remove the Cleankeys entry from the table and restart the computer. 14.3.2. The keyboard does not type and is using a wireless connection 1.
  • Page 15 1. Check to make sure that the computer is turned on and is not in standby or sleep mode. These modes do not provide enough power through the USB cable to charge the keyboard battery. 2. Check that the USB cable is properly connected to both the keyboard and the computer. Cleankeys Keyboard User Guide...
  • Page 16 14.3.9. The keyboard does not turn on The battery level may too low to power the keyboard. Charge the battery. See Charging the Cleankeys keyboard on page To continue working while the battery is charging, connect the charger to the keyboard and press the power button twice.
  • Page 17 14.3.13. The Cleankeys Update Utility cannot find the Cleankeys keyboard When the Cleankeys Update Utility starts, it searches for a specific USB device that has been enumerated with a predefined Vendor ID and Product ID. 1. Verify that the keyboard is plugged into the computer with a USB cable.
  • Page 18: Tap Beta Test Program

    When tap sensing is turned on, the desired key must be tapped, not just touched. When tap sensing is turned off, the Cleankeys keyboard uses only touch sensing to sense a keystroke. If tap sensing is off, do not rest fingers on the keyboard as this will type each key that you touch.
