Summary of Contents for Schaub Lorenz IPH-2609
-

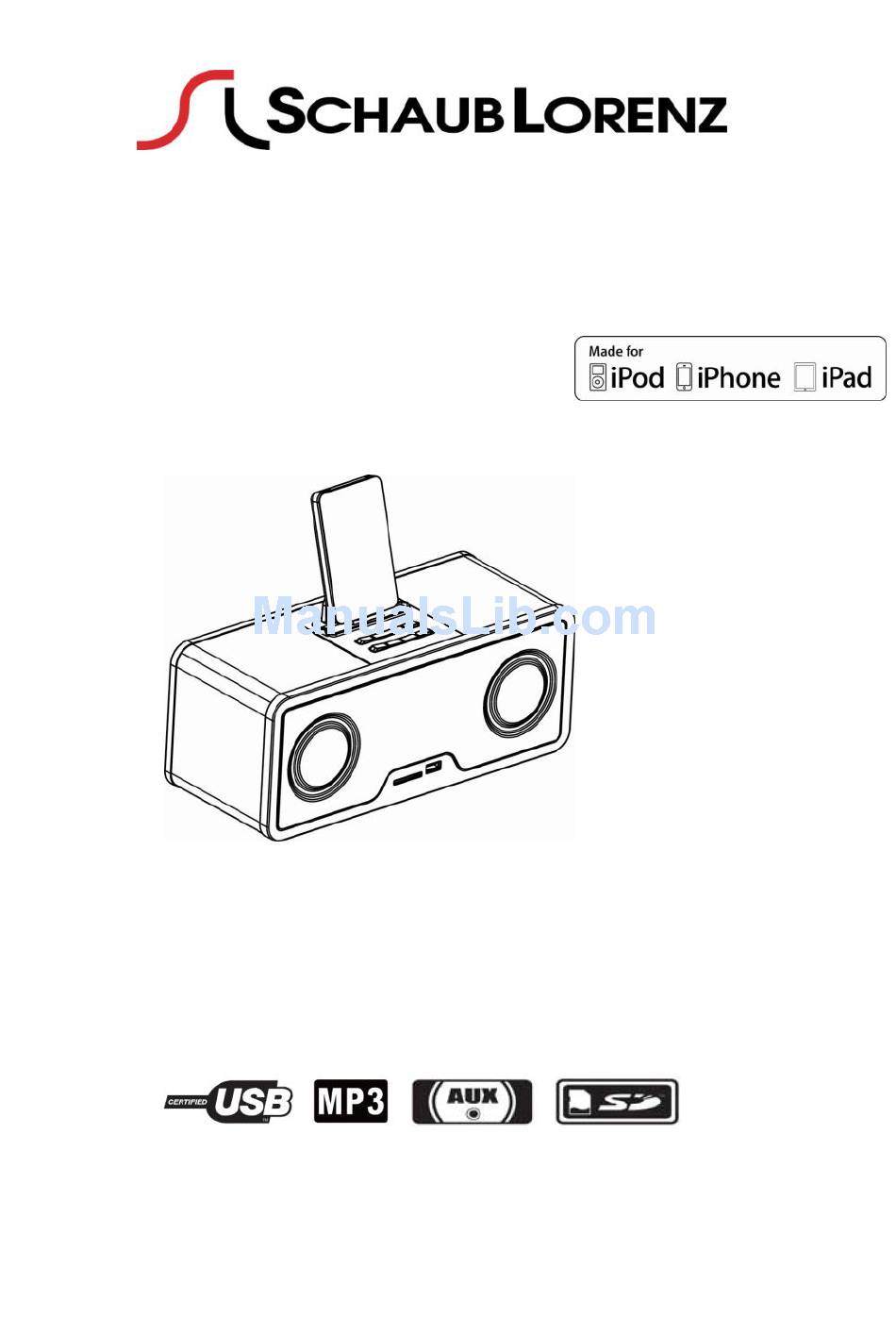

Page 1: Docking Station

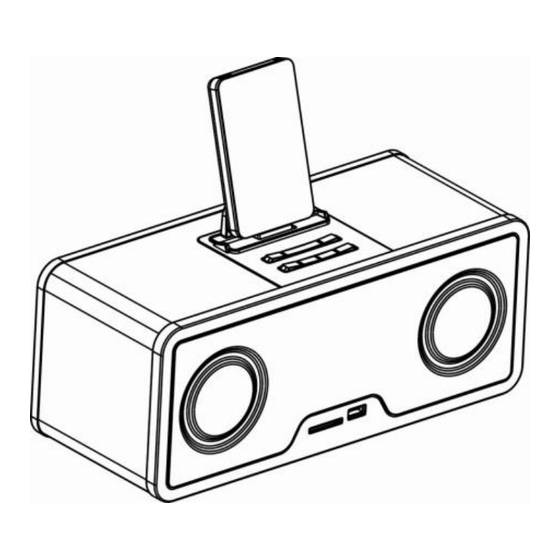

/ iPad / iPod Docking Station IPH-2609 USER MANUAL Please read and keep these instructions For instruction manual in another language, check online at http://manuel-utilisateur.logisav.fr... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read carefully and keep for future reference To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. - Page 3 Proper ventilation Place the product in a sufficiently–aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating. Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.
- Page 4 This product is compliant with directives 2006/95/CE (abrogating the directive 73/23/CEE modified by the directive 93/68/CEE) and 2004/108/CE (abrogating the directive 89/336CEE). - This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2002/96/EC of January 27, 2003 concerning the waste on electrical and electronic equipment (WEEE).
-
Page 5: Table Of Contents
CONTENT IMPORTANT SAFETY INSTRUCTIONS ..........1 CONTENT ....................4 PANELS ....................5 REMOTE CONTROL ................7 CONNECTION ..................9 BASIC OPERATION ................10 TROUBLE SHOOTING ................17 SPECIFICATION ..................19 - 4 -... -
Page 6: Panels
PANELS 1. Control button 2. iPod socket 3. SD card socket 4. USB connector - 5 -... - Page 7 1. The SET key triggers the following actions in the following order. TIME (time setting)→SL00(sleeping time setting)→ALM (alarm clock setting)→VOUT(Video out mode)→RST(Reset) 2. Key for “Pause” or “Play” and Power Standby (Press and hold button for 2 seconds) 3. Selection of input channels. Sequence: iPod →...
-
Page 8: Remote Control
REMOTE CONTROL 1. Standby 13. Master Vol- adjust 2. Mute/VOL decrease 14. Master Vol+ adjust 3. FM/Aux input selection 15. MEM (tuner memory) 4. iPod input selection 16. Tuner Channel Down 5. SD/USB input selection 17. Tuner Channel Up 6. iPod menu up 18. - Page 9 Battery Installation 1. Release the side latch and pull out the battery holder; 2. Install only a 3 volts Cr2025 battery cell and place battery polarity + respectively to the + sign of the holder. 3.Replace the battery holder. Notes: 1.
-
Page 10: Connection
CONNECTION 1. Connect the unit to the A/C outlet. 2. Audio and Video connections: a. You can connect a MP3 player or a smartphone to the device’s AUX-IN input. The smartphone’s music is then output through the unit. b. Alternatively, if you have an iPhone, you can connect the unit to your TV screen with the VIDEO OUTPUT. -
Page 11: Basic Operation
BASIC OPERATION PREPARATIVE 1) Before the unit is turned ON, please check if all the connections are right and safe. Then connect the main power. 2) Press the POWER ON/OFF button on the back panel to turn on the main power. STATE INDICATION OF DISPLAY SCREEN 1. - Page 12 PREVIOUS & NEXT In play status, press the button to go to the previous audio file; press button to go to the next audio file. Note: These buttons are unavailable in AUX input. FAST FORWARD & FAST REWIND Press and hold the button to fast rewind or fast forward.
- Page 13 PLAY/PAUSE BUTTON During playback, press the PLAY/PAUSE button on remote or on the top panel to pause, press the button again to continue playing. iPod/iPhone/iPad OPERATION 1. Insert the iPod/iPhone/iPad to the dock. 2. Press the iPod button on the remote control or repeatedly press the SOURCE button on the top panel to enter to iPod/iPhone/iPad mode.
- Page 14 device. USB and memory slot can solely playback MP3-format music. - If you experience some noise or interference when playing content from your iPhone or iPad, please put your device into airplane mode. USB/DIGITAL CARD It is possible to listen to audio files through the USB and Card reader. 1.
- Page 15 capacity up to 8G. We have tested this unit with most of the market’s memory cards(capacity is 8GB or lower) ; we cannot however guarantee a full compatibility with all the cards in the market because of the multiple technology standards in use. Should you have a compatibility problem, please connect the unit through a USB device.
- Page 16 3) Automatically search bands: Keep pressing the MEM button for about 3 seconds, it will search the frequency from 87.5M to 108.0MHz and store the radio stations automatically. 4) You can change the stored radio station by using button CH- or CH+ on remote control or on top panel.
- Page 17 pressing button to adjust the hour and minute, and pressing ENTER button to confirm the alarm time setting. Alarm mode is “OFF” means cancel the alarm. User can also set alarm on top panel: Press SET button and when the LED screen shows ”ALM”, Press to select alarm mode ”ON or “OFF”, and the LED screen will shows “ON”...
-
Page 18: Trouble Shooting
TROUBLE SHOOTING Power supply cannot be turned on * Make sure that the power plug is fully inserted in the mains outlet. * Switch the POWER button located on the rear panel to ON position. The remote control does not work * Low power or even No power in battery. - Page 19 device only. It cannot decode photos from the iPod, iPad or iPhone device. * Videos or photos cannot be decoded from a USB or Memory Card device. USB and memory slot can solely playback MP3-format music. * If you experience some noise or interference when playing content from your iPhone or iPad, please put your device into airplane mode.
-
Page 20: Specification
SPECIFICATION VOLTAGE RATING: AC100-240V 50/60Hz; POWER CONSUMPTION: ≤1W POWER CONSUMPTION STANDBY: FREQUENCY RESPONSE L/R CH (150Hz-20KHz at -2 / -2dB) SENSITIVITY L/R:300mV ≥2V OVERLOAD SOURCE e.m.f. ≥55dB SEPARATION ≥70dB ≥5m/30° REMOTE CONTROL DIMENSION（with base plate) 302 (W)×123(D)×150(H)mm Note: Specifications subject to change without prior notice. * “Made for iPod,”... - Page 21 ADMEA / LOGISAV ZI du clos des charmes 26 rue du clos des charmes 77090 COLLEGIEN - France For instruction manual in another language, check online at http://manuel-utilisateur.logisav.fr - 20 -...
