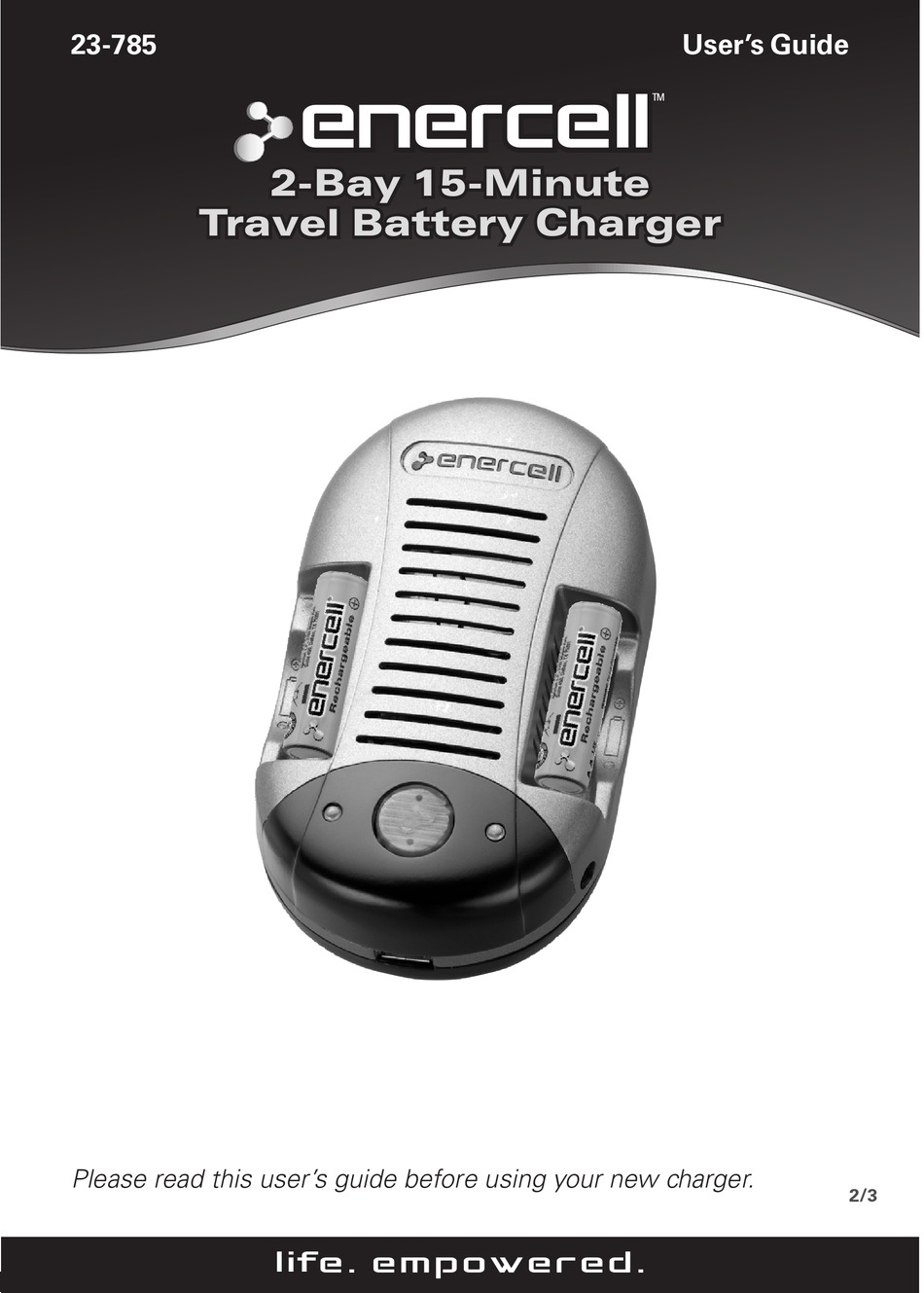

- Page 1 23-785 User’s Guide Product name and product name 2-Bay 15-Minute descriptors Travel Battery Charger Please read this user’s guide before using your new charger.
-
Page 2: Package Contents
Package contents • Fast Travel Charger • CLA Adapter • AA 2500 mAh Ni-MH battery (2) • User’s Guide • Quick Start Features • Backup power supply for charging or powering USB devices • Plug folds up for easy travel Insert batteries Place two rechargeable AA batteries (supplied) horizontally into the battery bay according to the polarity symbols (+ and–) marked inside each... - Page 3 Left bay Right bay Use when charging a single battery Backlight Press to turn on/off. CHG indicators USB port CLA adapter • Red when charging. Connect your device, such Plug the adapter into as a MP3, to your charger the vehicle’s power •...
-
Page 4: Charging Time
Charging time AC Input DC Input Battery Battery Charging Battery Battery Charging Type Capacity Time Type Capacity Time (mAh) (Mins) (mAh) (Mins) 1000 1000 1500 1500 1600 1600 1800 1800 Battery Notes: • Do not charge alkaline, carbon zinc, lithium or any other batteries not specified for this charger. -
Page 5: Replacing The Fuse
Replacing the Fuse If the CLA adapter’s fuse has blown, replace it with a 10A, 250V tube type fuse (not supplied) 1. Unscrew the CLA adapter’s cap. 2. Replace the fuse then replace the adapter’s cap. Caution: • Do not use a fuse with a different rating. Doing so can damage the CLA adapter. -
Page 6: Specifications
• Do not disassemble the charger. Have it serviced or repaired by qualified service personnel. Incorrect assembly can result in risk of electric shock or fire. • To reduce the risk of electric shock, unplug the charger from the outlet before attempting maintenance or cleaning. •... -
Page 7: Fcc Information
Specifications are typical; individual units may vary. Specifications are subject to change and improvement without notice. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 8 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. © 2010. Ignition L.P . All rights reserved. Printed 07A10 Enercell is a trademark used by Ignition L.P . in China 23-785...
