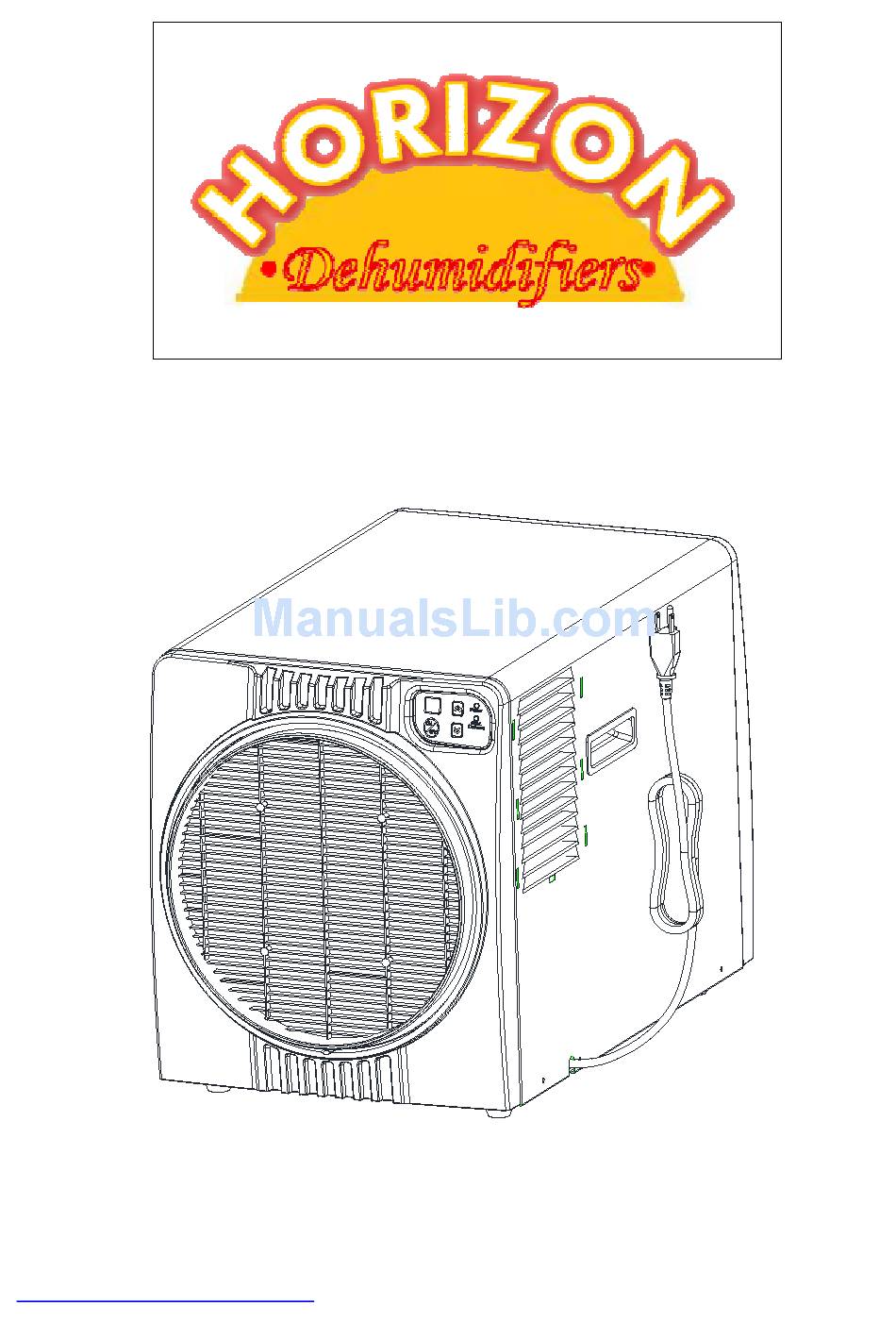

- Page 1 ® ® Air Cleaning Equipment, Inc. 303 N. Main St. Broadway, NC 27505 www.horizondehumidifiers.com...
-
Page 2: Safety Notes
Safety Notes: • The Horizon Series Dehumidifier must always be connected using the grounded electrical connection as required for all electrical appliances. The warranty is voided and all responsibility for the operation is born by the owner if non-grounded wiring is utilized. •... -
Page 3: Customer Service
Identification: For future reference, write down the model, serial number, date of purchase so you can identify your unit when seeking assistance Model Number Horizon Galaxy Serial Number _____________________________ Date of Purchase _____________________________ NOTE: Data label has key operational characteristics of this specific unit. -
Page 4: Installation
Installation: The area to be controlled should be sealed with a vapor barrier. If unit is installed in a crawlspace, all vents should be sealed. WARNING : It is recommended to remove dehumidifier from area if applying a liquid vapor barrier. Some coatings dry via “solvent evaporation,” which can be harmful to certain components in your dehumidifier. -
Page 5: Key Functions
Key functions 1. Power Key indicator light must be on indicated unit is plugged in and has power to it. Press the on/off button, and the machine will start running (Two Beeps). Press this key again, the machine will stop running (Single Beep). The display will read room humidity levels except while you’re adjusting the setpoint humidity level. - Page 6 4. Continuous Mode button Press either the increase or decrease humidity buttons. Once you hear an audible beep, press both buttons simultaneously to put the dehumidifier into “continuous” mode.” indicator light on will illuminate green indicating the unit is in continuous mode.
-
Page 7: Indicator Lights

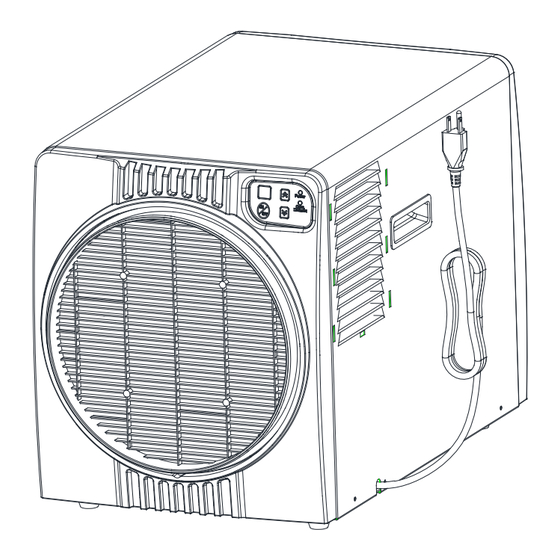

Indicator Lights Led humidity display This led indicator shows two functions 1. When the power supply is on, the Led indicator shows indoor humidity 2. When you set humidity, the Led indicator shows the set humidity Power Indicator Light This indicates the unit has been plugged in and is ready to operate. Please make sure this light is “off”... - Page 8 Horizon Galaxy – Front View Unit Cover Control panel Discharge End Cap Power cord Outlet Grille...
- Page 9 Horizon Galaxy – Back View Unit Cover Handle Power Cord Inlet End Air Inlet Grille Drain Hose Quick Connect Fitting...
-
Page 10: Operating Instructions
Operating Instructions 1. Start the machine As soon as the machine is powered on the first time, the buzzer will buzz. Adjust the humidity level to the desired setpoint (typically 50-55%). Press to start the machine. 2. Stop machine Press and the machine will stop. -
Page 11: Maintenance
Maintenance WARNING – ALWAYS UNPLUG THE UNIT PRIOR TO DOING ANY SERVICE WORK Cleaning the machine body Use soft damp cloth to clean exterior of unit. No solvents should be used. Cleaning the Filter 1. Unplug the unit. 2. Disassemble the filter mesh At the Inlet End of Unit, spin to remove the filter mesh in clockwise... -
Page 12: Dehumidifier Storage
4. Reinstall the filter mesh: Filter mesh insert at the back of machine, rotate in counter-clockwise direction Insert the filter mesh into the machine gradually Dehumidifier storage If the unit will be stored for an extended period of time: 1. Turn unit off and allow to dry. 2. - Page 13 For optional supply ducting, a separate supply duct adapter is included. 1. Supply Duct Adapter To install, line adapter up with holes on side of unit and push up from base of adaptors. If necessary to remove, from bottom of adaper, use the thumb to press the outer side plate to inside, outer four fingers pull from outside, lift the hooks out of cover...
-
Page 14: Troubleshooting
Disassembly: Remove wire tie rotate the flex duct in clockwise direction Troubleshooting Symptom Cause Solution Insure Plug Fully Inserted in Power Cord Connection Outlet Machine Won’t Units Outside Operating Room temperature Over Temperature Range，Manual 105 degree F or Below 33 restart of machine after room Degree F returns to design conditions... -
Page 15: Warranty
Warranty Seller warrants the equipment to be free from defects in workmanship and materials for a period of 12 months after shipment (60 months/5 years on compressor, evaporator and condenser). This warranty is limited, however, to the repair or replacement of defective equipment.
