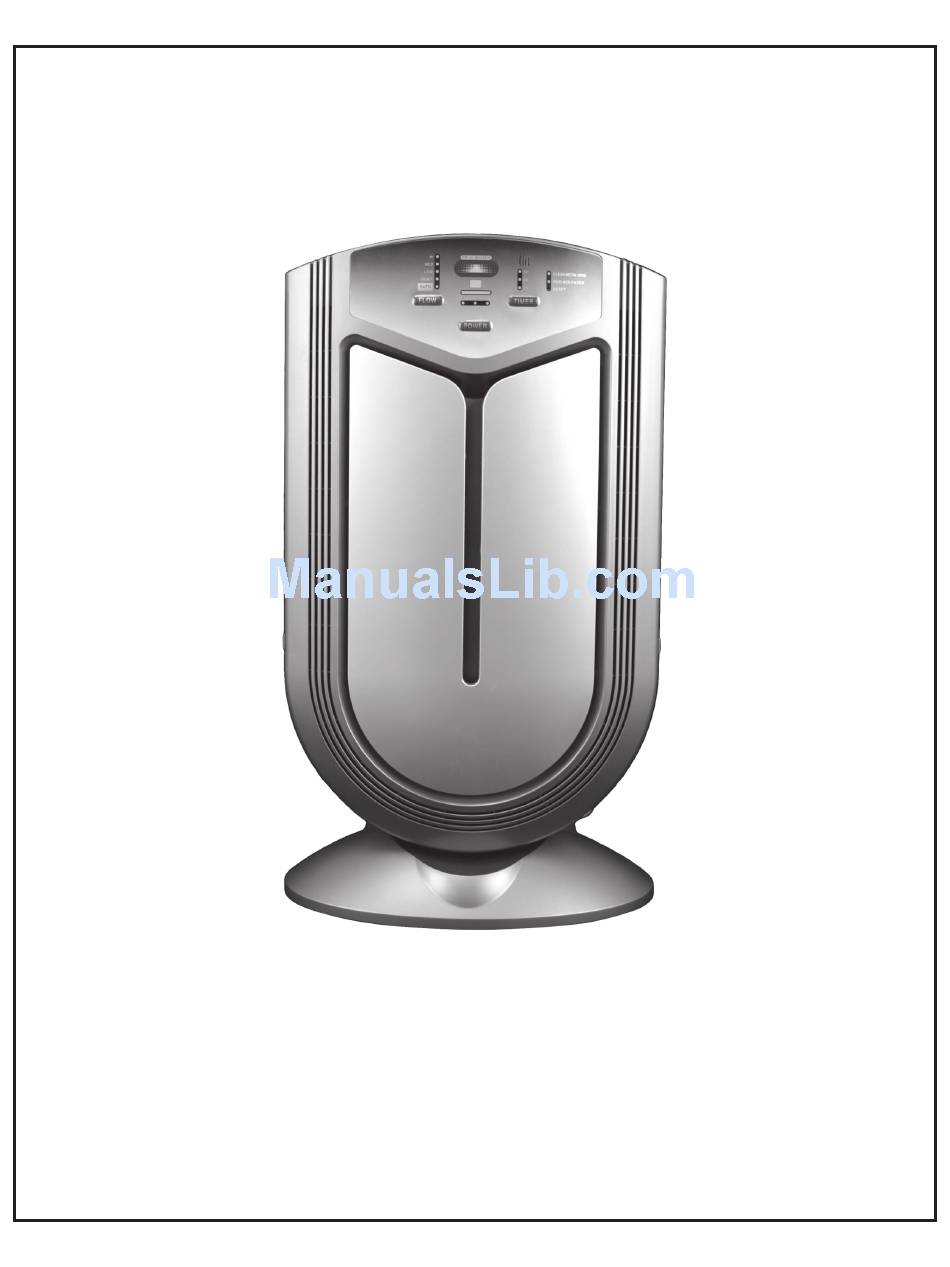

A
A P
LIVE IR URIFIER
State-of-the-Art 9-Stage Air Purification System
Owner's Manual
Please read and fully understand this manual
before operating your Alive Air Purifier.
COMPLETE VIDEO INSTRUCTIONS ARE AVAILABLE AT:
www.aliveairpurifier.com/alive-air-video-help
www.aliveair.com • aliveair@mchsi.com • Ph: 800-215-1689
Advertisement
Table of Contents
Related Manuals for Alive Air Air Purifier
Summary of Contents for Alive Air Air Purifier
- Page 1 LIVE IR URIFIER State-of-the-Art 9-Stage Air Purification System Owner’s Manual Please read and fully understand this manual before operating your Alive Air Purifier. COMPLETE VIDEO INSTRUCTIONS ARE AVAILABLE AT: www.aliveairpurifier.com/alive-air-video-help www.aliveair.com • aliveair@mchsi.com • Ph: 800-215-1689...
-
Page 2: Safety Operation
DAMAGED CORD WARNING: The Alive Air Purifier is equipped with a polarized plug, that is one blade is Wide Slot wider than the other. The polarized plug is a safety device to reduce the risk of fire, shock and personal injury and is intended for use in a polarized outlet. -
Page 3: Front Face Plate
Alive Air 9-Stage Air Purifier Owner’s Manual CONTROLS & AIR FLOW VENTS Front Face Plate Air Outlet ION-UV INDICATOR Dust Sensor CLEAN METAL GRID QUIET REPLACE FILTER AUTO RESET CLEAN AIR MONITOR FLOW TIMER ODOR DUST ALLERGEN POWER Air Inlets... -
Page 4: Major Components
Alive Air 9-Stage Air Purifier Owner’s Manual MAJOR COMPONENTS Back View Exploded Parts View... -
Page 5: Explanation Of Indicators
It creates 'Healthy Air' and positively affects brain chemistry. The Alive Air Purifier also features a powerful but ultra quiet 5-speed fan; intuitive easy to read LCD control panel; and a 4 mode automatic on/off timer function, though the machine is made to run continuously 24/7, spring, summer, winter, fall windows open/windows closed. -
Page 6: Before Use
PLACING YOUR AIR PURIFIER Place your air purifier against a wall, near an electric outlet with at least 12 inches clearance on the back, front and sides. It is also best to place it away from other electronic devices, such as your TV, and where it will be out of any children's play area. - Page 7 Your Air Purifier. 1. Turn on your air purifier and IMMEDIATELY push the FLOW button to set the unit on HIGH and let it run continuously for 3 hrs with the UV light ON to purify the air in the room.
-
Page 8: Cleaning And Maintenance
Alive Air 9-Stage Air Purifier Owner’s Manual CLEANING AND MAINTENANCE IMPORTANT: DO NOT use pressurized air or a vacuum cleaner on any part of the air purifier! Regular Cleaning and Maintenance Front Face Plate UV Lamp UV Lamp needs no monthly maintenance but should be replaced every 12 months. - Page 9 Alive Air 9-Stage Air Purifier Owner’s Manual CLEANING AND MAINTENANCE ( Cont. ) IMPORTANT: These disassembly instructions are provided as a general guide. You need to fully disassemble the unit to clean an individual component or filter. Before starting any cleaning or maintenance, always turn-off and unplug the unit.
-
Page 10: Cleaning Instructions
Alive Air 9-Stage Air Purifier Owner’s Manual CLEANING AND MAINTENANCE ( Cont. ) Cleaning and Maintenance of Washable Pre-Filter & Electronic Grid CLEAN THE PRE-FILTER & ELECTRONIC GRID ONCE A MONTH and/or, if any of the following occurs, clean immediately or repeat cleaning... - Page 11 (800) 215-1689 to order a replacement wire(s). Do NOT operate your air purifier until you’ve received and replaced the broken wire(s). ~ CAUTION: The grid wire and spring ends may have sharp edges. Please, handle them with care. ~ The Electronic Grid should have 3 wires extending from a bottom 'hook', around the top and back down to another 'hook'. Place one spring end on a bottom hook.
- Page 12 Alive Air 9-Stage Air Purifier Owner’s Manual CLEANING AND MAINTENANCE ( Cont. ) Note: The 'Replace Filter' indicator operates on a preset timer. So, if the indicator is flashing and an inspection of the HEPA filter, compared to a white sheet of paper, confirms it’s NOT brownish or greyish, you can simply reset the timer as instructed below.
-
Page 13: Cleaning The Sensors
You’ll Need: small Phillips jeweler's screw driver, glass cleaner, Q-Tip, lint-free, microfiber or unscented Swifter type cloth. AFTER Unplugging the unit, remove the air purifier cover. You'll see a small grey faceplate on the upper left front of the unit. Push down the tab and remove the plate. Inside, you'll see a small silver covered sensor box with a white ribbon cable running from it. -
Page 14: Odor Sensor
Why doesn't the Odor Sensor work? In the initial set-up of the unit, the Odor Sensor wasn’t properly trained, you unplugged the air purifier, had a power outage, turned off the unit for some other reason, or removed the face-plate to clean the pre-filters. -
Page 15: Technical Specifications
PRODUCT WARRANTY Alive Air warrants the Alive Air Purifier to be free from manufacturing and material defects for the following limited warranty periods from the original date of purchase. – 5 years for all plastic covers and casings (impacts or abuse are not covered). - Page 16 Customer Service Phone: 800-215-1689 www.aliveair.com aliveair@mchsi.com • Replacement filters can be ordered at www.AliveAir.com (Scroll down to just below the large blue specification box on our web page.) © Copyright 2013. Alive Air Marketing Group. All Rights Reserved Manufactured in China...
