Summary of Contents for Optics ODM- 88

  • Page 1: User Manual

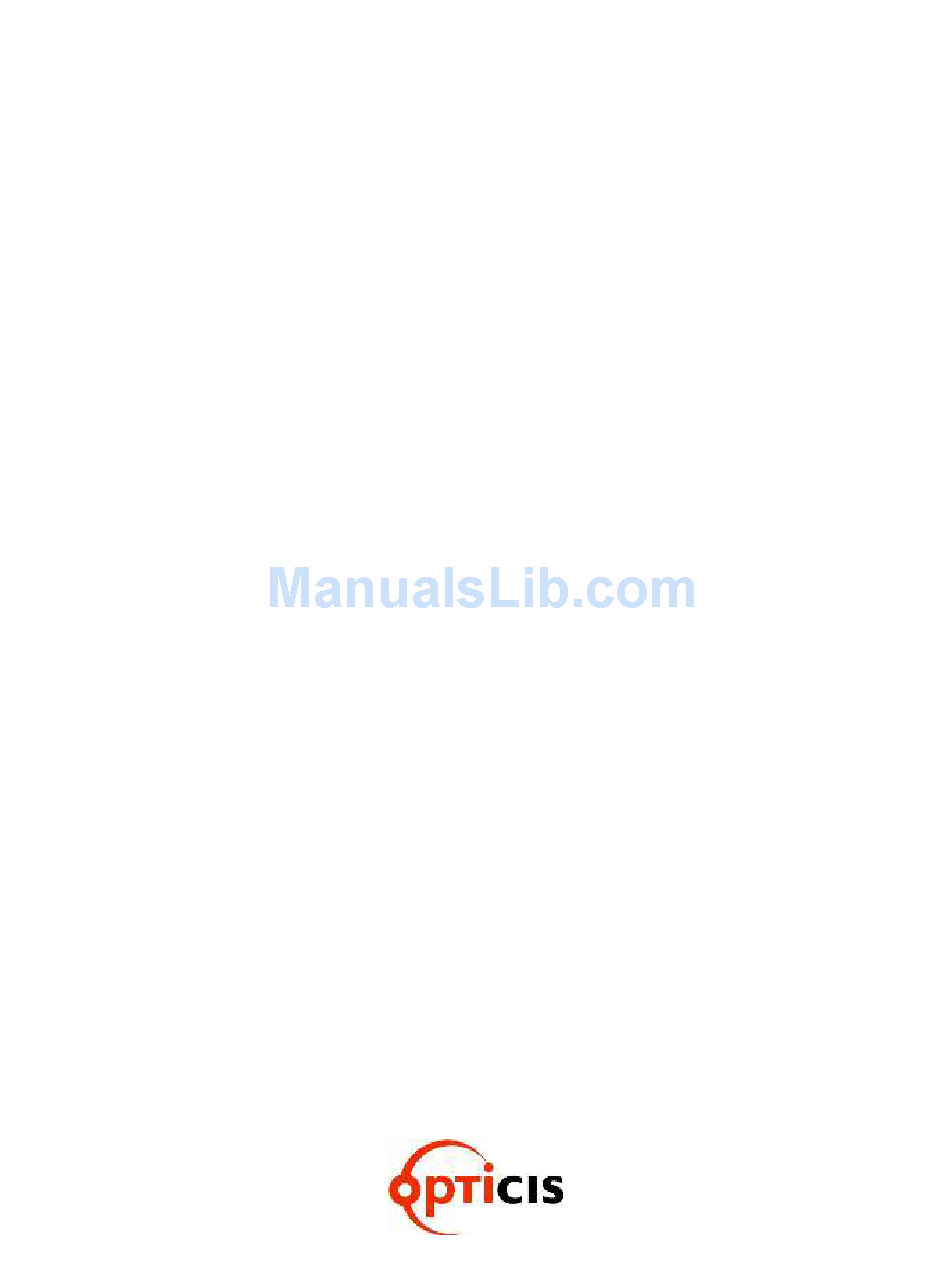

    Edition:2A ODM- 88 DVI Matrix Router USER MANUAL...
  • Page 2 USER MANUAL DVI MATRIX ROUTER : ODM-88 ODM-88 Manual Page 2...
  • Page 3 USER MANUAL DVI MATRIX ROUTER : ODM-88 ODM-88 Manual Page 3...

  • Page 4: Table Of Contents

    USER MANUAL DVI MATRIX ROUTER : ODM-88 Table of Contents Introduction and Installation………………………………………………………………………. Key features………………………………………………………………………………………... ODM-88 Shipping Content………………………………………………………………………... Safety Instructions…………………………………………………………………………………. Physical Description………………………………………………………………………………. 1.4.1 Front Panel………………………………………………………………………….……….. 1.4.2 Rear Panel………………………………………………………………….……….….……. EDID Control and Configuration …………………………………………………………………. Connecting Optical DVI cables and modules for extended distance………………………… Initializing ODM-88 and Installation Guide……………………………………………………….
  • Page 5 USER MANUAL DVI MATRIX ROUTER : ODM-88 3.2.5 Rolling command………………………………………………………………………… 3.2.6 Upload Router ID………………………………………………………………………… 3.2.7 Rolling Stop……………………………………..…………………………………………. Check Connection …………………………………………………………………………. 3.2.8 3.2.9 Upload One Channel Data Request…………………………………………………….. 3.2.10 Read Output Device EDID ……………………………………………………………….. 3.2.11 Read Input EEPROM EDID……………………………………………………………… 3.2.12 EDID Write…………………………………………………………………………………. 3.2.13 Default EDID Setting……………………………………………………………………...

  • Page 6: Introduction And Installation

    USER MANUAL DVI MATRIX ROUTER : ODM-88 Introduction and Installation ODM-88 is a high speed cross-switch with 8 DVI inputs and 8 DVI outputs housed in a ruggedized metal enclosure to protect against harsh environments. 1.1 Key features:  Eight (8) DVI single-link inputs and outputs ...

  • Page 7: Safety Instructions

    USER MANUAL DVI MATRIX ROUTER : ODM-88 1.3 Safety Instructions  Use of the equipment in a manner not specified by the manufacturer may result in irre- coverable damage.  Use the assigned power cord or power adaptor shipped with the system. ...

  • Page 8: Rear Panel

    USER MANUAL DVI MATRIX ROUTER : ODM-88 Figure 1-1 Front Panel 1.4.2 Rear Panel  All Input ports, Output ports, interface ports and power connections are placed on the rear panel as follows;  Eight (8) single link DVI inputs: ① ...

  • Page 9: Edid Control And Configuration

    USER MANUAL DVI MATRIX ROUTER : ODM-88 Figure 1-2 Rear Panel 1.5 EDID Control and Configuration  EDID (Extended Display Identification Data) is an information set that is provided by a display to describe its capabilities to a graphic source. It enables a graphic source to identify the connected display.

  • Page 10: Connecting Optical Dvi Cables And Modules For Extended Distance

    USER MANUAL DVI MATRIX ROUTER : ODM-88 INPUT 1~8 OUTPUT 1~8 WRITE EDID EEPROM EEPROM EEPROM EDID INTERFACE CONTROL EEPROM EEPROM EEPROM EEPROM EEPROM Figure 1-3 Concept drawing for setting EDID in ODM-88  As depicted in Figure 1-3, once EDID is configured, each EDID is stored in EEPROM at the front of the DVI Input.

  • Page 11: Rack Mounting

    USER MANUAL DVI MATRIX ROUTER : ODM-88  Green and Red lights on the Input and Output – will sweep on.  Display – will show “USER MODE”  The system is now ready to accept commands. 1.7.2 Rack Mounting ...

  • Page 12: Front Panel Interface

    USER MANUAL DVI MATRIX ROUTER : ODM-88 Example Setting In case of 000 In case of 001 In case of 255  All command codes are required to have the Router ID in its header. For more details, refer to the command code instruction in Chapter. 3.2. 2.2 Front Panel Interface ...

  • Page 13: Cancel Mode

    USER MANUAL DVI MATRIX ROUTER : ODM-88 2.5 CANCEL Mode  To Cancel each Input-Output configuration: 1) Press CANCEL then press the desired Input button to be cancelled. The configured Output buttons LED will be on. Press ENTER to complete cancellation. 2.6 FUNCTION Mode Press FUNCTION to view features –...

  • Page 14: Monitor Output Selction - To Verify The Video Source Press Function Two Times

    USER MANUAL DVI MATRIX ROUTER : ODM-88 MONITOR OUTPUT SELECTION – To verify the video source press FUNCTION 2.6.2 key twice. 1) Connect a display to the MONITORING port and any video sources to the DVI Input ports on the rear panel. Press the FUNCTION key once –...

  • Page 15: Subnet Mask: Press Function Five Times

    USER MANUAL DVI MATRIX ROUTER : ODM-88 2.6.5 SUBNET MASK: press FUNCTION five times  The Under Bar mark represents selected and activated.  Pressing Input 1 button repeatedly changes the selected number from 0, 1, 2...9.  The Input 2 button decreases the number. ...

  • Page 16: Port Number: Press Function Eight Times

    USER MANUAL DVI MATRIX ROUTER : ODM-88  The Input 2 button decreases the number.  Input 3 and 4 buttons moves the Under Bar left and right. 2.6.8 PORT NUMBER: press FUNCTION eight times  The Under Bar mark represents selected and activated. ...
  • Page 17 USER MANUAL DVI MATRIX ROUTER : ODM-88 Figure 2-1 HyperTerminal Access 3) Connection Description Dialog: Enter a name and choose an icon. Figure 2-2 Connection Description Dialog 4) Selecting OK displays the Connect To dialog. In the Connect To dialog box, ignore the Country, Area Code and Phone Number fields and select the available COM port to which ODM-88 is connected.
  • Page 18 USER MANUAL DVI MATRIX ROUTER : ODM-88 Figure 2-3 Connect To Dialog Select OK to go to the COM Properties dialog box. Figure 2-4 COM Properties Dialog Configure the port settings as follows;  Bits per second (baud rate): 19200 (recommended) ...

  • Page 19: Telnet

    USER MANUAL DVI MATRIX ROUTER : ODM-88 2.7.2 Telnet  Telnet is a terminal emulation program for TCP/IP networks such as the Internet.  The Telnet program runs on your computer and connects your PC to a server on the network. You can then enter commands through the Telnet program and they will be executed as if you were entering them directly on the server console.

  • Page 20: Ethernet Control

    USER MANUAL DVI MATRIX ROUTER : ODM-88 Select OK to open the command window. Type the command: telnet 192.168.0.88 [Note] 192.168.0.88 is the default IP address of ODM88. Change IP address as needed. (Refer to Chap. 2.6.6 and 2.8) Press ENTER: “DVI Matrix Router Connected” will be displayed. Type serial command set.
  • Page 21 USER MANUAL DVI MATRIX ROUTER : ODM-88 Figure 2-7 Local Area Network Properties Select Internet Protocol (TCP/IP) and click on Properties. In the Internet Protocol (TCP/IP) Properties, click Use the following IP address radio button. Enter IP address compatible with the current IP address of the ODM-88.

  • Page 22: Operation

    USER MANUAL DVI MATRIX ROUTER : ODM-88 Operation  ODM-88 has various operational interfaces: Front Panel Key Input, Serial Command Lines, and Proprietary PC Software through RS-232, Ethernet.  Proprietary PC Software is the most efficient since all other methods use command line in- terface.
  • Page 23 USER MANUAL DVI MATRIX ROUTER : ODM-88 1) Press FUNCTION key – LCD will display EDID Read/Write: =========Function Mode======== EDID Read/Write IN : 1.2.3.4.5.6.7.8 OUT: 1.2.3.4.5.6.7.8 Configure as shown below: =========Function Mode======== EDID Read/Write IN : 1.2.3.4.5.6.7.8 OUT: 1.2.3.4.5.6.7.8 [Note] If a source is connected to two or more different displays, assigning the lower resolution EDID to Input port EEPROM is highly recommended.

  • Page 24: Command Line Operation

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.2 Command Line Operation  Command line interface is performed through RS-232 or Ethernet.  The commands are coded in ASCII and HEXA. All descriptions are shown in Table 3.1. A command line consists of string of ASCII or HEXA codes in series as shown below; Start (1 Byte) + Router ID (3 Bytes) + Command (1 Byte) + Data Length (3 Bytes) + Output Number (2 Bytes) + Input Number (2 Bytes)
  • Page 25 USER MANUAL DVI MATRIX ROUTER : ODM-88 Read Input EEPROM 0x43 Read EDID from EEPROM Read EDID from display and write to EDID Write 0x44 EEPROM Edit EDID Write 0x45 Edit EDID Write mode EDID Data 0x46 Send divided data by two Monitoring 0x47 Set the monitoring channel...

  • Page 26: Create

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.2.1 Create:  Configure cross-switching of inputs and outputs.  Command line format:  Start (*) + Router ID (3 byte) + Command (0) + Data Length (Variable) + Output channel (2 byte) + Input channel (2 byte) + … + End (!) ...

  • Page 27: Preview: Shows All Input-Output Configurations

    USER MANUAL DVI MATRIX ROUTER : ODM-88 Example 4: Eight (8) channel direct - through connection (for ODM-88) Output Input Start Router ID Command Data Length Channel Channel ASCII Output Input Output Input Output Input … Channel Channel Channel Channel Channel Channel …...

  • Page 28: Upload Data Request: Uploads Connection Data To The Controller

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.2.4 Upload Data Request: Uploads connection data to the controller.  Command line format:  Start (*) + Router ID (3 byte) + Command (3) + Data Length (000) + End (!) Byte Start Router ID Command...
  • Page 29 USER MANUAL DVI MATRIX ROUTER : ODM-88 1) Output Channel 1  Input Channel 1, Output Channel 2  Input Channel 2, Output Channel 3  Input Channel 3 Byte Start Router ID Command Data Length Output Channel Input Channel ASCII Output Channel Input Channel...

  • Page 30: Upload Router Id

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.2.6 Upload Router ID  Uploads Router ID to the controller or PC.  Command line format:  Start (*) + Router ID (3 byte) + Command (5) + Data Length (000) + End (!) Byte Start Router ID...

  • Page 31: Upload One Channel Data Request

    USER MANUAL DVI MATRIX ROUTER : ODM-88  By sending Check Connection command to the router, ODM-88 responds with the following ACK signal to controller :  Good connection: 0xA0 (A0h)  Bad connection: 0x05 (05h) 3.2.9 Upload One Channel Data Request ...

  • Page 32: Read Input Eeprom Edid

    USER MANUAL DVI MATRIX ROUTER : ODM-88 Connection DATA Output Byte Start Command Data Length EDID (256Byte) Channel … ASCII 00h…xxh EDID (256 Bytes) contains EDID information of Output display 1. 3.2.11 Read Input EEPROM EDID  Read EDID stored on EEPROM of an Input. ...

  • Page 33: Default Edid Setting

    USER MANUAL DVI MATRIX ROUTER : ODM-88  The 2 bytes in EEPROM # represents the Output port number of target display. For example, 03 in EEPROM 2 represents: load the EDID of Output 3 display into EEPROM 2. The value, 00 in EEPROM # repre- sent: no updating to EEPROM.

  • Page 34: Monitoring

    USER MANUAL DVI MATRIX ROUTER : ODM-88  03 for 57,600bps  04 for 115,200bps  Allows ODM-88 to respond with ACK signal to controller in the following format: 0x06(06h) + Connection DATA + 0x07(07h) Example: Set the baud rate to 38,400bps. Byte Start Command...

  • Page 35: Proprietary Pc Software Installation

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.3 Proprietary PC Software Installation 3.3.1 Installation of PC Application 1) Insert ODM-88 software CD ROM into PC. If the CD ROM does not automatically run, Select Start >Run. Enter X:\ ‘ODM-88 Setup.exe, (where X is the letter of your CD ROM drive) 2) Installation of ODM-88 screen will be opened.
  • Page 36 USER MANUAL DVI MATRIX ROUTER : ODM-88 4) Select “I accept the License Agreement(s)” and click on the Next button. 5) Click on the Next button. To complete the installation, click on the Finish button. ODM-88 Manual Page 36...

  • Page 37: Proprietary Pc Software Operation

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.4 Proprietary PC Software Operation 3.4.1 PC Operation using RS-232 1) Connect RS-232 cable between ODM-88 and PC. 2) Turn on power switch. 3) Set Baud rate with reference to Function mode manual. (Refer to chap. 2.6.3) - Default setting is 19200bps.
  • Page 38 USER MANUAL DVI MATRIX ROUTER : ODM-88 6) Following message will be opened step by step for serial communication, router ID and output channel status. ODM-88 Manual Page 38...
  • Page 39 USER MANUAL DVI MATRIX ROUTER : ODM-88 7) Following will be displayed if all connection and setting is in normal. 8) Error message will be opened if the connection and setting is not in normal. ex) Following error message will be opened when cable connection and baud rate setting is not in normal.
  • Page 40 USER MANUAL DVI MATRIX ROUTER : ODM-88 ex) Following error message will be opened when Router ID is not set in normal. Set ID = PC Software Receive ID = ODM-88 MATRIX ROUTER [Note] Set ID and Receive ID should be same. 9) Setting for Serial Port, Baud Rate and Router ID Select System >...
  • Page 41 USER MANUAL DVI MATRIX ROUTER : ODM-88 10) Click on the OK button after setting desired data. ODM-88 Manual Page 41...
  • Page 42 USER MANUAL DVI MATRIX ROUTER : ODM-88 11) RS232C check box color will be changed to red color if all process is in normal. ODM-88 Manual Page 42...

  • Page 43: Pc Operation Using Ethernet

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.4.2 PC Operation using Ethernet 1) Connect Ethernet cable between ODM-88 and PC. Caution) Crossover cable should be used for point to point connection and direct cable should be used for LAN connection. Shipping cable as an accessory is crossover cable.
  • Page 44 USER MANUAL DVI MATRIX ROUTER : ODM-88 5) Following will be displayed at first page (Title). 6) Following message will be opened step by step for Ethernet communication, router ID and output channel status. ODM-88 Manual Page 44...
  • Page 45 USER MANUAL DVI MATRIX ROUTER : ODM-88 7) Following will be displayed if all connection and setting is in normal. ODM-88 Manual Page 45...
  • Page 46 USER MANUAL DVI MATRIX ROUTER : ODM-88 8) Error message will be opened if the connection and setting is not in normal. ex) Following error message will be opened when Ethernet setting is not in normal. ex) Following error message will be opened when Router ID is not set in normal. Set ID = PC Software Receive ID = ODM-88 MATRIX ROUTER [Note] Set ID and Receive ID should be same.
  • Page 47 USER MANUAL DVI MATRIX ROUTER : ODM-88 9) Set the Ethernet communication and Router ID [Note] Both IP address of ODM-88 and PC should be same. Select System > Ethernet at the menu bar 10) Click on the OK button after setting desired data. ODM-88 Manual Page 47...
  • Page 48 USER MANUAL DVI MATRIX ROUTER : ODM-88 11) Ethernet check box color will be changed to red color if all process is in normal. ODM-88 Manual Page 48...

  • Page 49: Sytem Menu

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.4.3 System menu  RS232: Set the Serial Port, Baud Rate, Router ID for RS232 communication.  Ethernet: Set the IP Address, Subnet Mask, Gateway, Router ID and Port number for Ethernet communication. ...

  • Page 50: Function Menu

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.4.4 Function menu  Get Router ID: Match PC Software with Router ID after reading Router ID  PreView: Verifies current Input-Output connection status.  Communication Information: Information for Tx and Rx communication. ...

  • Page 51: Title Folder - Initial Screen Of Pc Software

    USER MANUAL DVI MATRIX ROUTER : ODM-88 Title Folder – Initial screen of PC Software 3.4.5 ODM-88 Manual Page 51...

  • Page 52: Matrix Control Folder

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.4.6 Matrix Control Folder  Set the IN/OUT channel and save the edited data.  Set the Monitoring Output.  Set the Rolling function.  Read switching pattern of IN/OUT CH by selecting Upload button. 3.4.7 EDID Folder ...

  • Page 53: Matrix Control Operation

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.5 Matrix Control Operation 3.5.1 Select Input Channel 1) Output Channel Device is not activated. (It’s fixed always) ODM-88 Manual Page 53...
  • Page 54 USER MANUAL DVI MATRIX ROUTER : ODM-88 2) Select desired input channel (Click on “N” which is located at the below of Output Channel Device number) ODM-88 Manual Page 54...
  • Page 55 USER MANUAL DVI MATRIX ROUTER : ODM-88 3) Channel link for Input and Output ex) Link Input Channel 1 to Output Chanel 1 Click on the “N” which is located at the right under Output Channel Device  No. 1 > select 1 > click on the Enter button > OK message ODM-88 Manual Page 55...
  • Page 56 USER MANUAL DVI MATRIX ROUTER : ODM-88  Output CH 1 will be marked in green color in the line of Input CH 1. ODM-88 Manual Page 56...

  • Page 57: Easy Link For Input Ch To All Output Ch

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.5.2 Easy link for Input CH to all Output CH 1) Select Input CH number and Enter button. ex) Link Input CH 2 to all Output CH: Select No. 2 > Set button > Enter button ODM-88 Manual Page 57...
  • Page 58 USER MANUAL DVI MATRIX ROUTER : ODM-88 If user wants to clear the link setting, select Clear and Enter button. Clear button > Enter button ODM-88 Manual Page 58...

  • Page 59: Select Monitoring

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.5.3 Select Monitoring Output #1 will be disconnected automatically when monitoring port is  connected and working.  ex) Monitoring for Input CH 4: Select No. 4 > select Check Box ODM-88 Manual Page 59...

  • Page 60: Save Switching Pattern

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.5.4 Save Switching Pattern  Select link for Input CH and Output CH > Create Pattern Name > Select Add button.  ex) Select link for Input CH and Output CH as 1:1 > Write ABC as Pattern Name >...
  • Page 61 USER MANUAL DVI MATRIX ROUTER : ODM-88  ex) Select link for Input CH and Output CH in reverse order > Create Pattern Name(DEF) > Select Add button.  In order to delete Pattern Name in the list, the process is: Select check box for the Pattern Name >...

  • Page 62: Rolling Function

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.5.5 Rolling Function  Allows users to rotate Input sources.  Used to verify all Input-Output connections.  If Output channel was not connected to any Input channel, Check Box would not be checked. ...

  • Page 63: Select Rolling Mode

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.5.6 Select Rolling Mode Click on the Select > select Input CH No. > set Rolling Time > select Start button.  For example:  When user selects Input CH 1, 2, 3 to be rolled, the sequence will be as below.

  • Page 64: Edid Setting

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.6 EDID Setting 3.6.1 Features:  Store EDID  Read EDID from Output device  Read EDID from Output device and store it in Input EEPROM  EDIT user defined EDID  Restore default EDID (in all Input channels) ...

  • Page 65: Write Edid Data Of Output Device To Input Ch Eeprom

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.6.4 Write EDID data of Output Device to Input CH EEPROM 1) Select EDID, and go to EDID setting. 2) Select Output Device EDID Select No. 3) Verify all Input EEPROM # and selected Output Device #. 4) Select EDID Write button to save the EDID data.

  • Page 66: Read Edid

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.6.5 Read EDID 1) Select EDID, and go to EDID setting. 2) Select the number of Input Channel EEPROM Read. 3) Select the number of Output Device EDID Read. 4) Default EDID Data can be read with Default EDID Read button. If user click on the EDID Editor button, the read EDID Data at the above 2) 3) 4) process can be checked.

  • Page 67: Write The Read Edid Data

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.6.6 Write the read EDID Data  User can write default EDID Data as following process. Click on the Default EDID Read button > select Input Channel EEPROM No. > click on the Edit EDID Write button. ...

  • Page 68: Save The Edited Edid Data And Open The Saved File

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.6.7 Save the edited EDID Data and open the saved file  The read EDID Data could be saved as a file.  The saved EDID File’s directory is Folder c:\ODM-88_Data\EDID.  File name will be listed with following process. Input file name at the File line >...

  • Page 69: Edid Editor

    USER MANUAL DVI MATRIX ROUTER : ODM-88 3.6.8 EDID EDITOR 1) Confirm and edit for Input Channel EEPROM, Output Device EDID and Default EDID. The read EDID Data will be displayed when clicking on the EDID Editor button. The edited EDID Data could be saved as a file and saved it to Input Channel EEPROM.
  • Page 70 USER MANUAL DVI MATRIX ROUTER : ODM-88  Confirm the read EDID Data as a below display.  It will be asked whether save the edited data or not when trying to close the window.  It can be editable, but it’s not recommended with any purpose. ODM-88 Manual Page 70...

  • Page 71: Troubleshooting

    USER MANUAL DVI MATRIX ROUTER : ODM-88 4. Troubleshooting Problem Symptom Remedy Check the connection of power cord to the ODM-88 and Power No Power LED AC power outlet and that make sure that power switch is in the ON. Check the Input Output DVI cables are firmly connected to each port of ODM-88 and double check the Input Output connection configuration you want.

  • Page 72: Features

    USER MANUAL DVI MATRIX ROUTER : ODM-88 5. Features This unit is designated to make cross-switch between the 8 DVI inputs and the 8 DVI outputs in a way of any of 8 inputs to one or multiple outputs. Chassis is hardened enough to be applicable in harsh envi- ronments like staging, control room and military.

  • Page 73: Firmware Downloading

    USER MANUAL DVI MATRIX ROUTER : ODM-88 7. Firmware downloading Router KEY Control  MegaBoot is a firmware update software program for ODM-88  Follow the instructions below to install the MegaBoot software into your PC. Insert the software CD into your PC and copy the MegaBoot.exe file to your desktop. Then there will be created below Icon on your desktop.
  • Page 74 USER MANUAL DVI MATRIX ROUTER : ODM-88 Click on the Open button and select file to be downloaded and click on the open(O) button. ODM-88 Manual Page 74...
  • Page 75 USER MANUAL DVI MATRIX ROUTER : ODM-88 Following screen will be displayed. Next step is Serial Port Setup. ODM-88 Manual Page 75...
  • Page 76 USER MANUAL DVI MATRIX ROUTER : ODM-88 Select proper Comm Port and Baud Rate. Double click on the “Serial Port Disable” button to execute firmware download. ODM-88 Manual Page 76...
  • Page 77 USER MANUAL DVI MATRIX ROUTER : ODM-88 Firmware downloading will be started and the progress will be displayed. Download completion screen is as below. Now Router will be operated under new firmware. ODM-88 Manual Page 77...
  • Page 78 USER MANUAL DVI MATRIX ROUTER : ODM-88 Opticis Co., Ltd. # 16Fl, Kins Tower 8 Sungnam-daero, 331 beon-gil, Bundang-gu, Seongnam-si, Gyunggi-do, 463-844 South Korea Te l: +82 (31) 719-8033 Fax: +82 (31) 719-8032 For order support, please contact your Distributor or Reseller. For technical support, visit Opticis web site, www.opticis.com or contact techsupport@opticis.com ODM-88 Manual Page 78...
