Think Wireless Orbit-HD TWGL-SR1 User Manual

On-glass satellite radio antenna orbit-hd

On-Glass Satellite Radio Antenna

PARTS LIST

Exterior unit

Alignment template

Alcohol pads (2)

• Do not install if air temperature is below 60

• Integrity of the installation will be compromised if one or more of the following are present

at the planned installation location:

1. Rain X

2. After market window tinting material.

If present, remove material or select a different location before installing.

• Receiver location cannot be more than 12 feet from antenna.

• Avoid locations with curved glass (typically close to windshield edge)

CAUTION: For front windshield installation, select location on passenger side as far

from the glass edge as possible and away from windshield wiper path.

Car: Rear windshield

SUV, Pickup, Mini-Van: Front windshield passenger side

Orbit-HD

Model #: TWGL-SR1

or other commercial water repellant.

Big Rig Truck: Sunroof (if available)

Interior unit with cable

Glass curvature test template

Instruction Manual

Table of Contents

Do you have a question about the Orbit-HD TWGL-SR1 and is the answer not in the manual?

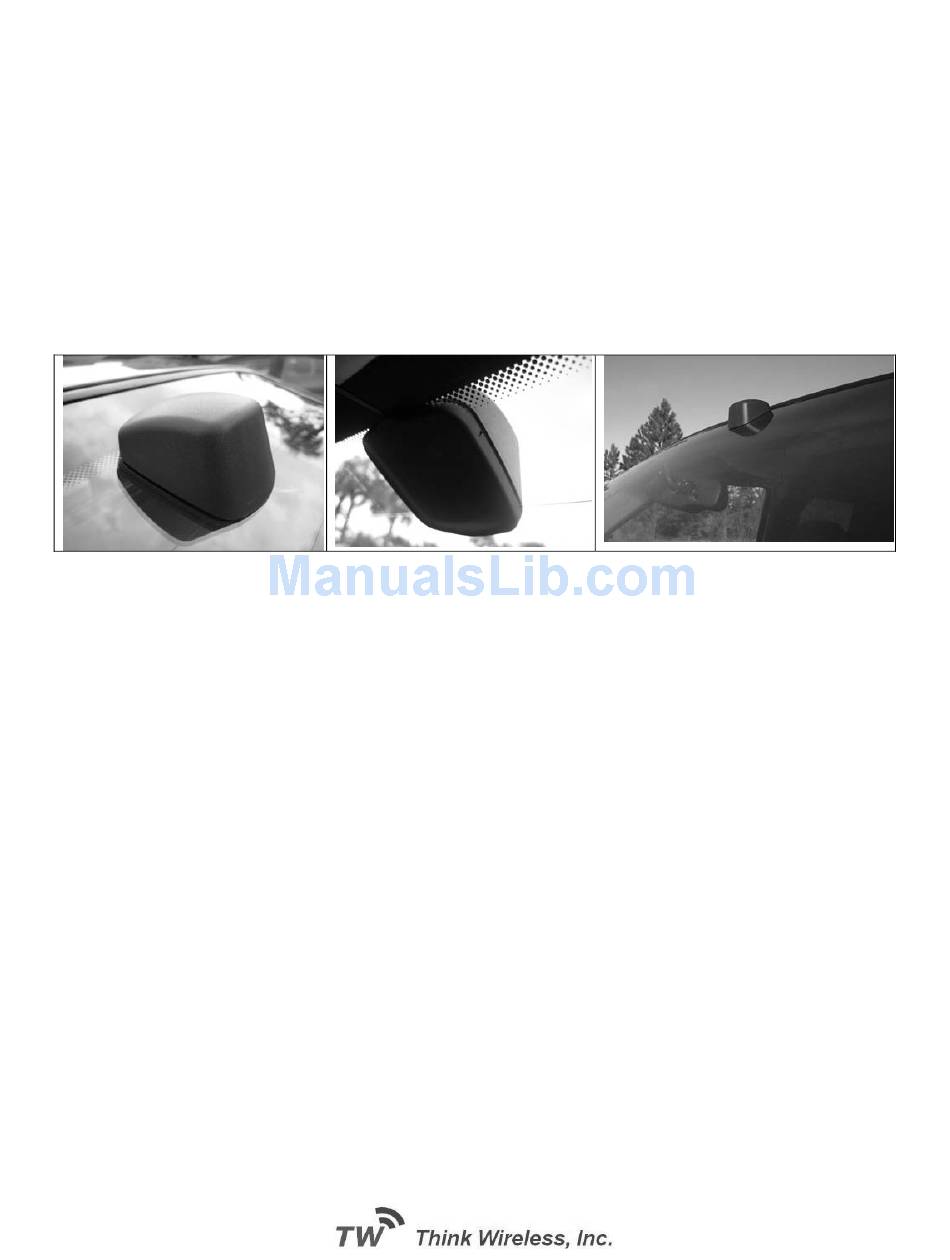

Page 1 Orbit-HD On-Glass Satellite Radio Antenna Model #: TWGL-SR1 PARTS LIST Exterior unit Interior unit with cable Alignment template Glass curvature test template Alcohol pads (2) Instruction Manual PRE-INSTALLATION CONSIDERATIONS • Do not install if air temperature is below 60 • Integrity of the installation will be compromised if one or more of the following are present at the planned installation location: 1.
Page 2 LOCATION AND GLASS PREPARATION • Mount as high on glass as possible for optimal performance. • Driver visibility should not be obstructed in any manner. • Identify location of installation. Select a location that allows for interior headliner clearance. Allow for windshield wiper clearance if present. Using the glass curvature card, test for nearly flat (non-curved) surface.
Page 3 Defogger lines Defogger lines Correct Incorrect • Slowly and carefully, remove clear plastic adhesive liner from pad. (see below). CAUTION: Adhesive pad will stick on the glass instantly and cannot be removed without having to replace. Be sure the positioning is correct before it touches the glass.
Page 4 INSTALLATION OF INTERIOR UNIT • Make sure you have read the previous sections about glass location and preparation. • Install the alignment template on the interior surface directly opposite to the exterior unit. Hold in place using masking tape. Make sure that the empty template space is aligned properly with the footprint of the exterior unit.
