Swisher 12048 Owner's Manual
  1. Manuals
  2. Brands
  3. Swisher Manuals
  4. Lawn Sweeper
  5. 12048
  6. Owner's manual

Swisher 12048 Owner's Manual

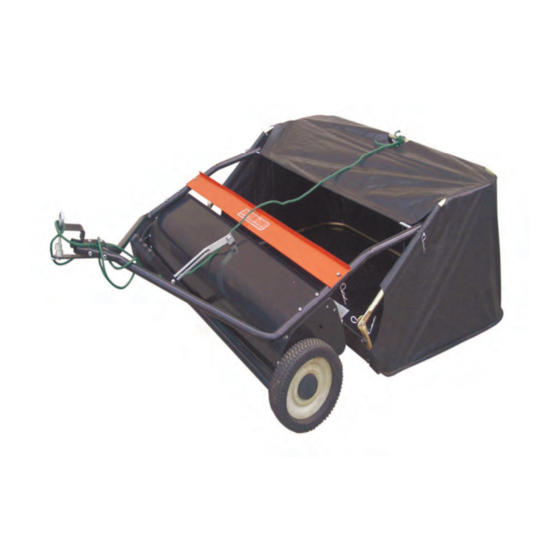

Swisher 48 inch lawn sweeper
Hide thumbs
Table of Contents

Advertisement

Quick Links

MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945
Owner's
Manual
12048
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
Before Operating this
Equipment.
12049
1602 CORPORATE DRIVE, PO BOX 67 , WARRENSBURG, MISSOURI 64093
PH 660. 747. 8183 FAX 660. 747. 8650
48 Inch Lawn Sweeper
swisherinc.com
Made In CHINA
REV. 06-212

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12048 and is the answer not in the manual?

Questions and answers

Summary of Contents for Swisher 12048

  • Page 1 MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945 Owner’s Manual 48 Inch Lawn Sweeper 12048 IMPORTANT Read and follow all Safety Precautions and Instructions Before Operating this Equipment. Made In CHINA 1602 CORPORATE DRIVE, PO BOX 67 , WARRENSBURG, MISSOURI 64093 PH 660.

  • Page 2: Limited Warranty

    Should you have any questions concerning this warranty, please contact us toll-free at 1-800- 222- 8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom y ou purchased the mower will be needed before any warranty claim can be processed.

  • Page 3: Safety Precautions

    MISSING PARTS If you are missing any parts, please do NOT return to place of purchase. FIRST contact Swisher Customer Service for quick replacement at: 800-747-8183 CARTON CONTENTS (Loose Parts in Carton) Sweeper Housing Assembly Bag Arm Tube (2) Hitch Tube, L.H.
  • Page 4 REF. Part No. QTY DESCRIPTION Hex Bolt, M8 x 75 Lg. Hex Bolt, M8 x 55 Lg. Hex Bolt, M8 x 40 Lg. Hex Bolt, M6 x 45 Lg. Carriage Bolt, M8 x 20 Lg. Hex Bolt, M8 x 16 Hex Lock Nut, M8 Hex Lock Nut, M6 Big Flat Washer, Ø8...

  • Page 5: Pre-Assembly Notes

    ASSEMBLY INSTRUCTIONS PRE-ASSEMBLY NOTES: Assembly Time: ½ to 1hr HELPFUL TIP: Fully read instructions before beginning assembly. NOTE: Reference numbers in the instructions are from the “Parts List” page. 1. Remove all hardware and parts from carton(s). 2. Verify with above page that all parts and hardware are included. 3.
  • Page 6 STEP #8 ATTACH RUBBER HANDLE Attach rubber grip (#70) to top of handle. Hitch Pin SEE FIGURE #6 Handle Grip Handle Grip 20mm Spacers Height Height M8x40 Hex Bolt M8x40 Hex Bolt Adjustment Adjustment Hair Cotter Handle Handle Figure 5 STEP #4 ATTACH HITCH BRACKET Attach hitch bracket to hitch tubes using two M8x55 hex bolts...
  • Page 7 STEP #10 CONNECT METAL STRAP & HANDLE Step #2 INSERT SIDE TUBES Move the height adjustment handle slightly to one side to fit Slide the two upper side tubes through the stitched flaps on the star lock washer (#13) between the handle and the sweeper each side of the bag.
  • Page 8 STEP #4 INSERT LOWER TUBES STEP #7 FASTEN BAG Lay the assembled lower hopper tube into the bottom of the Fasten the corners of the bag around the lower hopper side hopper bag. tubes by snapping the bag flaps to the bag bottom on both sides.
  • Page 9 STEP #11 ATTACH BAG TO SWEEPER STEP #10 ATTACH ROPE Connect the hopper bag to the sweeper body. Align the ends Tie the rope (#68) to open area at the top center of the of the bag arm tubes with the ends of the sweeper’s hitch tubes hopper bag frame.
  • Page 10 48” Part List...

  • Page 11: Parts List

    Parts List Item Description Qty Part No Item Description Qty Part No Hex Lock Nut,M8 11998 Brush Shaft Bushing 11949 12736 Hitch Tube, Left Side Inside Star Washer 11947 Hair Cotter Pin, Ø3 11988 Dust Cover Retainer 11948 Hitch Bracket (Straight) 11975 Hex Bolt,M10×80 12103...
  • Page 12 * PART NUMBER WITH PAINT CODE * PART DESCRIPTION TELEPHONE - 1-800-222-8183 FAX - 1-660-747-8650 SWISHER MOWER & MACHINE CO. INC. SWISHER MOWER & MACHINE CO. INC. SWISHER MOWER & MACHINE CO. INC. SWISHER MOWER & MACHINE CO. INC. 1602 CORPORATE DRIVE P.O.
