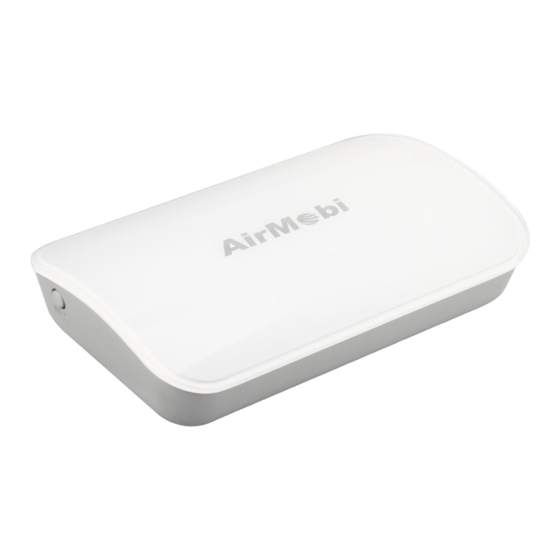

AirMobi iReceiver User Manual

Wifi music receiver
Hide thumbs Also See for iReceiver:
Table of Contents

Advertisement

Quick Links

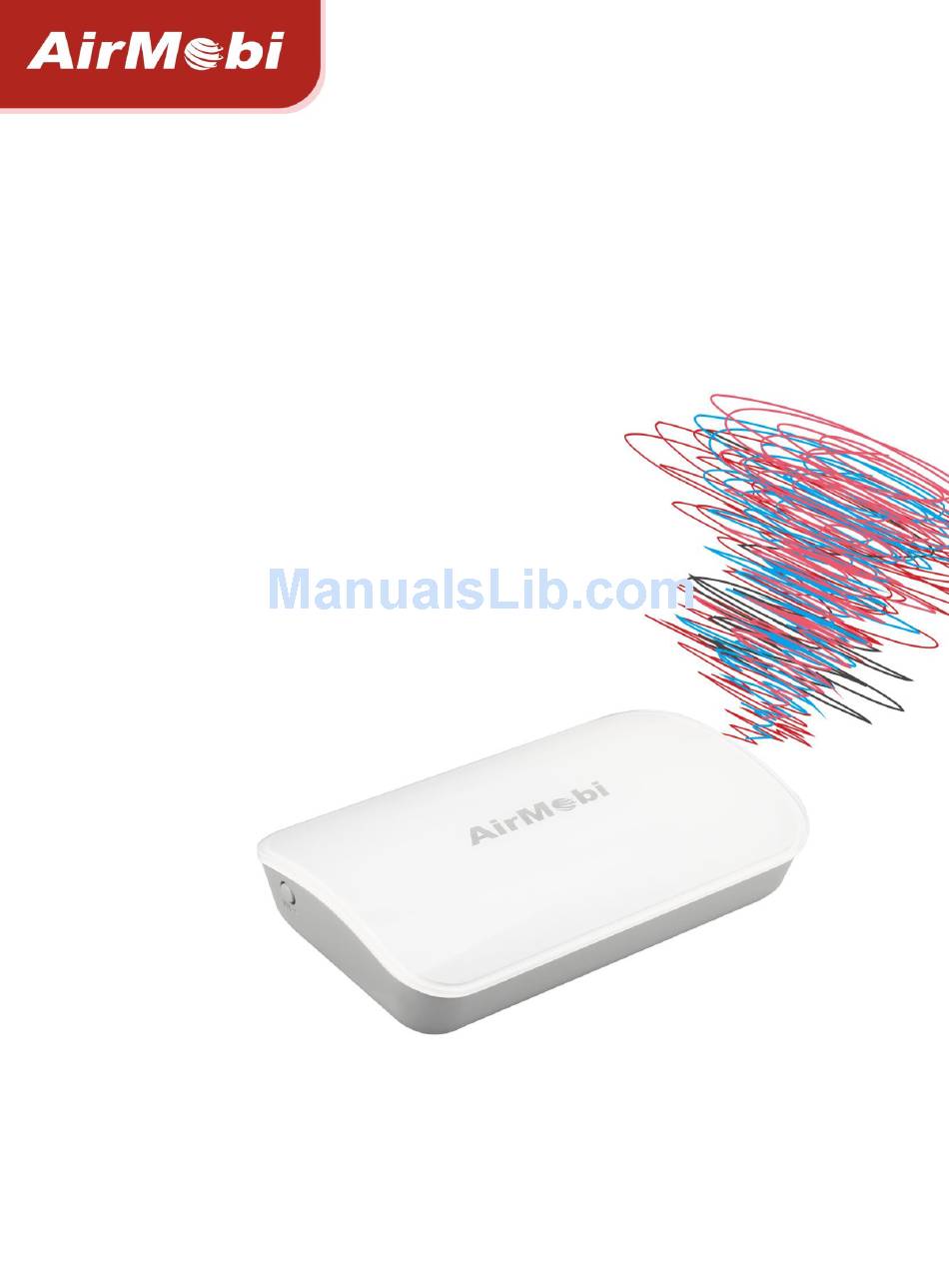

WiFi Music Receiver
iReceiver

User Manual

V1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iReceiver and is the answer not in the manual?

Questions and answers

Related Manuals for AirMobi iReceiver

Summary of Contents for AirMobi iReceiver

  • Page 1: User Manual

    WiFi Music Receiver iReceiver User Manual V1.0...
  • Page 2 All the photos and product specifications mentioned in this manual are for references only, as the upgrading of software and hardware, there will be changes. And if there are changes, AirMobi is not responsible for informing in advance. If you want to know more information about our...

  • Page 3: Table Of Contents

    CONTENTS Copyright Statement ............. 1 Chapter 1: Introduction ..........1 Product Overview ..............1 Main Features................2 Chapter 2: Installation ........... 3 Operating Mode Introduction ............ 3 Configure the Computer’s IP Address .......... 3 Setup Wizard ................13 Music Streaming ..............15 Chapter 3: Software Configuration ........

  • Page 4: Copyright Statement

    With the advanced soft decoding technology, you can enjoy fantastic and high quality music. iReceiver is easy to use, plug iReceiver into a USB port with the micro USB cable, connect to your stereo system, then sit back and enjoy your music- without worrying about the media cable fetter.

  • Page 5: Main Features

    WiFi Music Receiver www.cctairmobi.com Side Panel Button/Interface Description Use for connecting device to your wireless network. AUDIO Connect stereo or speakers. Micro USB Connect USB adapter (5V, 0.5A) to power the device. Long press and hold the button for 5 seconds, the device will reboot to its factory default settings.

  • Page 6: Chapter 2: Installation

    WiFi Music Receiver www.cctairmobi.com Chapter 2: Installation Operating Mode Introduction This WiFi Music Receiver supports Repeater function, it can be used for extending the coverage of your root wireless router, boost the wireless signal strength. Configure the Computer’s IP Address For Windows XP/2000 1) Click Start >...
  • Page 7 WiFi Music Receiver www.cctairmobi.com 2) Select and double click Network Connections. 3) Right click Wireless Network Connection and then select Properties.
  • Page 8 WiFi Music Receiver www.cctairmobi.com 4) Select Internet Protocol (TCP/IP) and click Properties. 5) Select Obtain an IP address automatically and Obtain DNS server address automatically. Then click OK.
  • Page 9 WiFi Music Receiver www.cctairmobi.com 6) Right click on Wireless Network Connection again, choose View Available Wireless Networks. 7) Click Refresh network list, search for AirMobi_XXXXXX, highlight on it and then click Connect button.
  • Page 10 WiFi Music Receiver www.cctairmobi.com 8) If the connection is successful, you can see it showing connected.
  • Page 11 WiFi Music Receiver www.cctairmobi.com For Windows Vista/7 1) Click Start>Control Panel. 2) Click Network and Internet.
  • Page 12 WiFi Music Receiver www.cctairmobi.com 3) Click Network and Sharing Center. 4) Go to Change Adapter Settings (win7)/Manage Network Connections (Vista).
  • Page 13 WiFi Music Receiver www.cctairmobi.com 5) Right click Wireless Network Connection, choose Properties. 6) Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
  • Page 14 WiFi Music Receiver www.cctairmobi.com 7) Select Obtain an IP address automatically and Obtain DNS server address automatically. Then click OK. Right click on Wireless Network Connection again, choose Connect/Disconnect. 9) Click Refresh network list, search for AirMobi_XXXXXX, highlight on it and then click Connect button.
  • Page 15 WiFi Music Receiver www.cctairmobi.com 9) If the connection is successful, you can see it showing connected.

  • Page 16: Setup Wizard

    2) You are prompt to enter the Password (preset as admin) which you can found on the bottom of the device, click Login. 3) After successful login, you can see the web management page of iReceiver comes up, please go to Setup Wizard on the left side menu, and then click Next.
  • Page 17 By default, we choose Synchronism SSID, it means that the WiFi name and WiFi password of iReceiver will be same as your root wireless router or AP after configuration. If you don’t choose it, the WiFi name and WiFi password of iReceiver won’t change.

  • Page 18: Music Streaming

    PC and sends it wirelessly to any stereo or speakers in your home. Using the function of Music Streaming, please connect your speakers to iReceiver with an audio cable. At the same time, please make sure your Smart Phone, Tablet and Wireless PC have been connected to the iReceiver through WiFi.
  • Page 19 1) Download and install iTunes in your wireless PC. 2) Once installed click on the icon to open the iTunes. 3) Click on the icon surrounded by the square frame, choose iReceiver, and then the music will play on the stereo.

  • Page 20: Chapter 3: Software Configuration

    Submenus will be available after you click one of the main menus. On the right, there are the corresponding explanations and instructions. Running Status The Running Status page shows the current status of iReceiver. All information is read-only.

  • Page 21: Setup Wizard

    WiFi Music Receiver www.cctairmobi.com Setup Wizard Please refer to Chapter 2. Network Settings There is a submenu under the network menu: LAN. Click it, you will be able to configure the corresponding function. MAC Address: The physical address of the device. IP Address: The LAN IP Address of the device.
  • Page 22 WiFi Music Receiver www.cctairmobi.com Wireless Basic Settings Wireless network name (SSID): The wireless network name of iShare, you can change it to whatever you want. SSID Broadcast: If you choose Enabled, iShare will broadcast its name (SSID). BSSID: Basic service set identification, the wireless MAC address of iShare. Channel Bandwidth: The bandwidth of the wireless channel, you can select 20MHz or 20/40MHz.
  • Page 23 Connect. Synchronism SSID: If you choose it, the WiFi name and WiFi password of iReceiver will be same as your root wireless router or AP after configuration. If you don’t choose it, the WiFi name and WiFi password of iReceiver won’t change.
  • Page 24 WiFi Music Receiver www.cctairmobi.com If you want MAC address (0A:3F:26:54:EA:3F) cannot access the Wireless Network while others can: Step 1: chooses Reject in the Policy. Step 2: Fill in MAC address 0A:3F:26:54:EA:3F, Click Save button. Advanced Wireless Settings...
  • Page 25 WiFi Music Receiver www.cctairmobi.com This section is to configure the advanced wireless setting of the device, if you are not familiar with the setting items in this page, it’s strongly recommended to keep the provided default values, otherwise it may result in lower wireless network performance. Beacon Interval: The interval for sending packets of the Beacon frame.

  • Page 26: System Tools

    WiFi Music Receiver www.cctairmobi.com Wireless Clients List Click Refresh button to check the wireless clients. System Tools There are three submenus under the System Tools: Backup and Restore, Password and Firmware Upgrade. Click any of them, and you will be able to configure the corresponding function. Backup and Restore In the Export Settings column, click Back up button to save all configuration settings to your local computer as a file.

  • Page 27: Firmware Upgrade

    WiFi Music Receiver www.cctairmobi.com 1) Click Browse button to find the configuration file which you want to restore. 2) Click Save button to update the configuration with the file whose path is the one you have input or selected in the blank. Note: Keep the power on during the process, in case of any damage.

  • Page 28: Chapter 4: Specification

    WiFi Music Receiver www.cctairmobi.com Chapter 4: Specification Wireless Standards IEEE 802.11b/g/n 11n: 150Mbps Data Rate 11g: 54Mbps 11b: 11Mbps Frequency Range 2.4-2.4835GHz Wireless Transmit Power <20dBm Modulation Type OFDM/CCK/16-QAM/64-QAM 150M: -68dBm@10% PER 108M: -68dBm@10% PER Receive Sensitivity 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER Operation Mode...
  • Page 29 WiFi Music Receiver www.cctairmobi.com Storage Temperature -40°C~70°C (-40°F~158°F) Relative Humidity 10% ~ 90%, Non-condensing Storage Humidity 5%~95%, Non-condensing Certifications CE, RoHS 1 x WiFi Music Receiver Package Contents 1 x Quick Installation Guide 1 x Micro USB Cable ﹡All references to speed and range are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

  • Page 30: Appendix A: Troubleshooting

    WiFi Music Receiver www.cctairmobi.com Appendix A: Troubleshooting 1. How do I restore the WiFi Music Receiver to factory default settings? When the WiFi Music Receiver is powered on, press and hold the reset button on the bottom panel until the light turns red. And then release the reset button. 2.

  • Page 31: Appendix B: Certification

    WiFi Music Receiver www.cctairmobi.com Appendix B: Certification CE Mark Warning Marking with the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

  • Page 32: Appendix C: Glossary

    WiFi Music Receiver www.cctairmobi.com Appendix C: Glossary 802.11b: The 802.11b standard specifies a wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks. 802.11g: Specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP encryption for security.
  • Page 33 WiFi Music Receiver www.cctairmobi.com identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network name.
  • Page 34   SHENZHEN HUAXUNARK TECHNOLOGY CO.,LTD  E‐mail: support@cctairmobi.com    Website:  ww.cctairmobi.com  Copyright©2013 Shenzhen Huaxunark Technology Co., Ltd. All rights reserved.
