Summary of Contents for Signal Vehicle Products LCS600

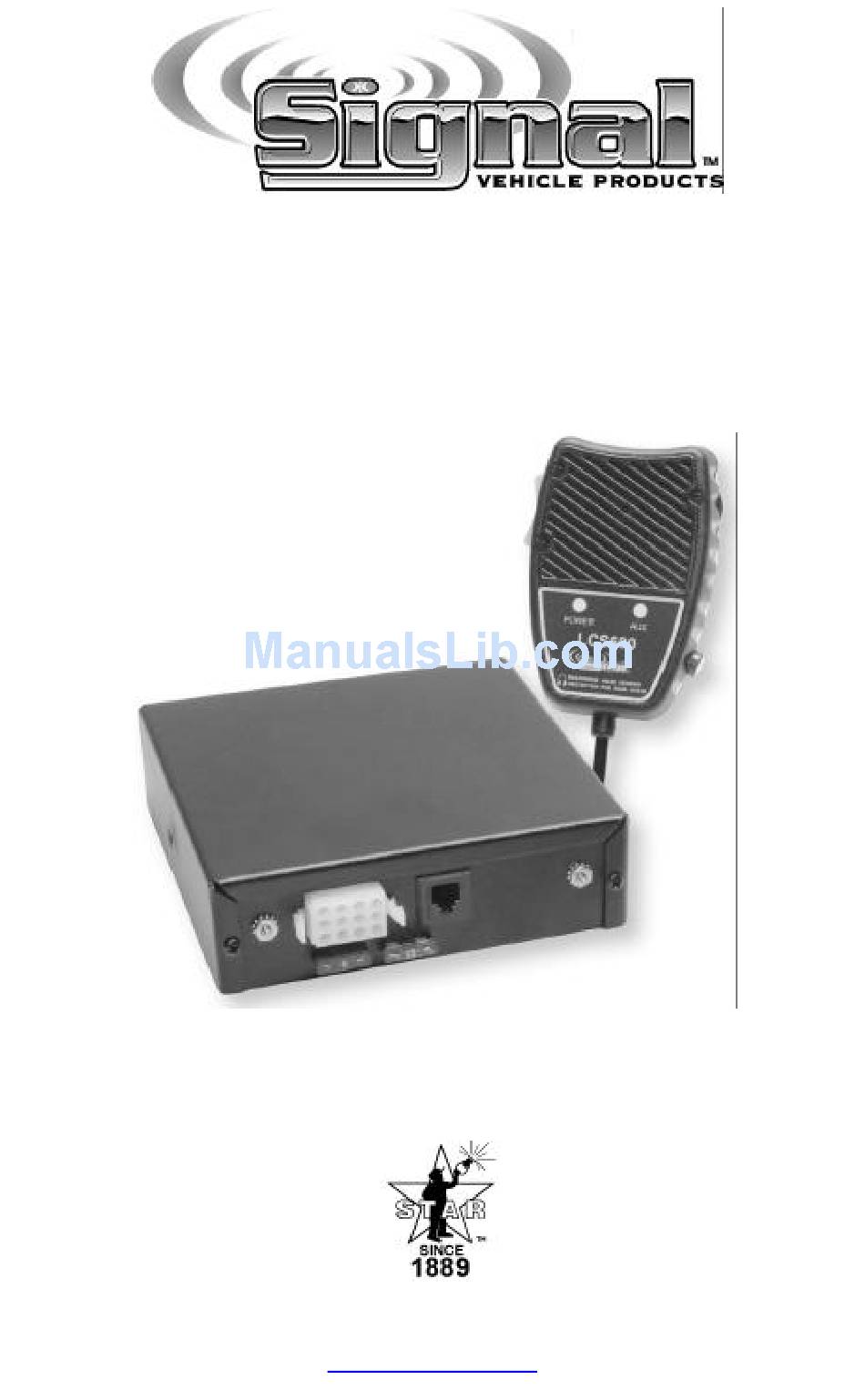

- Page 1 A Division of Star Headlight & Lantern Co., Inc. LCS600 HANDHELD MULTI-FUNCTION PA MICROPHONE INSTALLATION AND OPERATING INSTRUCTIONS 455 Rochester Street Avon, NY 14414 Phone: (585) 226-9025 Toll Free Fax: 888-478-2797 www.star1889.com PLITSTR53 REV. C 4/22/05...
-
Page 2: Table Of Contents
Due to continuous product improvements, we must reserve the right to change any specifications and information, contained in this manual at any time without notice. Signal Vehicle Products, Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 3: Installation
Contact supplier immediately if any components are missing. Installer Selectable Options The LCS600 has several options that can be selected during installation. These options include Positive or Negative auxiliary input activation of the Air Horn, Standard or Alternate Air Horn Tone, and Light Control or Radio Repeat. Jumpers on the printed circuit board, inside the case, allow the installer to select these various options. -
Page 4: Installation
Positive or Negative Air Horn Activation – The green wire allows activation of the Air Horn by an external source. This input is usually wired into the vehicle horn ring switch. The JUMPERS wiring diagram on page 7 shows two connection examples. NOTE: Permanent OPTIONS disconnection of the vehicle horn... -
Page 5: Safety Precautions
Never operate this unit without adequate hearing protection for you and others in the area. (OSHA 1910.95) The LCS600 may be mounted above the dash, below the dash, on a tunnel, or in a rack with the mounting u-bracket provided. Choose a mounting location convenient to the operator and away from any air bag deployment areas. -
Page 6: Wiring Diagram
Wire Size and Termination - The wiring diagram shows the minimum wire size used for each connection, along with recommended lead color. If the wire is longer than 10 ft. then use the next larger wire size. It is recommended that you use the following guidelines when installing this unit: •... - Page 7 Optional Wiring Connections: ORANGE LEAD: (Terminal 9) – Light Control Power Input: If you will be using the Light Control feature (instead off the Radio Repeat) connect the Orange lead to the positive of the battery, or to a high current power buss capable of supplying up to 20 amps of power.
-
Page 9: Operation
Operation GENERAL This unit is designed for easy operation under the stress associated with operating a motor vehicle. All of the functions are located right on the hand-held controller and are easily accessible. POWER In order for the unit to function, the Rotary Thumbwheel On/Off/Volume switch must be in turned ON by rotating it counter-clockwise. -
Page 10: Service
SERVICE This unit is designed to provide years of reliable service under even the worst conditions. Many times there may appear to be a problem with the unit when the true problem is in the speaker(s) or improper installation. The following chart shows typical symptoms and possible causes. -
Page 11: Parts
PARTS The following parts are available from Signal Vehicle Products: Part Description S30235-17P Siren Top Cover P30234-17P Siren Bottom Mounting Plate SWH-75 Wiring Harness P30069-38 Microphone Bracket with Screws P30056-16 1/4-20 x 3/8" Hex Locking Bolt P30028-6 15 Amp Automotive Fuse... -
Page 12: Limited Warranty
During this warranty period the obligation of Signal Vehicle Products is limited to repairing or replacing, as Signal Vehicle Products may elect, any part or parts of such product which after examination by Signal Vehicle Products is determined to be defective in material and/or workmanship.
