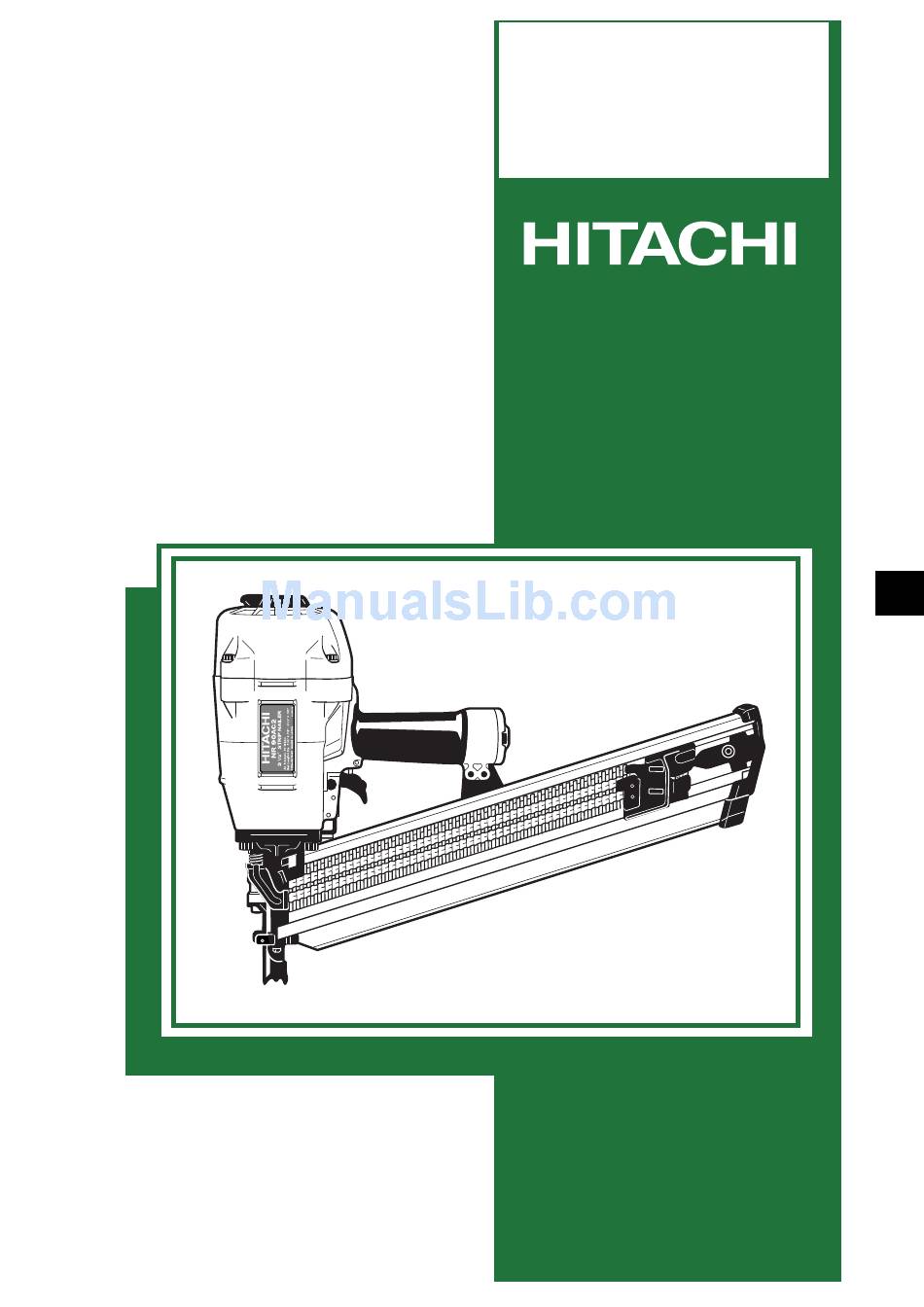

- Page 1 MODEL NR 90AC2 POWER TOOLS TECHNICAL DATA STRIP NAILER NR 90AC2 SERVICE MANUAL LIST No. E002 Sep. 2001 SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT...
- Page 2 E002 LIST NO. PNEUMATIC TOOL PARTS LIST STRIP NAILER 2001 • • Model NR 90AC2 (E1) 43 44 71 72 73...
- Page 3 PARTS NR 90AC2 ITEM CODE NO. DESCRIPTION REMARKS USED 949-755 HEX. SOCKET HD. BOLT M6X16 (10 PCS.) 880-515 PLATE 880-514 TOP COVER 882-793 HEX. SOCKET HD. BOLT (W/FLANGE) M6X35 881-946 EXHAUST COVER 881-940 GASKET (A) 881-945 EXHAUST VALVE RUBBER 881-944...
- Page 4 PARTS NR 90AC2 ITEM CODE NO. DESCRIPTION REMARKS USED 878-885 O-RING (S-18) 981-317 O-RING (S-4) 880-672 VALVE PISTON (B) 878-925 O-RING (I.D 8.8) 878-887 O-RING (I.D 11) 878-884 PLUNGER SPRING 880-673 PLUNGER (A) 878-888 O-RING (I.D 1.8) 880-671 VALVE BUSHING (A) 949-759 HEX.
-
Page 5: Standard Accessories
STANDARD ACCESSORIES NR 90AC2 ITEM CODE NO. DESCRIPTION REMARKS USED 881-968 NOSE CAP 944-458 HEX. BAR WRENCH 4MM 944-459 HEX. BAR WRENCH 5MM 872-422 HEX. BAR WRENCH 6MM 875-769 EYE PROTECTOR 881-976 CAUTION TAG 882-414 LEAFLET OPTIONAL ACCESSORIES ITEM CODE NO.
