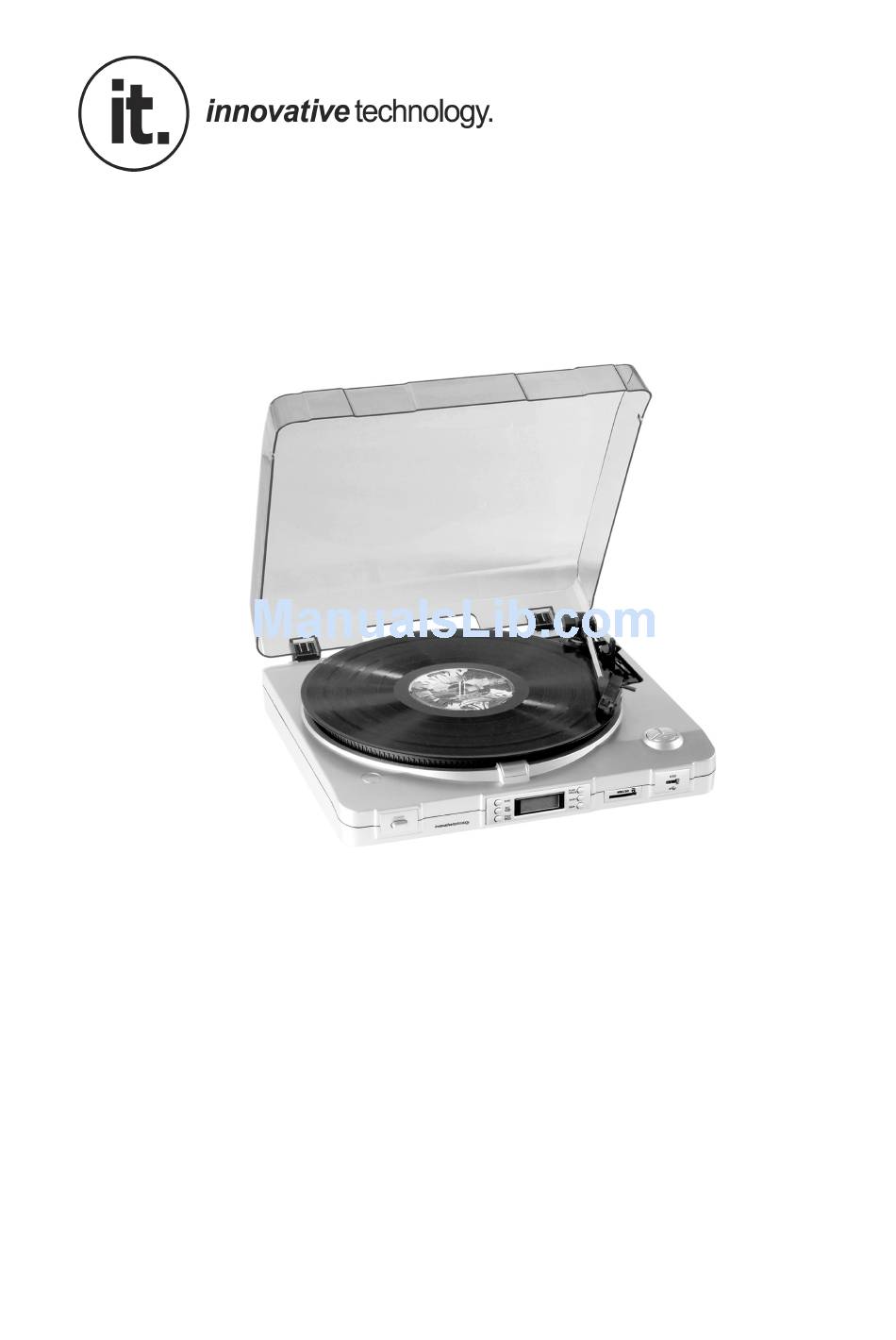

INSTRUCTION MANUAL
MODEL: ITUT-301
USB Turntable Encoder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITUT-301 and is the answer not in the manual?

Questions and answers

Related Manuals for Innovative Technology ITUT-301

Summary of Contents for Innovative Technology ITUT-301

  • Page 1 INSTRUCTION MANUAL MODEL: ITUT-301 USB Turntable Encoder...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS FOR AUDIO PRODUCTS-READ THOROUGHLY When using electrical products, basic precautions should always be followed including: 1. Read Instructions-All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions-The safety and operating instructions should be retained for future reference.
  • Page 3 14. Lightning-For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

  • Page 4: Safety Information

    Precautions Safety Information CAUTION 1. In order to shut off the power of this product completely, unplug the power cord from the wall outlet. be sure to unplug the unit if you do not intend to use it for an extended period of time, such as a vacation.

  • Page 5: Before Use

    Before Use 1. Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, cold or moisture. Keep away from sources that hum, such as transformers or motors. 2.

  • Page 6: Location Of Parts

    Location of parts 1. POWER SWITCH 2. FUNC BUTTON 3. PLAY/PAUSE 4. REC/REC-Q 5. STOP/DELETE 6. LCD 7. SKIP- 8. SKIP+ 9. MMC SLOT 10. USB SLOT 11. TONE ARM 12. LIFT HANDLE 13. TONE ARM REST LOCK 14. TONE ARM REST 15.

  • Page 7: How To Replace The Stylus

    Preparation for Use to the main outlet 1. Remove all the packaging from the unit. 2. Connect the AC power cord to the main outlet. 3. The silver screw protects the phonograph chassis during transportation. If the speed of your phonograph seems slow or you hear a rubbing sound, adjust the screw with a coin to correct the balance of the turntable.

  • Page 8: Listening To A Record

    Listening to a Record 1. Connect the AC power cord to the main outlet, the standard supply is AC 120V ~ 60Hz. 2. Plug the other ends of the RCA Cable into the auxiliary input (Aux) on your TV, home entertainment receiver or other music system, be sure that the red RCA Cable is inserted into the red jack and the white RCA Cable is inserted...
  • Page 9 Delete / Play the USB Host 1. Press the FUNC button to select the USB function. 2. Insert a external audio source (ie. MP3 player) into the USB slot. 3. Press the SKIP+ or SKIP- button to select a track or press the SKIP+ or SKIP- button till the desired folder is reached.
  • Page 10 Record to USB Host 1. Insert a external audio source (ie. MP3 Player) into the USB slot. 2. Press the FUNC button to select the PHONO function, put a record onto the Turntable, and press PLAY/PAUSE button to play the record. 3.
  • Page 11 When "REC ERR" appears, it already changes to display "PLEASE FORMAT" and automatically cancels the recording when seeing "REC ERR". Press and hold STOP/DELETE button, and then press SKIP+ ( ) or SKIP- ( ) button to select DEL ONE, DEL DIR, DEL ALL and FORMAT.
  • Page 12 Delete / Play the MMC/SD Card 1. Press the FUNC button to select the CARD function. 2. Insert a MMC/SD card into the MMC/SD slot. 3. Press the SKIP+ or SKIP- button to select a track or press the SKIP+ or SKIP- button till the desired folder is reached.
  • Page 13 Record to MMC/SD Card 1. Insert a MMC/SD card into the MMC/SD slot. 2. Press the FUNC button to select the PHONO function, put a record onto the Turntable, and press PLAY/PAUSE button to play the record. 3. Shortly press the REC/REC-Q button to record tracks into MMC/SD Card.
  • Page 14 USB and MMC/SD Card (Record with each other) Record to MMC/SD Card from USB 1. Insert USB and CARD at the same time. 2. Press the FUNC button to select the USB function. 3. Shortly press the REC/REC-Q button to record tracks into MMC/SD Card. 4.

  • Page 15: Specifications

    Specifications RECORD PLAYER section Motor..........DC servo motor Drive System........Belt Drive Speeds..........33-1/3 rpm, 45 rpm and 78 rpm Wow&Flutter........Less than 0.25%(WTD) S/N Ratio.........More than 50 dB Cartridge Type.........Ceramic Stereo Cartridge Stylus..........402-M208-165 Output Level........160-380 mV (5 cm/sec at 1 KHz) GENERAL Power Requirements......AC 120 V~ 60 Hz Power Consumption......5 W Troubleshooting Guide In case of trouble with the unit, please look through this chart and see if you can solve the...

  • Page 16: California Prop 65 Warning

    CALIFORNIA PROP 65 WARNING "WARNING" This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. For more information on these regulations and a list of chemicals, log on the following website address: http://www.oehha.ca.gov/prop65.html...

  • Page 17: Limited Warranty

    90 Days Labor, One Year Parts Innovative Technology Electronics Corp. (IT) warrants the product to be free from “Defects” in materials under normal use for a period of “One Year” from the date of the original purchase. The Warranty is “Not” transferable. IT agrees, within the initial “90 Day”...
