Summary of Contents for California Air Tools PRO 755

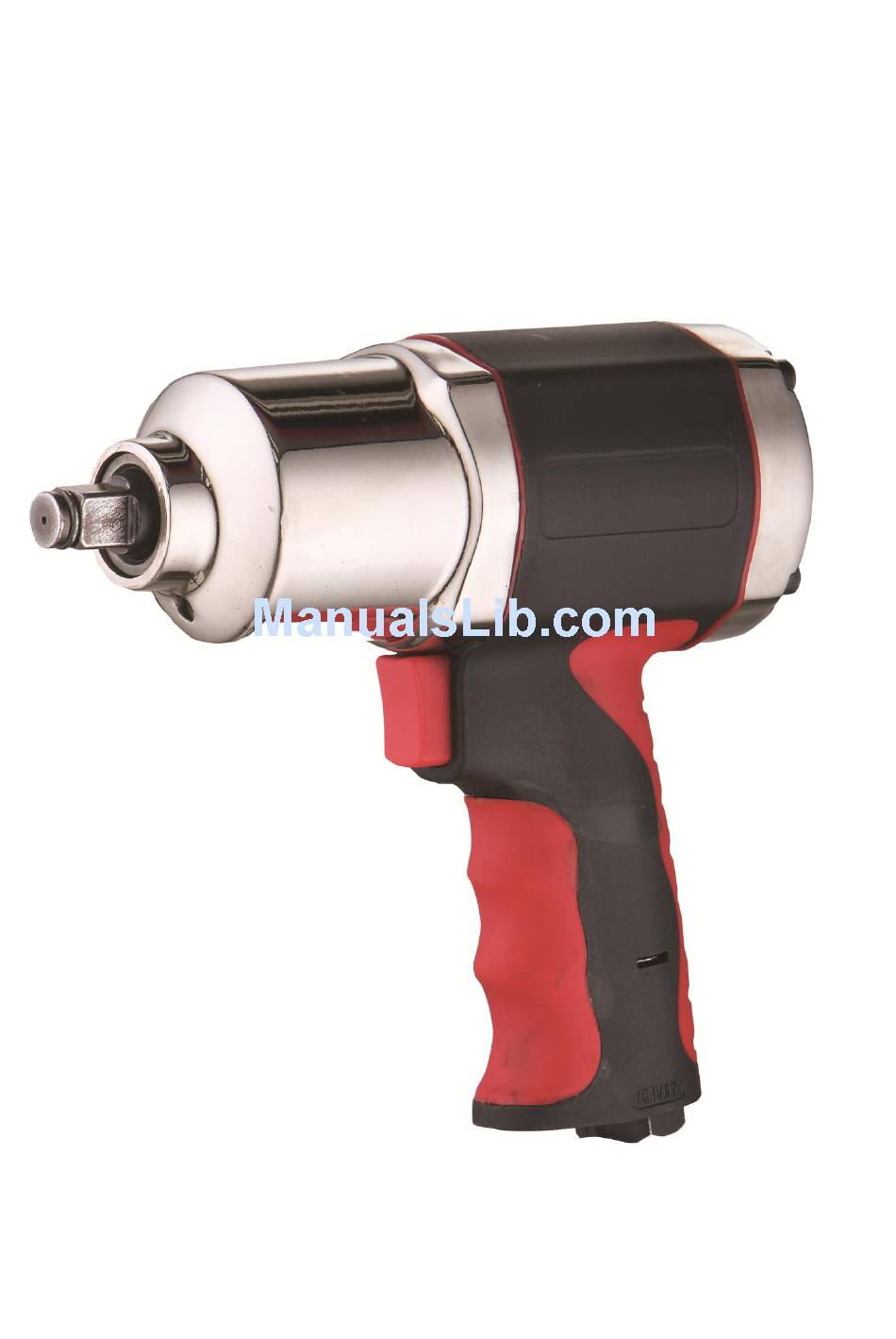

- Page 1 California Air Tools PRO 755 (1/2") Composite Air Impact Wrench Model No.: PRO 755...
-
Page 2: Technical Data
Operating Instruction Product Description The California Air Tools PRO 755 (1/2 Inch) Composite Air Impact Wrench is designed with the professional in mind. The Two Twin Hammer Mechanism reduces vibration and transfers a total output of 450 foot-pounds of torque. The built in 4 position air regulator allows for more versatility. -
Page 3: Air Supply
Air Supply 1. Ensure air valve (or trigger) is in the “off” position before connecting to the air supply. 2. You will require air pressure of 90psi, and air flow according to specification. 3. WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the tool. -
Page 4: Loading And Operation
Loading and Operation WARNING: Ensure you read, understand and apply safety instructions before use. 1. Only use impact sockets which are specifically designed for use with an impact wrench. 2. Connect the wrench to the air hose. 3. Place the socket on the nut / bolt and depress the trigger to operate the wrench. 4. -
Page 5: Troubleshooting
Trouble Shooting WARNING: If any of the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. Only a qualified persons or an authorized service center can perform repairs or replacement of tool. Disconnect tool from air supply before attempting repair or adjustment. -
Page 6: Exploding View
Exploding view Parts List Description Description Description Description Bolt O-ring O-ring Throttle Value Bushing Hammer Cylinder Plate O-ring Value Stem Case Anvil Bushing Rotor Reverse Spring Button Anvil Collar Rotor Blade Spring O-ring O-ring Gun Body Steel Ball Spring Anvil Cylinder Gasket Exhaust Port... -
Page 7: Limited Warranty
This warranty does not transfer to subsequent owners. CALIFORNIA AIR TOOLS, Inc. will repair or replace, at its option, any parts that are proven by an authorized service center to be defective in material or workmanship under normal use during the applicable warranty time period as stated above.
