Summary of Contents for Vook VS-K300

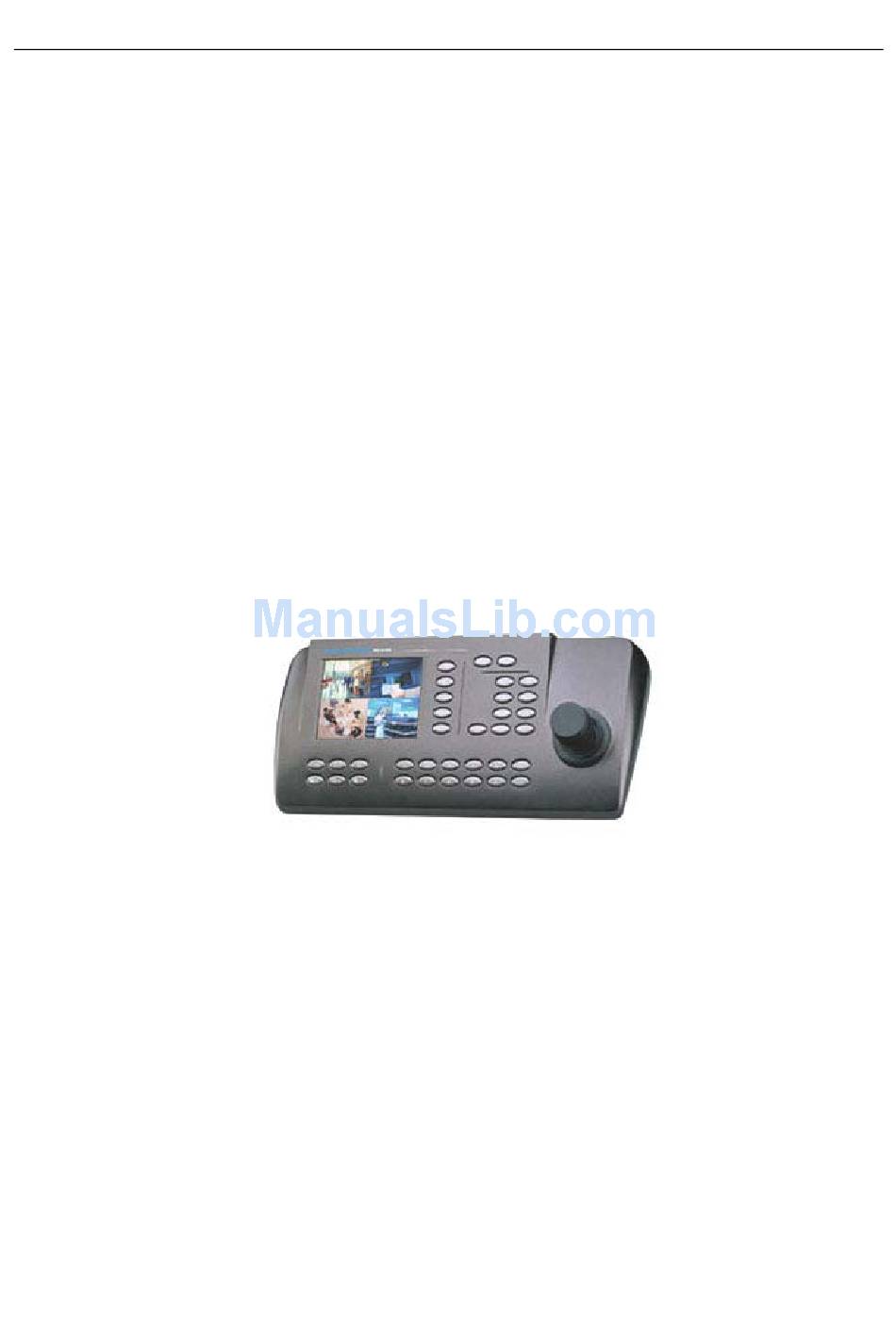

- Page 1 VS-K300 VOOK Operation Manual of 3 Axis Joystick LCD Keyboard with 4 ch. Video input and LCD display VS-K300 Pleased read the manual carefully before using the product. VERSION : 1.0...
-
Page 2: Table Of Contents
VS-K300 VOOK INDEX SUMMARY--- ---------------------------------------------------------------------------------------------------3 SPECFICATION ------------------------------------------------------------------------------------------------3 TECHNICAL PARAMETER -------------------------------------------------------------------------------------3 BACK FACEPLATE -------------------------------------------------------------------------------------------3 FRONT FACEPLATE-------- ----------------------------------------------------------------------------------4 EXTERIOR CONNECTION ----------------------------------------------------------------------------------4 OPERATION -----------------------------------------------------------------------------------------------------5 FAULT ELIMINATING ---------------------------------------------------------------------------------------14 - 1 -... - Page 3 SAFETY MEASURE Please observe the following safety measures, when install and use such product: 1. Please read and keep this manual. 2. The installation and maintenance of such product should be operate under the operation regulations by professional. 3. Please do not install the product on the table or bracket unstably. 4.
-
Page 4: Summary
SUMMARIZE Such Keyboard is a product supporting with Intelligent Dome, decoder and other terminal receivers. It connects to the receiver by EIA/RS-485 electric interface. Without the bus driver, one keyboard may control domes or decoders up to 32 sets, and the longest communication distance is 1.2Km. The intelligent dome camera can be controlled and setup instantly by such control keyboard, and it can also control the terminal decoder directly, reaching the controlling to Pan/Tilt, lens, IR torch, wiper and other image capture equipments. -
Page 5: Front Faceplate
⑤ 4-channel Looping camera video output: to connect to the assistant monitor ⑥ Monitor output: to connect to the output end of the monitor ⑦ Impedance matching switcher: the corresponding impedance matching switcher should be switched to the , when there is load of the looping output end ⑧... - Page 6 relations of the protocol code with the protocol will be listed in Table 2）, the version code is V1.0. After 10 seconds, it will be displayed on LCD, the content of input data buffer and the current address will be displayed at the very end bottom of the screen.
- Page 7 the dome or Pan/Tilt is out of control, probably the protocol adopted doses not support line scanning 7.1.14. open the assistant function press: FUNC press number: “1-10” different # stands for different function, refer to the Table 1 press Table 1（if the function is out of control, probably such protocol is not support such operation） KEYBOARD OPERATION CONTROL OBJECT FUNC+N+ON...
- Page 8 PROTOCOL At such item, move the joystick right or left to display: P000—P001—P002—P003—P004— P005—P006—P007—P008—P009—P010—P011—P012—P013—P014—P015 16 kinds of protocols. The corresponding of the protocol code and protocol name as following: Table 2 CODE NAME P000 P001 VOOK B01 P002 SANTACHI P003 PELCO-D P004 PELCO-P P005...
- Page 9 BAUD RATE At such item, move the joystick right or left to choose the four baud rates: 2400bps—4800bps—9600bps—19200bps PASSWORD At such item, move the joystick right or left to display the submenu as following: PASSWORD SETTING PASSWORD ON/OFF At menu item “PASSWORD ON”, move the joystick right, to switch the ON/OFF of PASSWORD.
- Page 10 BACK LIGHT ON move the joystick at such item right or left to switch the back light ON/OFF. ICR SHOT AUTO move the joystick at such item right or left to switch the ICR SHOT ON/OFF. IRIS AUTO move the joystick at such item right or left to switch the IRIS AUTO/MANUAL. D-ZOOM move the joystick at such item right or left to switch the Digital ZOOM ON/OFF.
- Page 11 press OPEN to enter the submenu of tracking edit. At such submenu, move the joystick right or left to move the active cursor right or left, and move the joystick up or down to add or reduce the content of current menu item.
-
Page 12: Main Menu
enter/ exit menu press FUNC & together（for short FUNC+ ） move the menu cursor up press FUNC & together（for short FUNC+ ） move the menu cursor down press FUNC & together（for short FUNC+ ） enter the submenu modify the content of current menu TAPE the operation of entering password as input 1-------- input number 1, and press CAM... - Page 13 TIME：system date，YYYY/MM/DD system time，HH/MM/SS. FORMAT： [ASIA；U.S.；EURO]. LIVE TIME DISP: the position of live time displaying [TOP；TOP_LEFT；TOP_RIGHT； NON] BORDER DISP：border color [GRAY ，WHITE， BLACK ，OFF]. BACK COLOR：background color [BLUE， BLACK]. VFILTER：vision filter [ON: gentleness， OFF: clear]. BUZZER：buzzer alart[ON，OFF]. ALARM TIME：the holding time for alarm output。[003―255] seconds. FREEZE TIME：...
- Page 14 CAM：the serial number of the camera image [1―4]. PICTURE DISPLAY：[YES ，NO] . TITLE DISPLAY：the switcher of the camera name [YES: display， NO: disappear]. CAMERA TITLE：edit the camera name, can use any 10 letters, digits or symbol. AUTO TIME：time of auto jumping [0―99] seconds. PICTURE QUALITY ：[refer to “...
-
Page 15: Fault Eliminating
NO: the recorder number of the alarm event，001―100, amount 100. CAM: the camera image number of the alarm event. DATE: the date of the alarm event. TIME: the time of the alarm event. EVENT: the reason of the alarm event.[P_ON, boot-strap alarm；LOSS，camera signal losing alarm； MOTION，motion alarm；SENSOR，sensor alarm] PREVIOUS: previous page.
