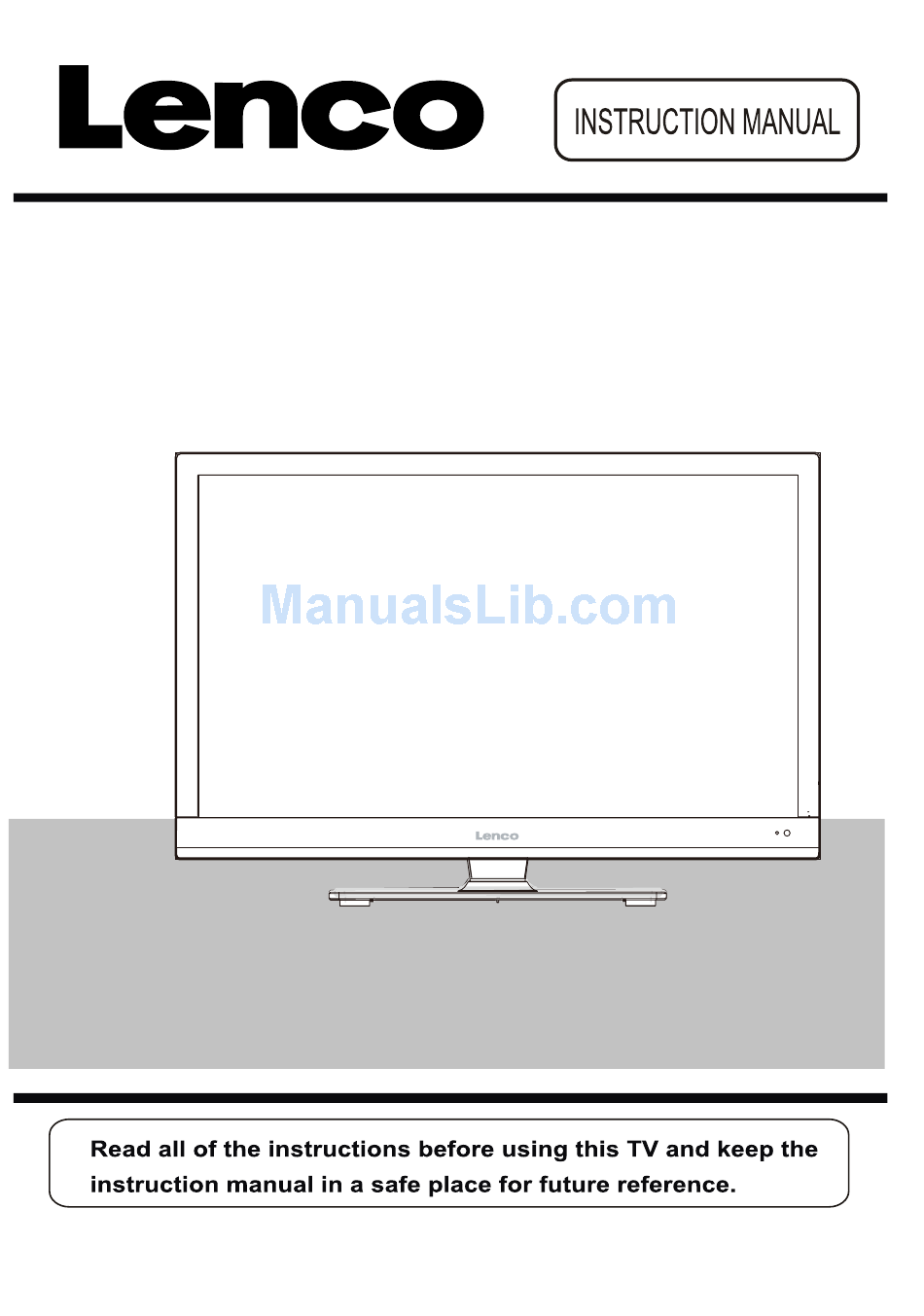

- Page 1 68.5cm (27”) LED TV with DVD & DVBT Model No.: DVL-2750 For information and support, www.lenco.eu...
-
Page 2: Table Of Contents
Contents SAFETY INFORMATION Accessories Product Introduction Front View Connecting external devices Remote Control Basic Operation 9-16 OSD Menu Channel menu Picture menu Sound menu Time menu Option menu Lock menu Hotel menu 17-19 Multimedia Operation 20-22 Recording Operation DVD Operation 23-30 TROUBLE SHOOTING GUIDE TECHNICAL SPECIFICATIONS... -
Page 3: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE. Take note of the following safety information which appears on the back of the TV. CAUTION TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. - Page 4 I MPORTANT SAFETY INFORMATION This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use. Although this appliance has been carefully manufactured and rigorously checked prior leaving the factory, as with all electrical appliances it is possible for problems to develop.
-
Page 5: Accessories
Accessories POWER MUTE REC LIST CH/LIST SUBTITLE PVR/DVD INPUT DISPLAY MENU EXIT PICTURE NICAM/A2 SOUND SLEEP SCREEN TV/TXT CANCEL REVEAL SETUP D-MENU TITLE HOLD SIZE SUBPAGE INDEX GOTO SLOW User’s Manual Remote control Converter cable for YPbPr video... -
Page 6: Product Introduction
Product Introduction Front View Remote Control Window (keep clear) LED Indicator (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby) LED indicator: Press POWER to turn on and off. Indicator on(Blue) Standby mode Indicator on(Off) Power on mode The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30 to the left or right side... -
Page 7: Connecting External Devices
Connecting external devices AC POWER IN PC-AUDIO HDMI2 SCART HDMI1 AC POWER IN: 100-240V ~ 50/60Hz. USB: USB jack for Multi-Media playback and PVR. (Do not use USB extension cable to connect any USB device.) HDMI1/2/3: Connect it to the HDMI of DVD or other equipment. SCART: Connect them to the SCART video output terminal of DVD. - Page 8 Remote control The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER: Turn the TV on/standby. POWER MUTE MUTE: Press to mute the sound, press again or press VOL+ to unmute.
-
Page 9: Remote Control
Remote control POWER MUTE REC LIST CH/LIST SUBTITLE PVR/DVD INPUT DISPLAY CH / : Scan through channels. VOL / : Adjust the volume. PICTURE: Select the picture mode. NICAM/A2: TV Nicam/A2 select. SOUND: Select the sound mode. SLEEP: Standby timer. SCREEN: Turn on/off the screen. -
Page 10: Basic Operation
Basic Operation Power on/off 1. Connect to the power supply with the power code. 2. -To turn on the TV Press POWER button on the TV or remote control. Input Source -To turn off the TV Press POWER button on the TV or remote control. Input Source select SCART YPBPR... - Page 11 OSD Menu 1. CHANNEL menu Description Auto Scan Press OK button to enter the hint menu, and select the Country and Tune Type mode for the TV, then Sweden press OK button to start auto tuning. DTV Manual Tuning Press OK button to enter the DTV Manual Tuning menu, select a DTV channel, and press OK button to start searching.
-
Page 12: Osd Menu
OSD Menu Program Edit Press OK button to enter the Program Edit menu as the following picture. Rename Delete: Select a channel and press RED button, “Delete” will appear on the right of the program edit menu next to the channel you have chosen, then press RED button again, the program will be deleted. -
Page 13: Picture Menu
OSD Menu 2. PICTURE menu Description Picture Mode: Choose from Standard, Dynamic, User and Mild. Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture. Brightness: Controls the overall brightness of the picture. -
Page 14: Sound Menu
OSD Menu 3. SOUND menu SPDIF MODE Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User. Treble(Could be adjusted when the sound mode is User): Controls the relative intensity of higher pitched sounds. Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of lower pitched sounds. -
Page 15: Time Menu
OSD Menu 4. TIME menu Description Clock: Use the buttons to select the position, and use the buttons to set the time. Note: User can not change time manually during DTV mode, for time is from signal source directly. Off Time: Press OK button to enter the submenu, you could set the time when the TV set will be turned off automatically, you could also set the frequency. -
Page 16: Option Menu
OSD Menu 5. OPTION menu OSD Duration Description Language: Allows you to select menu language. Audio Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second audio language. Subtitle Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second subtitle language. -
Page 17: Lock Menu
OSD Menu 6. LOCK menu Hotel model Description Lock System: Turn on/off the Lock System function. Note: You should enter the code to operate the menu.(original code is 0000) Set Password: Set pin code. If the Pin code has been changed you must enter the present code. -
Page 18: Hotel Mode
OSD Menu 7.Hotel Mode Hotel Mode: Enter the Hotel Mode menu by pressing OK button on the item. Input Source SCART YPBPR HDMI1 HDMI2 HDMI3... -
Page 19: Multimedia Operation
Multimedia Operation Basic Operation 1). Press the INPUT button on the remote control to display the input source menu, select USB source by the buttons, and press OK button to enter the Multimedia menu seen below. Input Source SCART YPBPR HDMI1 HDMI2 HDMI3... - Page 20 Multimedia Operation 1. Photo Play the photo Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Music: Play/pause the music program (you can only play or pause the music you have programed). Playlist: Display the playlist on the screen, and you can select the photo by button, and press OK button to program.
- Page 21 Multimedia Operation 3. Movie Play the movie Goto Timer Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Set A-B: Select and play the preferable paragraph of the program by seting A and B at the beginning and end, and there will be a sign on the left screen, press OK button again to cancel.
-
Page 22: Recording Operation
Recording Operation PVR settings Press the MENU button, and select CHANNEL menu. Record Timer 1). Recorded List Channel Recording list: Display the Recorder List menu. INFO: Display the information of the program you recorded. RED button: Delete the program you select. 2). - Page 23 Recording Operation 3). Schedule List Display the recorder shedule Note: a. Could’t add shedules which have existent on the list; b. Could’t add shedules when the list is full, you have to delete some schedules; c. You could delete a schedules by RED button on the remote control. 4).
- Page 24 Recording Operation 5) Record Start When you finish the settings above, you could start recording by select Start Recording in the menu and press OK button in DTV mode. (You can also start recording by press the REC button on the remote control) Record buttons REC( Recording): Press to enter the recording mode.
-
Page 25: Dvd Operation
DVD Operation Press the Power button on the TV or the remote control, then press the INPUT button to select DVD mode. If there is no disc in the DVD player the screen will show "NO DISC". Insert Disc according to picture next to disc slot. Do not touch the playing surface. - Page 26 DVD Operation...
- Page 27 DVD Operation...
- Page 28 DVD Operation Spdif Setup...
- Page 29 DVD Operation or NO disc...
- Page 30 DVD Operation...
- Page 31 DVD Operation...
- Page 32 DVD Operation...
-
Page 33: Trouble Shooting Guide
USER GUIDE TROUBLE SHOOTING GUIDE To assist in locating possible faults use the help guide below. No Picture, no sound Check that the TV is correctly plugged in. Check that the TV is connected to a suitable power source. Check the electrical supply is turned on. No Picture Ensure that the TV is powered on. -
Page 34: Technical Specifications
TECHNICAL SPECIFICATIONS Specifications of the TV that you have just purchased may vary from the information in this table due to technical innovations. TV Specifications TV System PAL BG/DK/I SECAM BG/DK/L/L’ Audio System BG / DK / I SECAM L/L’ Screensize 27”(Diagonal) Resolution... - Page 35 I LENCO II DVL-2750 68,5...
