Buffered Splitter/Mixer
BLACET RESEARCH MODEL SB2780 Splitter
BLACET RESEARCH MODEL SB2790 Mixer
User Manual
Blacet Research 15210 Orchard Rd Guerneville CA 95446
info@blacet.com http://www.blacet.com
707-869-9164
Contents Copyright.
Reproduction by any means including the Internet prohibited without permission.
This document contains proprietary and trade secret information of Blacet Research and is provided
as a service to the module owner. Any unauthorized duplication or transferral may violate trade secret laws.
Contents subject to change without notice.
Page 1
Advertisement
Summary of Contents for Blacet Research SB2780
- Page 1 Reproduction by any means including the Internet prohibited without permission. This document contains proprietary and trade secret information of Blacet Research and is provided as a service to the module owner. Any unauthorized duplication or transferral may violate trade secret laws.

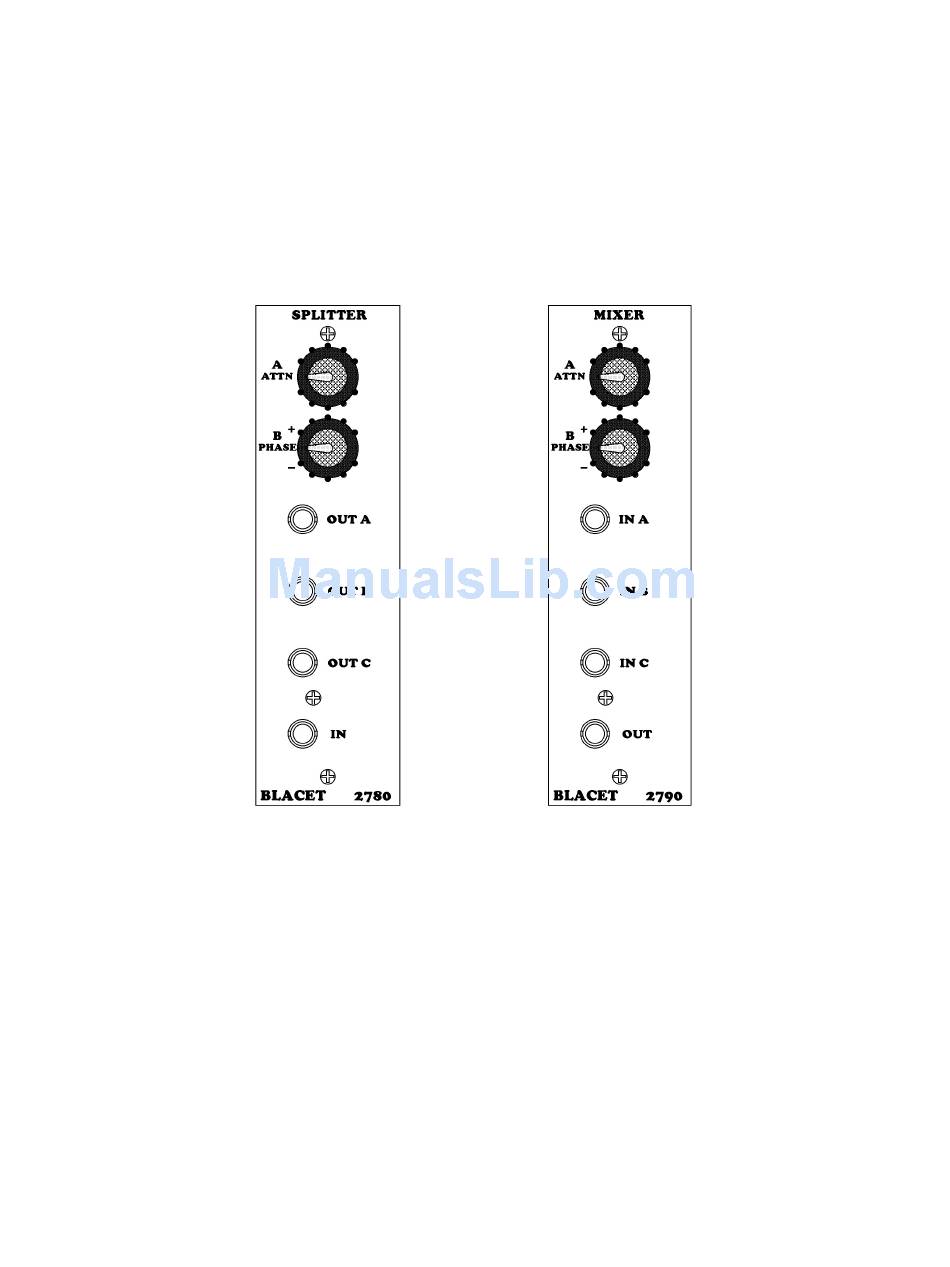

- Page 2 Introduction The Blacet SB2780 Splitter and SB2790 Mixer are fully buffered precision modules designed for processing control voltages and audio signals. The Splitter is a “One to Three” module, taking one input and splitting it into three outputs. Channel A features an attenuator.
- Page 3 Power Input Connector JPWR: This PCB connector requires a source of regulated +15Vdc and -15Vdc power to run the module. Use a Blacet PS500 supply or the equivalent. Connections to this connector should be made only when the power supply is OFF and the connector must be positioned correctly on the pins.
-
Page 4: Specifications
Specifications Front Panel Size: 5.25” H x 1.5" W Module Depth (Splitter): 2.3” Module Depth (Mixer): 2.7” Input/Output Jacks: 3.5 mm (1/8”) Input/Output Range: +/-13.5V Power (Splitter): +/-15 Vdc @+9/-9mA Power (Mixer): +/-15 Vdc @+13/-13mA Page 4...
