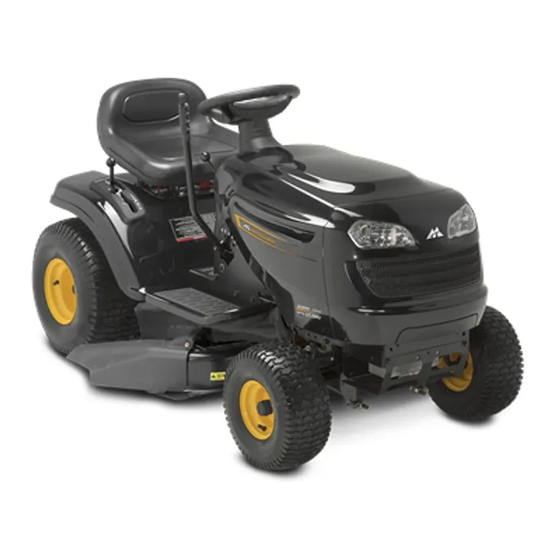

McCulloch M13538 Repair Parts Manual
Mcculloch m13538 lawn tractor repair parts manual
Hide thumbs
Also See for M13538:
- Instruction manual (28 pages) ,
- Operator's manual (32 pages) ,
- Operator's manual (32 pages)
Related Manuals for McCulloch M13538
Summary of Contents for McCulloch M13538
- Page 1 REPAIR PARTS MANUAL MODEL NO. M13538 (96011024401) Lawn Tractor www.mcculloch.biz 532 41 86-08 Rev. 2 04.08.09 TH PRINTED IN U.S.A.
-
Page 2: Table Of Contents
The model number for your tractor can be found on the fender under the seat. When ordering parts, always give the following information: • Product - “Tractor” • Model Number - “M13538 96011024401” • Part Number • Part Description TABLE OF CONTENTS SCHEMATIC ........................ -
Page 3: Schematic
TRACTOR - MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 SCHEMATIC SCH03 BATTERY STARTER FUSE AMMETER (OPTIONAL) WHITE CLUTCH / BRAKE ATTACHMENT CLUTCH (PEDAL UP) (CLUTCH OFF) BLACK BLACK SEAT SWITCH (NOT OCCUPIED) BLACK BLACK GRAY GRAY REVERSE SWITCH... -
Page 4: Electrical
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 ELECTRICAL... -
Page 5: Electrical
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 ELECTRICAL PART DESCRIPTION 532 16 34-65 Battery 12 Volt 25 Amp 874 76 04-12 Bolt Hex Hd 1/4-20 Unc x 3/4 532 17 66-89 Battery Box 532 17 61-38 Switch Interlock Push-In... -
Page 6: Chassis
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 CHASSIS AND ENCLOSURES Chassis-Elite_Basic_6... - Page 7 REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 CHASSIS AND ENCLOSURES PART DESCRIPTION 532 17 46-19 Chassis 532 17 65-54 Drawbar 532 15 52-72 Bumper, Hood/Dash 532 19 41-97 Dash 872 14 06-08 Bolt, Carriage 3/8-16 x 1...
-
Page 8: Drive
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 DRIVE drive-stlt-D6800_fender_1_r1... - Page 9 REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 DRIVE PART PART DESCRIPTION DESCRIPTION - - - - - - - - - Transaxle, Dana D6800-2 532 17 39-37 Bolt Hex 532 14 66-82 Spring Return Brake T/a Zinc 810 04 07-00 Washer Lock Hvy Hlcl Spr 7/16 532 12 36-66 Pulley Transaxle 18"...
-
Page 10: Steering
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 STEERING Steering-stlt_OPP_1... - Page 11 REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 STEERING PART DESCRIPTION 532 19 45-95 Wheel Steering 532 41 81-68 Axle Asm 532 16 98-40 Spindle Asm LH 532 16 98-39 Spindle Asm RH 532 12 49-31 Bearing Race Thrust Harden 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
-
Page 12: Engine
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 ENGINE OPTIONAL EQUIPMENT Spark Arrester engine-bs.1cyl_59_r2... - Page 13 REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 ENGINE PART DESCRIPTION 532 17 05-51 Control Throttle /Choke 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 5/8 T - - - - - - - - Engine Briggs Model 21B807...
-
Page 14: Seat
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 SEAT seat_lt.knob_13 PART PART DESCRIPTION DESCRIPTION 532 40 10-42 Seat 532 12 12-48 Bushing Snap Blk Nyl 532 14 05-51 Bracket Seat Pivot 872 05 04-12 Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2 532 13 43-00 Spacer Split .28 x .96... -
Page 15: Decals
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 DECALS PART PART DESCRIPTION DESCRIPTION 532 19 63-57 Decal, Deflect Wrn Cutfinger Sym 532 40 82-58 Decal, Hood RH 532 40 88-15 Decal, Engine 532 41 86-67 Decal, Hood Side Panel... -
Page 16: Mower Deck
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 MOWER DECK 190 191 38-7_deck_manual_10_r1... -
Page 17: Mower Deck
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 MOWER DECK PART PART DESCRIPTION DESCRIPTION 532 19 25-56 Mower Housing Assembly 532 19 32-16 Spring Brake Return 872 14 05-06 Bolt Carriage 5/16-18 x 3/4 819 13 13-11 Washer 13/32 x 13/16 x 11 Ga. -
Page 18: Mower Lift
REPAIR PARTS TRACTOR-MODEL NUMBER M13538 (96011024401), PRODUCT NO. 960 11 02-44 MOWER LIFT 16 17 lift-rh.1piece_27 PART PART DESCRIPTION DESCRIPTION 873 35 08-00 Nut Jam Hex 1/2-13 unc 532 19 84-17 Wire Asm Inner/Sprg w/plunger 532 19 80-70 Shaft Asm Lift RH... - Page 19 SERVICE NOTES...
- Page 20 www.mcculloch.biz...
