Summary of Contents for Sea Breeze DH45S

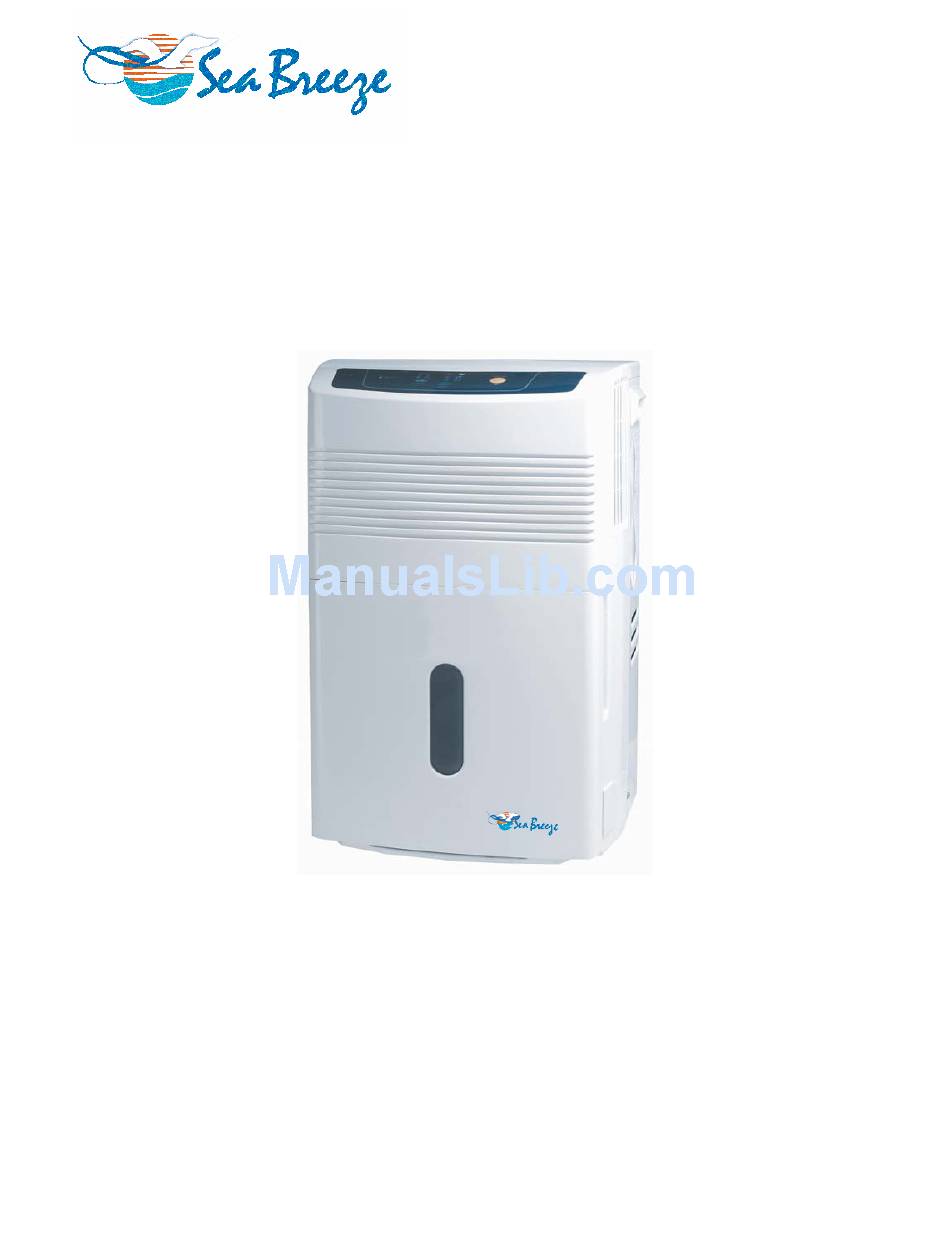

- Page 1 Dehumidifier Users manual For Models: DH45S DH65S 950-0062-revE Nov. 7 2007...
-
Page 2: Table Of Contents
FORWARD The appearance of the units that you purchase might be slightly different from the ones described in the Manual, but will not affect proper operations and usage. Please read carefully the sections corresponding to the specific model you choose, and keep the Manual in a safe place for reference. -
Page 3: Electrical Requirements
READ ALL INSTRUCTIONS BEFORE USING. To prevent injury to the user or other people and property damage the following instructions must be followed. Incorrect operation due to not following instructions will cause harm or damage. The seriousness is classified by the following indications. WARNING CAUTION This symbol indicates the possibility of death or... - Page 4 CAUTION Unit can fall if placed on a shelf or table. Be sure to secure Dehumidifier to prevent injury or damage from falling unit. Shelf or table must be able to support the weight of the unit and a full water tank (about 90 lbs).
-
Page 5: Choosing The Proper Location
WARNING OBSERVE ALL LOCAL ORDINANCES. • DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY CORD GROUND PRONG. ELECTRICAL GROUND IS REQUIRED ON THIS APPLIANCE. • USE ONLY UL APPROVED EXTENSION CORD. DO NOT ALLOW WATER OR MOISTURE TO ENTER ELECTRICAL CONNECTIONS. Properly grounded electrical supply is required time delay fuse or time delay circuit breaker is recommended. -
Page 6: Operation
WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, READ THE IMPORTANT SAFETY INSTRUCTIONS BEFORE OPERATING THIS APPLIANCE. IMPORTANT: When unit is first plugged in or after a power outage, there will be approximately a 2 minute delay before operation begins. -
Page 7: Control Panel
CONTROL PANEL HIGH CONT 50% ON/OFF MEDIUM FULL HUMIDITY FAN SPEED Indication Lights (POWER) Indication Light: When unit is first plugged in, this light will be illuminated. (FULL) Indication Light: When this light flashes, it indicates that the water tank is full, or that the installation position of the water tank is not correct. -
Page 8: Operational Procedures
OPERATIONAL PROCEDURES: Connecting the power • Firmly plug into the socket to ensure no hazard of electric shock or fire. • Use caution to not damage the power cable or plug. • When the power is properly connected, the power indication light will be illuminated. Open the Air Guide •... -
Page 9: Automatic Shut Off
AUTOMATIC SHUT-OFF When the tank is full, or when the tank is not in the proper position, the FULL light will illuminate and the unit automatically shuts off. Also, when bucket is out of position, the unit will beep 3 times. Dehumidifier will not operate if tank is not in the proper position, and the TANK FULL light will be illuminated. - Page 10 GRILL AND CASE To clean the case: use water and a mild detergent. Do not use bleach or an abrasive cleaner. To clean the grill: use a vacuum with an attachment or brush. AIR FILTER The air filter is on the back of the dehumidifier.
-
Page 11: Troubleshooting
USE THE CHART BELOW TO DETERMINE OPERATIONAL ISSUES THAT MAY NEED SERVICE TROUBLESHOOTING CHART PROBLEM CAUSES SOLUTIONS Verify that outlet is working, and that Power cord is unplugged plug is firmly plugged into the outlet Blown fuse or circuit breaker Check and replace/reset circuit breaker Dehumidifier does not start... - Page 12 THE FOLLOWING ISSUES ARE NOT DEFECTS OR MALFUNCTIONS OF THE UNIT. OPERATIONAL ISSUES ISSUE CAUSES Compressor starting up, changing Excessive noise modes Room too large for unit to effectively Humidity does not drop operate. Poor dehumidification room relative humidity is too low High temperatures of the heat Musty odors eminating from the unit exchanger may cause strange...
-
Page 13: Specifications
SPECIFICATIONS MODEL DH45S DH65S Capacity 45 PINTS/DAY 65 PINTS/DAY Rated Frequency 60 Hz 60 Hz Rated Voltage 115VAC 115VAC Rated Current Input 5.5 A 9.0 A Rated Input 640W 1050 W Refrigerant/Wt R22/ .56 LB R22/ .62 LB Weight(net) 44.3 LBS 50.3 LBS... -
Page 14: Warranty
International Refrigeration Products warrants that the product supplied is free from defects in material and workmanship. This warranty is valid as long as this product is properly handled, installed, operated and serviced in accordance with the Installation and Operating Instructions shipped with this unit, and warranty card is completed and mailed no later than 30 days after date of purchase.
