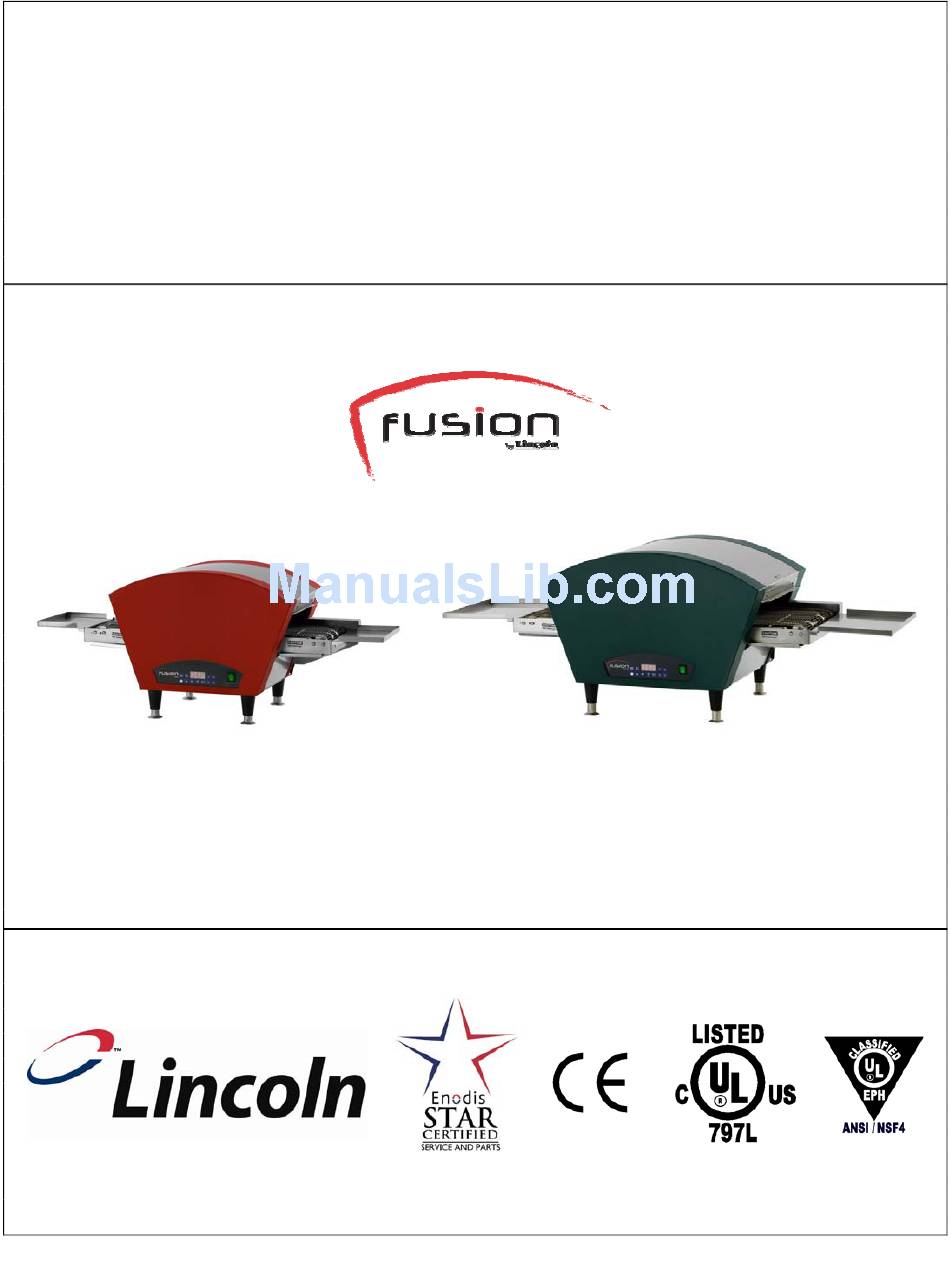

INSTALLATION & OPERATING

INSTRUCTIONS

for

FUSION™ CONVEYOR TOASTER

MODEL SERIES 2030 & 2040

MODEL SERIES 2030

MODEL SERIES 2040

TO BE SERVICED ONLY BY AUTHORIZED PERSONS

P/N: 10002465

REV: H

Table of Contents

Need help?

Do you have a question about the Fusion 2030 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lincoln Foodservice Fusion 2030 Series

Page 1 INSTALLATION & OPERATING INSTRUCTIONS FUSION™ CONVEYOR TOASTER MODEL SERIES 2030 & 2040 MODEL SERIES 2030 MODEL SERIES 2040 TO BE SERVICED ONLY BY AUTHORIZED PERSONS P/N: 10002465 REV: H...
Page 2: Table Of Contents
“Shipping Damage Instructions” enclosed for detailed instructions. Failure to follow these instructions will negate Lincoln Foodservice Product’s or your ability to file claims and receive compensation for shipping damage. This manual contains important safety and installation-operation instructions. Require all operators to read this manual before using the unit.
Page 3: Purchaser's Responsibility
PURCHASER’S RESPONSIBILITY It is the responsibility of the purchaser to: 1. See that the electric service for the toaster is installed on site in accordance with the manufacturer’s specification. 2. Unload, uncrate, and install the toaster in its proper location in accordance with this installation/operation manual.
Page 4: Exterior Dimensions
EXTERIOR DIMENSIONS - FUSION™ CONVEYOR TOASTER Model Inches 11.14 10.87 34.06 48.58 24.75 12.82 19.50 11.25 17.19 14.06 2030 Centimeters 28.30 27.61 86.51 123.39 62.87 32.56 49.53 28.58 43.66 35.71 Inches 16.14 15.87 40.06 61.58 29.00 16.75 21.00 11.56 23.00 19.50 Model 2040...
Page 5: Components
CE UNIT POWER CORD REQUIREMENTS The standard requires that the supply cord must be oil- resistant and not lighter than ordinary polychloroprene (60245 IEC 57) (IEC/EN 60335-2-48). Lincoln requires that the power cord must be: 5 x 2.5mm² 90°C Fusion Toaster Ops Manual...
Page 6: Electrical Grounding Instructions / Code References
ELECTRICAL GROUNDING INSTRUCTIONS If the supply cord appears to be damaged, do not attempt to operate unit. Contact a WARNING: service agent or qualified electrician to repair. This appliance is equipped with a three-prong (grounding) plug for your protection WARNING against shock hazard and should be plugged directly into a properly grounded three- DOMESTIC: prong receptacle.
Page 7: General Information
GENERAL INFORMATION The instructions that follow are intended as a guide for preparing for the installation of the Fusion™ Conveyor Toaster. First and foremost, each crate should be examined before signing the Bill of Lading to report any visible damage caused by the trucker in transit and account for the number of crates.
Page 8: Operation Instructions
OPERATOR INSTRUCTIONS ENERGY SAVER / POWER DOWN BELT DIRECTION DISPLAY SCREEN ON-OFF SWITCH BELT SPEED MANUAL PRESET PROFILE – PRESET BUTTONS (1 THROUGH 4) UP-SCROLL & DOWN-SCROLL BUTTONS TEMPERATURE Do not work around conveyor belt with long hair, loose clothing, or dangling jewelry. DANGER! Getting caught in the belt could result in serious injury.
Page 9 MENU ITEMS The Fusion Toaster is equipped with four (4) separate menu items to allow for multiple menu settings. These menu items are shown on the display as ‘Menu 1,’ ‘Menu 2,’ ‘Menu 3,’ or ‘Menu 4’ depending on which menu is selected. Additionally, these menus can be reprogrammed with a specific food item name such as “sandwich,”...
Page 10 3. After pressing the “Profile Preset” button, the display will “flash” the temperature intensity balance setting (a figure between 5 & 200). Display Profile Preset Buttons 4. Press the “”Up-Scroll” or “Down-Scroll” button to change the temperature intensity balance to desired setting.
Page 11 6. Press the “”Up-Scroll” or “Down-Scroll” button to change the belt speed to desired setting. (Notice that in this illustration the menu has been changed from “15 seconds” to “4 minutes” which will now “scroll” through the display.) To save the setting simply press and release the “Profile Preset” button to advance to the next menu item.
Page 12 MANUAL PRESET The Fusion Toaster also includes a “manual preset” button that allows you to change the toaster configuration without altering the four programmed menu items. In this “manual preset” mode, you will have the ability to change the belt speed, temperature intensity, and/or temperature intensity balance. You cannot program or change a menu name in the manual preset mode.
Page 13 MANUAL PRESET ADJUSTMENTS (CONT’D) 4. Press and release the “Belt Speed” button. 5. Use the “Up-Scroll” or “Down-Scroll” button to change the belt speed setting. 6. Press and release the “Manual Preset” button. The settings are now operational. Please note that while you are in the Manual Preset mode and the unit is operating to your programmed settings, the display will continue to flash between temperature and belt speed.
Page 14 ADDITIONAL OPERATION ADJUSTMENT OPTIONS CONVEYOR DIRECTION The Fusion Toaster allows for multi-directional (or reversible) travel. If you would prefer the conveyor belt to travel in the opposite direction, simply press and hold the “Belt Direction” button for approximately 5 seconds. The conveyor belt will change direction momentarily.
Page 15: Cleaning Instructions
CLEANING INSTRUCTIONS The Fusion™ Conveyor Toaster contains electrical components. Before you begin the cleaning process, read these instructions in their entirety. Electrical components should never be subjected to moisture. It is, therefore, important that the toaster is wiped down carefully. NEVER throw buckets of water over the toaster or subject it to pressure washing from a hose or a pressure spray.
Page 16 If the center crumb tray is not installed (or installed properly), the side crumb trays cannot be installed. With reassembly completed, it is now safe to connect the toaster to its dedicated power source and power on. Cleaning Kits are available from Lincoln Foodservice – Catalog #1050. Fusion Toaster Ops Manual...
Page 17: Maintenance / Obtaining Service
Fresh or Frozen 1:00 – 1:30 Mozzarella Sticks Fresh or Frozen 3:00 – 4:00 * Times are based on testing conducted in the Lincoln Foodservice Research Application Kitchen. Bake times may vary based on ingredients and altitude. Fusion Toaster Ops Manual...
Page 18: Appendix A - Label Definitions
APPENDIX A – LABEL DEFINITIONS Fusion Toaster Ops Manual...
Page 19 APPENDIX A – LABEL DEFINITIONS (CONT’D) Fusion Toaster Ops Manual...
Page 20: Warranty
(ii) at Lincoln’s option, the refund of the amount paid for said equipment or services. Any breach by Lincoln with respect to any item or unit of equipment or services shall be deemed a breach with respect to that item or unit or service only...
Page 21 This page intentionally left blank. Fusion Toaster Ops Manual...
Page 22 This page intentionally left blank. Fusion Toaster Ops Manual...
Page 23 This page intentionally left blank. Fusion Toaster Ops Manual...
Page 24 Lincoln Foodservice Products, LLC 1111 North Hadley Road Fort Wayne, Indiana 46804 United States of America Telephone: (260) 459-8200 U.S. Fax: (888) 790-8193 Int’l Fax: (260) 436-0735 Service Hotline: (800) 678-9511 www.lincolnfp.com Fusion Toaster Ops Manual...
