Summary of Contents for SKP Pro Audio USD-6010

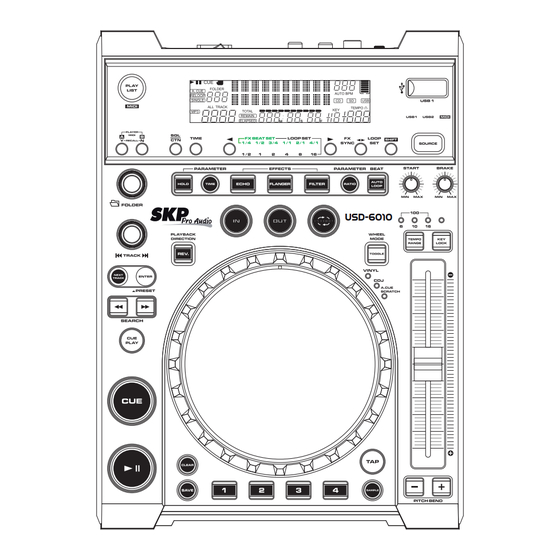

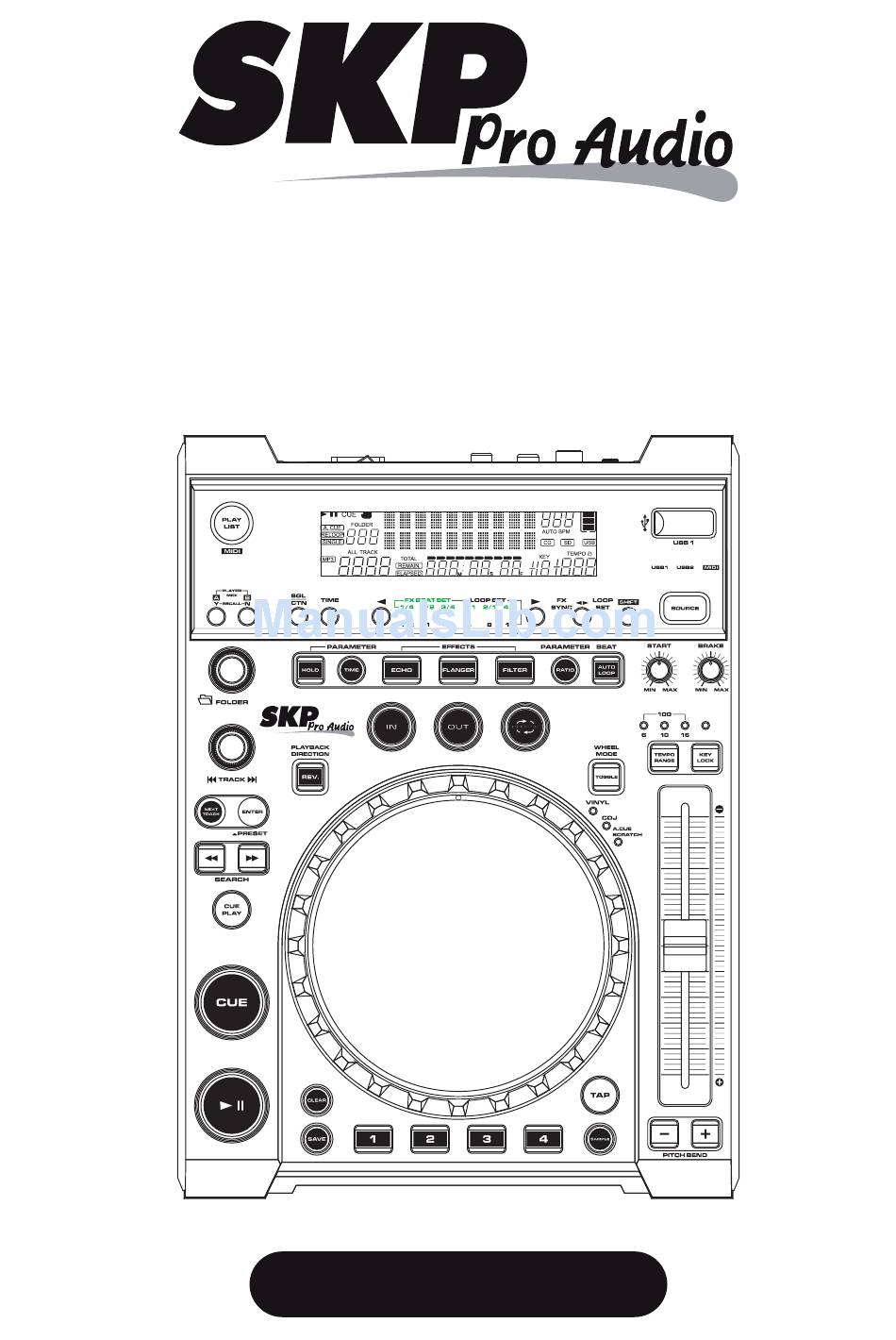

- Page 1 USD-6010 USB TABLETOP PROFESSIONAL PLAYER USD-6010 USER MANUAL...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacture’s instructions. 8. - Page 3 FEATURES Plays MP3/WAV*files from USB Sampler (Forward & Reverse Sampling) Mp3 Track Listings Music Master tempo Headphone Jack w/Trim Control Sleep Mode Fine Tune BPM Relay Playback Next Track Search Memory Backup, Defaults to last setting Auto cue Jog Wheel Pitch Bend +/-100% Real Time Scratch Play Selectable Single or Continuous Play 1/75th second frame search...
-
Page 4: General Functions And Controls
GENERAL FUNCTIONS AND CONTROLS UDJ-1000 Instruction Manual Page... - Page 5 GENERAL FUNCTIONS AND CONTROLS (Cont.) 1. USB PORT - This is the USB port where you insert your USB mass storage device. 2. SOURCE SELECT - Use this button to select USB1/USB2/MIDI music. Hold the SOURCE SELECT button for 2 sec.
-
Page 6: Jog Wheel
GENERAL FUNCTIONS AND CONTROLS (Cont.) 8. JOG WHEEL The jog wheel will act as a frame search control when the track in the pause or cue mode, allowing you to set a point. The wheel also works as a pitch bend during playback. Turning the wheel clockwise will increase the pitch percentage up to 100%, and turning the wheel counterclockwise will decrease the pitch percentage down to -100%. - Page 7 GENERAL FUNCTIONS AND CONTROLS (Cont.) 13. SAVE BUTTON - This button can be used in couple of ways: a. Press this button to activate the memory mode, the save button LED will glow when active. After the memory mode is activated, press your desired bank button to store your CUE point or playing loop. b.
- Page 8 GENERAL FUNCTIONS AND CONTROLS (Cont.) 24. RELOOP BUTTON - If a SEAMLESS LOOP has been made, but the player is not actively in seamless loop mode, pressing the reloop button will instantly reactivate the seamless loop mode. To exit loop, press the out button.
- Page 9 GENERAL FUNCTIONS AND CONTROLS (Cont.) 32. AUDIO OUT R & L - Audio out signals. Connect stereo RCA cable from audio out to a mixer's line input. 33. POWER CONNECTOR - This connection is used to connect your main power. 34.
- Page 10 GENERAL FUNCTIONS AND CONTROLS (Cont.) 39. RELOOP INDICATOR - Appears when LOOP is engaged or ready to be engaged. 40. AUTO CUE - This will indicate if the Auto Cue is on or off. Press and hold the SGL/CTN for 1 sec. to turn the Auto Cue function on and off.
- Page 11 GENERAL FUNCTIONS AND CONTROLS (Cont.) 53. TIME METER - These indicators will detail the current Minutes, Seconds, and Frames. The meter will display either the elapse, or remaining time of a track. The display time will depend on the selected time function. The selected time function will be displayed above the TIME METER as remaining track time, or elapsed track name.
-
Page 12: Internal Menu
INTERNAL MENU Press PRESET BUTTON to enter the internal menu, and turn FOLDER KNOB to search through the different menu. Turn the TRACK KNOB or Jog Wheel to change the submenus; press PRESET BUTTON to save your settings and exit the menu. 1. -
Page 13: Data Backup
DATA BACKUP DATABASE BUILDER ： ： ： ： The UDJ-1000 includes a database management software enables you to search for your files by Title, Artist, Album, and Genre. Installation: Refer to the following figures for installing database management software on your computer. STEP 1: click Next >... - Page 14 The database builder will scan your USB hard drive and create database files to locate the files in your music library in your favor. Scan and create: Refer to the following figures to process scanning and creating database. STEP 1: select the desired USB hard drive and STEP2: processing Click Build STEP 3: complete...
- Page 15 DATA BACKUP The root cause for customer failed to run db builder in Windows Vista 1. User will fail to run db builder in vista because the UAC limitation. 2. User should press the right button of mouse to run the db builder with the option of Run as administrator UDJ-1000 Instruction Manual Page...
-
Page 16: System Requirements
DATA BACKUP 3. Allow the db builder to run. SYSTEM REQUIREMENTS CPU: Intel Pentium 4, 1 GHz processor, Intel Centrino Mobile Technology 1.6 GHz or above RAM: 512 MB DISK SPACE: 100MB of free disk space need OS: Microsoft Windows XP SP3, Vista SP2 UDJ-1000 Instruction Manual Page... - Page 17 LINK UP With this function a USB device can be loaded into one UDJ-1000, and played by a connected Host USB Player. Follow the directions below to setup the link function. MAIN PLAYER: 1. Press the PRESET button to enter the internal menu. 2.
- Page 18 MIDI MAP (Hexadecimal) SW name Type MIDI Remarks MIDI2(Hold SHIFT) SW/ENC 2B/31 6A/70 CC TYPE = RELATIVE SW/ENC 25/33 64/72 CC TYPE = RELATIVE SW/ENC 13/35 52/74 CC TYPE = RELATIVE CW/CCW 31/32 70/71 CC TYPE = NOTE CW/CCW 33/34 72/73 CC TYPE = NOTE CW/CCW...
- Page 19 MIDI MAP (Hexadecimal) SW/LED/LED2 14/14/31 53/14/31 SW/LED/LED2 1/A/1A/32 59/1A/32 SW/LED/LED2 20/20/33 5F/20/33 SW/LED/LED2 26/26/34 65/26/34 1/2 (RED) 1 (LED) 2 (LED) 4 (LED) 8 (LED) 16 (LED) 1/2 (GREEN) 3/4 (GREEN) 1/1 (GREEN) 2/1 (GREEN) TEMP RANGE 6 TEMP RANGE 16 LOOP SET A.
- Page 20 MIDI MAP (Hexadecimal) CC-ABSOLUTE (VR) Control Change messages are sent with status 0xBn, where n is the channel, for the specified CC controller. Thus the controller MIDI ID is indicated with the channel along with the CC number. The value from 0x00 to 0x7F, directly related to the location of the controller.
