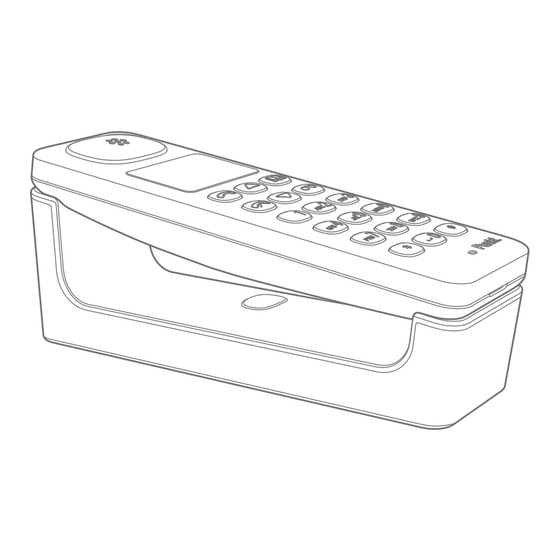

- Page 1 DP 01/ DP 01S DECT Phone User Guide...
-
Page 2: Change Log
DP 01S handset you first need to register it to your DP 01 Base station (“Main unit”), or to another DECT model base station. In this case, please refer to the “Multi-Handset” section of this User Guide for the registration procedure. -
Page 3: Table Of Contents
Contents Content of the gift box Technical specifications Health & Safety instructions Care of the product Disposal of the product and batteries Installation Display icons and function keys Basic use of the phone (initial settings) In call options Phone book Call history Answering machine (TAM) Handset settings... -
Page 4: Content Of The Gift Box
(“Regulamentary Norms for USA”) Quick guide Regulatory norms for EU Countries International Warranty. (*) For the DP 01 model (Main unit), the base unit incorporates both the DECT base station and the battery charger. For the DP 01S model (Additional unit), the base unit includes only the battery charger. -
Page 5: Technical Specifications
15 minutes (max. 1 minute for each message) Note: the TAM service is accessible from a DP 01S handset only if paired with a DP 01 base unit (TAM data is stored in the DP 01 base unit only). Nominal working temperature: (15°... -
Page 6: Health & Safety Instructions
Health & Safety Instructions – Only use the mains unit and the phone cord supplied. – Both the power cord and the phone cord must be plugged in at all times. – It is not possible to make and receive phone calls if the main unit is disconnected from the electrical network. -
Page 7: Care Of The Product
Care of the product Cleaning the product Wipe the base and the handset with a damp cloth (do not use solvent) or an antistatic cloth. Never use a dry cloth. This can cause static. Contact with liquids If the handset comes into contact with liquids: –... -
Page 8: Disposal Of The Product And Batteries
Disposal of the product and batteries (European WEEE Directive: 2002/96/EC) Batteries should not be disposed of in general household waste. Observe local waste disposal regulations, details of which can be obtained from your local authority or the dealer where you purchased the product. All electrical and electronic equipment (EEE) must be disposed of separately from general household waste at sites designated by local authorities. -
Page 9: Installation
Insert the batteries into the handset, then replace the cover (be sure to observe the correct polarity indications (‘+’ and ‘-’) as shown inside the battery compartment). Insert the phone cable (for the DP 01 “Main unit” only, not for the 01S - “Additional unit”). The base unit of the “DP 01S”... -
Page 10: Display Icons And Function Keys
Display icons and function keys With reference to the diagram below: Select (/Send/Yes) Cancel (/End/No/Backspace) (Exit Menu – hold for 2 seconds) (Power On/Off – hold for 2 seconds in Home screen) Scroll up and Scroll down Phone Book Answering machine Signal Power Number of answering machine message(s) Battery Power... -
Page 11: Basic Use Of The Phone (Initial Settings)
Set time/date: Time and date settings are stored in the Punkt. base station. For this reason, if the power cable is disconnected and then reconnected, the previously set time and date will be cleared and the display will show default values: 00:00 Friday 1st Jan. - Page 12 Change the ringtone volume – disable ringtone: – Press , select ‘Sounds’ and press – Select ‘Ring volume’ and press – Press to select the required level (1-6, where level 1 stands for “Ringtone mute”). – Press to confirm the choice. Activate/De-activate key tones: , select ‘Sounds’...
-
Page 13: In Call Options
In call options Hands-free mode: – When in call, press on the “Hands-free” option to toggle On/Off. Mute: – When in call, press and select on the “Mute” option to toggle Mute On/Off. Note: When the mute option is “On”, the other party will not hear your voice. -
Page 14: Phone Book
Phone book Enter a new contact in the phone book: – Press to open phone book. – Press to select ‘New’. – Use the keypad to enter the name ( operates as backspace). Press the # key to toggle between “lower case” (abc) and “upper case” (ABC) mode. -
Page 15: Call History
Please contact your operator for further details. Please note that if the caller voluntarily hides his own phone number, the Punkt. display will show “Withheld no” even if the CLI service is activate, while if the CLI service is not active on your phone line the display will just show “Number Unknown”. -
Page 16: Answering Machine (Tam)
Note: From the DP 01S handset, the TAM option is accessible only if paired with a DP 01 main unit base (TAM data is stored in the DP 01 main unit base only). Activate/de-activate the answering machine (TAM): –... - Page 17 Listen to received voice messages: When the TAM is activated, the number of new voice messages received will be notified on the display according to the indication below (in this example only 1 voice message has been left by external callers): In order to play received voice messages, follow the procedure below: Listen to all new messages: –...
- Page 18 Listen to old voice messages: After a single “new” voice message has been played for the first time, it will subsequently be classified as an “old” message. You can play it again by selecting the “Old” option in the main TAM menu. The procedure to listen an old voice message and the available options are the same as described for “new”...
-
Page 19: Handset Settings
Handset settings Registration: Refer to the “Multi-Handset” section of this Guide for more details. Select base: Refer to the “Multi-Handset” section of this Guide for more details. Change language: – Press select ‘Handset settings’ and press – Select ‘Language’ and press –... -
Page 20: Base Settings
Set Base PIN: The default base PIN is “0000”. You can change it if you do not want other users to register additional handsets to your Punkt. Base station. Please refer to the “Multi-Handset” section in this Guide for further information concerning the registration procedure. -
Page 21: Multi-Handset Configuration
DP 01 (Main unit), begin the registration procedure with that handset in accordance with the manufacturer’s instructions, then hold down the “Page” button on your DP 01 Base unit for 5 seconds to activate the registration procedure on the DP 01 Base unit. Finally, complete the registration procedure on the other manufacturer’s... - Page 22 (a maximum of 4 bases are allowed), you can switch between the current linked base and a new base by following the procedure described below. By default, the DP 01 Handset is registered to its own DP 01 Base which is identified as “Base 1”.
-
Page 23: Internal Calls: Internal Direct Calls And External Call Transfer
Internal calls: internal direct calls and external call transfer If you have more than one handset registered to your Punkt. DP 01 Base unit, you can make internal calls between handsets registered on the same DECT Base and also transfer an incoming external call to another handset. -
Page 24: Factory Default Settings
Motion Ring volume: 5 (level 1 stands for “Ring mute”) Key tones: Connected Base: Base 1 BASE UNIT SETTINGS (for DP 01 Base unit only) PIN code: 0000 Flash time (“R” key): 98 ms (*) Dial mode: Tone (DTMF) (*) Predefined associated handset: “Handset 1”... -
Page 25: Faq (Frequently Asked Questions)
Please note that if the caller hides his own phone number, the Punkt. display will show “Number withheld” even if the CLI service is active, while if the CLI service is not active on your phone line the display will simply show “Number unknown”. -
Page 26: Ce Declaration Of Conformity
According to the above statement, this product is marked with the following mark: A copy of the 1999/5/EC Declaration of Conformity is available at this internet address: http://www.promelit.it/punkt/EC-declaration.pdf Place of issue: Cinisello Balsamo (MI) – ITALY Date of issue: August 4, 2010. -
Page 27: Technical Information
– Leave the handset located on the base unit (for DP 01 model) or battery charger (for DP 01S model) for 16 hours before using the DP 01 handset for the first time. After that time, the batteries will be fully charged and the handset can be used to make and receive phone calls. - Page 28 CAUTION! Risk of explosion if battery is replaced by an incorrect type! Rechargeable batteries must be recycled or disposed of properly. Do not open or mutilate the batteries. Remove the batteries from the handset before shipping this product. Telephone Jack Requirements To use this phone, you need an RJ11C type modular telephone jack, which might look like the one pictured here, installed in your home.
-
Page 29: Fcc Compliance Information
DP 01 Handset units. For this reason, it should NOT be connected to the PSTN (analogue telephone line) network! The “DP 01” model complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US: A2TW401BDP01. - Page 30 If trouble is experienced with this equipment, for repair or warranty information, please contact the Punkt. point of sale nearest you, or contact us via the form available on the Punkt. web site, at www.punktgroup.com. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
- Page 31 0.054 mW/kg. Any questions regarding this compliance information statement should be directed to: Please contact the Punkt. point of sale nearest you, or contact us via the form available on the Punkt. web site, at www.punktgroup.com.
- Page 32 Tel +41 91 924 9003 Fax +41 91 924 9004 Punkt. Tronics AG Via Losanna 4 CH-6900 Lugano Switzerland Punkt.® is a registered trademark of Punkt. Tronics AG.
