Hyperion USB 3.0 PCI Express Adapter User Manual

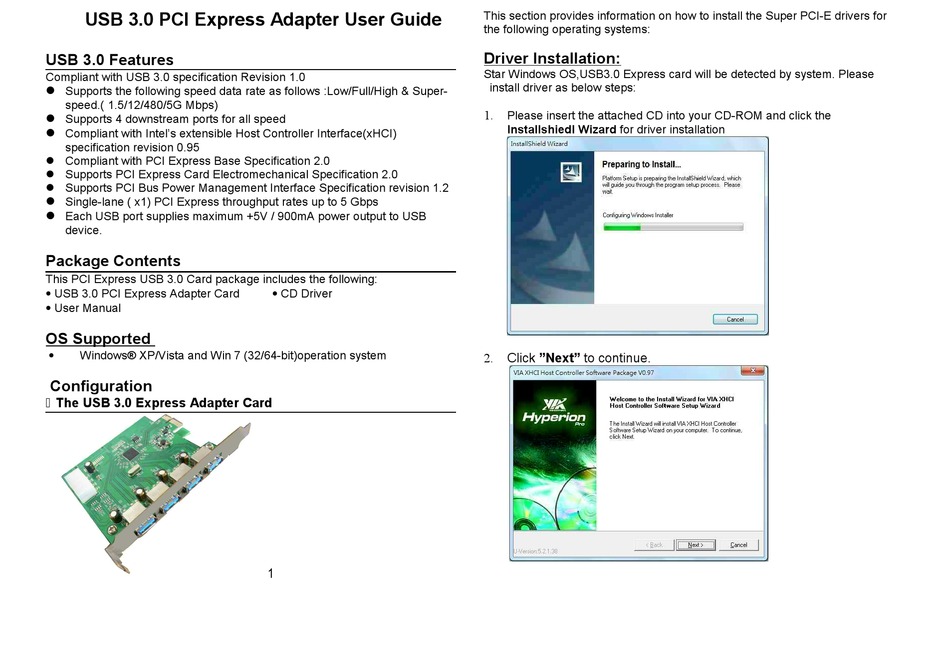

USB 3.0 PCI Express Adapter User Guide

USB 3.0 Features

Compliant with USB 3.0 specification Revision 1.0

Supports the following speed data rate as follows :Low/Full/High & Super-
speed.( 1.5/12/480/5G Mbps)

Supports 4 downstream ports for all speed

Compliant with Intel's extensible Host Controller Interface(xHCI)
specification revision 0.95
 Compliant with PCI Express Base Specification 2.0
 Supports PCI Express Card Electromechanical Specification 2.0
 Supports PCI Bus Power Management Interface Specification revision 1.2

Single-lane ( x1) PCI Express throughput rates up to 5 Gbps

Each USB port supplies maximum +5V / 900mA power output to USB
device.

Package Contents

This PCI Express USB 3.0 Card package includes the following:
• USB 3.0 PCI Express Adapter Card
• User Manual

OS Supported

•
Windows® XP/Vista and Win 7 (32/64-bit)operation system

Configuration

． The USB 3.0 Express Adapter Card
• CD Driver
1
This section provides information on how to install the Super PCI-E drivers for
the following operating systems:

Driver Installation:

Star Windows OS,USB3.0 Express card will be detected by system. Please
install driver as below steps:
1.
Please insert the attached CD into your CD-ROM and click the
Installshiedl Wizard for driver installation
2. Click "Next" to continue.
