Nyrius NRHD300 User Manual

High definition hdmi repeater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

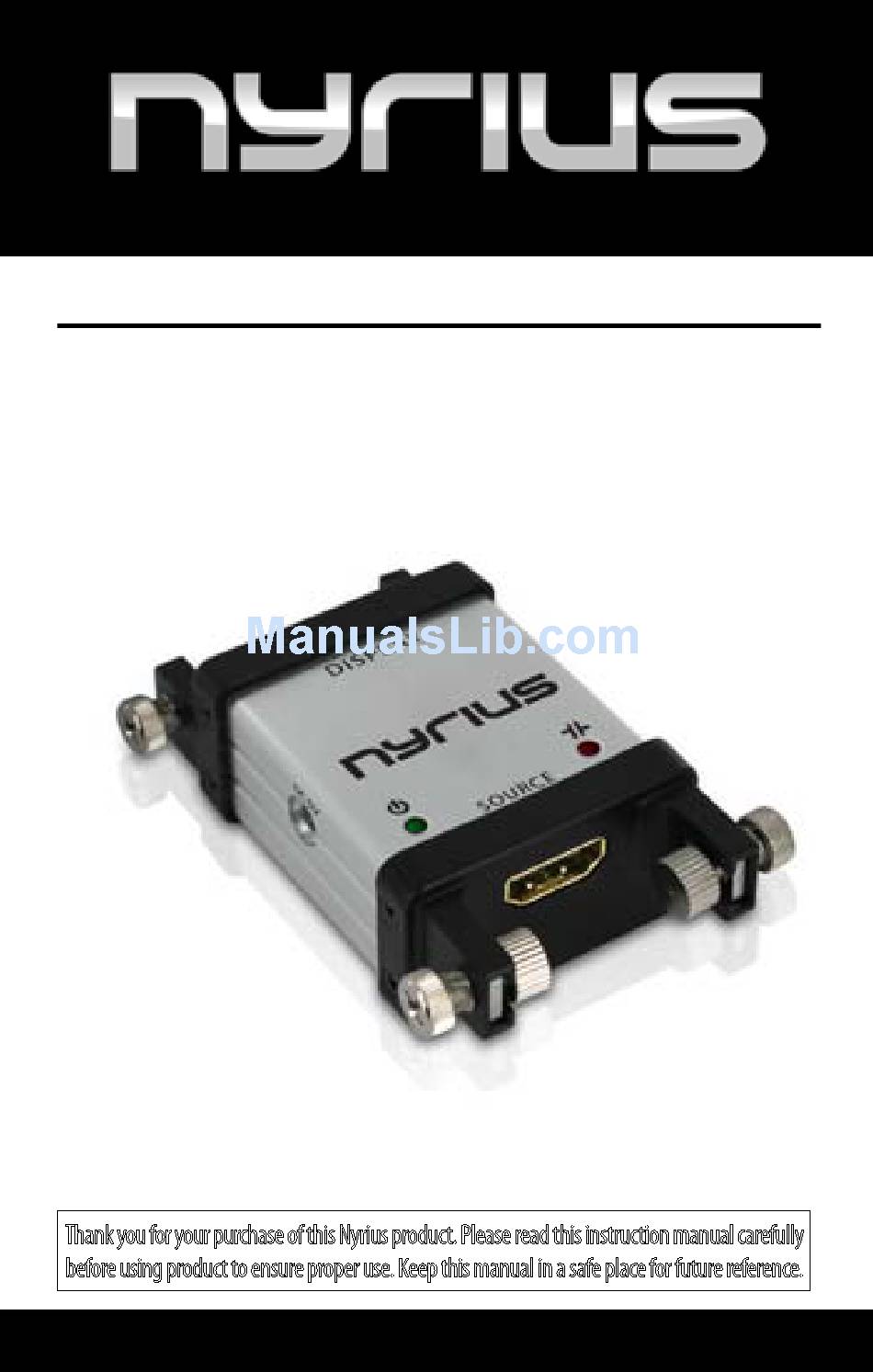

USER GUIDE
High Definition HDMI Repeater
NRHD300
www.NYRIUS.com
Thank you for your purchase of this Nyrius product. Please read this instruction manual carefully
before using product to ensure proper use. Keep this manual in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NRHD300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nyrius NRHD300

  • Page 1 USER GUIDE High Definition HDMI Repeater NRHD300 www.NYRIUS.com Thank you for your purchase of this Nyrius product. Please read this instruction manual carefully before using product to ensure proper use. Keep this manual in a safe place for future reference.

  • Page 2: Table Of Contents

    What’s Included ......................2 Features ..........................2 Buttons and Connections ....................3 Setup ..........................4 Operation ........................4 Troubleshooting ......................5 Specifications ........................6 FCC Statement .........................6 Safety Information ......................7 NYRIUS Warranty......................8 WHAT’S INCLUDED • HDMI Repeater • DC 5V Power Adapter • Instruction Manual • 1 Year Warranty •...

  • Page 3: Buttons And Connections

    BUTTONS AND CONNECTIONS MAIN UNIT Green LED INPUT OUTPUT Red LED OUTPUT INPUT CONNECTIONS (side view) INPUT OUTPUT DC 5V INPUT INPUT OUTPUT - 3 -...

  • Page 4: Setup

    165ft. If the cables are too long, the image will not transmit to your HD display. • The NRHD300 is an HDMI repeater. Please connect the NRHD300 closer to the HD display. • The NRHD300 only supports one direction signal stream. Please follow connection instructions.

  • Page 5: Troubleshooting

    • Make sure that your connected devices support 1080p. appear in 1080p • Make sure that your displays are set to support 1080p. For further questions or inquires, please contact NYRIUS customer support at: 1-800-663-5954 or email support@NYRIUS.com - 5 -...

  • Page 6: Specifications

    SPECIFICATIONS OUTPUT port HDMI Receiver (Type A 19-pin female) Gold plated connectors INPUT port HDMI Transmitter (Type A 19-pin female) Operating pixel frequency 25MHz ~ 165MHz range Single Link Range 1080P max. HDMI DDC Signal 5 V p-p (TTL) Input Video Signal 1.2 V p-p Power Supply: DC 5V (HDMI Cable)

  • Page 7: Safety Information

    SAFETY INFORMATION Read all instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 8: Nyrius Warranty

    LIMITED WARRANTY statement to an Authorized NYRIUS Service Centre. In-home warranty service may be provided at NYRIUS discretion on any NYRIUS television with the screen size of 40” or larger. This warranty constitutes the entire express warranty granted by NYRIUS and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of NYRIUS.
