Summary of Contents for Ecosmar+ XL700

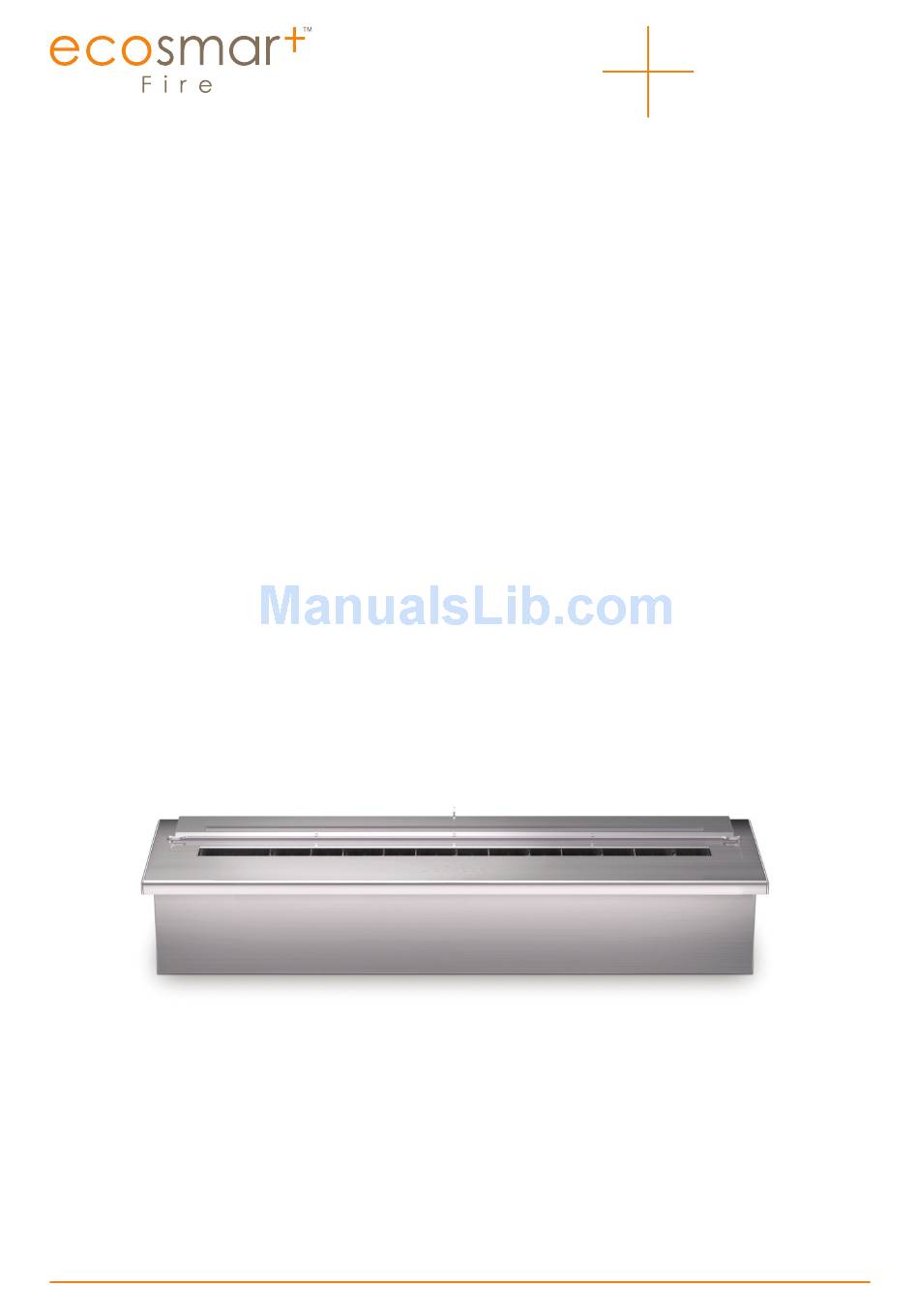

- Page 1 Burner Kit XL700 © Copyright 2004 - 2010 The Fire Company Pty Ltd - International Patent Pending - Trademark Registered - All Designs Registered. www.ecosmartfire.com...
-
Page 2: Model Specifications
The EcoSmart™ Burner is the core product of all EcoSmart™ Fires, being the chamber that houses the fuel. It offers ultimate flexibility due to its modular design which presents you with the opportunity to create an open fire just about anywhere! The EcoSmart™ XL700 Burner can be installed into any setting that complies with our Compulsory Installation and Clearance Specifications. - Page 3 Model Specifications Clearances INSERTING WITHIN A FIREBOX SETTING: The EcoSmart™ XL700 Burner can only be fitted into a non-combustible firebox that has minimum clearances of:- W 900mm [35.4in] x H 500mm [19.7in] x D 350mm [13.7in]. Custom made fireboxes must: - Be made out of a non-combustible material such as stainless steel - Be constructed to accommodate a Top Tray or “Twin Skin”...
- Page 4 - Glass or mirrored surfaces near the EcoSmart™ Fire installation must be toughened SPACERS: When the XL700 Burner is in position, there is usually an air gap around it. Do not pack with insulation or other materials, as the air spacers are required for ventilation.
- Page 5 Burner Kit XL700 Model Specifications Ventilation EcoSmart™ Fires do not require any form of permanent fixture or fitting, such as a flue for ventilation, a permanent gas connection or any kind of fixed utility for fuel supply. Denatured Ethanol* is safe to burn indoors without venting, because its main by-products are carbon dioxide, water steam and heat.
- Page 6 Burner Kit XL700 Burner 14.07 kg 31.03 lbs Material Stainless Steel ISOMETRIC VIEW Scale 1/10 14.07 kg 31.03 lbs Material Stainless Steel [27.6] ISOMETRIC VIEW Scale 1/10 [27.6] TOP VIEW TOP VIEW [26.6] [6.6] FRONT VIEW SIDE VIEW [26.6] [6.6]...
- Page 7 Burner Kit XL700 Conditions of Use 1. For the purposes of this model specification decant and use this fuel. of flammable liquids when ignited. Please we refer to the fuel used in the EcoSmart™ ensure you keep children at a safe distance Fire as Denatured Ethanol*.
